Products Description
Model No.: YB series
Brand: YJ
Warranty: 3years
Brand Name: Yaou
Model Number: Yb2-160l-4w
Usage: Universal
Protect Feature: Explosion-Proof
Structure: Asynchronous Motor
Phase: Three Phase
Warranty Period: 3years
Place Of Origin: China
Certification: Iso
Place Of Origin: Jiangsu, China
Packaging: standard packages
Productivity: 5
Transportation: Ocean,Land,Air,Express
Place of Origin: CHINA
Supply Ability: 50
Certificate: CE
HS Code: 8501109990
Port: SHANGHAI
Payment Type: L/C,T/T
Incoterm: FOB
- Selling Units:
- Piece/Pieces
- Package Type:
- standard packages

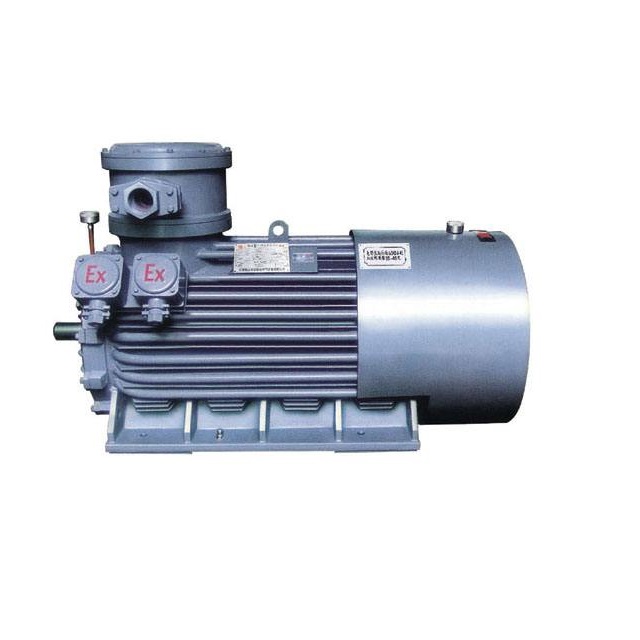

- Picture Example:
-
rpm-1460
EXDIIBT4 typeYB2-160L-4
Overview
Specifications
Place of Origin: Jiangsu, China (Mainland) Brand Name: YAOU
Standard or Nonstandard: Standard
Condition: New Certificate: API
Color: Customer's Request Advantage: high quality with best price
Our products also sold to foreign , such as: Sudan, Algeria, Nigeria, Libya, Niger, Egypt, Myanmar, Iran, Indonesia, Syria, India,
Oman, Kazakhstan, Turkmenistan, Uzbekistan, Venezuela, Cuba; Australia, Russia and so on.
Just one chance, we only sell one, sell out then we will restore the original price! If you Interested pls contact our service, we
will give you detailed pictures of the goods and the data sheet . The lowest price in whole network, assurance the quality!
|
Yb series technical parameters
|
||||||
|
Model
|
Rated power
|
Rated voltage
|
Rated current
|
Rated frequency
|
Speed
|
|
|
(kW)
|
(HP)
|
(V)
|
(A)
|
(Hz)
|
(r/min)
|
|
|
Synchronous speed 3000r / min 2-pole
|
||||||
|
YB-801-2
|
0.75
|
1
|
380
|
1.8
|
50
|
2840
|
|
YB-802-2
|
1.1
|
1.5
|
380
|
2.6
|
50
|
2840
|
|
YB-90S-2
|
1.5
|
2
|
380
|
3.4
|
50
|
2850
|
|
YB-90L-2
|
2.2
|
3
|
380
|
4.8
|
50
|
2850
|
|
YB-100L-2
|
3
|
4
|
380
|
6.2
|
50
|
2870
|
|
YB-112M-2
|
4
|
5.5
|
380/660
|
8.1/4.7
|
50
|
2890
|
|
YB-132S1-2
|
5.5
|
7.5
|
380/660
|
11.1/6.3
|
50
|
2900
|
|
YB-132S2-1
|
7.5
|
10
|
380/660
|
14.8/8.6
|
50
|
2900
|
|
YB-160M1-2
|
11
|
15
|
380/660
|
21.6/12.5
|
50
|
2940
|
|
YB-160M2-1
|
15
|
20
|
380/660
|
28.8/16.6
|
50
|
2940
|
|
YB-160L-2
|
18.5
|
25
|
380/660
|
35.5/20.5
|
50
|
2940
|
|
YB-180M-2
|
22
|
30
|
380/660
|
41/23.7
|
50
|
2950
|
|
YB-200L1-2
|
30
|
40
|
380/660
|
55.5/32.1
|
50
|
2950
|
|
YB-200L2-2
|
37
|
50
|
380/660
|
67.9/39.2
|
50
|
2950
|
|
YB-225M-2
|
45
|
60
|
380/660
|
82.1/47.4
|
50
|
2960
|
|
YB-250M-2
|
55
|
75
|
380/660
|
99.7/57.5
|
50
|
2970
|
|
YB-280S-2
|
75
|
100
|
380/660
|
134.4/77.5
|
50
|
2970
|
|
YB-280M-2
|
90
|
125
|
380/660
|
160.2/92.5
|
50
|
2970
|
|
YB-315S-2
|
110
|
154
|
380/660
|
195.4/112.5
|
50
|
2980
|
|
YB-315M-2
|
132
|
184
|
380/660
|
233.2/134.3
|
50
|
2980
|
|
YB-315L1-2
|
160
|
222
|
380/660
|
279.3/160.8
|
50
|
2980
|
|
YB-315L2-2
|
200
|
279
|
380/660
|
348.4/200.6
|
50
|
2980
|
|
Synchronous speed 1500r / min 4-pole
|
||||||
|
YB-801-4
|
0.55
|
0.75
|
380
|
1.5
|
50
|
1390
|
|
YB-802-4
|
0.75
|
1
|
380
|
2
|
50
|
1390
|
|
YB-90S-4
|
1.1
|
1.5
|
380
|
2.9
|
50
|
1390
|
|
YB-90L-4
|
1.5
|
2
|
380
|
3.7
|
50
|
1390
|
|
YB-100L1-4
|
2.2
|
3
|
380
|
5.1
|
50
|
1420
|
|
YB-100L2-4
|
3
|
4
|
380
|
6.8
|
50
|
1420
|
|
YB-112M-4
|
4
|
5.5
|
380/660
|
8.8/5.1
|
50
|
1430
|
|
YB-132S-4
|
5.5
|
7.5
|
380/660
|
11.5/6.7
|
50
|
1440
|
|
YB-132M-4
|
7.5
|
10
|
380/660
|
15.4/8.9
|
50
|
1440
|
|
YB-160M-4
|
11
|
15
|
380/660
|
22.3/12.9
|
50
|
1460
|
|
YB-160L-4
|
15
|
20
|
380/660
|
30.1/17.4
|
50
|
1460
|
|
YB-180M-4
|
18.5
|
25
|
380/660
|
36.5/21.1
|
50
|
1470
|
|
YB-180L-4
|
22
|
30
|
380/660
|
43.1/24.9
|
50
|
1470
|
|
YB-200L-4
|
30
|
40
|
380/660
|
57.6/33.3
|
50
|
1470
|
|
YB-225S-4
|
37
|
50
|
380/660
|
69.9/40.3
|
50
|
1480
|
|
YB-225M-4
|
45
|
60
|
380/660
|
84.7/48.9
|
50
|
1480
|
|
YB-250M-4
|
55
|
75
|
380/660
|
102.7/59.3
|
50
|
1480
|
|
YB-280S-4
|
75
|
100
|
380/660
|
139.6/80.6
|
50
|
1480
|
|
YB-280M-4
|
90
|
125
|
380/660
|
166.9/96.3
|
50
|
1480
|
|
YB-315S-4
|
110
|
154
|
380/660
|
198.7/114.4
|
50
|
1485
|
|
YB-315M-4
|
132
|
184
|
380/660
|
237.7/136.9
|
50
|
1485
|
|
YB-315L1-4
|
160
|
222
|
380/660
|
284.3/163.7
|
50
|
1485
|
|
YB-315L2-4
|
200
|
279
|
380/660
|
354.7/204.2
|
50
|
1485
|
|
Synchronous speed: 1000r / min, 6 poles
|
||||||
|
YB-801-6
|
0.37
|
0.5
|
380
|
1.3
|
50
|
890
|
|
YB-802-6
|
0.55
|
0.75
|
380
|
1.7
|
50
|
890
|
|
YB-90S-6
|
0.75
|
1
|
380
|
2.3
|
50
|
910
|
|
YB-90L-6
|
1.1
|
1.5
|
380
|
3.1
|
50
|
910
|
|
YB-100L-6
|
1.5
|
2
|
380
|
3.9
|
50
|
930
|
|
YB-112M-6
|
2.2
|
3
|
380
|
5.6
|
50
|
940
|
|
YB-132S1-6
|
3
|
4
|
380
|
7.3
|
50
|
970
|
|
YB-132S2-6
|
4
|
5.5
|
380/660
|
9.4/5.4
|
50
|
970
|
|
YB-160M1-6
|
5.5
|
7.5
|
380/660
|
12.6/7.2
|
50
|
970
|
|
YB-160M2-6
|
7.5
|
10
|
380/660
|
16.8/9.7
|
50
|
970
|
|
YB-160L-6
|
11
|
15
|
380/660
|
24.3/14
|
50
|
970
|
|
YB-180M-6
|
15
|
20
|
380/660
|
31.6/18.3
|
50
|
980
|
|
YB-200L1-6
|
18.5
|
25
|
380/660
|
37.6/21.7
|
50
|
980
|
|
YB-200L2-6
|
22
|
30
|
380/660
|
44.7/25.8
|
50
|
980
|
|
YB-225M-6
|
30
|
40
|
380/660
|
57.6/33.3
|
50
|
980
|
|
YB-250M-6
|
37
|
50
|
380/660
|
69.8/40.3
|
50
|
980
|
|
YB-280S-6
|
45
|
60
|
380/660
|
85.9/49.6
|
50
|
990
|
|
YB-280M-6
|
55
|
75
|
380/660
|
104.7/60.5
|
50
|
990
|
|
YB-315S-6
|
75
|
100
|
380/660
|
141.7/81.6
|
50
|
990
|
|
YB-315M-6
|
90
|
125
|
380/660
|
169.5/97.6
|
50
|
990
|
|
YB-315L1-6
|
110
|
154
|
380/660
|
206.7/119
|
50
|
990
|
|
YB-315L2-6
|
132
|
184
|
380/660
|
244.7/140.9
|
50
|
990
|
|
Synchronous speed 750r / min 8-pole
|
||||||
|
YB-801-8
|
0.18
|
0.25
|
380
|
0.8
|
50
|
650
|
|
YB-802-8
|
0.25
|
0.34
|
380
|
1.1
|
50
|
650
|
|
YB-90S-8
|
0.37
|
0.5
|
380
|
1.4
|
50
|
670
|
|
YB-90L-8
|
0.55
|
0.75
|
380
|
2.1
|
50
|
670
|
|
YB-100L1-8
|
0.75
|
1
|
380
|
2.4
|
50
|
690
|
|
YB-100L2-8
|
1.1
|
1.5
|
380
|
3.3
|
50
|
690
|
|
YB-112M-8
|
1.5
|
2
|
380
|
4.4
|
50
|
690
|
|
YB-132S-8
|
2.2
|
3
|
380
|
5.6
|
50
|
710
|
|
YB-132M-8
|
3
|
4
|
380
|
7.6
|
50
|
710
|
|
YB-160M-8
|
4
|
5.5
|
380/660
|
10.3/5.9
|
50
|
720
|
|
YB-160L-8
|
5.5
|
7.5
|
380/660
|
13.4/7.8
|
50
|
720
|
|
YB-180M-8
|
7.5
|
10
|
380/660
|
17.5/10.1
|
50
|
720
|
|
YB-180L-8
|
11
|
15
|
380/660
|
25.3/14.6
|
50
|
730
|
|
YB-200L-8
|
15
|
20
|
380/660
|
33.7/19.5
|
50
|
730
|
|
YB-225S-8
|
18.5
|
25
|
380/660
|
40/23.1
|
50
|
740
|
|
YB-225M-8
|
22
|
30
|
380/660
|
47.4/27.3
|
50
|
740
|
|
YB-250M-8
|
30
|
40
|
380/660
|
63.4/36.6
|
50
|
740
|
|
YB-280S-8
|
37
|
50
|
380/660
|
77.8/44.9
|
50
|
740
|
|
YB-280M-8
|
45
|
60
|
380/660
|
94.1/54.3
|
50
|
740
|
|
YB-315S-8
|
55
|
75
|
380/660
|
111.2/64
|
50
|
740
|
|
YB-315M-8
|
75
|
100
|
380/660
|
151.3/87.1
|
50
|
740
|
|
YB-315L1-8
|
90
|
125
|
380/660
|
177.8/102.4
|
50
|
740
|
|
YB-315L2-8
|
110
|
154
|
380/660
|
216.8/124.8
|
50
|
740
|
|
Synchronous speed 600r / min 10 pole
|
||||||
|
YB-315S-10
|
45
|
60
|
380/660
|
99.1/57.1
|
50
|
585
|
|
YB-315M-10
|
55
|
75
|
380/660
|
121.1/69.7
|
50
|
585
|
|
YB-315L1-10
|
75
|
100
|
380/660
|
162.1/93.3
|
50
|
585
|
|
YB-315L2-10
|
90
|
125
|
380/660
|
191/110
|
50
|
585
|

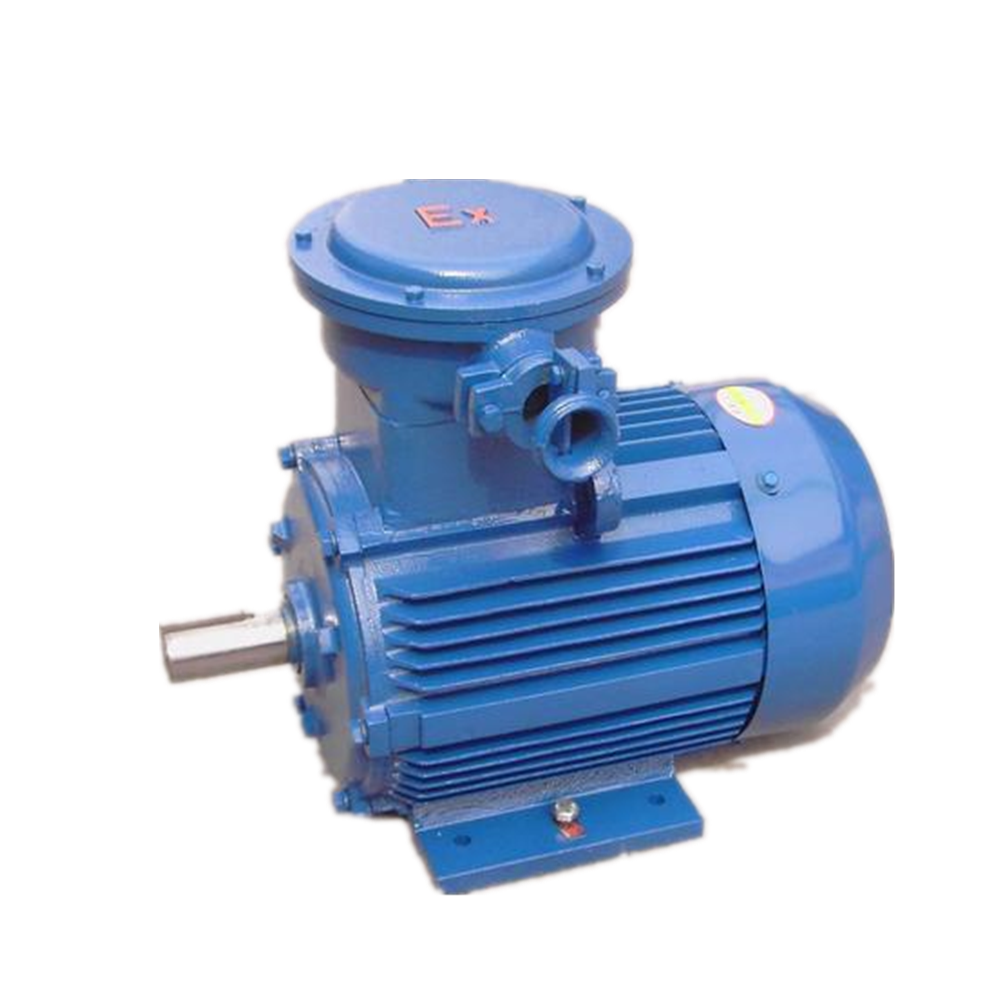

Details Images
Product packaging
Transportation is based on customers in different regions using steam, rail, road and air transportation.
Rugao You Inport & Export Co. LTD was established in 2004, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.
Our company mainly deals in Hardware Tools, combined tools, electric tools, Special Tools For Petroleum, Metal Processing Machinery and petroleum drilling equipment. Diagonal Cutting Plier，Oil Drill Pipes，Drilling Tools，Diesel Engine Etc.Our companyoperates hardware tools and has established long-term and stable cooperative relations with many retailers.
Main products:
1. Drill Pipe, Heavy Drill Pipe, Square & Hexagonal Kelly
2. Drill Collar & Non-magnetic Drill Collar
3. Stabilizers, Reamer, Hole Opener, Casing Scraper, etc
4. Kelly Valve, Safety valve, Check Valve , and float valve
5. Hydraulic or Mechanical Drilling Jar, and Absorber
6. Fishing tools (Bowen serials), including overshot, spear, etc
7. Junk Mill, Casing Cutter, Safety Joint, etc
8. Hydraulic Bucking unit, Screw up and breakout Unit, Down hole motor tester, Jar tester, etc.
9 .Down hole motor
10. Processing Machinery: shears, bending machines, hydraulic presses, bending machines, etc.
11. Various coal mine winches, oil field winches, ship winches, etc.
12. Various hand tools and electric tools.
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost)
2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machineQ1. How to get an accurate quotation?.
