Products Description
Model No.: YB2-160M2-2
Brand: NY
Warranty: 3years
Brand Name: Yaou
Model Number: Yb2-160m
Usage: Universal
Protect Feature: Explosion-Proof
Structure: Asynchronous Motor
Phase: Three Phase
Warranty Period: 3years
Place Of Origin: China
Certification: Iso
Place Of Origin: Jiangsu, China
Packaging: standard packages
Productivity: 100
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 100
Certificate: ccc
HS Code: 8501320000
Port: Shanghai
Payment Type: T/T,L/C,Paypal
Incoterm: FOB
- Selling Units:
- Piece/Pieces
- Single package size:
- 68cm*50cm*50cm
- Single gross weight:
- 150kg
- Package Type:
- standard packages

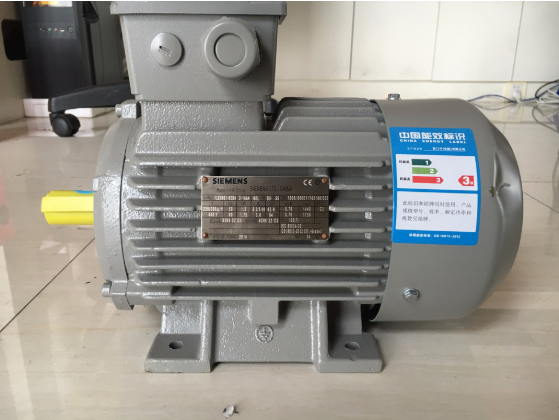

- Picture Example:
-
low-voltage motor
Design Features
Superseding the old generation of series YB, series YB2 flameproof three phase induction motors, the basic series of flameproof motors, are developed and manufactured by our company, this series motors are of remarkable features, such as compact construction, lightweight, attractive appearance, safe and reliable operation, long operation life, excellent performance and easy maintenance. For this series motors, the output ratings and mounting dimensions conform to the specifications of IEC standard and the correlation between them basically agrees with EIN42673, the motors are easy to complete with export machinery and equipment and to supply as spare accessories in the import equipment. This series motors are designed and manufactured into flameproof type and the flameproof property conforms to China National Standards: GB3836. 1-2000 Electrical apparatus for explosive gas atmospheres General requirements GB3836. 2-2000 Electrical apparatus for explosive gas atmospheres Flameproof enclosure'd' And standards IEC79-1, BS4683 AND EN50018. The explosion protection marks aare ExdI, ExdIIAT4, ExdIIBT4, they are safe to use in the locations where there are explosive mixtures of gas and vaporair.
YB2 series explosion-proof motor detail parameter table
|
Model
|
Rated power
|
Rated current
|
Rated speed
|
Efficiency%
|
Power factor
|
Rated torque
|
|
(kW)
|
(A)
|
(r/min)
|
(η%)
|
(cosφ)
|
N.m
|
|
|
Synchronous speed 3000r/min
|
||||||
|
yb2-100L-2
|
3
|
6
|
2891
|
87.1
|
0.87
|
9.9
|
|
yb2-160M1-2
|
11
|
20.6
|
2930
|
91.2
|
0.89
|
35.9
|
|
yb2-160M2-2
|
15
|
27.9
|
2930
|
91.9
|
0.89
|
48.9
|
|
yb2-160L-4
|
15
|
28.8
|
1460
|
92.1
|
0.86
|
98.1
|
|
Model
|
Stalled torque
|
Stall current
|
Max.Torque
|
Noise db(A)
|
Weight
|
|
|
Rated torque
|
Rated current
|
Rated torque
|
|
(kg)
|
|
|
|
Tst / TN
|
Ist / TN
|
Tmax / TN
|
|
|
|
|
|
Synchronous speed 3000r/min
|
|
|||||
|
yb2-100L-2
|
2.3
|
8.1
|
2.3
|
76
|
57
|
|
|
yb2-160M1-2
|
2.2
|
7.9
|
2.3
|
86
|
136
|
|
|
yb2-160M2-2
|
2.2
|
8
|
2.3
|
86
|
144
|
|
|
yb2-160L-4
|
2.2
|
7.5
|
2.3
|
75
|
153
|
|

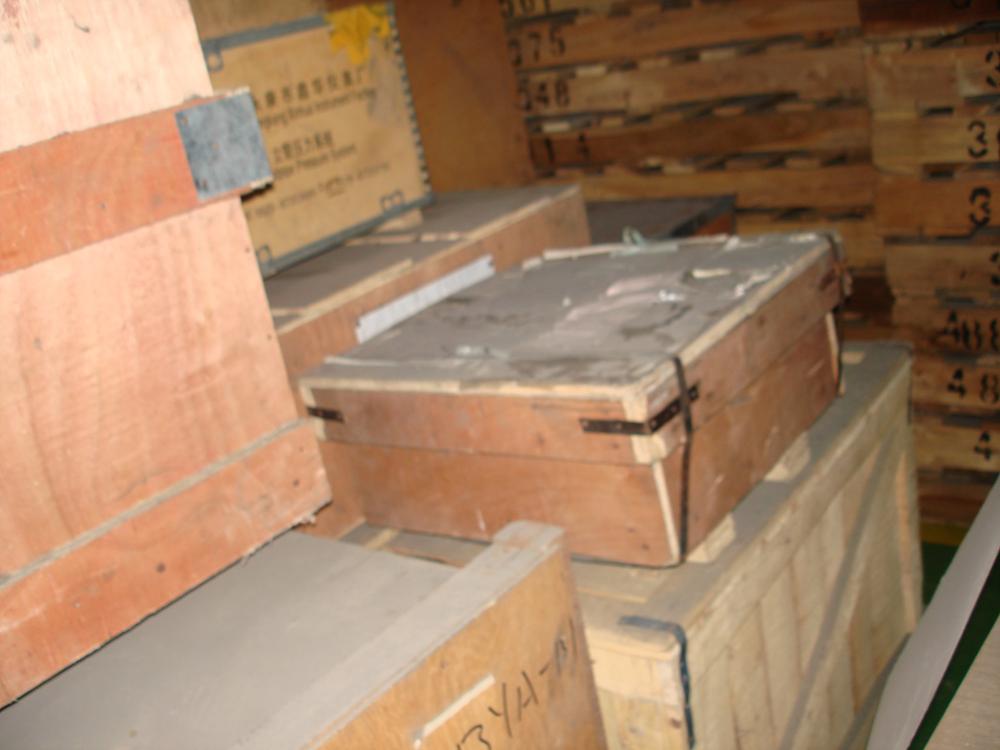

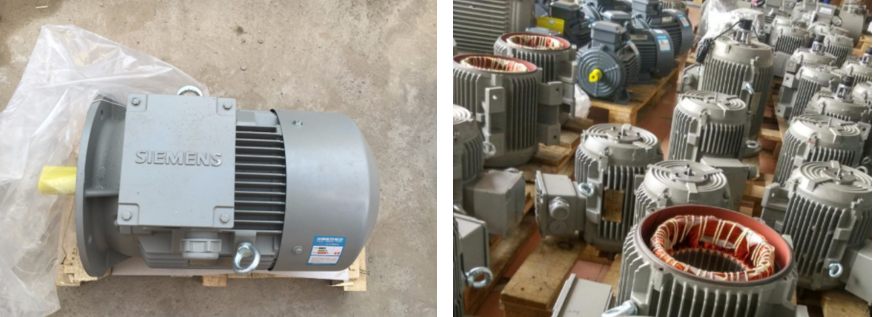

Product packaging
According to the volume and weight of the product and export requirements, provide multi-layer boxes and iron box packaging.
Transportation is based on customers in different regions using steam, rail, road and air transportation.
Our company mainly deals in Hardware Tools, combined tools, electric tools, Special Tools For Petroleum, Metal Processing Machinery and petroleum drilling equipment. Diagonal Cutting Plier，Oil Drill Pipes，Drilling Tools，Diesel Engine Etc.Our companyoperates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost)
2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machineQ1. How to get an accurate quotation?.
Rugao Yaou Import & Export Co. LTD was established in 2004, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.
Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. Our company also operates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.
Tags:
Technical parameter

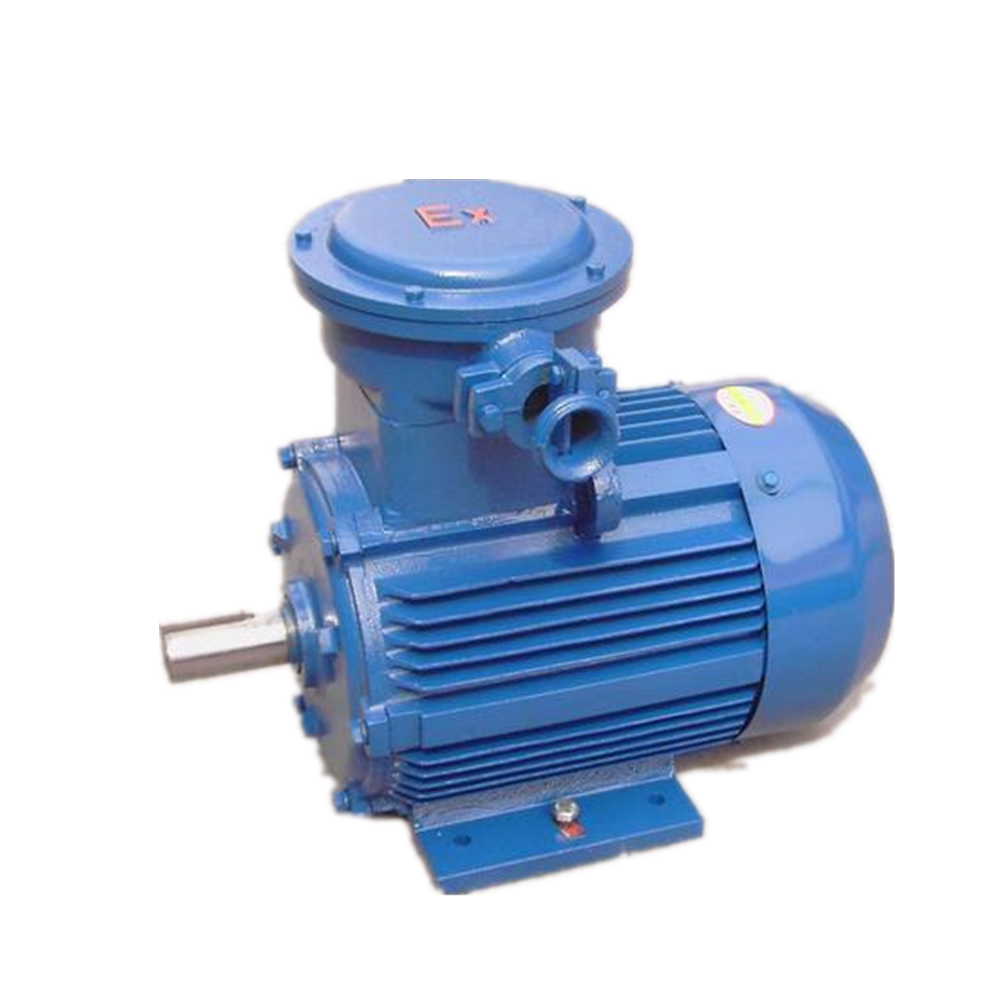

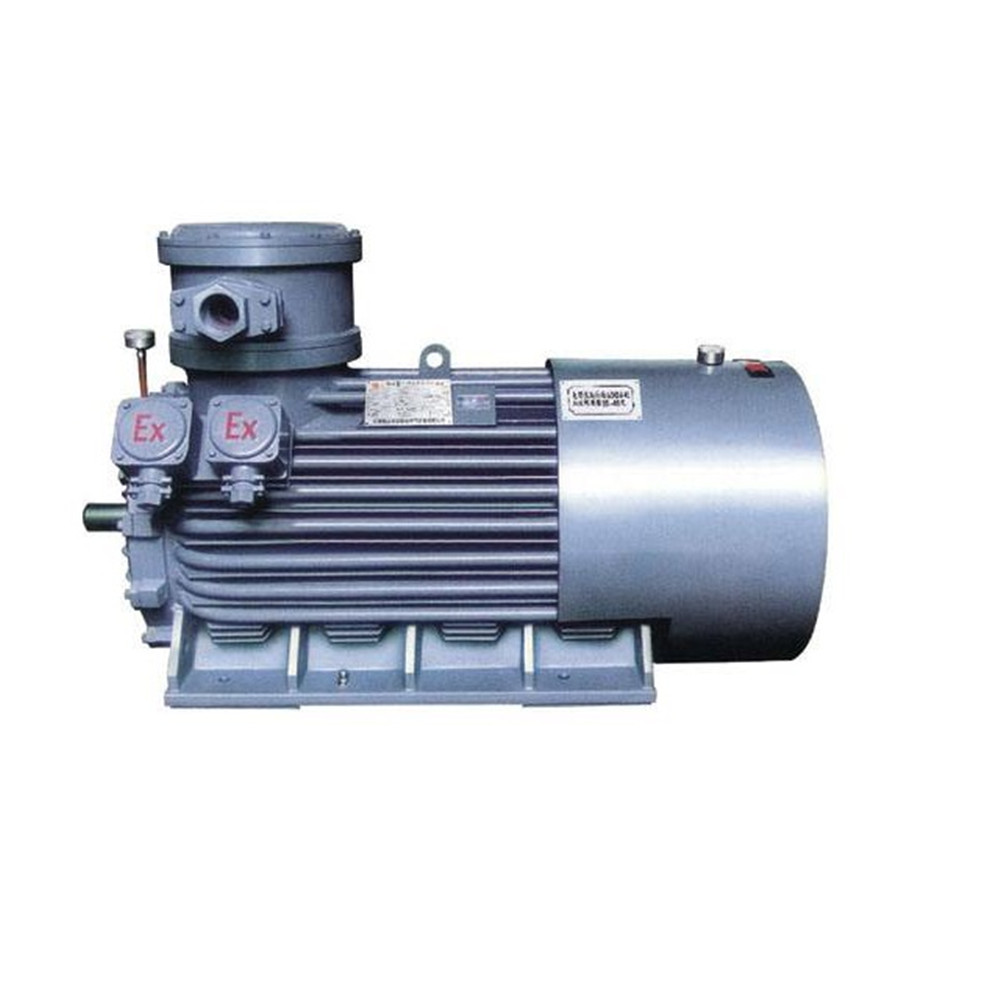

YB2-160M2-2 series explosion-proof electric motor 1

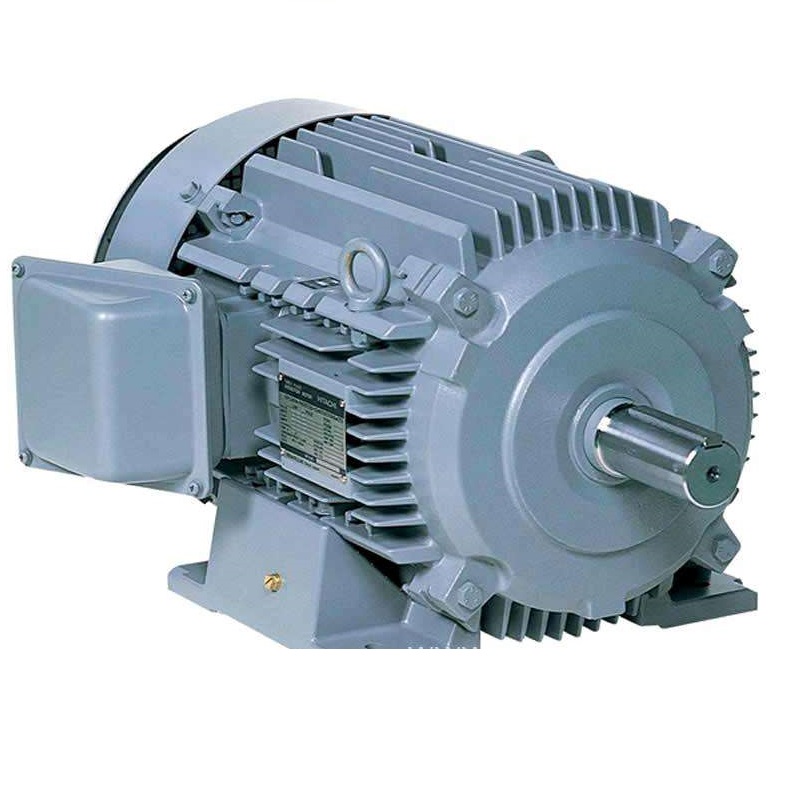

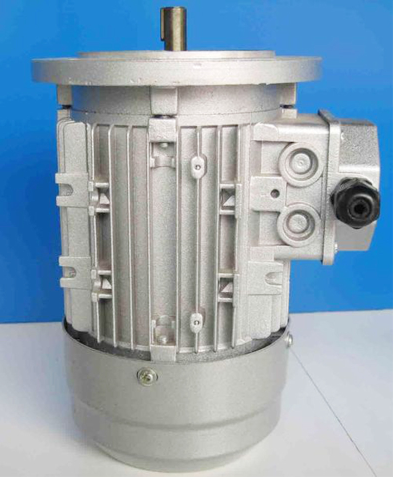

YB2-160M2-2 series explosion-proof electric motor 2

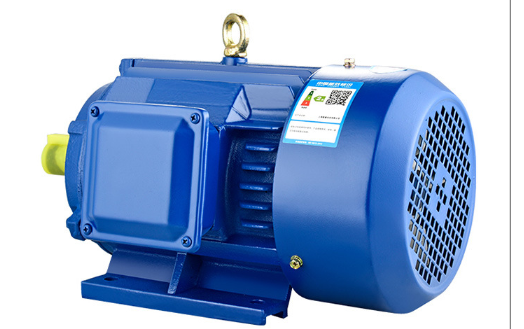

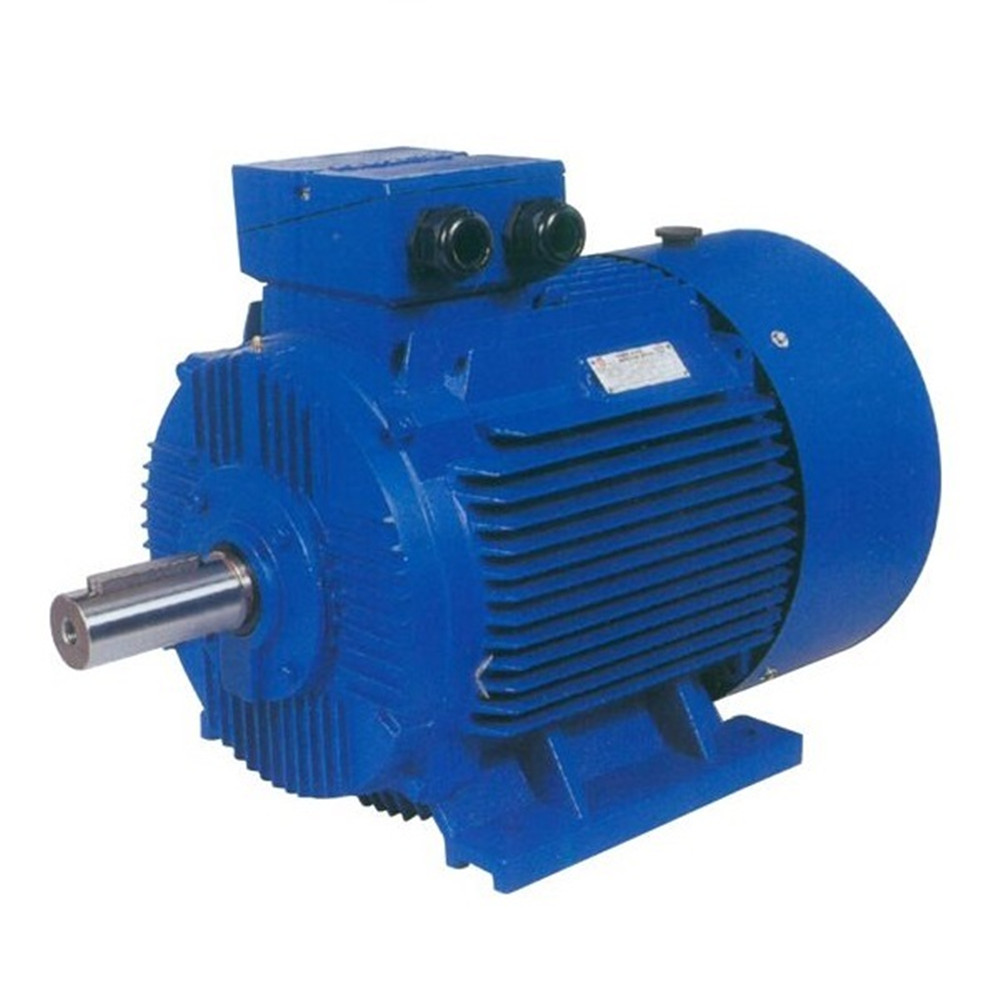

YB2-160M2-2 series explosion-proof electric motor 3

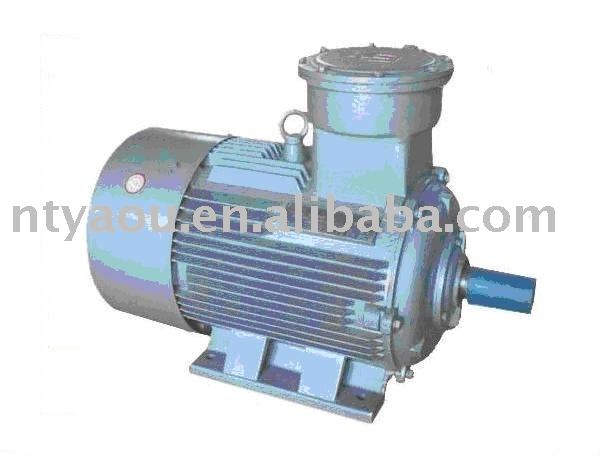

YB2-160M2-2 series explosion-proof electric motor 4

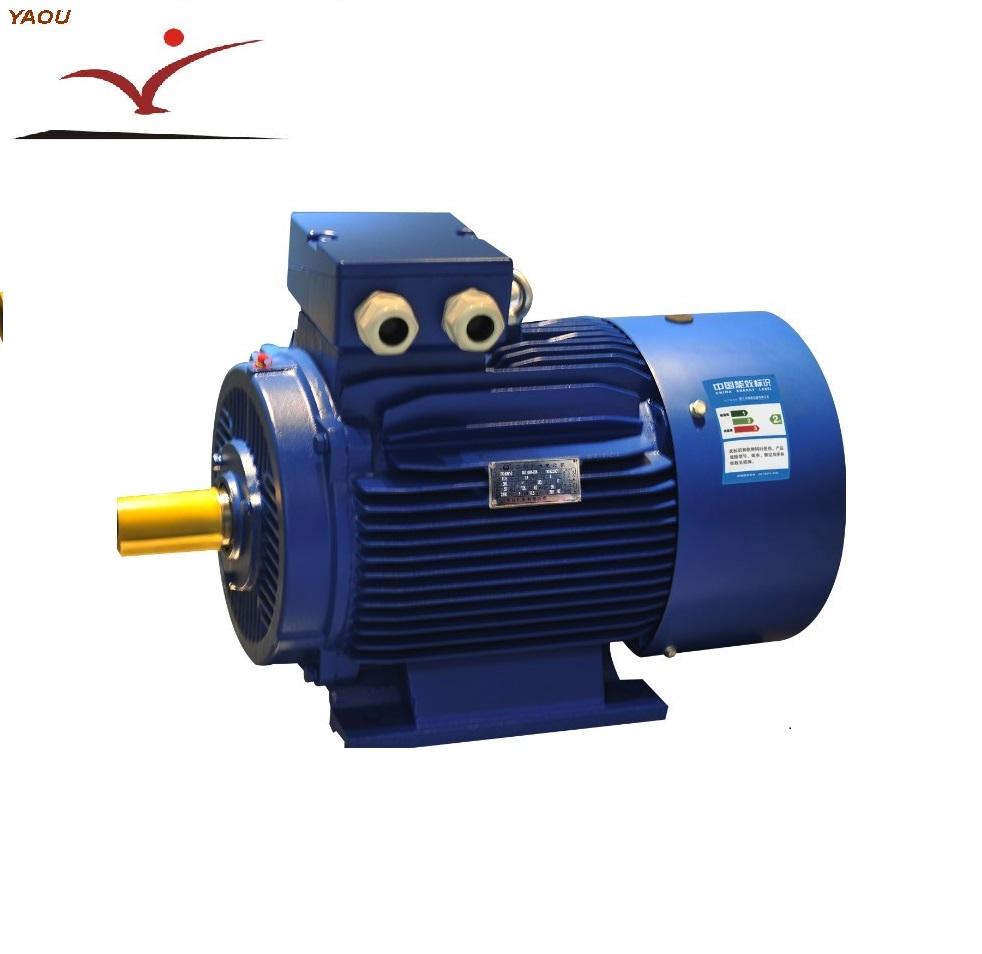

YB2-160M2-2 series explosion-proof electric motor 5
