Motor Petroleum mining equipment drilling rig

Description

Argument

Products Description

Overview

Product Attributes

Model No.: YZ10 DC

Usage: Oil Well

Applicable Industries: Energy & Mining

Local Service Location: Egypt, Turkey, Germany, Viet Nam, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Morocco, Kenya, Chile, Uae, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan

Showroom Location: Egypt, Uae, Uzbekistan

Condition: New

Type: Rotary Drilling Rig

Power Type: Electric

Brand Name: Yj

Model Number: Yz 10

Dimension(L*W*H): 800*600*800

Warranty: 1 Year

After-sales Service Provided: Video Technical Support

Use: Oil Well

Applicable Industry: Energy &Amp; Mining

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Uae, Uzbekistan, Bangladesh, Russia, Mexico, India, Pakistan, Tajikistan, Turkey, Italy

Showroom Location (in Which Countries Are There Sample Rooms Overseas): Uae, Uzbekistan

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Motor

Status: New

Types Of: Rotary Drilling Rig

Engine Type: Electric

Place Of Origin: China

Warranty Period: 1 Year

Place Of Origin: Jiangsu, China

Voltage: 750v

Weight: 300

Certification: Api

Supply Ability & Additional Information

Packaging: Standard export packaging

Productivity: 10

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 10

Port: shanghai

Payment Type: L/C,T/T

Incoterm: FOB

Packaging & Delivery

Selling Units:: Piece/Pieces

Package Type:: Standard export packaging

Picture Example:

Product Description

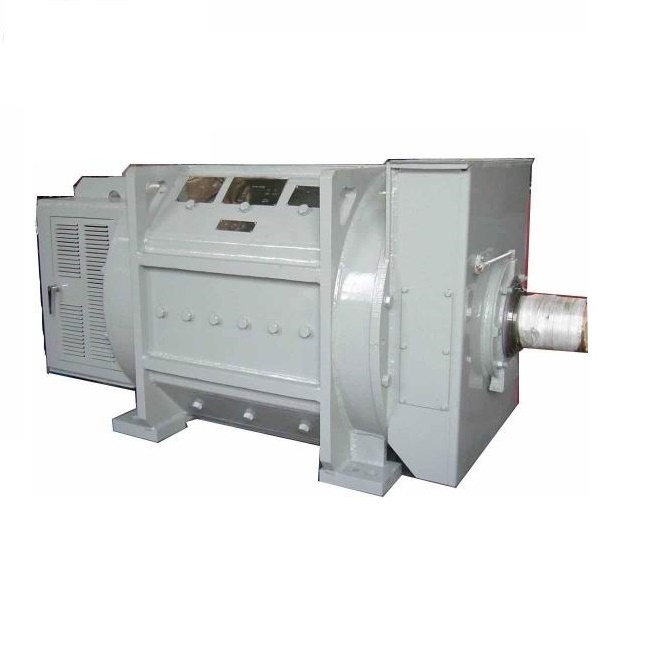

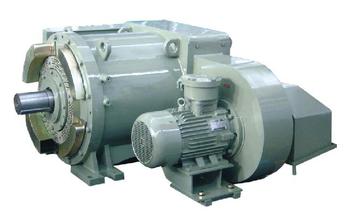

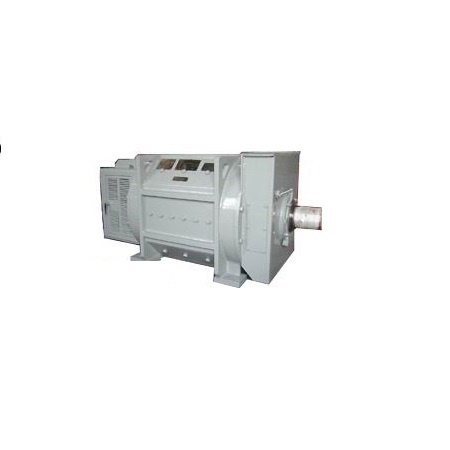

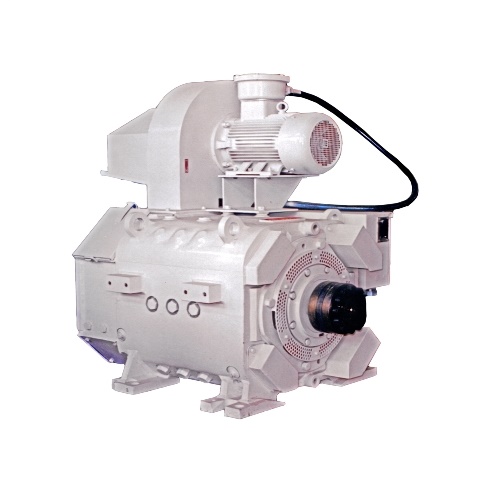

YZ10 DC motor

YZ10 DC motor is a separately excited high power DC motor designed for electric drive oil drilling machine in the top drive unit. It is the powerful top drive motor at present in China.The international advanced technology has been adopted in it such as Kapton insulation process, main pole coils formed by hot pressing, pressed and welded frame, spiral slot of commutator, reacting brush holder, wire banding, etc. The motor's main features are: vertical double shaft extension structure, plus pressure explosion-proof, direct thermometry, directive tachometry, heavy current, high torque, wide range constant power speed regulating, free maintenance, high universality, efficiency and reliability. Both of the data and performance can reach the standard of imported oil drilling motor. The oil drilling motor can be used instead of the imported one. The motor can also function as rotary table motor or winch motor of DC electric drive drilling machine.

Parameter

Rated power	800Kw
Rated voltage	750V
Rated current	1150A
Rated rotating speed	1060 r/min
Rated efficiency	92.70%
Rated torque	7325.5N.m
Max.current	1600A
Max.torque	9450N.m
Max.rotating speed	1500r/min
Excitation Separately
Excitation current	60A
Excitation voltage	150V
Insulation class	H/H
Mass	3500Kg
Cooling Forced air
Protection class Plus pressure explosion-proof.

Company Information

Rugao You Inport & Export Co. LTD was established in 2004, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.

Packaging & Shipping

According to the volume and weight of the product and export requirements, provide multi-layer boxes and iron box packaging.

Transportation is based on customers in different regions using steam, rail, road and air transportation.

Our company mainly deals in Hardware Tools, combined tools, electric tools, Special Tools For Petroleum, Metal Processing Machinery and petroleum drilling equipment. Diagonal Cutting Plier，Oil Drill Pipes，Drilling Tools，Diesel Engine Etc.Our companyoperates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers

FAQ

Q1. How to get an accurate quotation?

A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,

Q2. What if I use this machine for the first time and know nothing of it ?

A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.

Q3. How does your factory do regarding quality control?

A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .

Q4. How about your delivery time?

A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.

Q5. What is the warrantee period of the machine?

A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.

Q6. after-sales service

A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and

accommodation cost)

2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machineQ1. How to get an accurate quotation?

Company Overview

Rugao Yaou Import & Export Co. LTD was established in 2004, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.

Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. Our company also operates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.

Company Photos
