Products Description
Model No.: YB2-160L-4
Brand: NY
Warranty: 3years
Brand Name: Ny
Model Number: Yb2-160m1-2
Type: Asynchronous Motor
Phase: Three-Phase
Certification: Ccc
Protect Feature: Explosion-Proof
AC Voltage: 380v
Efficiency: Ie 4
Warranty Period: 3years
Place Of Origin: China
Types Of: Brush Motor
Authentication Type: Ccc, Ce
Protection Characteristics: Explosion-Proof
Voltage: 460 / 480 V
Motor Efficiency: Ie 4
Place Of Origin: Jiangsu, China
Frequency: 50hz
Packaging: Multilayer packaging
Productivity: 100
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 100
Certificate: CCC
HS Code: 8501320000
Port: Shanghai
Payment Type: L/C,T/T
Incoterm: FOB
- Selling Units:
- Set/Sets
- Single package size:
- 45cm*40cm*40cm
- Single gross weight:
- 160kg
- Package Type:
- Multilayer packaging
- Picture Example:
-
Product Description

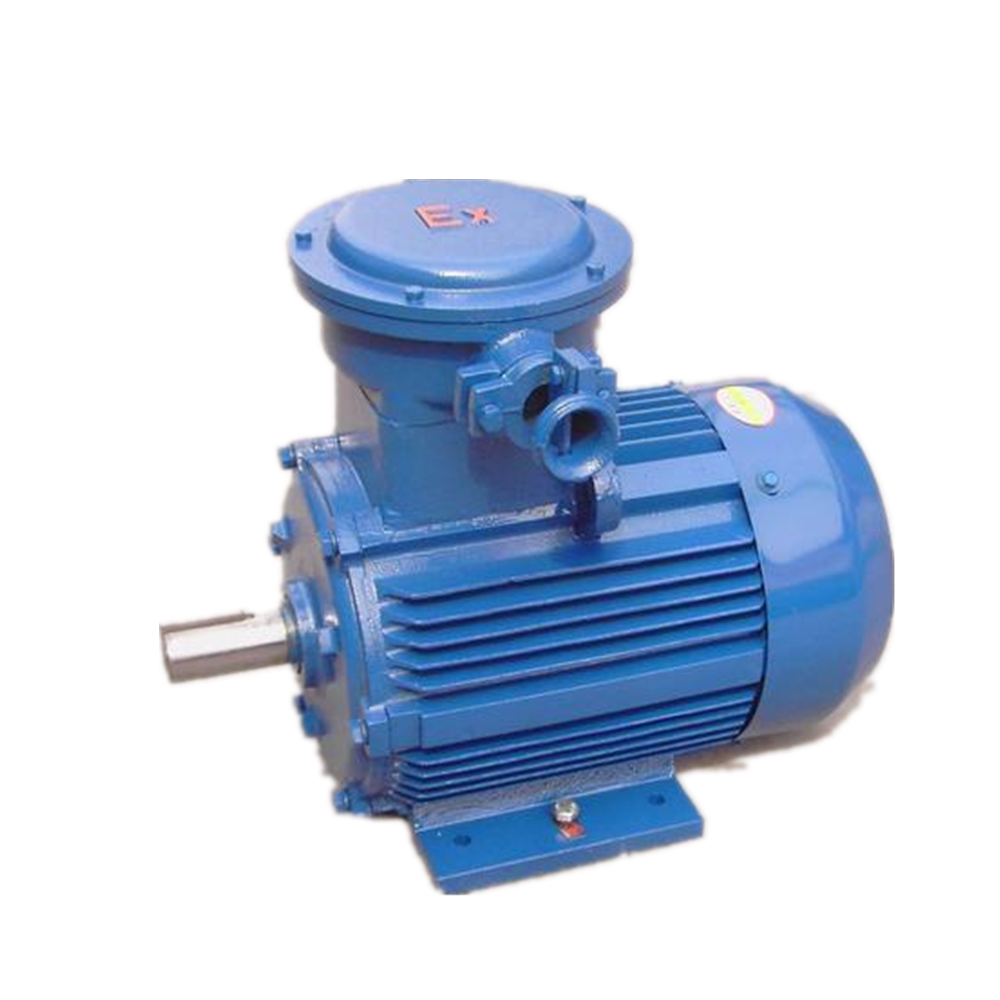

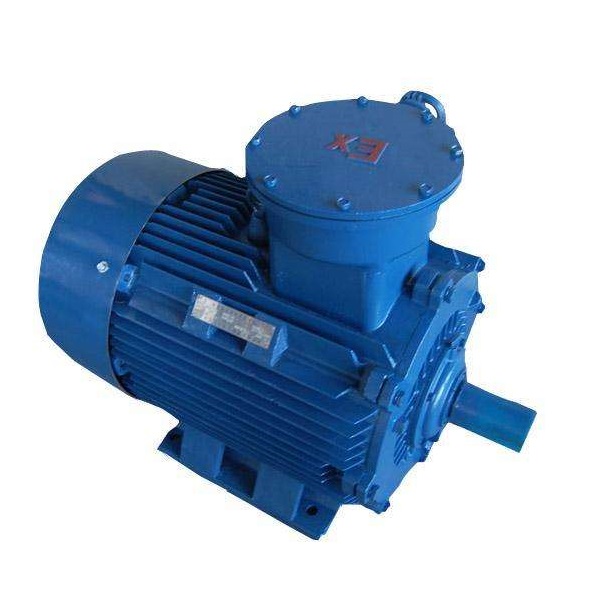

YB2 series motor introduction:
YB2 series flameproof three-phase asynchronous motor technical specifications (frame size 63 ~ 355). The standard number is
JB7565-1999. According to GB3836.1-2000 Electrical equipment for explosive gas environment: General requirements and GB3836.2-2000
"Electrical equipment for explosive gas environment Part 2: Explosion-proof type:" d "" Requirements, made of flameproof.
Explosion-proof mark is EXDI, ExdⅡAT4, ExdⅡBT4. It is suitable for underground mine fixed equipment (ExdI) containing methane or
coal dust or containing explosive class Ⅱ, A, B grade T1 ~ T4 group of explosive gas or air and explosive content It is used as
general power equipment on the equipment in the premises.
|
Model
|
YB2-100-2
|
YB2-160L-4W
|
YB2-160M1-2
|
YB2-160M2-2
|
|
Rated power (kW)
|
3
|
15
|
11
|
15
|
|
Rated current (A)
|
6.0
|
28.8
|
20.6
|
27.9
|
|
Rated speed (r / min)
|
2891
|
1460
|
2930
|
2930
|
|
Efficiency (η%)
|
87.1
|
92.1
|
91.2
|
91.9
|
|
Power factor (cosφ)
|
0.87
|
0.86
|
0.89
|
0.89
|
|
Rated torque N.m
|
9.9
|
98.1
|
35.9
|
48.9
|
|
Stalled torque Rated torque Tst TN
|
2.3
|
2.2
|
2.2
|
2.2
|
|
Stall current Rated current Tst TN
|
8.1
|
7.5
|
7.9
|
8.0
|
|
Torque Rated torque Tmax TN
|
2.3
|
2.3
|
2.3
|
2.3
|
|
Noise db (A)
|
76
|
75
|
86
|
86
|
|
Weight (kg)
|
57
|
153
|
136
|
144
|
(1). The ambient air temperature varies with the season, but does not exceed 35 ° C (under the coal mine) or 40 ° C (factory), and the ambient air temperature is -15 ° C.
(2). The altitude does not exceed 1000M.
(3) The relative temperature of the ambient air does not exceed 95% (when the temperature is 25 ° C) (under the coal mine) or the wettest monthly average relative humidity is 90%, and the average monthly temperature of the month is not higher than 25 ° C
(5). The rated frequency is 50Hz.
(6) The rating of the explosion-proof motor is a continuous rating based on the continuous working system (S1), which allows full-voltage starting.
(7) The motor adopts F-level insulation, and the temperature rise (resistance method) of the winding is determined as 80K (among which, the frame size of 315L is 2.4 and the frame size is 355, which is allowed to be evaluated as 105K). ).
