Products Description
Model No.: YZ08A
Brand: YJ
Place Of Origin: China
Status: New
Warranty Period: 1.5 Years
Service System: Overseas Third-Party Support Available
Applicable Industry: Energy &Amp; Mining
Out-of-warranty Service: Video Technical Support
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Uae, Uzbekistan, Russia, India, Pakistan, Indonesia, Saudi Arabia, Tajikistan, Bangladesh, Kazakhstan, Kyrgyzstan
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Uae, Uzbekistan
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: New Product 2020
Core Component Warranty Period: 1 Year
Core Components: Motor
Certification: Ccc
Place Of Origin: Jiangsu, China
Commutation: Brush
Protect Feature: Explosion-Proof
Efficiency: Ie 4
Brand Name: Yaou
Model Number: Yz08
Usage: Boat, Home Appliance, Other, Industrial
Type: Gear Motor
Construction: Series Wound
Speed(RPM): 970r/Min
Continuous Current(A): 1150a
Voltage(V): 220v/380v/460v
Output Power: 800kw
Torque: Requests
Packaging: standard packages
Productivity: 5
Transportation: Ocean,Land
Place of Origin: CHINA
Supply Ability: 10 Set/Sets per Day
Certificate: CE
HS Code: 8501109990
Port: CHINA
Payment Type: L/C,T/T
Incoterm: FOB
- Selling Units:
- Set/Sets
- Package Type:
- standard packages
Modle:YZ08 and YZ08A DC motor
YZ08 and YZ08A DC motor
Specifications
YZ08 and YZ08A DC motor are high power series excited DC motor developed for electric drive oil drilling machine.
Type YZ08 DC Drill Motor
YZ08 and YZ08A DC motor are high power series excited DC motor developed for electric drive oil drilling machine. The international advanced technology has been adopted in it such as Kapton insulation process, main pole coils formed by hot pressing, pressed and welded frame, spiral slot of commutator, reacting brush holder, wire banding etc. The main features of the motors are as follows: plus pressure explosion-proof, high current, large torque, wide range constant power speed regulating, free maintenance, high universality, efficiency and reliability. Their outline installation dimension is strictly in accordance with that of imported DC oil drilling motor. The oil drilling motor can be used instead of the imported one. They can function as slurry Pump motor, rotary table motor and winch motor of DC electric drive drilling machine. Facing from the driving end, the terminal out of YZ08 is on the right side, and from YZ08A is on the left side.
|
Rated power |
800Kw |
|
Rated voltage |
750V |
|
Rated current |
1150A |
|
Rated rotating speed |
970r/min |
|
Rated efficiency |
93% |
|
Rated torque |
8033.7N.m |
|
Max. current |
1600A |
|
Max. torque |
12206.4N.m |
|
Max.rotating speed |
1500r/min |
|
Exciting |
series |
|
Insulation class |
H/H |
|
Cooling |
Forced air |
|
Protection class |
Plus pressure explosion-proof |
|
Mass |
3200Kg |
Our company mainly deals in Hardware Tools, combined tools, electric tools, Special Tools For Petroleum, Metal Processing Machinery and petroleum drilling equipment. Diagonal Cutting Plier，Oil Drill Pipes，Drilling Tools，Diesel Engine Etc.Our companyoperates hardware tools and has established long-term and stable cooperative relations with many retailers.
Main products:
1. Drill Pipe, Heavy Drill Pipe, Square & Hexagonal Kelly
2. Drill Collar & Non-magnetic Drill Collar
3. Stabilizers, Reamer, Hole Opener, Casing Scraper, etc
4. Kelly Valve, Safety valve, Check Valve , and float valve
5. Hydraulic or Mechanical Drilling Jar, and Absorber
6. Fishing tools (Bowen serials), including overshot, spear, etc
7. Junk Mill, Casing Cutter, Safety Joint, etc
8. Hydraulic Bucking unit, Screw up and breakout Unit, Down hole motor tester, Jar tester, etc.
9 .Down hole motor
10. Processing Machinery: shears, bending machines, hydraulic presses, bending machines, etc.
11. Various coal mine winches, oil field winches, ship winches, etc.
12. Various hand tools and electric tools.
Tags:
Technical parameter

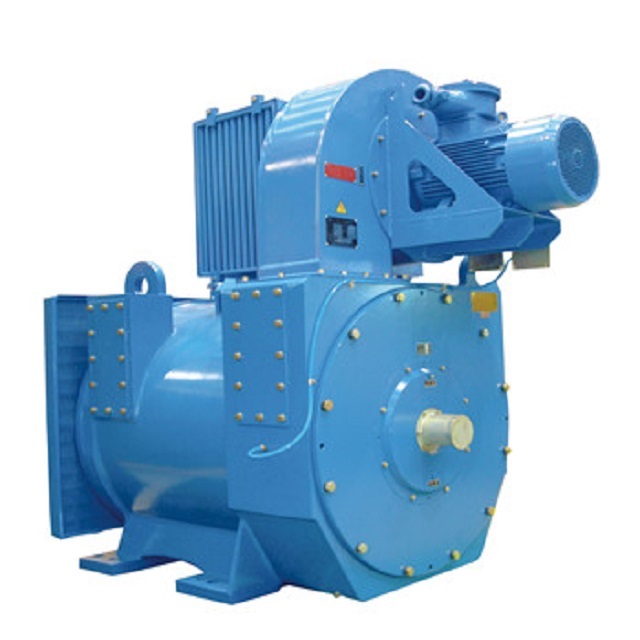

YZ08A DC motor Effective Drilling Rig Motor 1
