Products Description
Model No.: JCZ-1
Place Of Origin: China
Current Type: Ac, Vacuum, Dc
Number Of Electrodes: 3
Phase: 3
Rated Coil Voltage: 380v
Rated Coil Current: 630a, 400a, 150a, 100a, 200a
- Selling Units:
- Set/Sets
- Single package size:
- 34cm*24cm*65cm
- Single gross weight:
- 12kg
- Package Type:
- carton
- Picture Example:
-
- Lead Time :
-
Quantity（Set/Sets） 1 >1 Est. Time（days) 5 To be negotiated If you finish the payment today, your order will ship out within the delivery date.

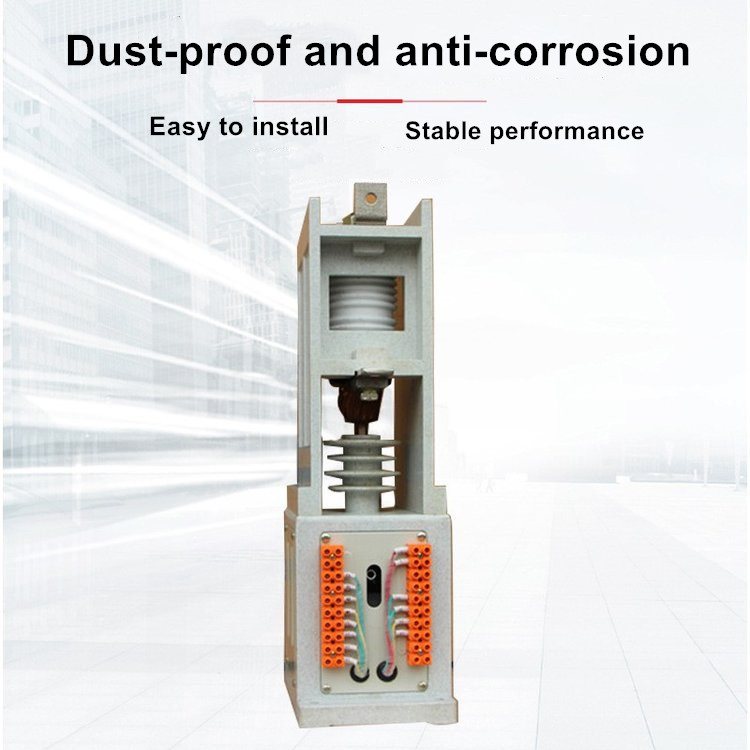

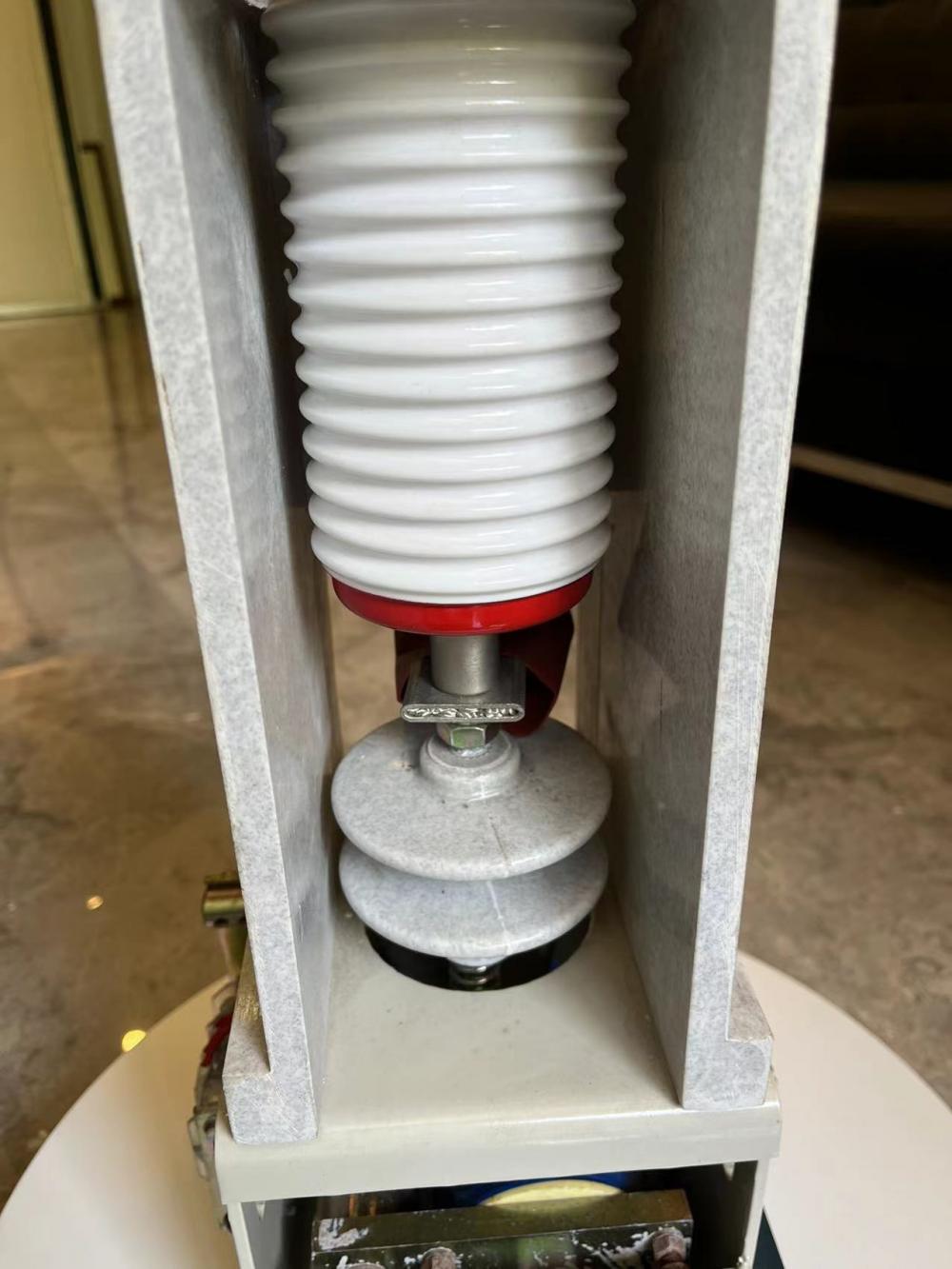

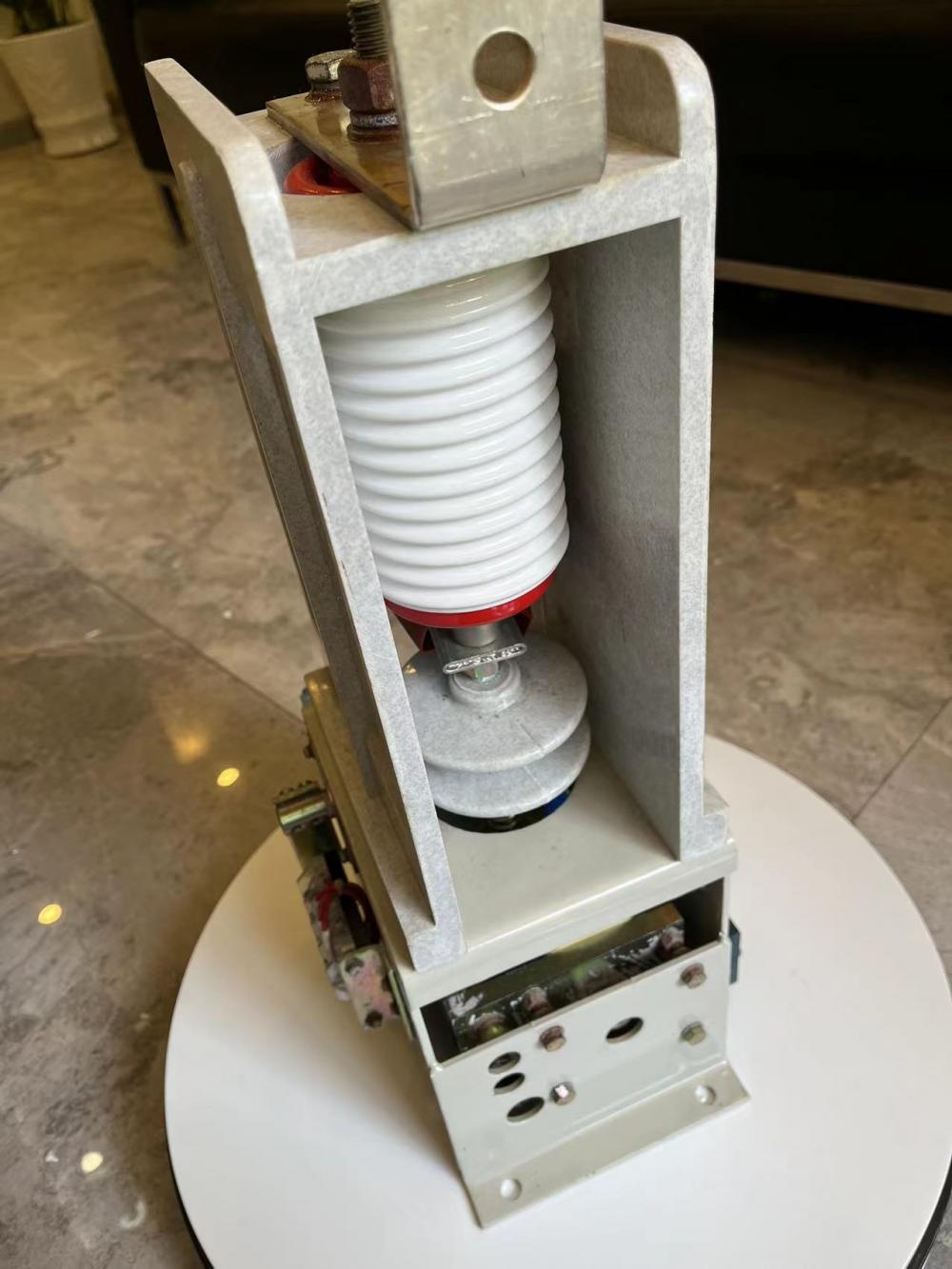

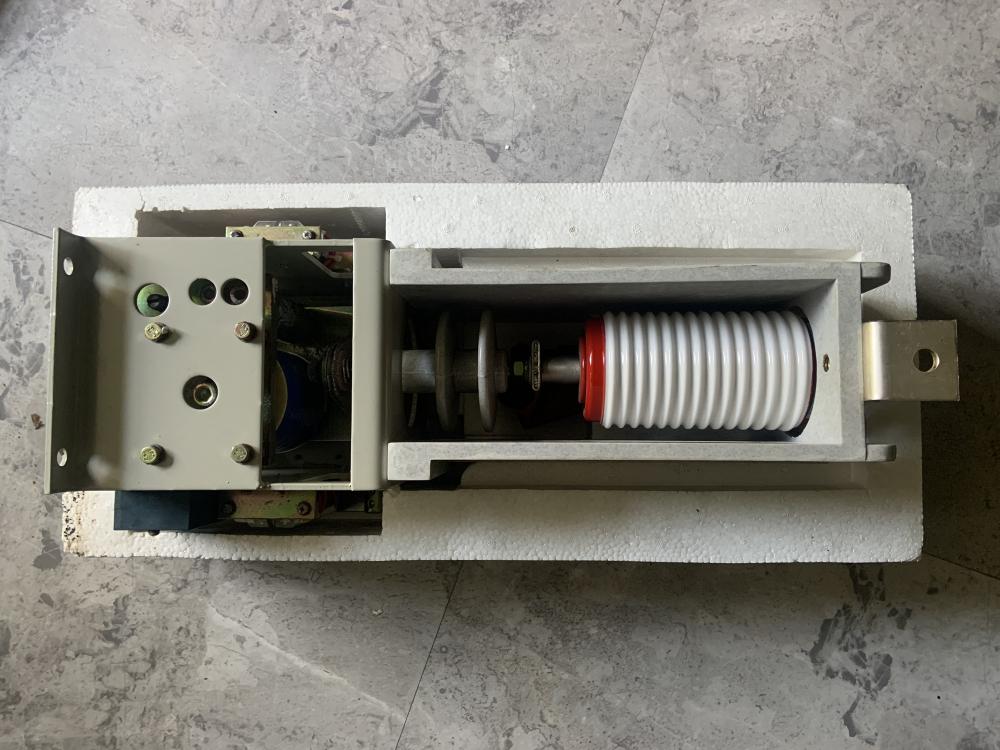

JCZ1 vacuum contactor single-pole contactor single-phase vacuum contactor 12KV contactor
Applicable to AC 50-60HZ, rated working voltage 3.6kV, 7.2kV, 12kv, rated working current 160A to 630A three-phase indoor electrical system, can directly or frequently operate motors, transformers, capacitive loads and other electricity consumption equipment. The main feature is that it adopts the overall frame structure, which has the remarkable characteristics of stable performance, reliable use, compact structure and small size.
| Brand | YUNFENG | Product name | JCZ-1 Vacuum contactor |
| Product number | JCZ1 | Power frequency withstand voltage | 42KV |
| Rated voltage | 12KV | Mechanical life | 50Million times |
| Rated current | 160-250-400-630 | Rated distance | 5.5±0.5mm |
Technical data sheet
| Name | Unit | Numerical value | ||
| The main circuit | Rated working voltage (UE) | KV | 12 | |
| Rated working current (LE) | A | 160/250/400/630 | ||
| Rated frequency (fr) | HZ | 50-60 | ||
| Rated closing capacity | A | 10le(AC-4) | ||
| Rated breaking capacity | A | 8le(AC-4) | ||
| Rated short-time withstand current | A | 10le | ||
| Rated peak withstand current | A | 25le | ||
| Rated interruption duration | S | 4 | ||
| Power frequency withstand voltage | Relatively | KV | 42 | |
| Vacuum port | KV | 42 | ||
| Lightning impulse withstand voltage | KV | 75 | ||
| Control circuit | Rated voltage (US) | V | AC/DC 110/220 | |
| Rated power (PS) electrical hold | VA | ≤1000/100(pull in/Keep) | ||
| Auxiliary circuit | Form | 3a+2b | ||
| Rated value | AC380V/3A DC380V/2A | |||
| Power frequency withstand voltage of control circuit and auxiliary circuit | KV | 2 | ||
| Rated operating frequency | Long term | Time/h | 300 | |
| Short term | Time/h | 600 | ||
| Mechanical life | Million times | 100 | ||
| Electrical life | Million times | 25(AC-3) | ||
| Mechanical properties | Closing time | ms | ≤200 | |
| Inherent opening time | ms | ≤160 | ||
| three-phase out of phase | ms | ≤3 | ||
| Closing bounce | ms | ≤5 | ||
| Note: Rated control voltage can be customized according to user needs | ||||
Our company mainly deals in Hardware Tools, combined tools, electric tools, Special Tools For Petroleum, Metal Processing Machinery and petroleum drilling equipment. Diagonal Cutting Plier，Oil Drill Pipes，Drilling Tools，Diesel Engine Etc.Our companyoperates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among
Rugao Yaou Import & Export Co. LTD was established in 2004, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.
Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. Our company also operates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.
Tags:

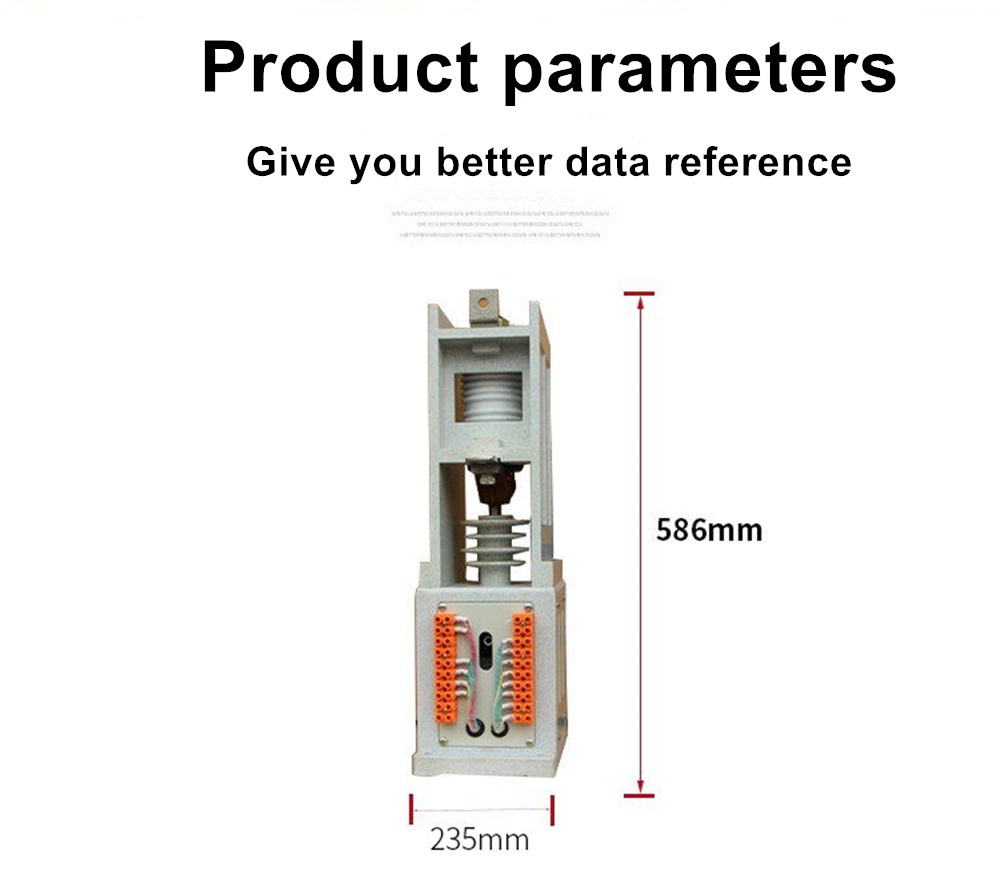

Technical parameter

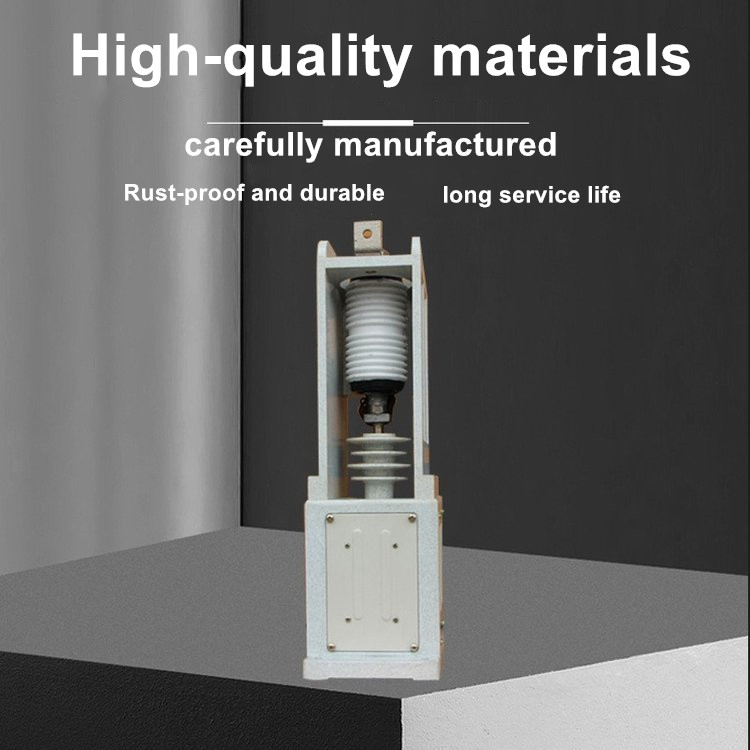

JCZ-1 unipolar vacuum contactor 1

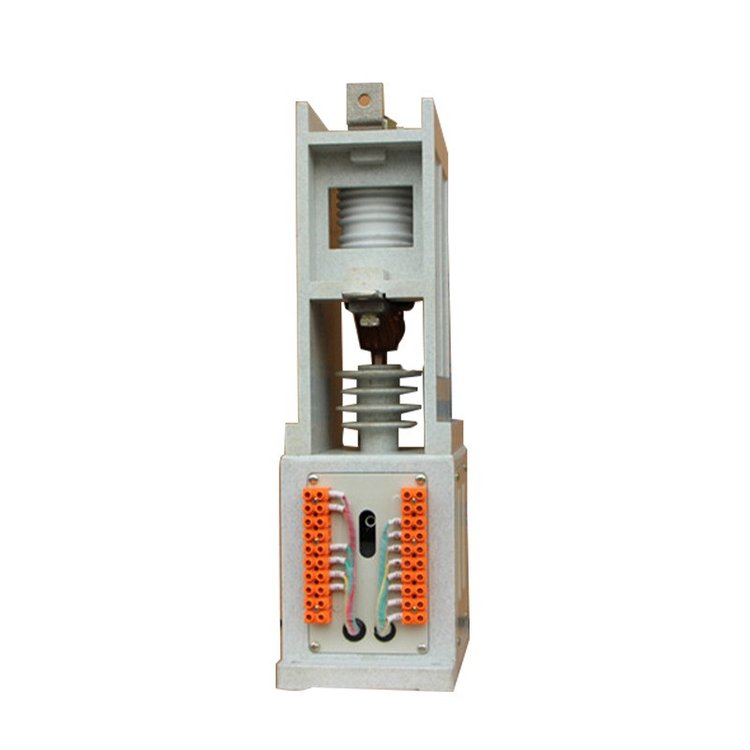

JCZ-1 unipolar vacuum contactor 2
JCZ-1 unipolar vacuum contactor 3
JCZ-1 unipolar vacuum contactor 4
JCZ-1 unipolar vacuum contactor 5

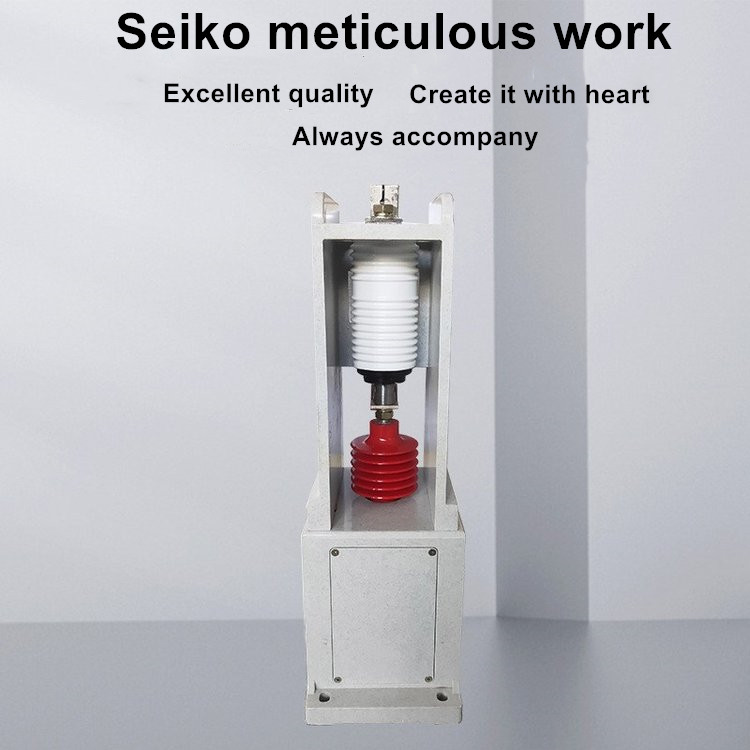

JCZ-1 unipolar vacuum contactor 6
