Products Description
Model No.: Q254-250
Brand: RS
Condition: New
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Place Of Origin: Jiangsu, China
Applicable Industries: Energy & Mining
Material: Carbon Steel
Warranty: 1.5 Years
Processing Type: Casting
Certification: Api
Showroom Location: Uae
Machine Type: Drilling Tool
Use: Well Drilling
Brand Name: Yaou
Type: Drilling Rigs
Local Service Location: Egypt, Canada, Turkey, Germany, Viet Nam, Philippines, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Morocco, Kenya, Chile, Uae, Romania, South Africa, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
Packaging: Standard export packing
Productivity: 10
Transportation: Ocean,Land,Air
Place of Origin: China
Supply Ability: 20
Certificate: API
HS Code: 8431431000
Port: Shanghai
Payment Type: L/C,T/T,Paypal,Western Union
Incoterm: FOB
- Selling Units:
- Set/Sets
- Package Type:
- Standard export packing
- Picture Example:
-
Products Description

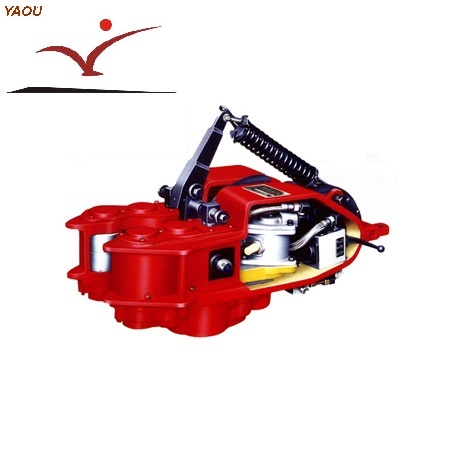

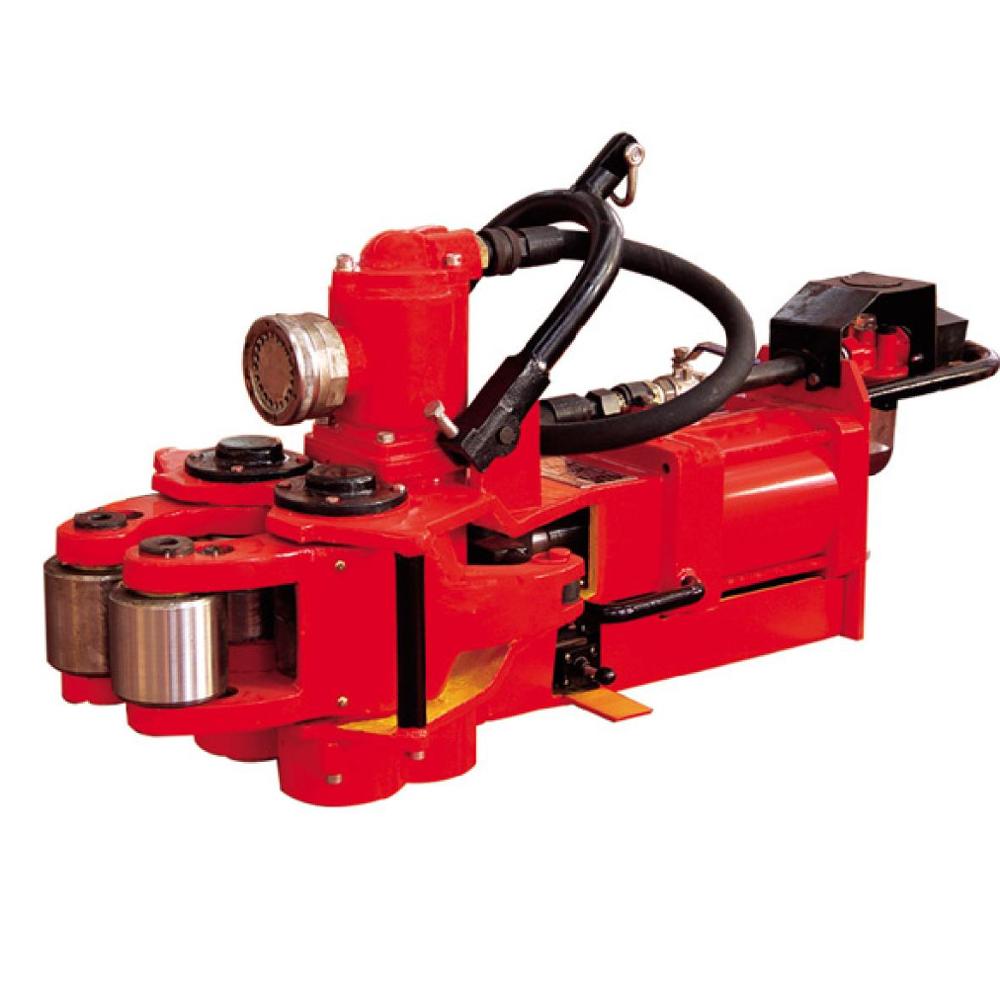

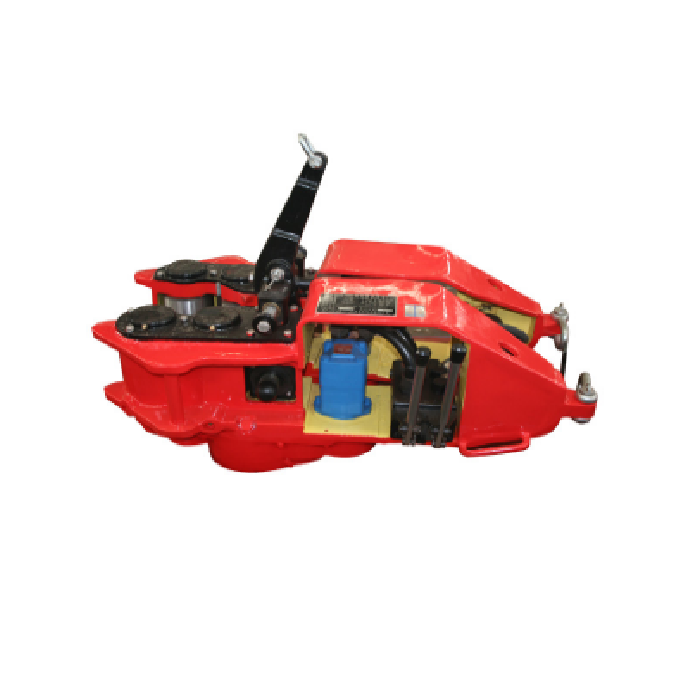

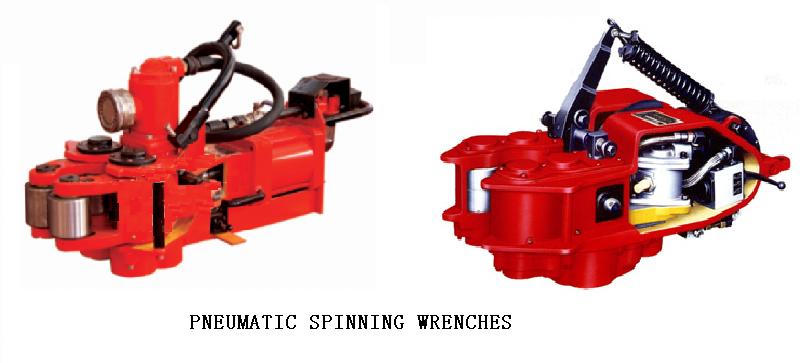

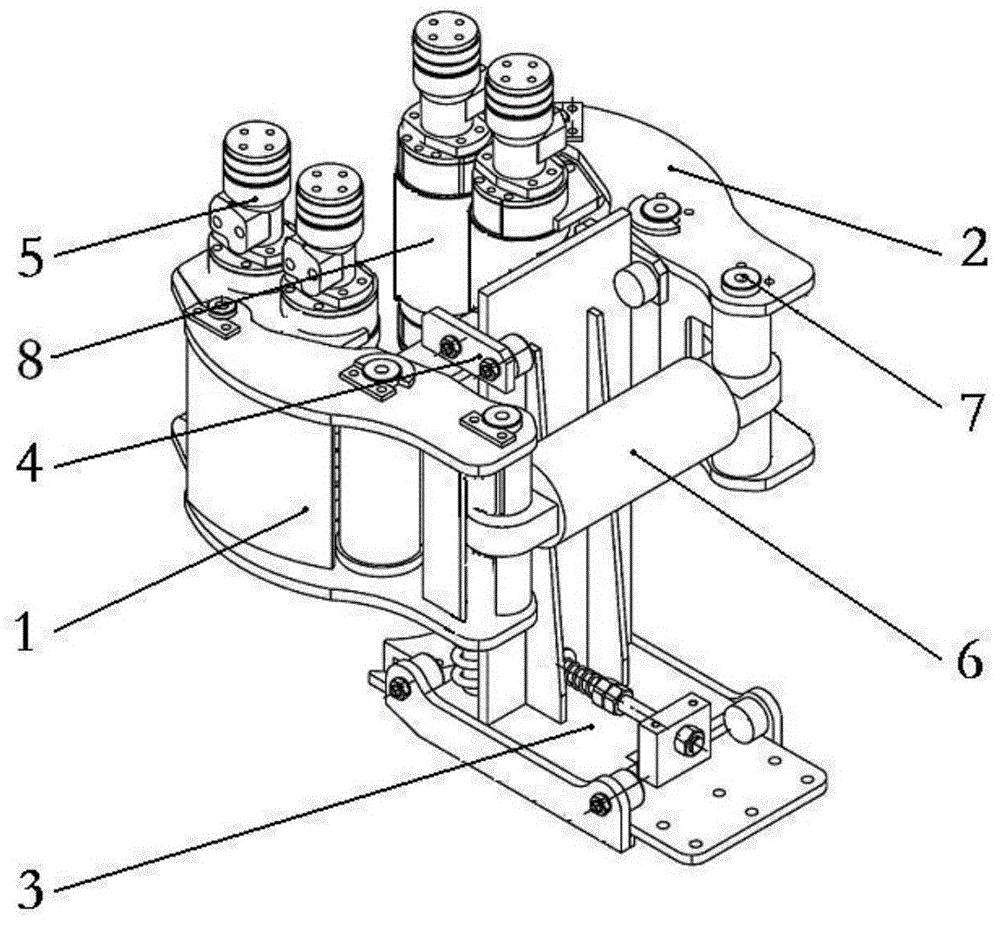

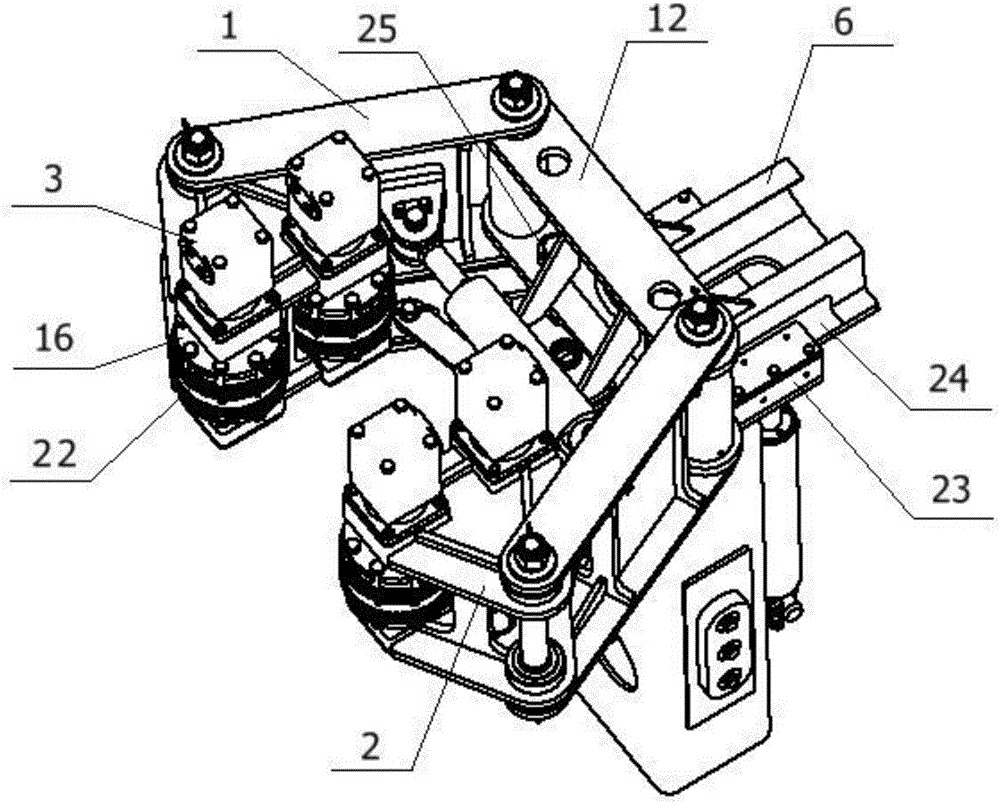

Q254-250 PNEUMATIC SPINNING WRENCHES
The wrench is the best replacement of rotary rope (or chain). It is applied for the mechanized spinning operation. The applicable range of pipe diameter is wide, and it can be freely adjusted whenever necessary. There are two configurations for clamping mechanism: air tyre and air cylinder. There are two driving and controlling styles: pneumatic and hydraulic. The spinning wrench is designed and manufactured according to API Spec 7K “Specification for Drilling Equipment…
|
Model
|
Q140-200
|
Q254-250
|
Q254-300Y
|
|
|
Drive mode
|
Pneumatic
|
Hydraulic
|
||
|
Size range
|
mm
|
88.9-139.7
|
88.9-254
|
88.9-254
|
|
in
|
31/2-51/2
|
1931-2-10
|
1931-2-10
|
|
|
Air Pressure
|
MPa
|
0.5-0.9
|
0.5-0.9
|
|
|
psi
|
72-130
|
72-130
|
|
|
|
Hydraulic pressure rating
|
Mpa
|
|
|
14
|
|
psi
|
|
|
2000
|
|
|
Max. brake torque
|
Nm
|
2000
|
2500
|
3000
|
|
Ft.lbf
|
1475
|
1840
|
2210
|
|
|
|
RPM
|
0-90
|
0-120
|
0-95
|
|
Speed
|
||||
|
Air consumption
|
m3/min
|
10.3
|
15
|
|
|
ft3/min
|
360
|
529
|
|
|
|
Flow
|
LPM
|
|
|
120-140
|
|
GPM
|
|
|
32-37
|
|
|
Size
|
mm
|
1400*530*835
|
1250*570*465
|
1100*560*700
|
|
in
|
55*21*33
|
49*23*18
|
44*23*28
|
|
|
Weight
|
Kg
|
378
|
440
|
400
|
|
lb
|
833
|
970
|
880
|
|

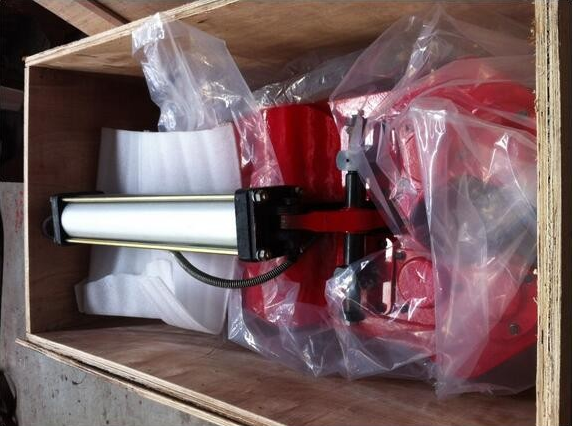

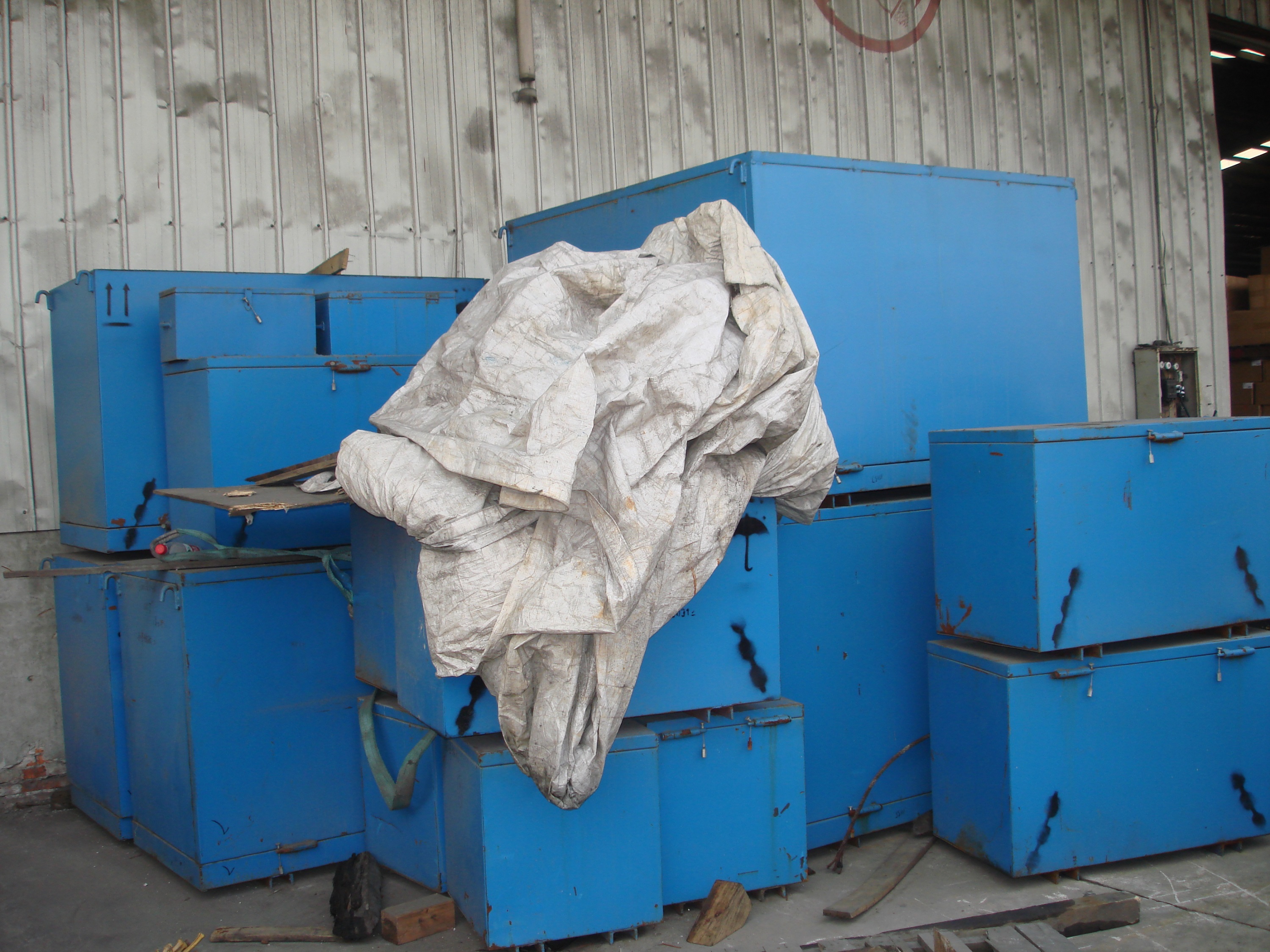

According to the volume and weight of the product and export requirements, provide multi-layer boxes and iron box packaging.
Transportation is based on customers in different regions using steam, rail, road and air transportation.
Rugao You Inport & Export Co. LTD was established in 2004, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.
The company has more than 20 years of trade service team, mainly engaged in Oil Drilling Equipment, drilling special tools, various Processing Machinery, Hardware Tools, etc. At the same time, it provides some special products, so stay tuned.
Main products:
1. Drill Pipe, Heavy Drill Pipe, Square & Hexagonal Kelly
2. Drill Collar & Non-magnetic Drill Collar
3. Stabilizers, Reamer, Hole Opener, Casing Scraper, etc
4. Kelly Valve, Safety valve, Check Valve, and float valve
5. Hydraulic or Mechanical Drilling Jar, and Absorber
6. Fishing tools (Bowen serials), including overshot, spear, etc
7. Junk Mill, Casing Cutter, Safety Joint, etc
8. Hydraulic Bucking unit, Screw up and breakout Unit, Down hole motor tester, Jar tester, etc.
9 .Down hole motor
10. Processing machinery: shears, bending machines, hydraulic presses, bending machines, etc.
11. Various coal mine winches, oil field winches, ship winches, etc.
12. Various hand tools and electric tools.
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost)
2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machineQ1. How to get an accurate quotation?.
