Products Description
Model No.: Y221M
Brand: YAOU
Applicable Industry: Energy &Amp; Mining
Out-of-warranty Service: Video Technical Support
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Uae, Russia, Uzbekistan, Kazakhstan, Pakistan, India, Indonesia, Tajikistan
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Uae, Uzbekistan
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: New Product 2020
Core Component Warranty Period: 1 Year
Core Components: Pump
Warranty: 1 Year
Condition: New
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Material: Stainless Steel
Marketing Type: New Product 2020
Place Of Origin: Jiangsu, China
Applicable Industries: Energy & Mining
Processing Type: Casting
Certification: Api
Showroom Location: Uae
Machine Type: Drilling Tool
Use: Well Drilling
Brand Name: Th
Local Service Location: Egypt, Pakistan, India, Russia, Malaysia, Uae, Kazakhstan, Uzbekistan
Type: Slip, Hydraulic Breakers
Status: New
Warranty Period: 1.5 Years
Packaging: standard packages
Productivity: 10
Transportation: Ocean,Land,Air,Express
Place of Origin: CHINA
Supply Ability: 10
Certificate: API
HS Code: 8431431000
Port: SHANGHAI
Payment Type: L/C,T/T
Incoterm: FOB
- Selling Units:
- Piece/Pieces
- Package Type:
- standard packages
- Picture Example:
-

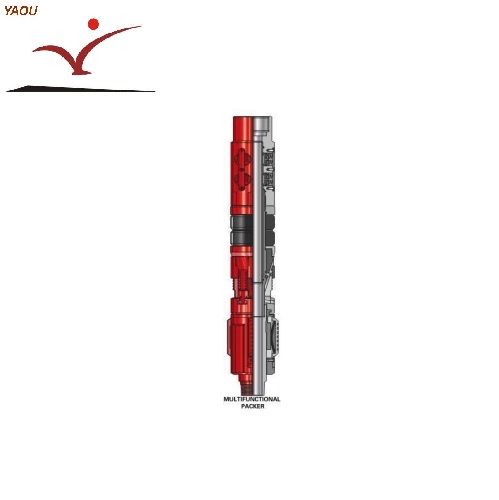

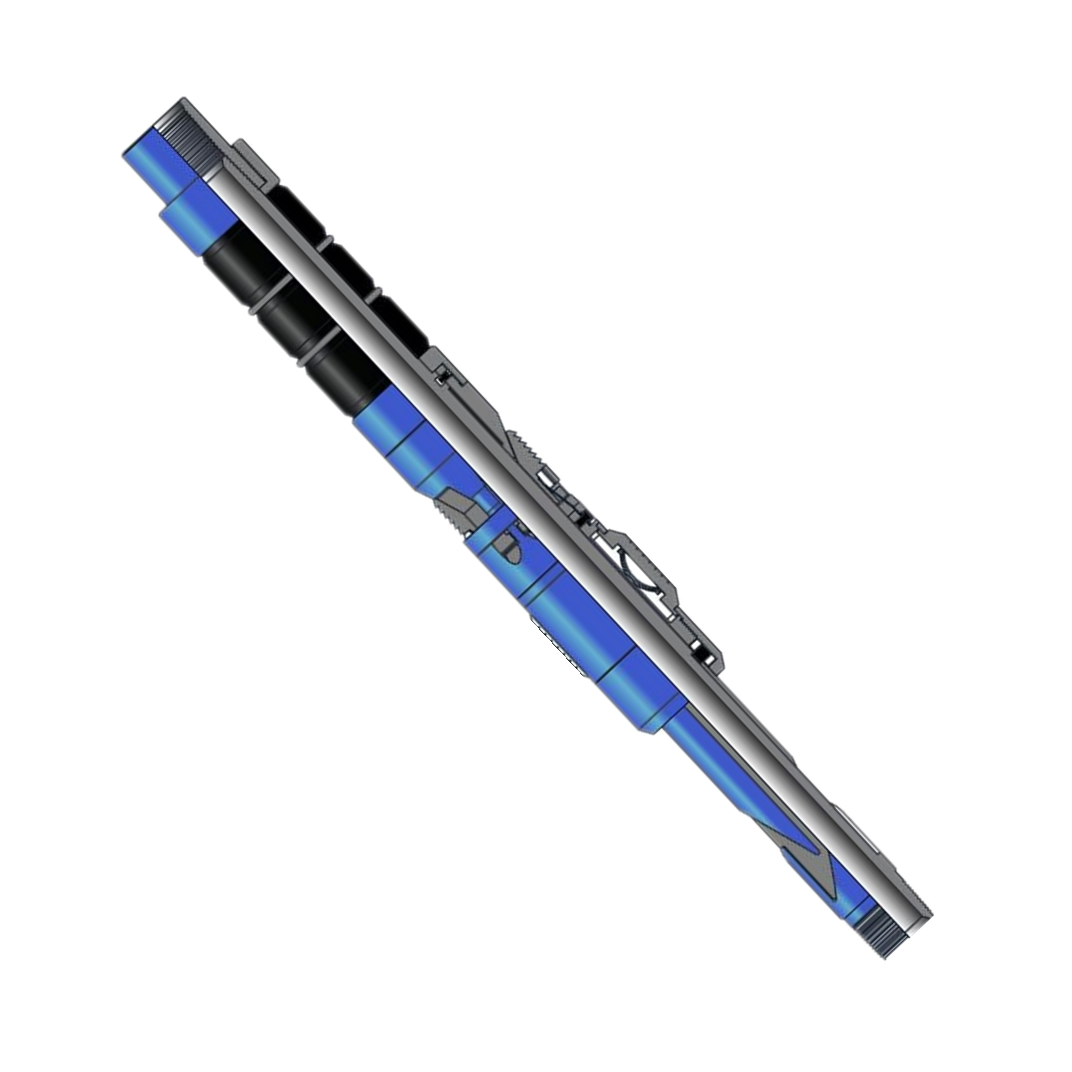

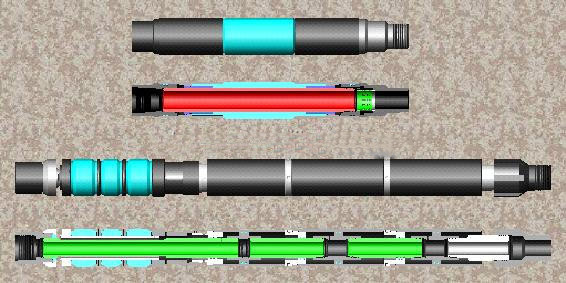

This packer is designed for the well separated zone water injection, high pressure water injection and protection of the casing, which consists of washover valve assembly, seal assembly, latch mechanism and unsetting mechanism. It pushes series twin pistons hydraulically to compress the rubber tube, which is swelled radically as a result of large and tranquil thrust, and it is mechanically locked meanwhile, as forces the rubber tube always in the operating mode. When needing well cleanout, pressure up on the upper casing of the packer (generally greater than 0.5Mpa) until the washover valve is opened so as to accomplish the well cleanout. Upon water injection, the washover valve is closed for the tubing pressure is above the casing pressure, so each layer is separated and accordingly achieve the aim of separated zone water injection. While unsetting, pick up the tubing by 0.5m, nipple down the hanger, connect tubing pup joint, and then set down the tubing so as to unset

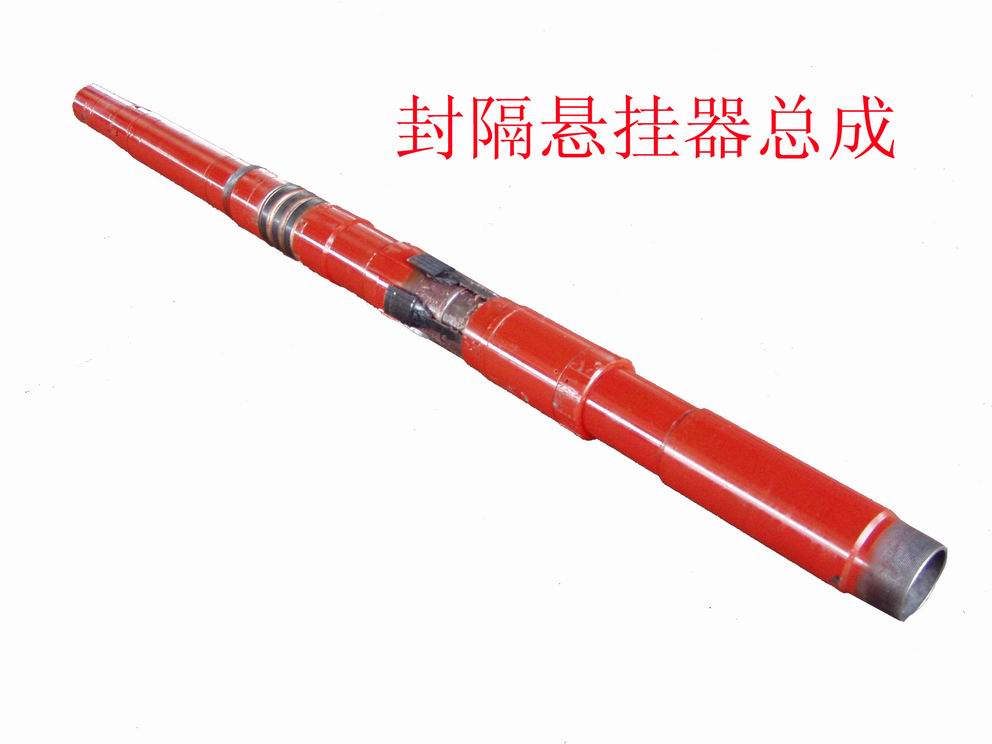

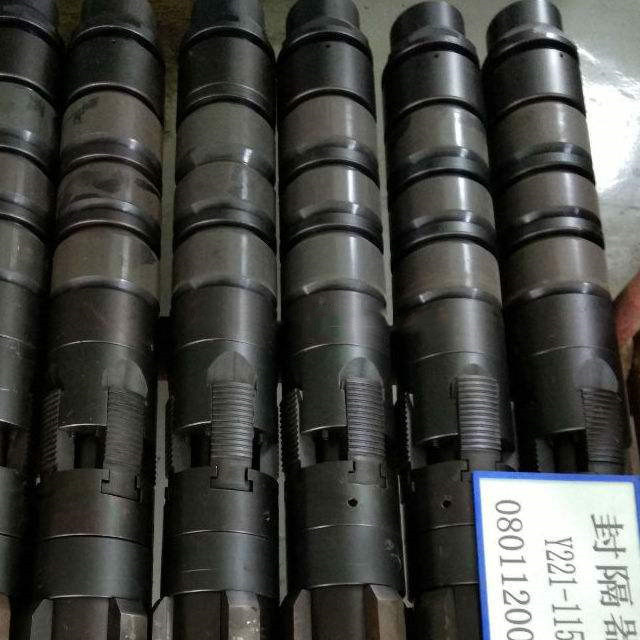

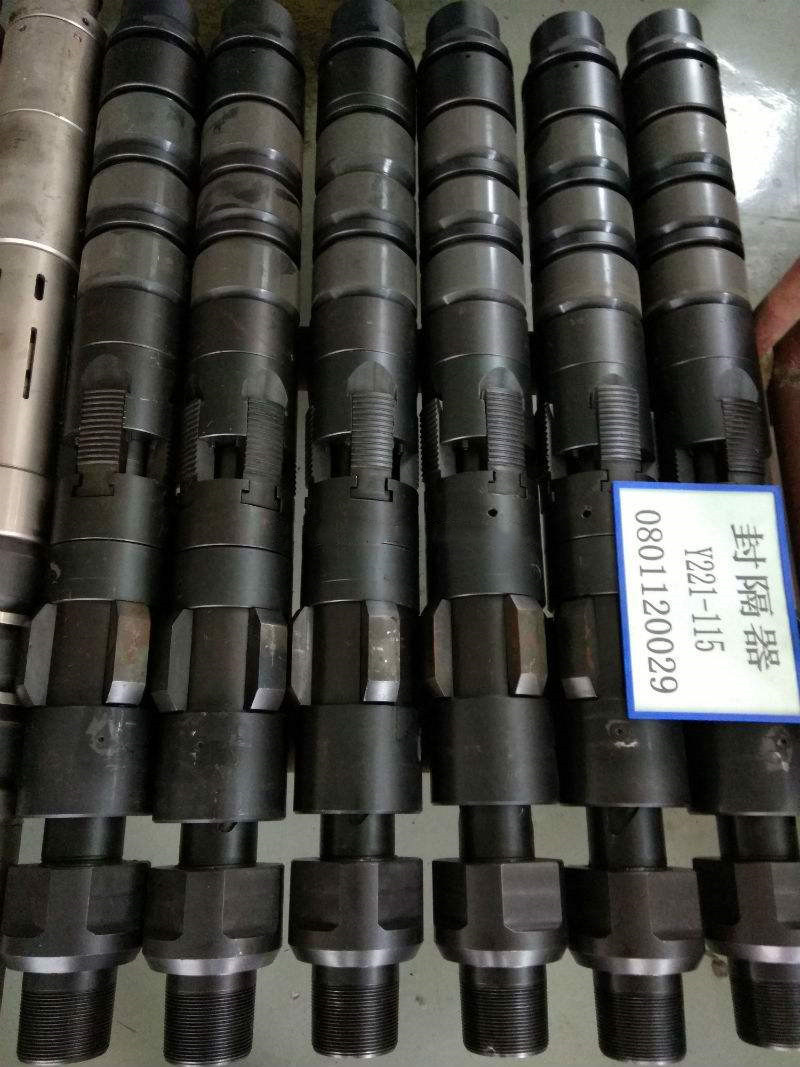

Packer Y221
Application and classification:
Packer Y221 can be widely used for zonal injection, extraction, leak finding, squeeze, acid treatment and well texting.
According to the structure is divided into: Y221 Packer and Y221M Packer means including hydraulic anchor
According to whether including the wash over function is divided into: F means including the well-flushing function
According to the Max OD is divided into: Y221-80,Y221-95,Y221-110,Y221-112 and
Y 221-114
|
Technical parameters
|
Maximum diameter
|
Path
|
Working
|
Operating Temperature
|
Block force closure
|
Length
|
Tubes
|
| Specification | mm | mm | pressure | °C | KN | mm | |
| M Pa | |||||||
|
Y221-80
|
80
|
32
|
25
|
120
|
80-120
|
967
|
86
|
|
Y221-95
|
95
|
48
|
25
|
120
|
80-120
|
985
|
101-105
|
|
Y221-112
|
112
|
50
|
35
|
120
|
80-120
|
1154
|
118-121
|
|
Y221-114
|
114
|
50
|
35
|
120
|
80-120
|
1177
|
121-124
|
|
Y221M-110
|
110
|
44
|
35
|
120
|
80-120
|
1406
|
118-121
|
|
Y221M-110
|
110
|
44
|
35
|
120
|
80-120
|
1406
|
118-124
|
|
Y221M-110F
|
110
|
44
|
35
|
120
|
80-120
|
1557
|
118-121
|
|
Y221M-114
|
114
|
48
|
35,50
|
120,150
|
80-120
|
1360
|
121-124
|
|
Y221M-114F
|
114
|
48
|
35
|
120
|
80-120
|
1515
|
121-124
|
|
Y221-114(no-anchor)
|
114
|
55
|
35
|
120
|
80-120
|
977
|
121-124
|
Feature:
1, High pressure-resistance, good-sealing, good -tightness, stable, secure.
2, Setting securely, operate simply and unsealing
3, Setting and unsealing repeatedly
Keeping the above mentioned characteristics of the company, we also carry out the following improvement:
1. Hydraulic anchor use stainless steel materials, which effectively prevent the phenomenon hydraulic anchor claw rust and not back happened because of long time, poor water quality in the sealing process.
2. Glue tube material are made of import modified hydrogenated butadiene acrylonitrile rubber vulcanization, which has the characteristics: high temperature resistance, anti-aging, resistance to high pressure difference. Once uncured after a long time in seal compression, the recovery is good.
3, Anchor claw and slip are set with hard alloy, which increased the bite of casing ability; it is suitable for different styles.
4. Slip and slip bowl are combined with wedge, which makes set or unsealing easy.
5. Center tube is designed with internal the sand controls scream so that it is easy to be recovery.
6 Sealing slip has been made surface carburized quenching with 20 watts Cr M n Ti, so that tube is easy to get stuck and hard to break down.
The design of packer is scientific; Production processing technology is controlled strictly, good performance characteristics.
API casing external packer
1.oil expansion packer
2.hydraulic packer
According to the volume and weight of the product and export requirements, provide multi-layer boxes and iron box packaging.
Transportation is based on customers in different regions using steam, rail, road and air transportation.
Rugao You Inport & Export Co. LTD was established in 2004, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad.
The company has more than 20 years of trade service team, mainly engaged in Oil Drilling Equipment, drilling special tools, various Processing Machinery, Hardware Tools, etc. At the same time, it provides some special products, so stay tuned.
Main products:
1. Drill Pipe, Heavy Drill Pipe, Square & Hexagonal Kelly
2. Drill Collar & Non-magnetic Drill Collar
3. Stabilizers, Reamer, Hole Opener, Casing Scraper, etc
4. Kelly Valve, Safety valve, Check Valve, and float valve
5. Hydraulic or Mechanical Drilling Jar, and Absorber
6. Fishing tools (Bowen serials), including overshot, spear, etc
7. Junk Mill, Casing Cutter, Safety Joint, etc
8. Hydraulic Bucking unit, Screw up and breakout Unit, Down hole motor tester, Jar tester, etc.
9 .Down hole motor
10. Processing machinery: shears, bending machines, hydraulic presses, bending machines, etc.
11. Various coal mine winches, oil field winches, ship winches, etc.
12. Various hand tools and electric tools.
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
