Products Description
Model No.: Drilling Jar
Brand: YAOU
Place Of Origin: China
Status: New
Warranty Period: 1.5 Years
Service System: Overseas Third-Party Support Available
Applicable Industry: Energy &Amp; Mining
Out-of-warranty Service: Video Technical Support
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Uae, Russia, Uzbekistan, Kazakhstan, Tajikistan, Indonesia, India, Pakistan, Bangladesh
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Uae, Uzbekistan
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: New Product 2020
Core Component Warranty Period: 1 Year
Core Components: Motor
Warranty: 1 Year
Condition: New
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Applicable Industries: Energy & Mining
Material: Carbon Steel
Place Of Origin: Guizhou, China
Certification: Api
Machine Type: Drilling Tool
Processing Type: Forging
Type: Jar
Showroom Location: Egypt, Uae, Uzbekistan
Use: Oil Drilling Rig
Brand Name: Cnsy
Local Service Location: Egypt, Turkey, Germany, Viet Nam, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Malaysia, Morocco, Kenya, Chile, Uae, Algeria, Sri Lanka, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan

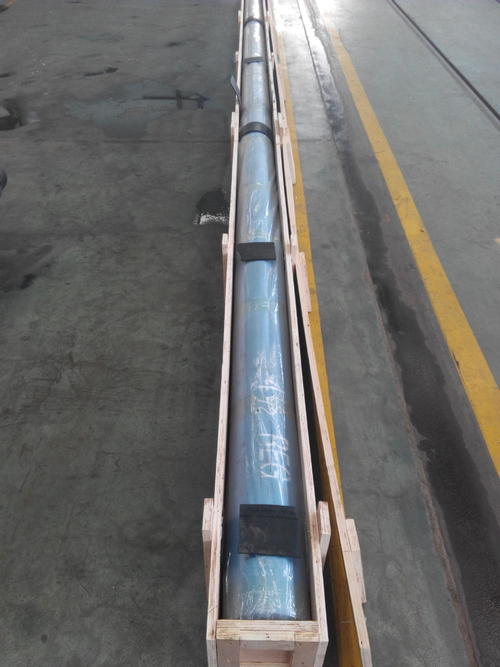

Packaging: Standard Export Packing.
Productivity: 10
Transportation: Ocean,Land,Air,Express
Place of Origin: CHINA
Supply Ability: 10
Certificate: API
HS Code: 8431431000
Port: SHANGHAI
Payment Type: L/C,T/T
Incoterm: FOB
- Selling Units:
- Set/Sets
- Package Type:
- Standard Export Packing.
- Picture Example:
-

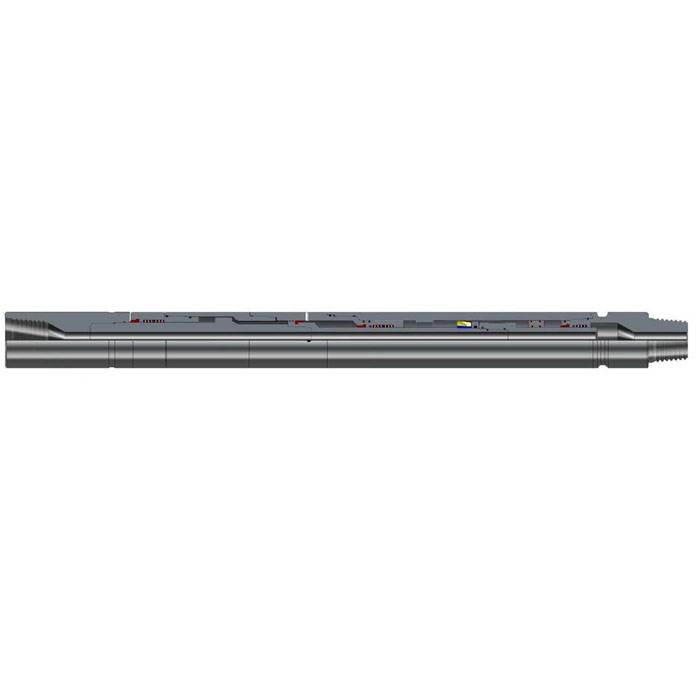

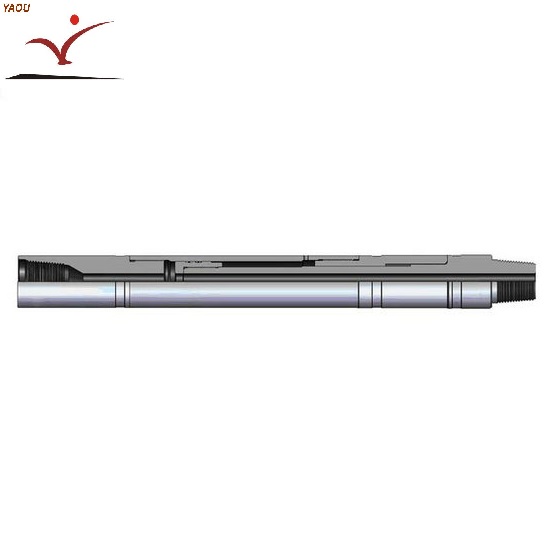

The mechanical fishing far type JSQ is a up jarring tool for releasing sticking that adopts mechanical friction principle.
Installed close to the fish in the fishing operation, it can deliver an intensive jarring impact upward on the fish directly. The
jarring blow is pre-adjusted prior to the run..
JSQ mechanical upper hitter Overview and purpose
JSQ type mechanical upper hitter is an ideal tool for workover team to deal with sticking accidents. It is installed close to the fish in the workover and fishing operation, which enables the tool to directly carry out a powerful upward shock to the fish. The magnitude of shock force is adjusted in advance by adjusting mechanism on the ground. The mechanical structure of the tool is adopted, and its performance is not affected by high well temperature and secret failure.
Specification Series and Performance Parameters
|
Type
|
Working Stroke
|
Connection
|
Overall Length
|
Max. Tensile Load
|
||
|
O.D.
|
I.D.
|
mm | API | mm | KN | |
| mm | mm | |||||
|
JSQ108
|
108
|
32
|
250
|
NC31
|
2128
|
700
|
|
JSQ114
|
114
|
30
|
178
|
31/2TBG
|
1651
|
300
|
|
|
|
|
|
|
|
.
|
Type |
ZXJ36 |
ZXJ46 |
ZXJ 56 |
ZXJ 62Ⅱ |
ZXJ 64 |
ZXJ 70 |
ZXJ 76 |
ZXJ 80 |
|
O.D. mm (in.) |
95 (3 3/4) |
121 (4 3/4) |
146 (5 3/4) |
159 (6 1/4) |
165 (6 1/2) |
178 (7) |
197 (7 3/4) |
203 (8) |
|
I.D. mm (in.) |
28 (1 1/10) |
51 (2) |
57 (2 1/4) |
57 (2 1/4) |
57 (2 1/4) |
70 (2 3/4) |
71.4 (2 4/5) |
71.4 (2 4/5) |
|
Connection API |
27/8REG |
NC38 |
41/2FH |
NC46 |
NC50 |
NC50 |
65/8REG |
65/8REG |
|
Max. Tensile Load MN |
0.5 |
1.0 |
1.2 |
1.5 |
1.6 |
1.8 |
2.0 |
2.2 |
|
Max. Working Torque KN·m |
3.5 |
12 |
13 |
14 |
14 |
15 |
16 |
18 |
|
Max. Upward Jarring Load kN |
160 |
280 |
400 |
560 |
560 |
640 |
800 |
800 |
|
Max. Upward Jarring Stroke mm (in) |
254 (10) |
305 (12) |
330 (13) |
346 (13.62) |
346 (13.62) |
346 (13.62) |
370 (14.56) |
370 (14.56) |
|
Max. Downward Jarring Load kN |
100 |
220 |
300 |
420 |
420 |
480 |
600 |
600 |
|
Max. Downward Jarring Stroke mm(in) |
178 (7) |
182 (7.16) |
182 (7.16) |
182 (7.16) |
182 (7.16) |
182 (7.16) |
181 (7.12) |
181 (7.12) |
|
Max. Working Temperature °C |
150 |
150 |
120 |
120 |
120 |
120 |
120 |
120 |
|
Sealing Pressure MPa |
30 |
30 |
30 |
30 |
30 |
30 |
30 |
30 |
|
Overall Length of Up mm (in) |
4 162 (163.85) |
6 093 (239.88) |
5 410 (213) |
6 394 (251.73) |
6 736 (265.2) |
6 354 (250.15) |
6 295 (247.83) |
6 222 (244.96) |
|
Overall Length of Down mm (in) |
3 275 (128.93) |
5 138 (202.28) |
5 000 (196.9) |
5 371 (211.45) |
5 457 (214.8) |
5 457 (214.8) |
5 244 (206.45) |
5 249 (206.65) |
Transportation is based on customers in different regions using steam, rail, road and air transportation.
Company Profile
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost)
2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machineQ1. How to get an accurate quotation?.
