Products Description
Model No.: Downhole Motor
Brand: YAOU
Place Of Origin: China
Status: New
Warranty Period: 1.5 Years
Applicable Industry: Energy &Amp; Mining
Out-of-warranty Service: Video Technical Support
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Uae, Russia, Uzbekistan, Kazakhstan, Tajikistan, Indonesia, Pakistan, India, Turkey
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Uae, Uzbekistan
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: New Product 2020
Core Component Warranty Period: 1 Year
Core Components: Motor
Brand Name: Yaou
Place Of Origin: Jiangsu, China
Voltage: 380v
Model Number: K7lz
Weight: 2.5kg
Dimensions: 280
Drill Type: Downhole Motor, Cordless Drill
Power Source: Electric
Packaging: standard packages
Productivity: 10
Transportation: Ocean,Land,Air,Express
Place of Origin: CHIAN
Supply Ability: 10
Certificate: API
HS Code: 8431431000
Port: SHANGHAI
Payment Type: L/C,T/T
Incoterm: FOB
- Selling Units:
- Set/Sets
- Package Type:
- standard packages
- Picture Example:
-
Products Description
Skype:yaoutrade2

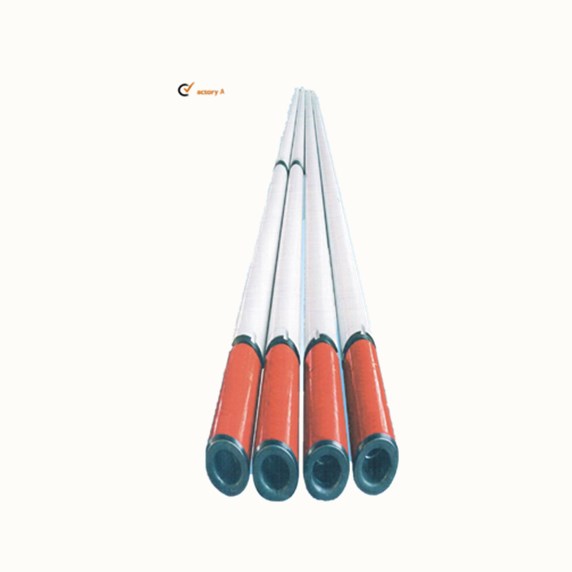

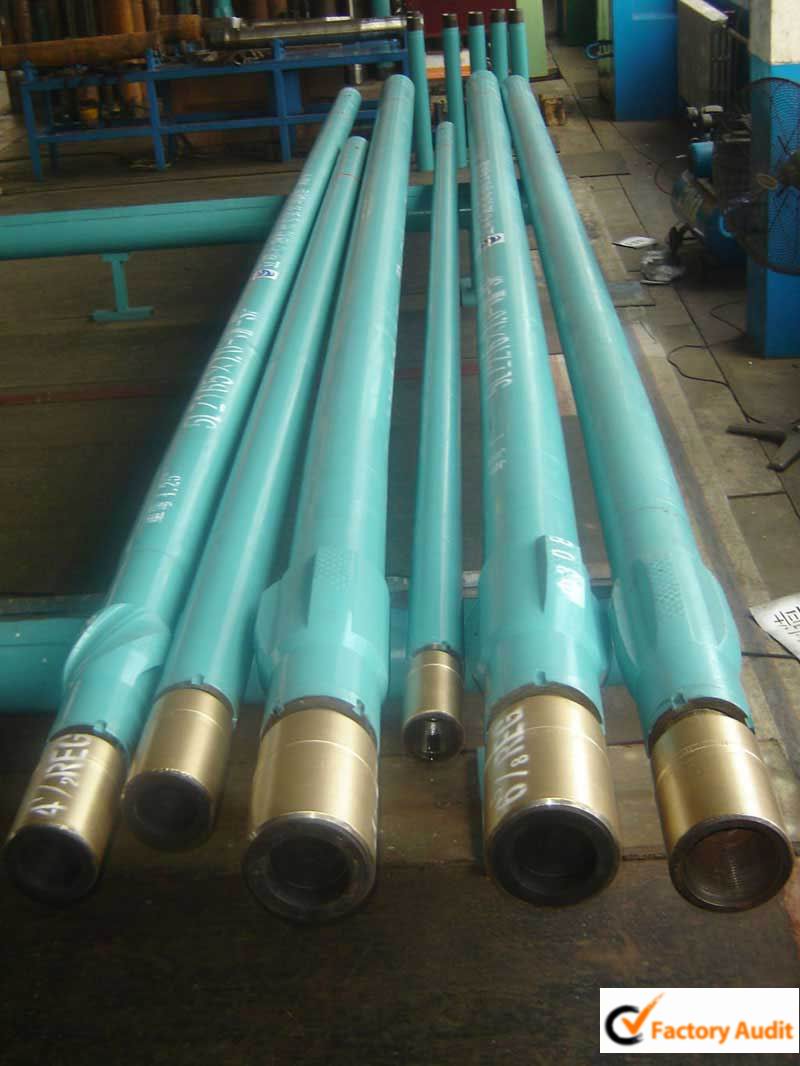

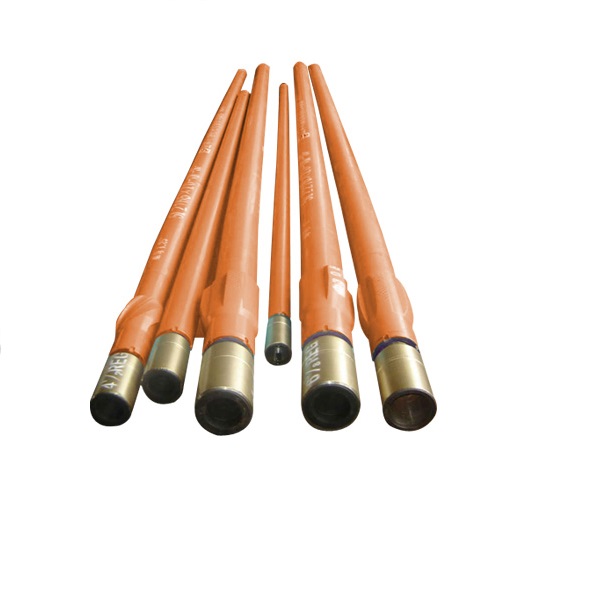

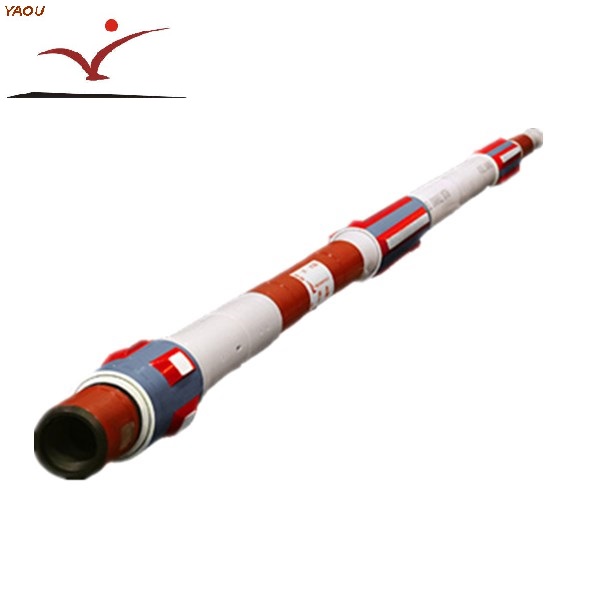

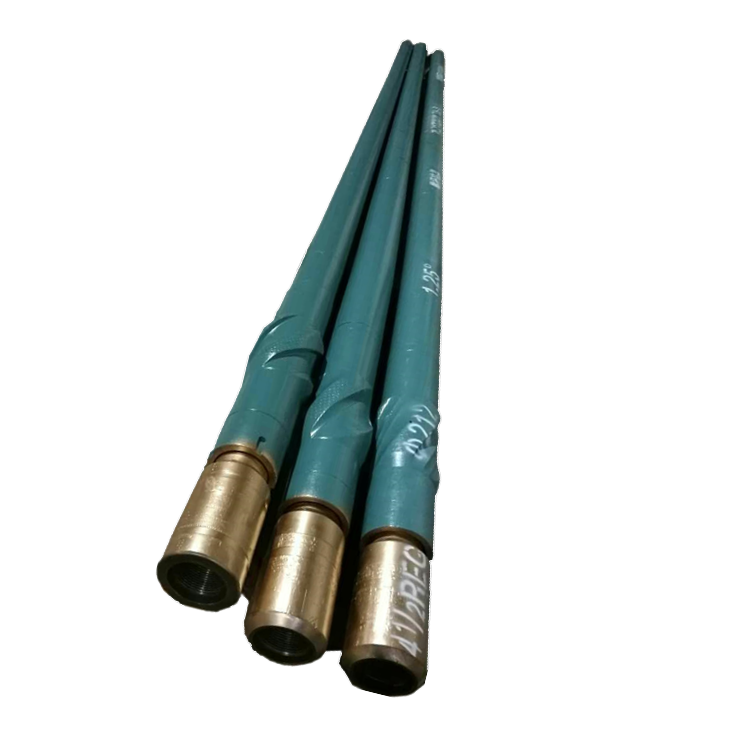

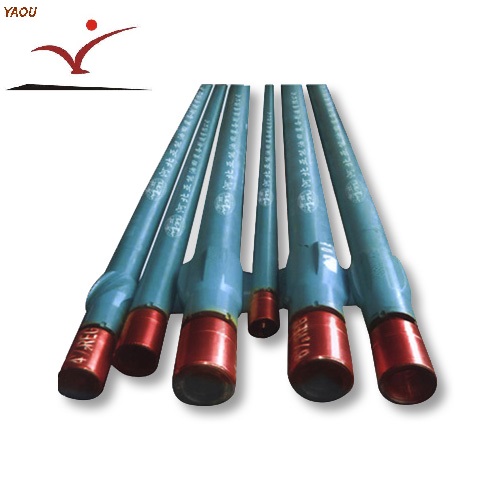

Downhole Motor.
The downhole screw motor is a kind of power tool that transforms the pressure of liquid to mechanical energy in the downhole. When the power liquid flows into the screw motor, pressure difference will be produced between the inlet and outlet of the motor, then the pressure difference drives the rotor rotating of planetary motion round the stator, and provides running torque and speed to the drill bit while the drill pipe is not rotating during work process, thus the drilling process is being performed.
The advantages of downhole screw motors:
1. Attrition of drilling pipe is declined obviously for downhole screw motors running torque is only to drive bit while the
drilling is not rotating;
2. Not only provide special drill assembly with high deflection rate, but also guide drill assembly with everlasting control;
3. Out torque and pressure difference is nearly liner relationship within a certain range when the power liquid flows into the
screw motor;
4. Provide great delivery volume and improve speed of uphole velocity and carrying capability for rotor is hollow;
5. Suitable for all kinds of bits.
Specification:
Screw drilling tool for air (foam) drilling purpose.
|
Model
|
Flow rate l/s
|
Pressure difference MPa
|
Rated Torque N•m
|
Max Torque N•m
|
Recommended Weight kn
|
Power kW
|
Diameter mm
|
Length m
|
|
5LZ60×7.0
|
1.26~3.13
|
2.5
|
160
|
280
|
5
|
2.35~6.03
|
60
|
3.3
|
|
5LZ73×7.0
|
1.26~5.05
|
3.5
|
275
|
480
|
12
|
3.5~13.82
|
73
|
3.45
|
|
5LZ89×7.0
|
2~7
|
4.1
|
560
|
980
|
18
|
5.6~19.35
|
89
|
4.67
|
|
5LZ95×7.0
|
4.73~11.
|
3.2
|
850
|
1240
|
21
|
10.4~23.8
|
95
|
3.2
|
|
C5LZ95×7.0
|
5~13.33
|
6.5
|
1490
|
2384
|
55
|
21.8~59.3
|
95
|
6.88
|
|
5LZ100×7.0
|
4.73~11
|
3.2
|
850
|
1240
|
21
|
10.4~23.8
|
100
|
4.7
|
|
5LZ120×7.0
|
5.78~15.8
|
2.5
|
1300
|
2275
|
55
|
9.5~27.23
|
120
|
4.88
|
|
D5LZ120×7.0
|
5.78~15.8
|
1.6
|
900
|
1440
|
55
|
6.6~18.85
|
120
|
3.29
|
|
5LZ165×7.0
|
16~28
|
3.2
|
3200
|
5600
|
80
|
33.5~59.7
|
165
|
6.25
|
|
D5LZ165×7.0
|
18~28
|
2.5
|
2300
|
3680
|
80
|
30.4~47.2
|
165
|
4.7
|
|
5LZ172×7.0
|
18.9~37.8
|
3.2
|
3660
|
5856
|
100
|
38.3~76.6
|
172
|
6.71
|
|
C5LZ172×7.0
|
18.9~37.8
|
6
|
6870
|
10992
|
170
|
71.9~144
|
172
|
9.18
|
|
5LZ197×7.0
|
22~36
|
3.2
|
5000
|
8700
|
120
|
49.7~78.5
|
197
|
6.9
|
|
5LZ244×7.0
|
50.5~75.7
|
2.5
|
9300
|
16275
|
213
|
87.7~136
|
244
|
7.8
|
Transportation is based on customers in different regions using steam, rail, road and air transportation.
Our company mainly deals in Hardware Tools, combined tools, electric tools, Special Tools For Petroleum, Metal Processing Machinery and petroleum drilling equipment. Diagonal Cutting Plier，Oil Drill Pipes，Drilling Tools，Diesel Engine Etc.Our companyoperates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost)
2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machineQ1. How to get an accurate quotation?.
