Products Description
Model No.: Valve 1502 union
Brand: YAOU
Type: Metal Check Valves, Plastic Check Valves, Pressure Vacuum Breaker
Brand Name: Yh
Model Number: 2"check Valve
Application: General
Temperature Of Media: Normal Temperature
Power: Manual
Media: Oil
Port Size: 2" 3"
Structure: Check
Warranty Period: 3 Years
Types Of: Ball Valves
Certification: Gs
Support Customization: Oem
Place Of Origin: China
Place Of Origin: Jiangsu, China
Packaging: Standard export packaging
Productivity: 10
Transportation: Ocean,Land,Air,Express
Place of Origin: CHINA
Supply Ability: 10
Certificate: ISO
Port: SHANGHAI
Payment Type: L/C,T/T,D/P,D/A,Paypal
Incoterm: FOB,CFR,CIF,EXW
- Selling Units:
- Piece/Pieces
- Package Type:
- Standard export packaging
- Picture Example:
-

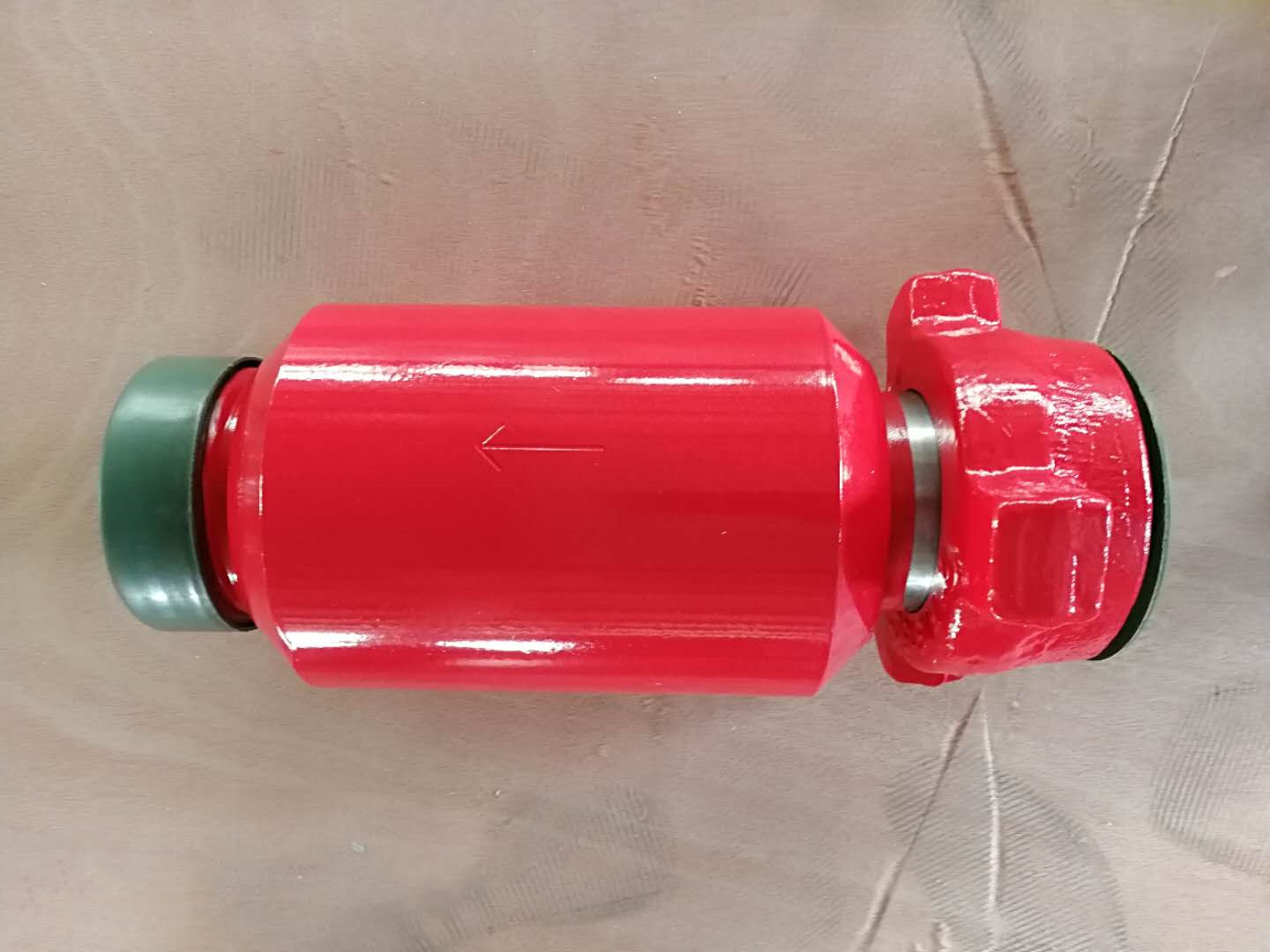

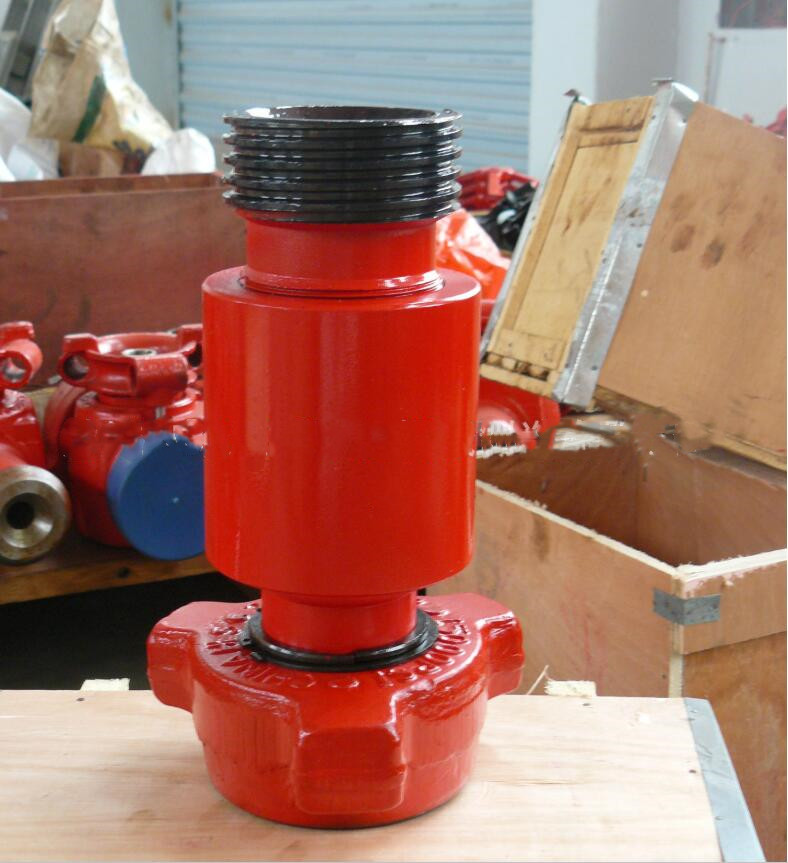

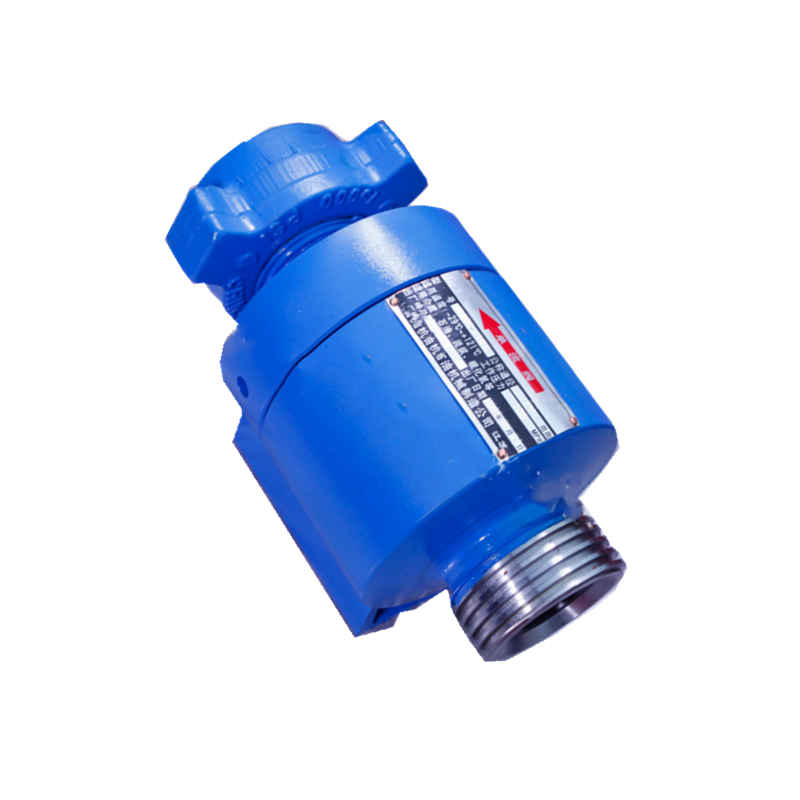

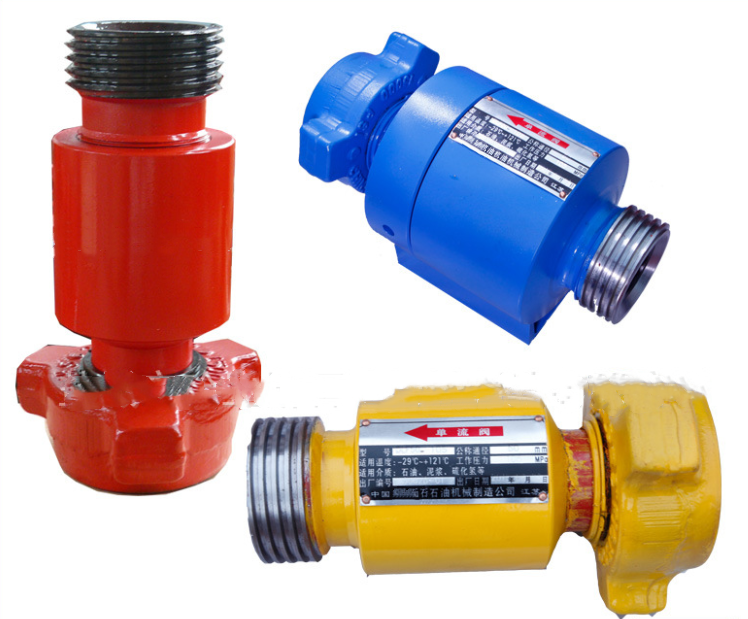

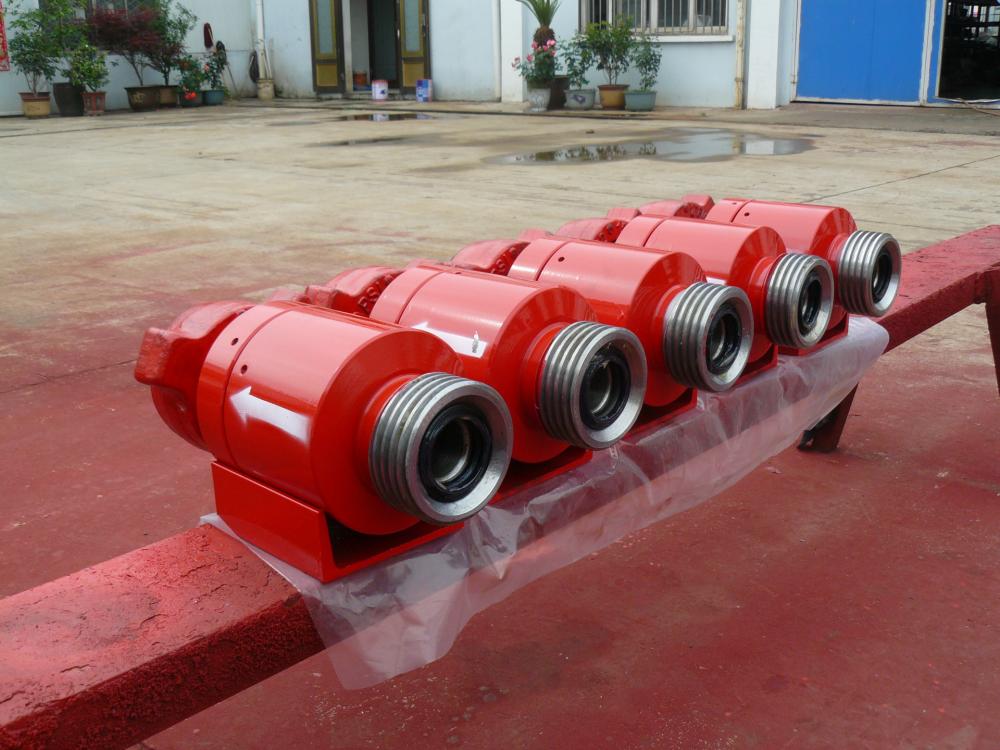

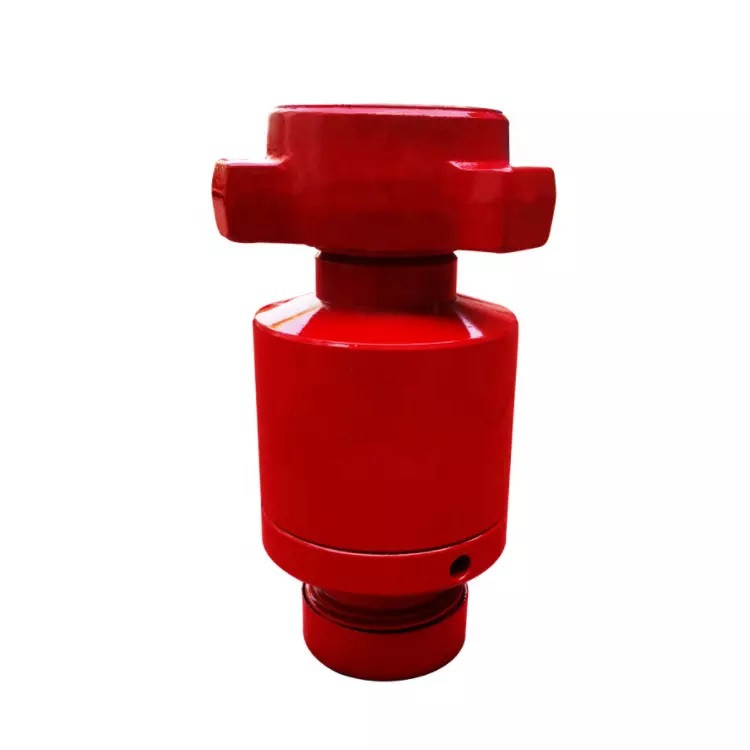

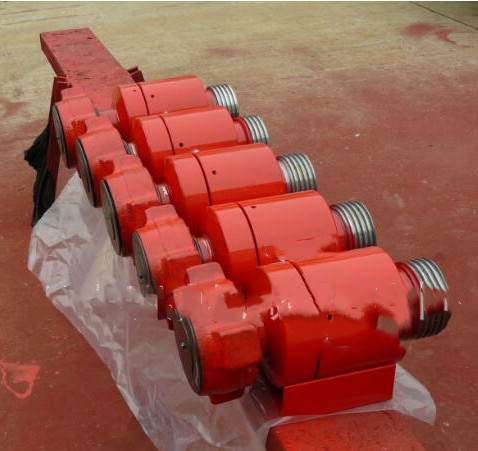

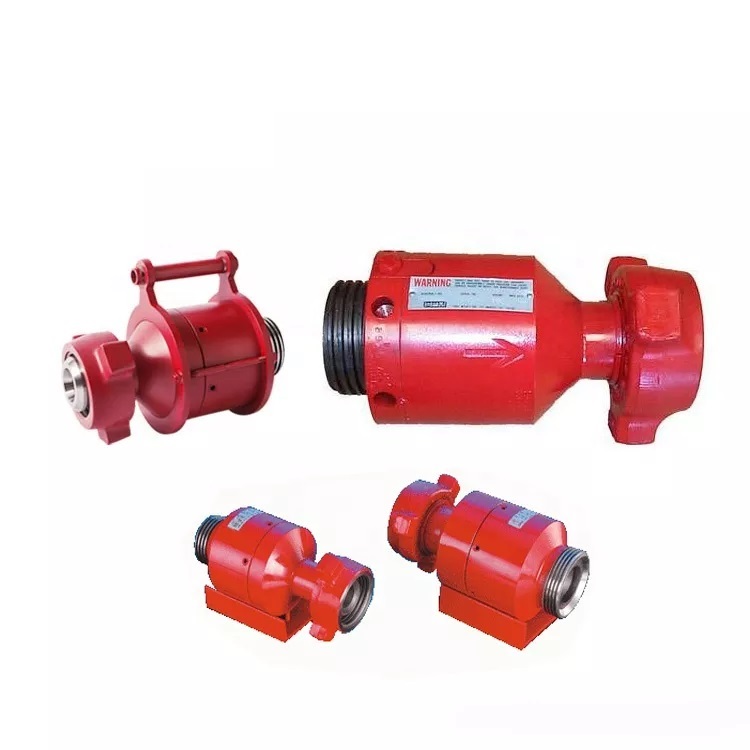

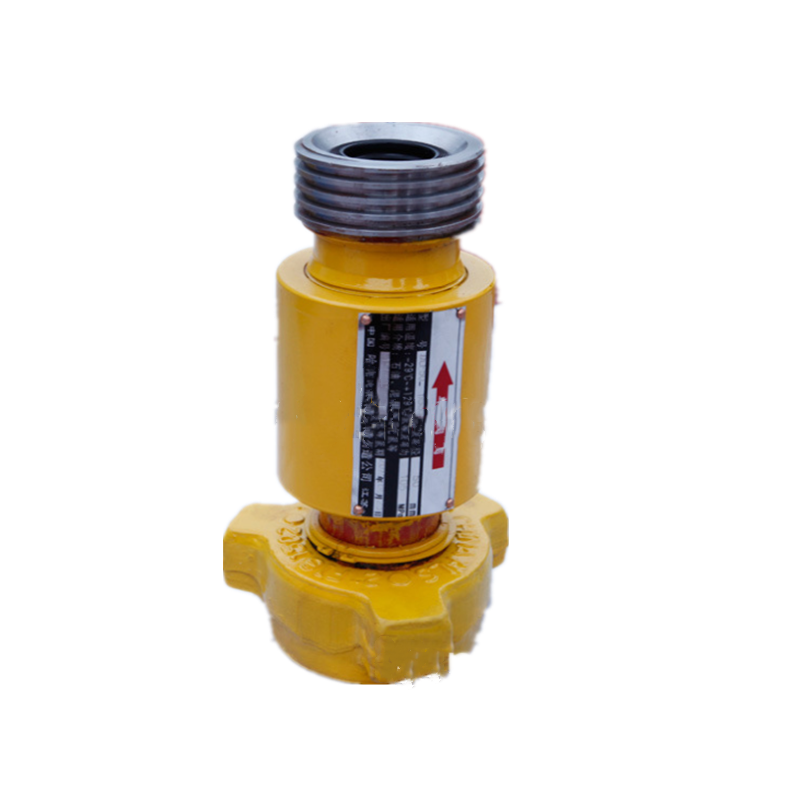

Check Valve
1.Product Overview
a.Check valve is mainly used to separate drilling liquid and fluid. It is installed inside the high pressure piping to prevent liquid backstreaming by self-closing baffle. It is manufactured in full conformance with API-6A Standard;
b. High pressure check valve is composed by valve body, valve deck, valve seat and valve rod;
c. When the liquid flows along with the arrow direction, liquid will push the valve plate and open the valve and let the liquid in. on the contrary, valve plate will cover the valve seat and make it sealed.
2.Design Features
a.High structural strength:check valve is forged by high strength alloy steel;
b.Convenient assembling and disassembling: both end union joints contribute to easy assembling and disassembling of pipeline;
c.Good sealing performance: valve baffle is vulcanized by hydrogenation nitrile rubber buna on the surface;
d.Long life span: it has long life span under high pressure;
e.Convenient maintenance: no need to remove check valve from high pressure piping for routine maintenance;
f.Well environmental adaption: except for routine work high pressure check valve, we are also supplying check valve working under vulcanization environment.
3.Common Buckle Models for Check Valve
| Name | Specification | Cold working press | Terminal connection type | Buckle model |
| 2"Check Valve | DXF70-2"×2" | 70Mpa(10000psi) | fig1002 | M×M |
| DXF105-2"×2" | 105Mpa(15000psi) | fig1502 | M×F | |
| 3"Check Valve | DXF70-3"×3" | F×F | ||
| DXF105-3"×3" | ||||
| Remark:a..“F”-threaded joint,“M”-sphere joint | ||||
| b.How to place an order:DXF105-2"×2"-fig1502-M×F | ||||
Company Information
Rugao You Inport & Export Co. LTD was established in 2004, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.
Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.
Our company mainly deals in Hardware Tools , combined tools, electric tools, Special Tools For Petroleum, Metal Processing Machinery and petroleum drilling equipment. Diagonal Cutting Plier，Oil Drill Pipes，Drilling Tools，The company provides various centrifugal pumps, chemical pumps, screw pumps , Booster Pumps , variable frequency constant pressure pumps, hydrochloric acid pumps, testing pumps, etc. Diesel Engine Etc.Our companyoperates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.

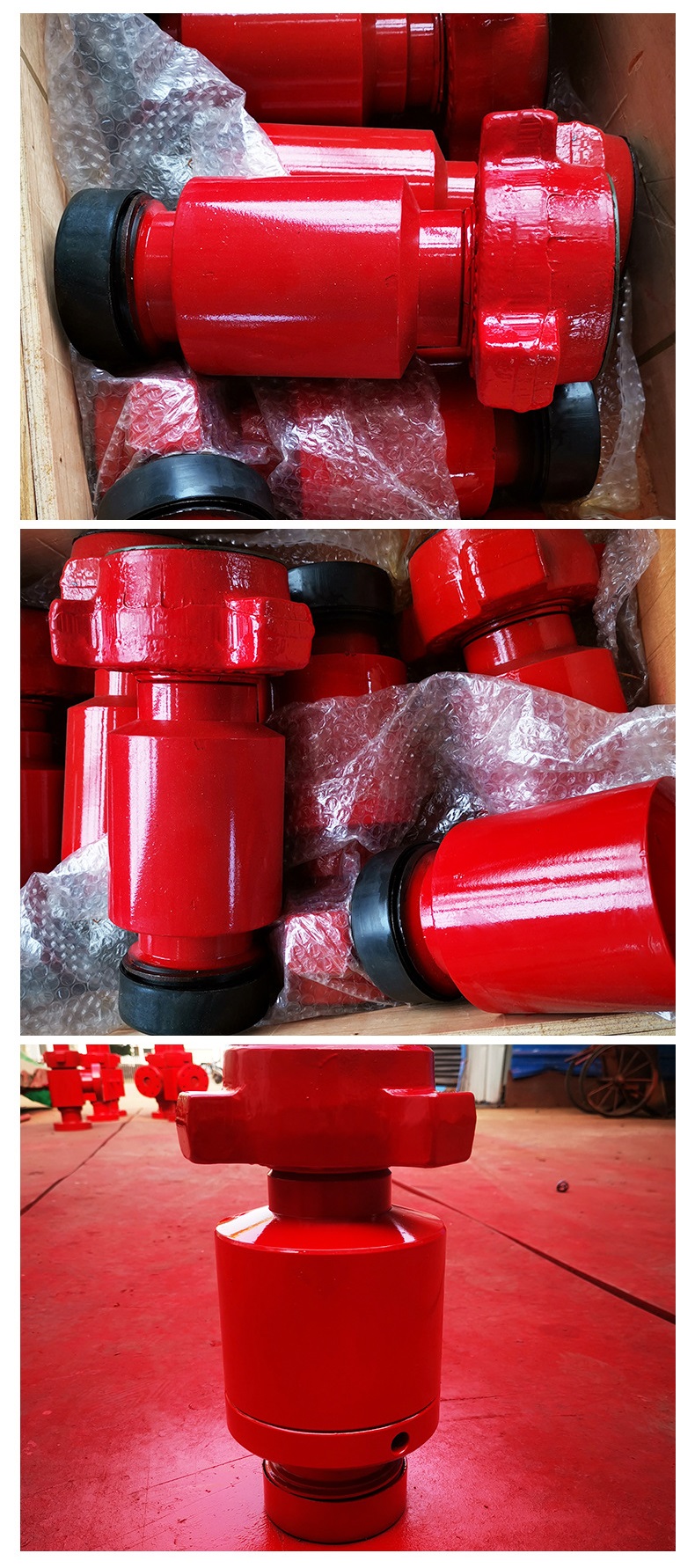

According to the volume and weight of the product and export requirements, provide multi-layer boxes and iron box packaging.
