Products Description
Model No.: 100-600 mm Gate
Brand: YAOU
Types Of: Gate Valves
Certification: Csa
Support Customization: Oem
Place Of Origin: China
Application: General
Medium Temperature: High Temperature
Power: Manual
Flow Medium: Oil, Gas
Structure: Gate
Place Of Origin: Jiangsu, China
Application: General
Standard Or Nonstandard: Standard
Power: Manual
Temperature Of Media: High Temperature
Media: Oil
Type: Gate Valves
Port Size: 150-600
Structure: Gate
Brand Name: Yaou
Packaging: Export packing
Productivity: 100
Transportation: Ocean,Land,Air,Express
Place of Origin: CHINA
Supply Ability: 100
Certificate: API
HS Code: 8481100090
Port: SHANGHAI
Payment Type: L/C,T/T
Incoterm: FOB
- Selling Units:
- Set/Sets
- Single package size:
- 35cm*35cm*35cm
- Single gross weight:
- 20kg
- Package Type:
- Export packing
- Picture Example:
-
Product Description
Product description of Class 150~600 Cryogenic Gate Valve
BOLTED LENGTHEN BONNET,Threaded or welded seat ring
Full bore,OS&Y,Rising stem,Flexible wedge
Pressure relief hole on seat
Stainless trim
ASTM A352 LCB,LC1,LC2,LC3,LC4
A351 CF8,A351 CF8M
Standards compliance of Class 150~600 Cryogenic Gate Valve
Design and Manufacture: API 600,API 6D,BS1414
Face to face (end to end): ANSI B16.10,API 6D
Flanged connection: 2~24 to ANSI B16.5
Butt welded end: ANSI B16.25
Test and inspection: API 598,API 6D
Material specification of Class 150~600 Cryogenic Gate Valve
|
NO.
|
Part
|
A352 LCB
|
A352 LC1
|
A352 LC2
|
A352 LC3
|
A352 LC4
|
A352 CF8
|
|
01
|
Body
|
A352 LCB
|
A352 LC1
|
A352 LC2
|
A352 LC3
|
A352 LC4
|
A352 CF8
|
|
02
|
Seat ring
|
A182 F304+STL
|
A182 F304+STL
|
A182 F304+STL
|
A182 F304+STL
|
A182 F304+STL
|
A182 F304+STL
|
|
03
|
Wedge
|
A352 LCB+STL
|
A352 LC1+STL
|
A352 LC2+STL
|
A352 LC3+STL
|
A352 LC4+STL
|
A352 CF8+STL
|
|
04
|
Stem
|
A182 F6a
|
A182 F304
|
||||
|
05
|
Gasket
|
Spiral wound/Soft Iron/PTFE
|
|||||
|
06
|
Bolt
|
A320 L7
|
A193 B8
|
||||
|
07
|
Nut
|
A193 2H
|
A194 8
|
||||
|
08
|
Back seat
|
A182 F6a
|
A182 F304+STL
|
||||
|
09
|
Yoke
|
A352 LCB
|
A352 LC1
|
A352 LC2
|
A352 LC3
|
A352 LC4
|
A352 CF8
|
|
10
|
Gland Bocking
|
Graphite
|
|||||
|
11
|
Gland
|
A182 F6a
|
A182 F6a
|
A182 F6a
|
A182 F6a
|
A182 F6a
|
A182 F6a
|
|
12
|
Gland Flange
|
A352 LCB
|
A352 LC1
|
A352 LC2
|
A352 LC3
|
A352 LC4
|
A352 CF8
|
|
13
|
Stem nut
|
Cu-Aolly,A439 D-2
|
|||||
|
14
|
Yoke nut
|
A194 2H
|
|||||
|
15
|
Handwheel
|
Malleable Iron/cast steel/Ducile/Fabricated
|
|||||
|
16
|
Handwheel nut
|
A194 2H
|
|||||
|
17
|
Nameplate
|
Stainless steel
|
|||||
|
18
|
Pin
|
A182 F6a
|
|||||
|
Working temperature
|
-46
|
-60
|
-73
|
-101
|
-115
|
-196
|
|

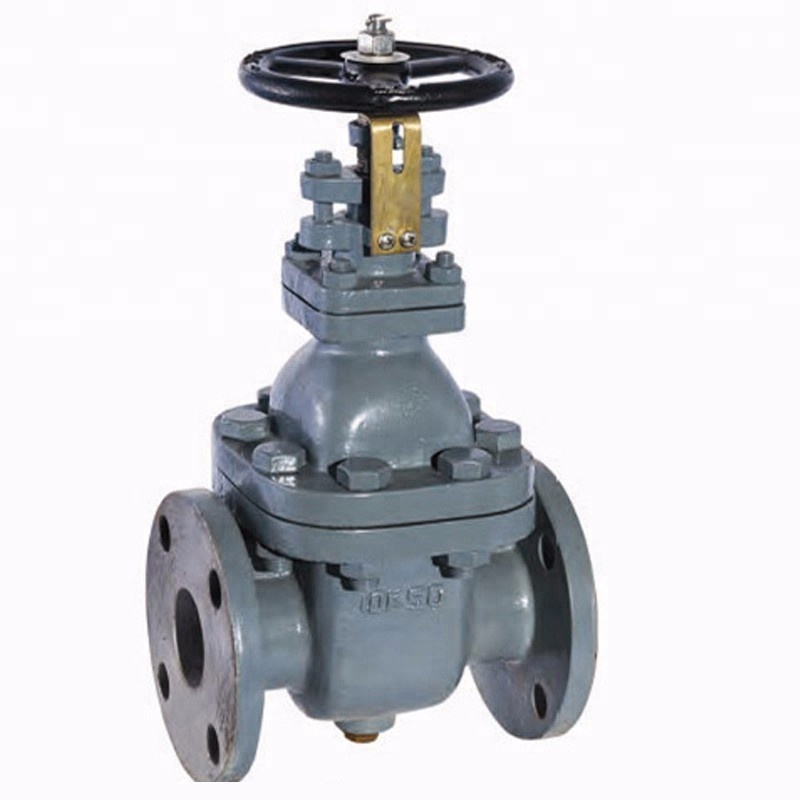

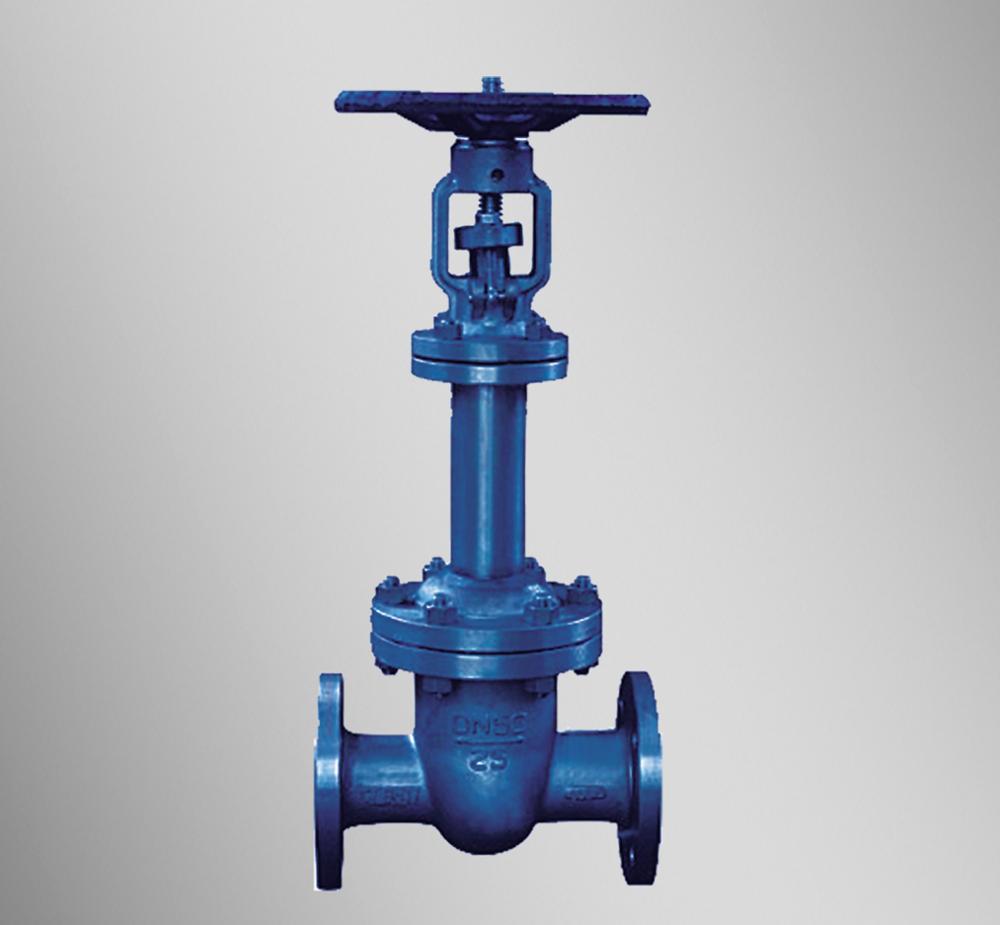

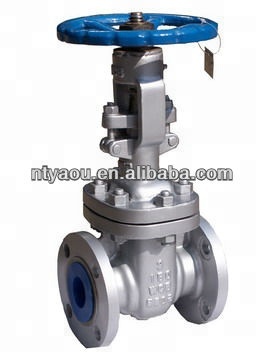

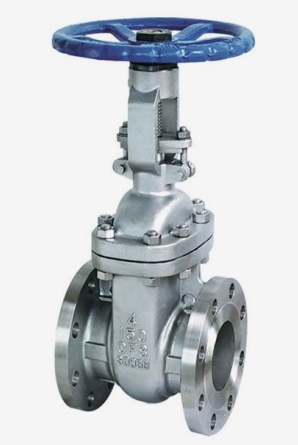

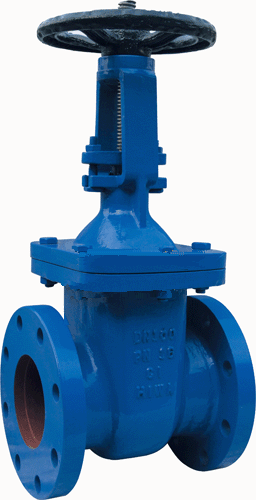

Product view of Class 150~600 Cryogenic Gate Valve
Company view of Rugao Yaou
Rugao You Inport & Export Co. LTD was established in 2004, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.
Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.
Our company mainly deals in Hardware Tools, combined tools, electric tools, Special Tools For Petroleum, Metal Processing Machinery and petroleum drilling equipment. Diagonal Cutting Plier，Oil Drill Pipes，Drilling Tools，Diesel Engine Etc.Our companyoperates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers
Packaging & Shipping
According to the volume and weight of the product and export requirements, provide multi-layer boxes and iron box packaging.
Transportation is based on customers in different regions using steam, rail, road and air transportation.
FAQ
Q1. How to get an accurate quotation?
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost)
2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machine.
Tags:

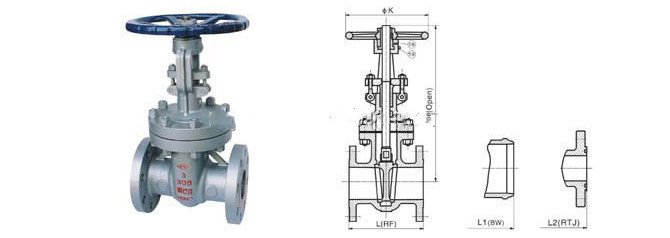

Technical parameter
