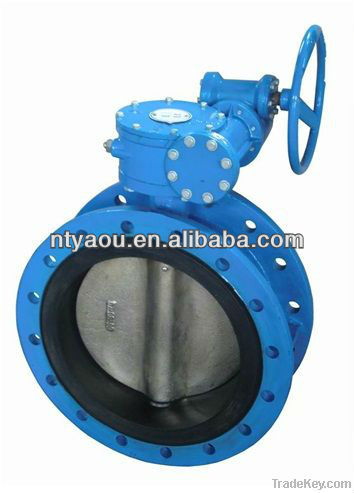

Worm Actuated Eccentric Double Flange Butterly Valve

Product description of Manual-operated Rubber-Seat Double Eccentric Flanged Butterfly Valve

Material of different parts:

1.Body: Ductilie Iron+SS316L

2.Disc: Ductile Iron+EPDM

3.Shaft: SS420

4.Seat: EPDM

Pressure

PN10, PN16, Class 150

Actuator

Handle Lever, Gear Worm, Electric actuator, Pneumatic actuator.

Parts Name Description

Valve type Double eccentric butterfly valve

Connection flange EN1092 PN10/PN16, Class 150

Face to Face EN558-1 Series 13

Body material Ductile Iron+SS316L Seat ring

Disc material Ductile Iron+EPDM Disc ring

Stem material SS420

Seat material EPDM

Actuator Worm Gear or Electric actuator

Resilient Seat double flanged,Double Eccentric Butterfly Valve with gearbox and handwheel,BS EN593

1.Products:  BS EN593 Resilient Seat Double Eccentric Butterfly Valve

2.Material Of Construction: Ductile Iron

3.Dimensions: DN150 – DN1400

4.Connection type: Flanged,BS EN1092

5.Seal Type: Soft seal(EPDM Rubber or NBR)

6.Design Standard:BS EN593

7.Face to face dimensions:  BS5156/DIN3202 F4(ISO5752 S13/14)

8.Each valve be tested according to test standard: BS6755

9. Work Temperature: 0-80°C

10.Media:water

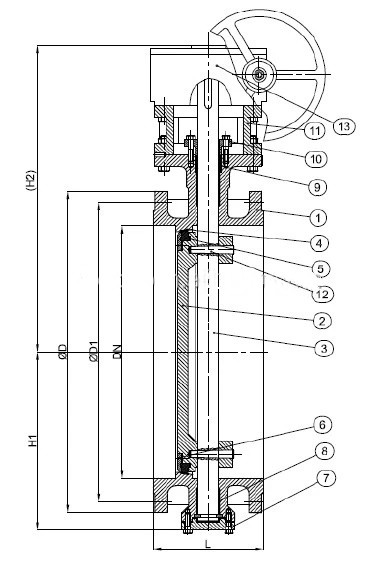

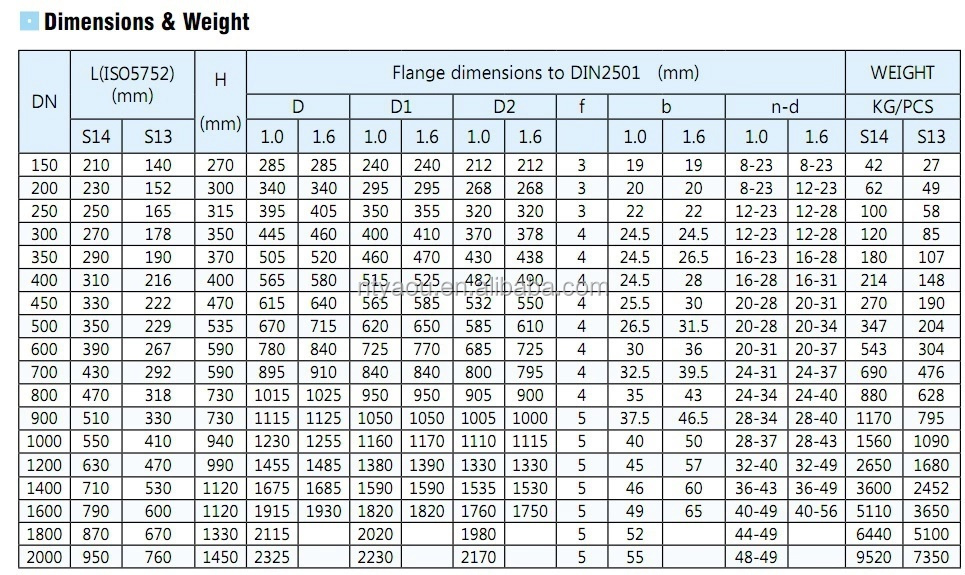

Technical specificastion of Manual-operated Rubber-Seat Double Eccentric Flanged Butterfly Valve

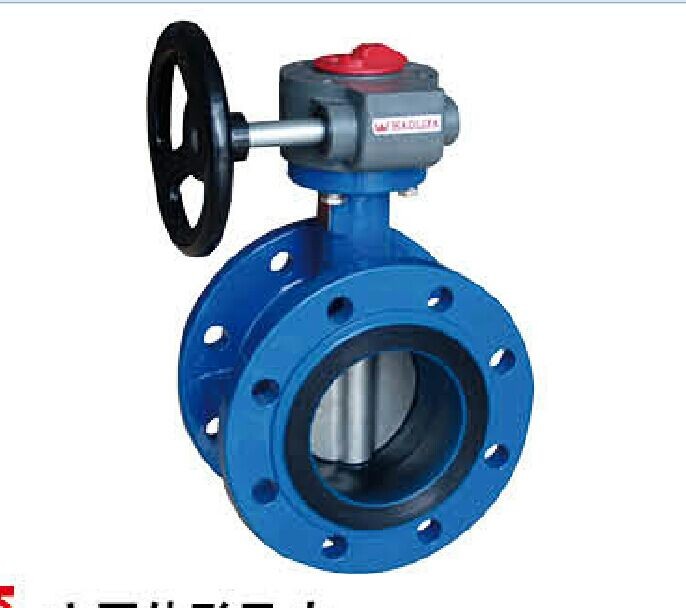

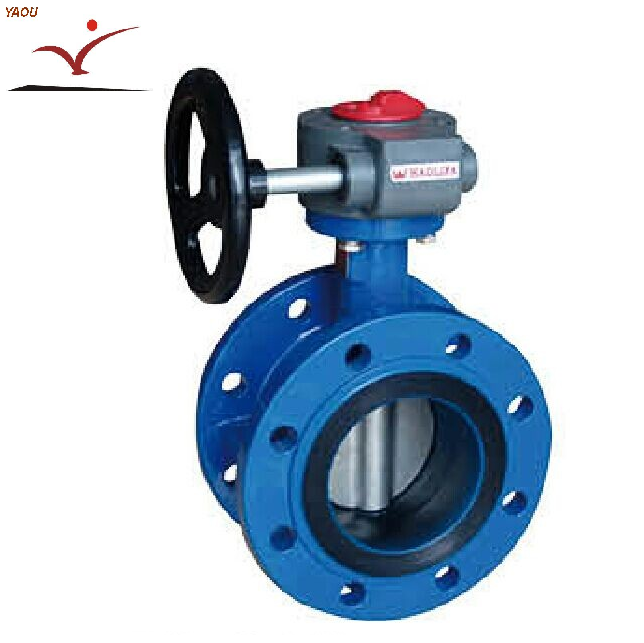

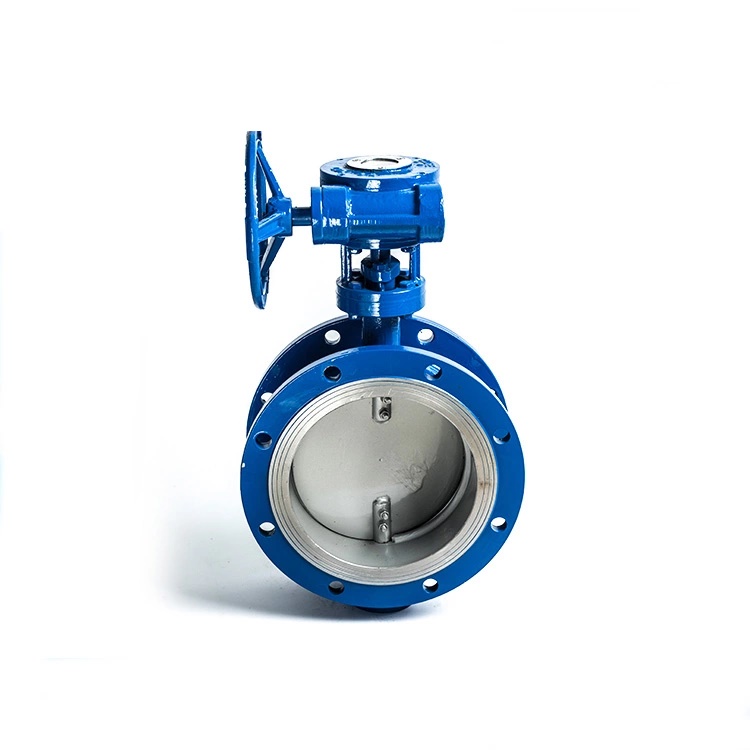

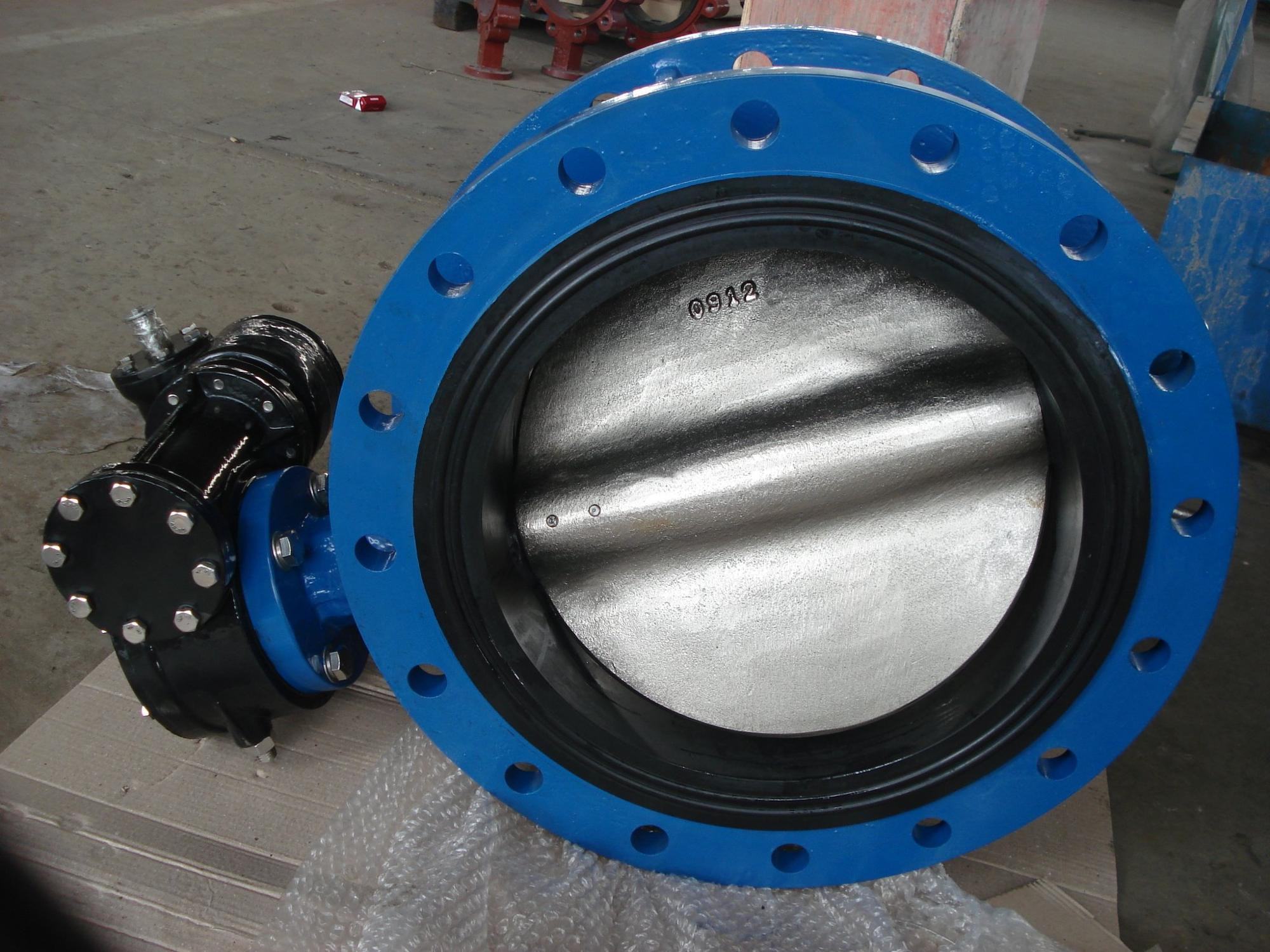

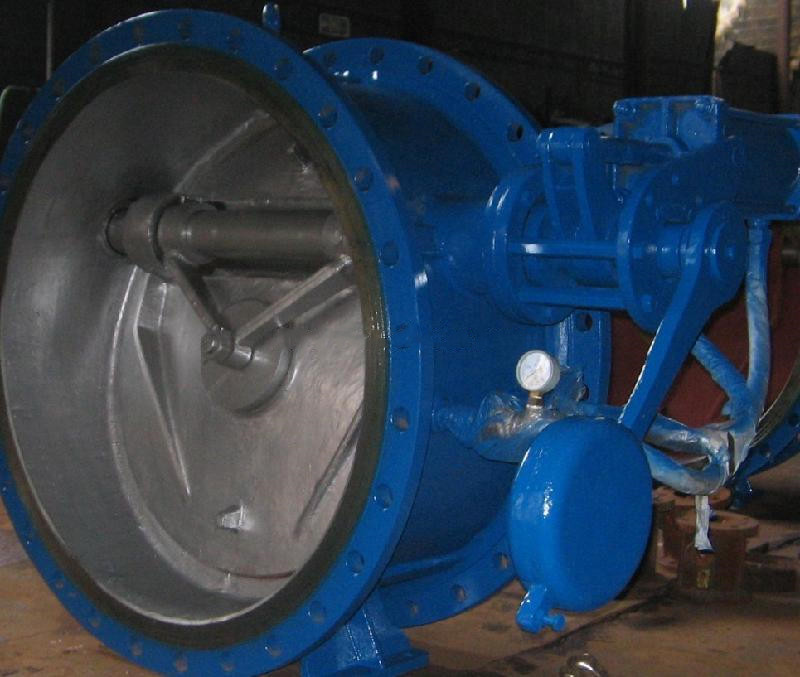

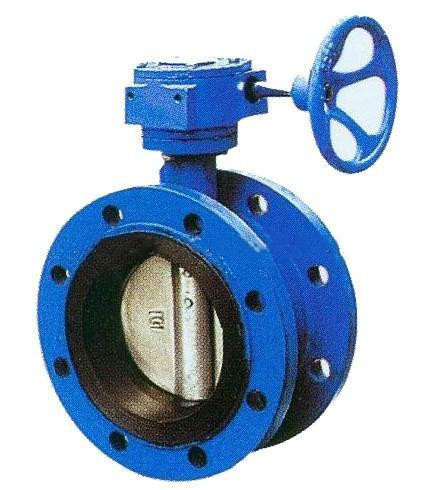

Product view of Manual-operated Rubber-Seat Double Eccentric Flanged Butterfly Valve

Company view of Rugao Yaou

Rugao You Inport & Export Co. LTD was established in 2004, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.

Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.

Packaging & Shipping

According to the volume and weight of the product and export requirements, provide multi-layer boxes and iron box packaging.

Transportation is based on customers in different regions using steam, rail, road and air transportation.

 Our company mainly deals in Hardware Tools, combined tools, electric tools, Special Tools For Petroleum,

Metal Processing Machinery and petroleum drilling equipment. Diagonal Cutting Plier，Oil Drill Pipes，

Drilling Tools，Diesel Engine Etc.Our companyoperates hardware tools and has established long-term and

stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of

our customers with the principle of multi variety operation characteristics and small profit and quick

turnover. Enjoy a high position among consumers.

FAQ

Q1. How to get an accurate quotation?

A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,

Q2. What if I use this machine for the first time and know nothing of it ?

A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
