Products Description
Model No.: MSS/API/BS
Brand: YAOU
Types Of: Butterfly Valves
Certification: Gs
Support Customization: Oem
Place Of Origin: China
Application: General
Medium Temperature: Medium Temperature
Power: Manual
Flow Medium: Oil, Gas
Structure: Butterfly
Place Of Origin: Jiangsu, China
Application: General
Standard Or Nonstandard: Standard
Temperature Of Media: Medium Temperature
Power: Manual
Type: Butterfly Valves
Media: Oil
Structure: Gate
Model Number: Butterfly Valve Dn200
Port Size: 40-1000
Brand Name: Yaou
Packaging: Export packing
Productivity: 100
Transportation: Ocean,Land,Air,Express
Place of Origin: CHINA
Supply Ability: 100
Certificate: API
HS Code: 8481100090
Port: SHANGHAI
Payment Type: L/C,T/T
Incoterm: FOB
Product introduction of Wafer Butterfly Valve
1.MSS/API/BS design.
2.Size:DN40-1200.
3.Working pressure:PN10/16/25.
4.ISO9001/ABS/CCS/DNV/CE.
5.Flange:AWWA/BS/EN etc.
Our company is alibaba gold member for Six year.We have attend the large-scale exhibition at home and abroad each year.We are professional valves manufacturer, our mainly products for fire products, water works and HVAC.The products with ISO9001, CE, UL/FM approved.

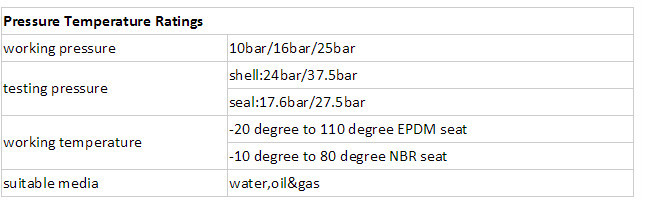

Parameter of Wafer Butterfly Valve
product features of Wafer Butterfly Valve
1.Newly developed facilities ensure high and stable quality.
2.Enable to supply UL/FM valves.
3.Experienced technology
4.Excellent after-sale service to satisfy customers.
5.Sufficient capacity ensures prompt delivery.
6.Continuous quality improvement and new designs development.
7.Reasonable and stable price
8.Meets different countries standards,such as ANSI,DIN,BS etc.

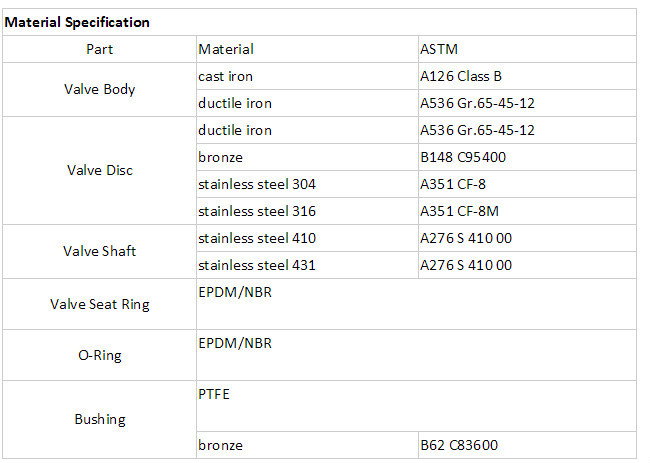

TECHNICAL DATA of Wafer Butterfly Valve
Valve Standard
MSS SP-67
API 609 Category A
BS EN593/BS5155
Nominal diameter of Wafer Butterfly Valve
1.5"-48"/DN40-DN1200
Working pressure: 10Bar/16Bar/25Bar
Face-to-face
API 609 Table 1
ISO 5752 Series 20
EN 558 Series 20 (DIN 3202 T3 K1)
BS 5155 Series 4
Flange accommodation
ANSI B16.1 Class125/150
AWWA C207
MSS SP44 Class150
DIN 2501 PN6/10/16 EN1092-2 PN6/10/16 BS10 Table D/E
JIS B2220 5K/10K/16K
AS4087 PN14/16
Top Flange
ISO5211
Tightness check
API 598
ISO 5208,
EN12226-2


Technical specificastion
type: | D7A1X-10/16ZB |
nominal diameter: | DN40–DN1000 |
nominal pressure: | PN1.0 PN1.6 |
working temperature: | -35°C–135°C |
suitable mediums: | water,sewage,oils,acids,alkalis |
Dimensions
Size | L | L1 | D1 | H2 | H1 | Z-Ød |
DN50 | 46 | 218 | 120 | 158.7 | 67.2 | 4-23 |
DN65 | 49 | 222 | 136 | 163 | 77 | 4-25 |
DN80 | 49 | 222 | 160 | 177 | 91 | 8-20 |
DN100 | 55 | 245 | 185 | 191.5 | 104.5 | 4-24 |
DN125 | 58 | 257 | 213 | 207.5 | 117.5 | 4-23 |
DN150 | 59 | 257 | 236 | 222 | 132 | 4-24 |
DN200 | 64 | 345 | 295 | 258 | 169 | 4-22 |
DN250 | 71 | 351 | 357 | 290 | 200 | 4-30 |
DN300 | 81 | 512 | 408 | 329.6 | 239 | 4-30 |
DN350 | 85 | 470 | 358 | 254 | 4-30 | |
DN400 | 89 | 525 | 390 | 301 | 4-30 | |
DN500 | 132 | 650 | 470 | 345 | 4-23 | |
DN600 | 152 | 770 | 540 | 445 | 4-30 |

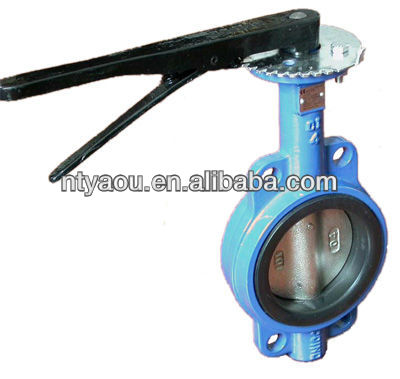

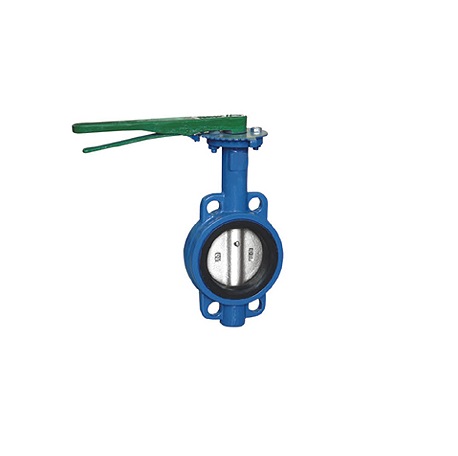

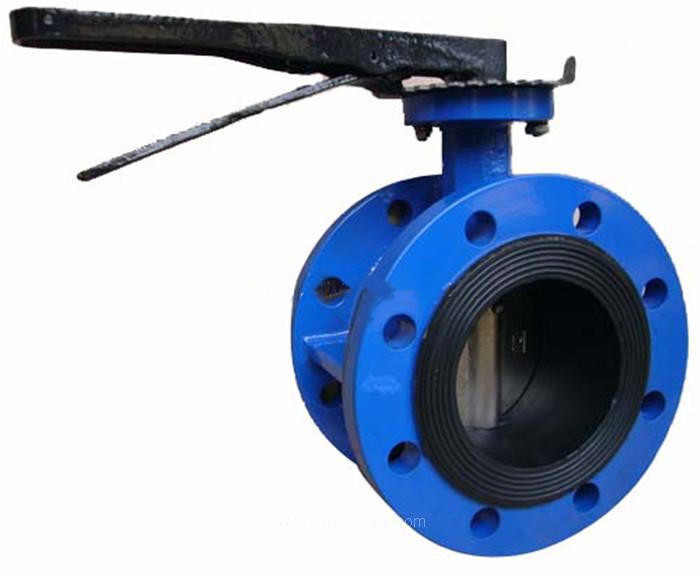

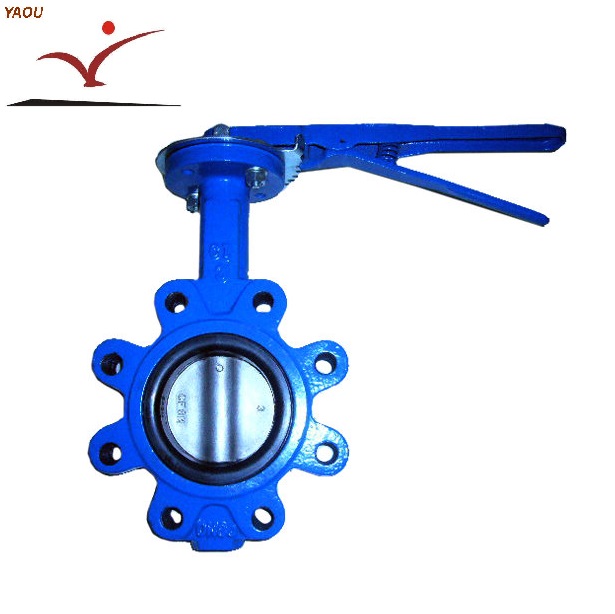

Product view of Wafer Butterfly Valve

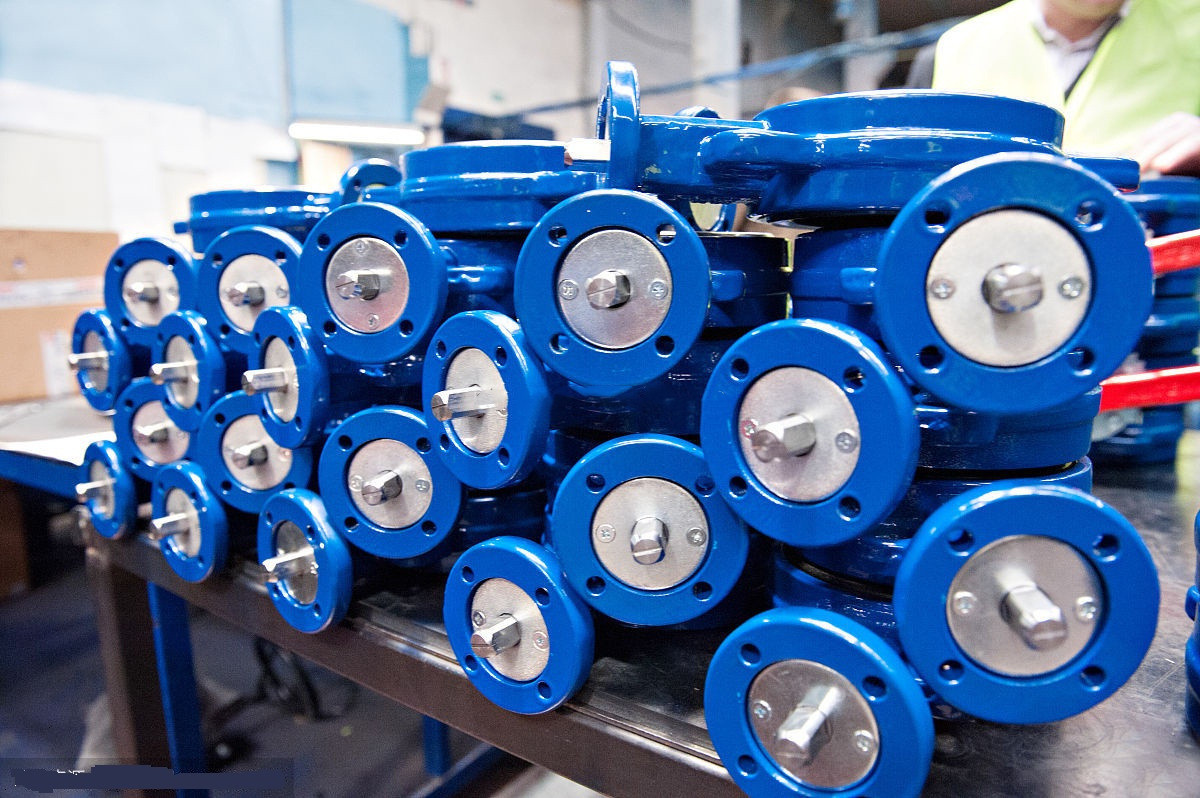

Company view of Rugao Yaou
Rugao You Inport & Export Co. LTD was established in 2004, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.
Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.
Packaging & Shipping
According to the volume and weight of the product and export requirements, provide multi-layer boxes and iron box packaging.
Transportation is based on customers in different regions using steam, rail, road and air transportation.
Contact Person
Our company mainly deals in Hardware Tools, combined tools, electric tools, Special Tools For Petroleum, Metal Processing Machinery and petroleum drilling equipment. Diagonal Cutting Plier,Oil Drill Pipes,Drilling Tools,Diesel Engine Etc.Our companyoperates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.
