Products Description
Model No.: Check valve
Brand: YAOU
Warranty Period: 3 Years
Types Of: Gate Valves, Ball Valves, Globe Valves
Certification: Csa
Support Customization: Oem
Place Of Origin: China
Application: General
Medium Temperature: High Temperature, Normal Temperature
Power: Manual
Flow Medium: Gas, Oil
Structure: Check, Control
Place Of Origin: Jiangsu, China
Application: General
Standard Or Nonstandard: Standard
Power: Manual
Temperature Of Media: High Temperature
Media: Oil
Structure: Check
Type: Gate Valves, Metal Check Valves, Plastic Check Valves
Model Number: 2 1/16
Port Size: 2 1/16
Brand Name: Yaou
Packaging: Standard export packing
Productivity: 100
Transportation: Ocean,Land,Air
Place of Origin: CHINA
Supply Ability: 100
Certificate: API
HS Code: 8481100090
Port: SHANGHAI
Payment Type: L/C,T/T
Incoterm: FOB
- Selling Units:
- Set/Sets
- Package Type:
- Standard export packing
- Picture Example:
-

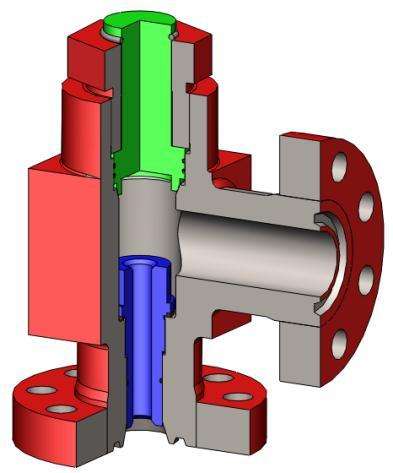

The product is designed and manufactured accord-ing to API Spec 6A "Equipment Specification of Well-head & X'mas tree" and matched and interchangeablewith any equipment which conforms to API 6Aspecification.
It creates the metal-to-metal seal by the pressureof the medium, the more the pressure is, the better thesealing effect is. Anytime the valve chamber can bearthe pressure of the pipeline.
Valve body is machined of alloy steel forging with astronger machinery properties and reliable performance.
Bonnet is connected with valve body with bolt, theseals include the sealing ring in the bonnet and the sealin the valve body;
The sealing face between valve core and valve bodyis welded with hard alloy with good abrasion resistanceand anti-scour; the valve core is made of sulfide-resistance steel and the others adopt the process of hard-ness limit so the valve is able to be used in H2S condition.
The sealing-face of the valve core and the valvebody is bead-welded with carbide, plus rubber seals,which has.
Operation instruction
According to medium flow direction and by the flowdirection indicating plate of the valve, the valve isinstalled. As positive flowing, The medium lifts the valvecore and pass easily; If no positive medium pressure,valve core will self-shut off valve gate under self-weightand spring's tensile force, the back medium flowing stop.
Maintenances
The valve should be placed in the dry and airy room,and the inlet and outlet are sealed properly.
When the product is stored, the end flanges shouldbe coated by oil against rust and dirt pollution.
The valve-core and the valve-seat must be exam-ined every in a well time. The attrition rate will decidewhether they are used by upset or are replaced.
Every seal element is replaced according to itsexamination
There is a bit leak at a couple of seals of valve, andthe sealing-face may have scratch or wear. Renovationwill be done under face-off and ground finish.
As leak appears at the middle one of the valvebores, ring gasket should be replaced….
|
Item |
Component |
Qty |
Material |
Remark |
|
1 |
Body |
1 |
35CrMO |
|
|
2 |
Valve Core |
1 |
35CrMO |
|
|
3 |
Spring |
1 |
65Mn |
|
|
4 |
Bushing |
1 |
ZcuA19-4 |
|
|
5 |
O-Ring |
2 |
NBR |
|
|
6 |
Cover |
1 |
35CrMO |
|
|
7 |
Stud |
8 |
35CrMO |
|
|
8 |
Nut |
8 |
40Cr |

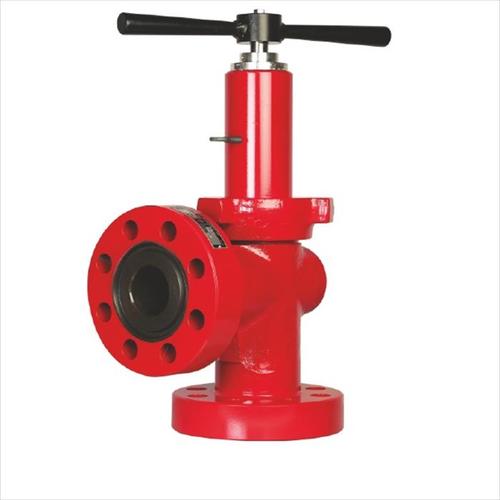

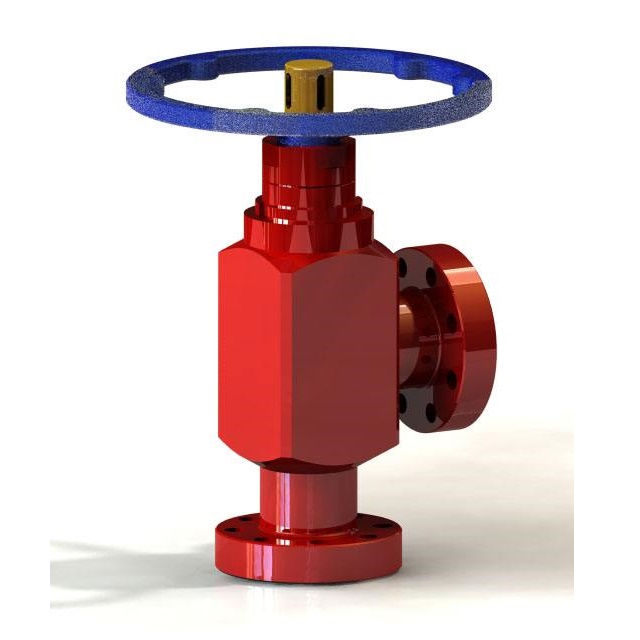

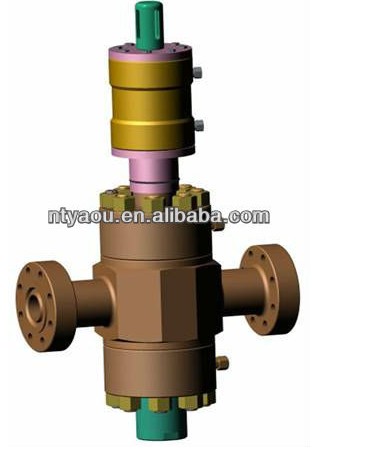

API 6A 2 1/16 Oilfield Wellhead Adjustable Throttle Choke Valve 5000-10000PSI
API 6A Oilfield Wellhead Adjustable Throttle Choke Valve
The choke valve, a main component of Christmas tree, is design to control production rate of the oil well, with working pressure up to 15000psi. Choke valves can be classified as follows: adjustable choke valves and positive choke valves. By rotating hand wheel to move the stem, the adjustable choke valve is designed to adjust the effective area available for the flow to accomplish control of production rate. The positive choke valve is design to accomplish control of production rate by changing flow beans.
| Size Range | 2-1/16” ~ 7-1/16” |
| Pressure Rating | 3000psi to 15000 psi |
| Operation | Manual/Hydraulic |
| Temperature | PU/LU |
| Product Specification Levels | PSL1 ~ 4 |
| Performance Requirement | PR1 ~ 2 |
| Service | oil,gas,H2S,CO2 |
Company Information
Rugao You Inport & Export Co. LTD was established in 2004, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.
Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.
The company has more than 20 years of trade service team, mainly engaged in Oil Drilling Equipment, drilling special tools, various Processing Machinery, Hardware Tools, etc. At the same time, it provides some special products, so stay tuned.
Main products:
1. Drill Pipe, Heavy Drill Pipe, Square & Hexagonal Kelly
2. Drill Collar & Non-magnetic Drill Collar
3. Stabilizers, Reamer, Hole Opener, Casing Scraper, etc
4. Kelly Valve, Safety valve, Check valve, and float valve
5. Hydraulic or Mechanical Drilling Jar, and Absorber
6. Fishing tools (Bowen serials), including overshot, spear, etc
7. Junk Mill, Casing Cutter, Safety Joint, etc
8. Hydraulic Bucking unit, Screw up and breakout Unit, Down hole motor tester, Jar tester, etc.
9 .Down hole motor
10. Processing machinery: shears, bending machines, hydraulic presses, bending machines, etc.
11. Various coal mine winches, oil field winches, ship winches, etc.
12. Various hand tools and electric tools.
According to the volume and weight of the product and export requirements, provide multi-layer boxes and iron box packaging.
Transportation is based on customers in different regions using steam, rail, road and air transportation.
FAQ
Q1. How to get an accurate quotation?
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost)
2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machineQ1. How to get an accurate quotation?
