Products Description
Model No.: KG430/KG430H
Applicable Industries: Energy & Mining
Local Service Location: Egypt, Canada, Turkey, Italy, France, Germany, Viet Nam, Saudi Arabia, Indonesia, Pakistan, India, Russia, Malaysia, Morocco, Kenya, Chile, Uae, Romania, Bangladesh, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
Showroom Location: Uae, Uzbekistan
Condition: New
Type: Core Drilling Rig
Power Type: Diesel
Brand Name: Yh
Usage: Ore
Dimension(L*W*H): 4100*2030*2020
Warranty: 1 Year
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Key Selling Points: Flexible Manufacturing
After-sales Service Provided: Engineers Available To Service Machinery Overseas
Name: Crawler Drilling Rig
Model: Kg910b
Applicable Industry: Energy &Amp; Mining, Construction Works
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Uzbekistan, Kazakhstan, India, Russia, Mexico
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Uzbekistan, Turkey, India
Status: New
Types Of: Core Drilling Rig
Engine Type: Diesel
Place Of Origin: China
Use: Ore
Warranty Period: 1 Year
Mechanical Test Report: Provided
Video Factory Inspection: Provided
Core Component Warranty Period: 2 Years
Core Components: Pump, Gearbox
Core Selling Point: Famous Brand Plc
Place Of Origin: Jiangsu, China
Voltage: 33kw
Weight: 3300kg
Certification: Ce Iso
Packaging: Standard export packaging.
Productivity: 10
Transportation: Ocean,Land
Place of Origin: china
Supply Ability: 10 Set/Sets per Month
Certificate: iso
HS Code: 84314310
Port: Shanghai
Payment Type: L/C,D/A,D/P,T/T,Western Union
Incoterm: FOB,CFR,CIF,EXW
- Selling Units:
- Set/Sets
- Package Type:
- Standard export packaging.

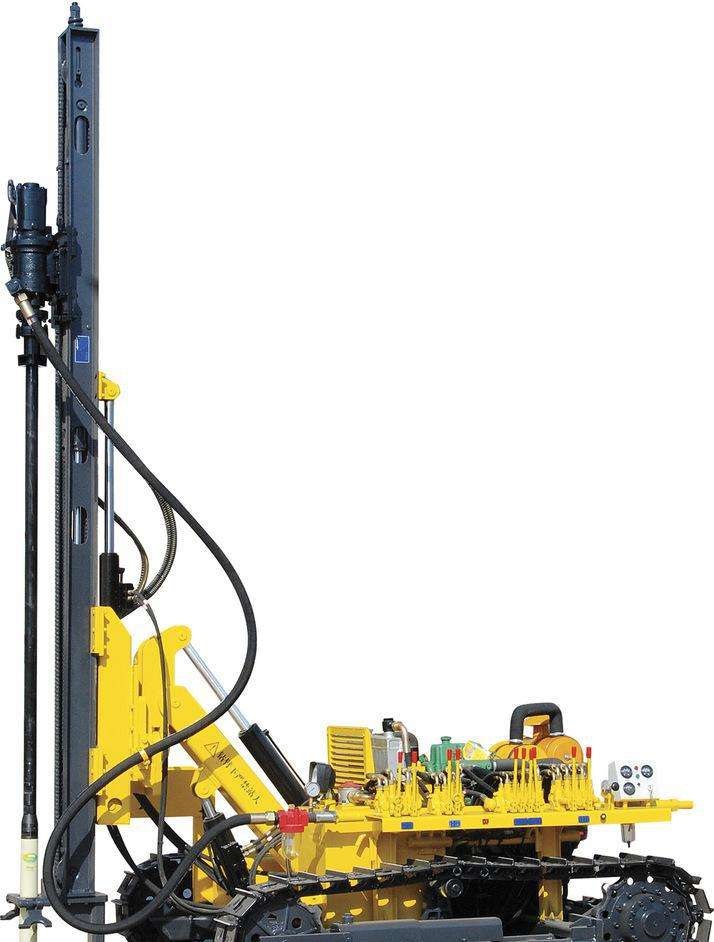

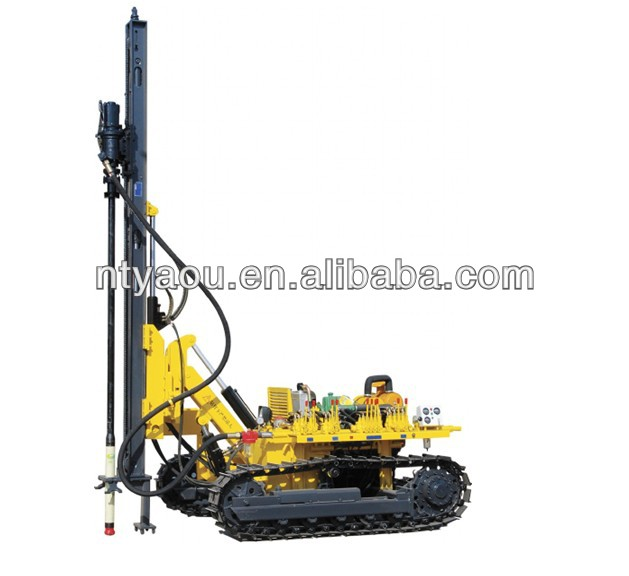

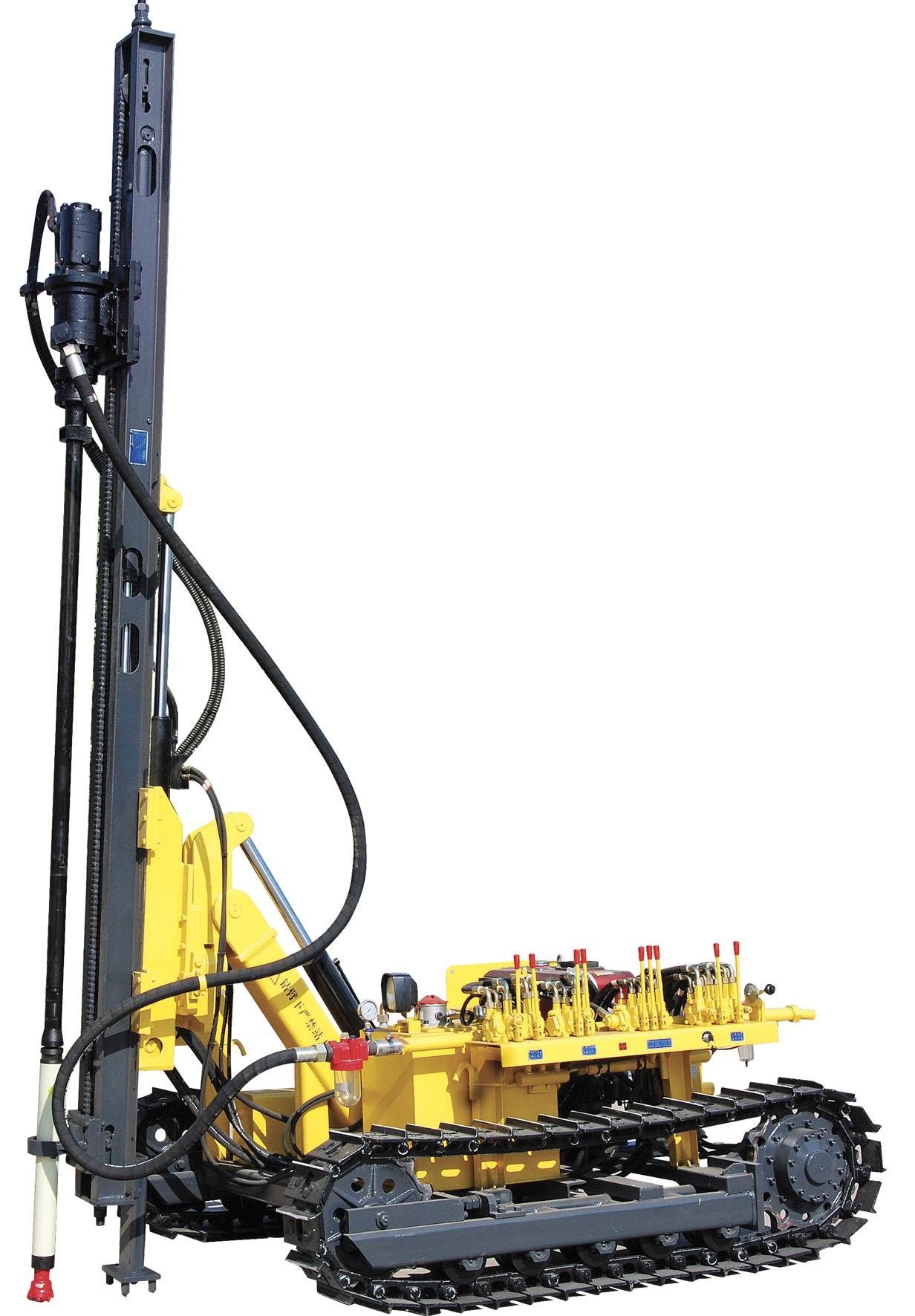

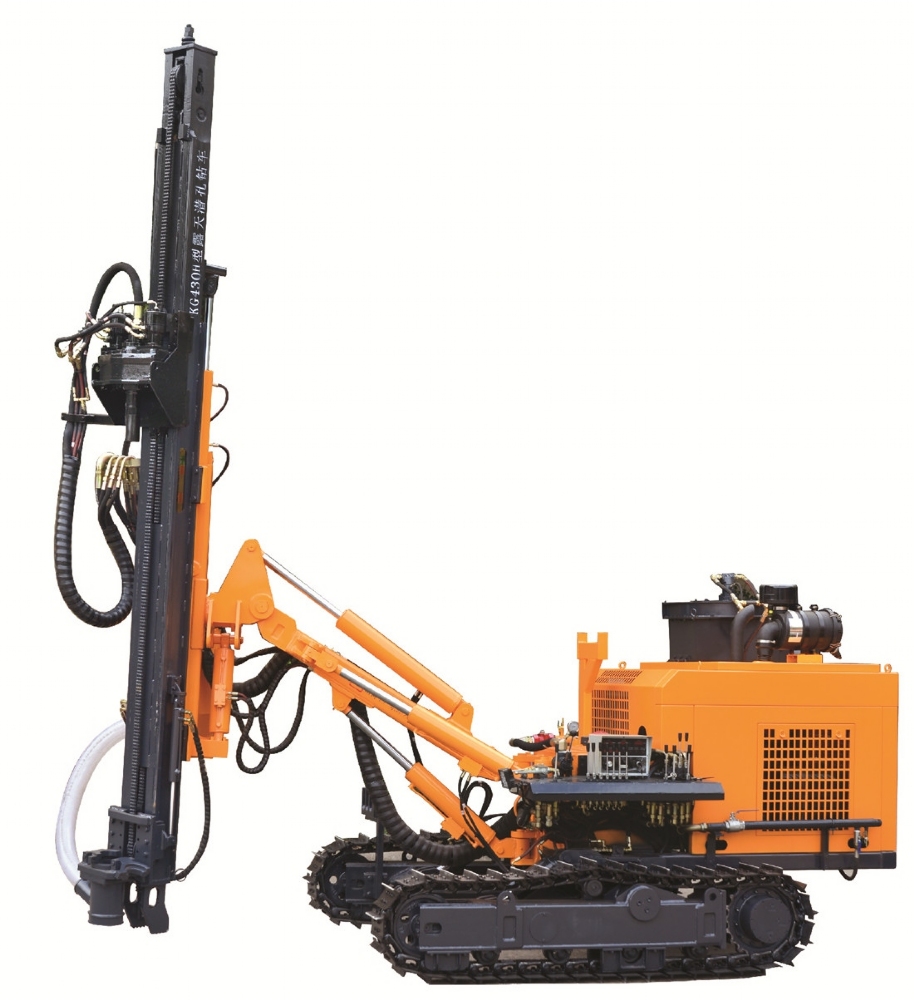

KG430H Drilling Truck Instructions
The KG430/KG430H Down the hole drill rig for open use is an improved device in compliance with national regulations on diesel-engine emissions. The drill rig is equipped with the two independent systems, namely Diesel Engine and motor, capable of separate operations, The folding frame track and four-wheel drive are adopted; and the walking motor of plunger piston and track leveling improve the working pressure and climbing capacity. The expanded pitch and lifting-arm hydraulic cylinder enable it to meet the requirements of limiting position. The double rotation motor increases the rotary torque and revolving speed; and the lifting hydraulic cylinder and chain are expanded to promote the lifting force and reliability. The thickened profile folder is used for the housing, thus improving its level of intensity and rigidity; and the additional ring makes handling and lifting convenient.

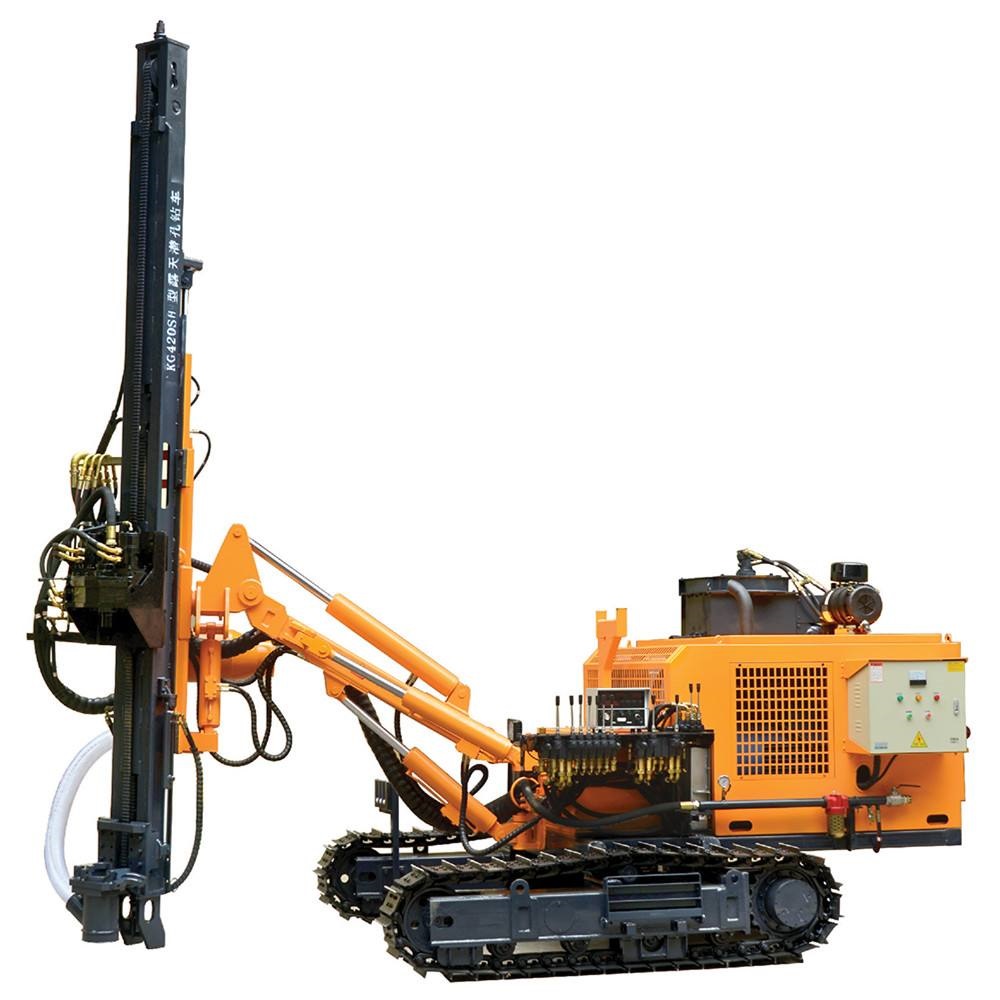

The KG430SH Down the hole drill rig for open use is equipped with a dust collector, thus making operation more environment-friendly and reliable.
|
Technical Parameters |
||
|
Model of drill rig |
KG430 |
KG430H |
|
Welght of complele machine |
5252KG |
5700KG |
|
Outerdimensions |
6300×2250×2700mm |
6300×2400×2700mm |
|
Drilling hardness |
f=6-20 |
|
|
Drilling diameter |
Φ90-152mm |
|
|
Depth of economlcal drilling |
25m |
|
|
Rotary speed |
0-90rpm |
|
|
Rotary torque (Max) |
5000N.m (Max) |
|
|
Liting force |
40KN |
|
|
Method of Feed |
Oil cylinder+roller chain |
|
|
Feed strcke |
3175mm |
|
|
Travelling speed |
0-2.5km/h |
|
|
Oimbing capacity |
≤30° |
|
|
Ground clearance |
500mm |
|
|
Tilt angle of Beam |
Down: 110°， Up: 35°， Total: 145° |
|
|
Swing angle of boom |
Left: 91', right:, 5° Total 96° |
|
|
Pitch angle of drill boom |
Down: 55°， Up: 15°， Total: 70° |
|
|
Swing angle of drill boom |
Left: 32', right:, 32° Total 64° |
|
|
Leveling angle of track |
±10° |
|
|
Compens ation length of beam |
900mm |
|
|
Supporting power |
KG430 YuchaL YC4DK80-T302 (58KW/2200r/min) |
|
|
DTH hammer |
4" |
|
|
Drilling rod |
Φ76 × 2m+Φ76 × 3m |
|
|
Air consumption |
13-20m³/min |
|
|
Max mum height of horizontal hide |
2850mm |
|
|
Minimum height of horiz ontal hole |
350mm |
|
Transportation is based on customers in different regions using steam, rail, road and air transportation.
Company Profile
Our company mainly deals in Hardware Tools , combined tools, electric tools, Special Tools For Petroleum, Metal Processing Machinery and petroleum drilling equipment. Diagonal Cutting Plier，Oil Drill Pipes，Drilling Tools，The company provides various centrifugal pumps, chemical pumps, screw pumps , Booster Pumps , variable frequency constant pressure pumps, hydrochloric acid pumps, testing pumps, etc. Diesel Engine Etc.Our companyoperates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost)
2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machineQ1. How to get an accurate quotation?.
Rugao Yaou Import & Export Co. LTD was established in 2004, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.
Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. Our company also operates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.
