Products Description
Model No.: Mud Pressure Gauge
Warranty: 3 Years
Certification: Gs
Customized Support: Oem, Odm, Obm
Brand Name: Yaou
Model Number: Yo080304
Type: Type Mud Pressure Gauge Model D (7)
Warranty Period: 3 Years
Support Customization: Oem
Place Of Origin: Shanghai, China
Packaging: Export standard packaging
Productivity: 10
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 8000 Piece/Pieces per Month
HS Code: 8543709100
Port: Shanghai
Payment Type: L/C,T/T,Money Gram
Incoterm: FOB,CIF,CFR
- Selling Units:
- Piece/Pieces
- Single package size:
- 40cm*30cm*20cm
- Single gross weight:
- 10kg
- Package Type:
- Export standard packaging
- Picture Example:
-
Products Description
High quality Type Mud Pressure Gauge Model D (7) for Oil drilling instrument and meter from China manufacture
Standpipe mud pump Pressure Gauges Rugged standpipe-type gauges provide dependable, accurate pressure readings
YAOU Stand Pipe Gauges provide a quick, accurate display of Pump pressure. Main applications are for standpipes and to be mounted on mud pumps. This style of gauge has been in service for many years and has proven to be a tough, dependable and reliable way to monitor pump pressure.
Model F Gauge for capacities up to 20,000 PSI
Model D Gauge for capacities up to 6,000 PSI

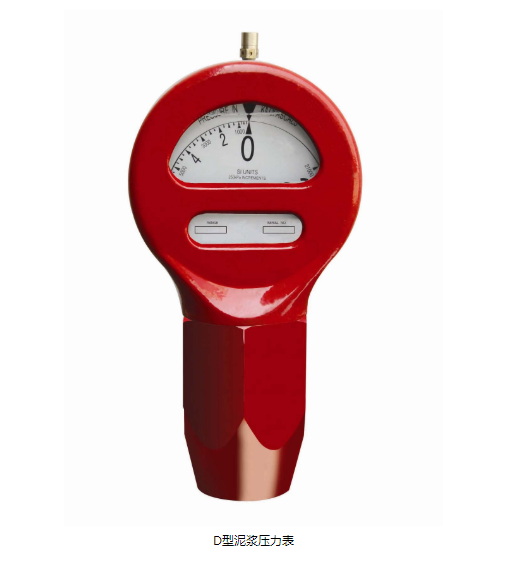

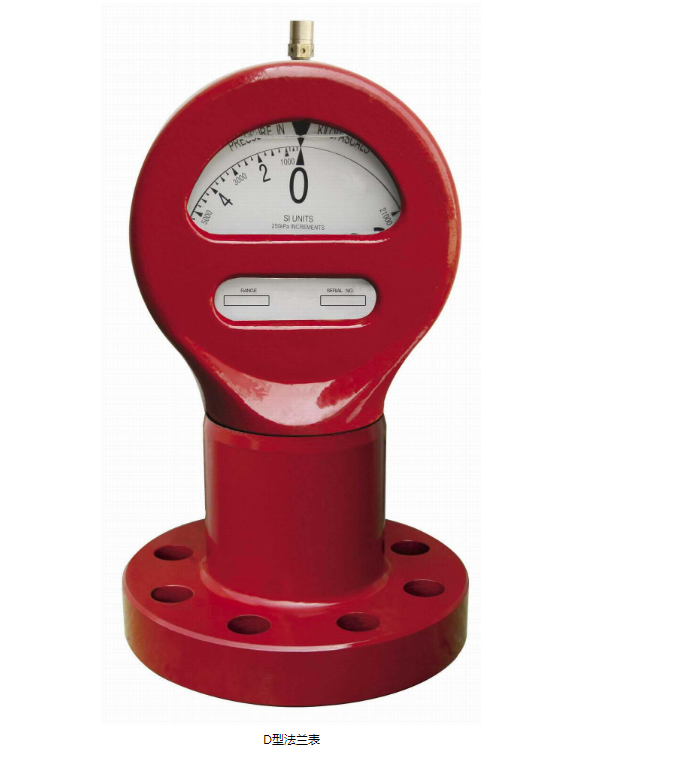

Type D Pressure Gauge
Model D Gauge for capacities up to 6,000 PSI
Features:
Standard capacities of:
1,000 p.s.i., 3,000 p.s.i. 5,000 p.s.i and 6,000 p.s.i.
70 Bar, 210 Bar 350 and 420 Bar
* 2" Nutted version available
Diameter: 7-7/8"
Height: 14-3/4"
Temperature range: -50°F to 180°F
Liquid surrounding gauge mechanism minimizes wear from vibration and mechanical shock
Heavy duty seals create watertight barrier around gauge mechanism
Impact resistant, clear polymer lens
Connects with threaded female 2" line pipe

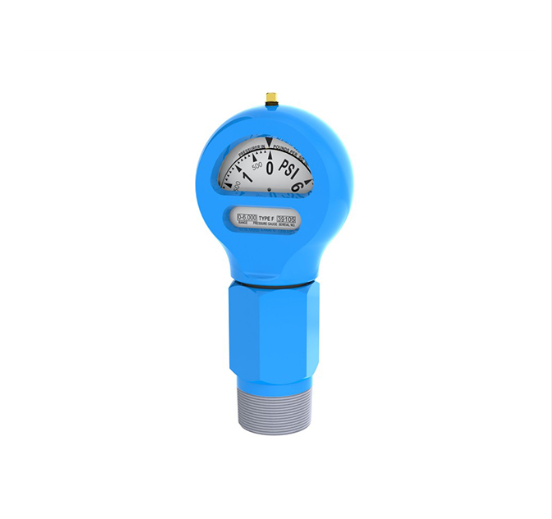

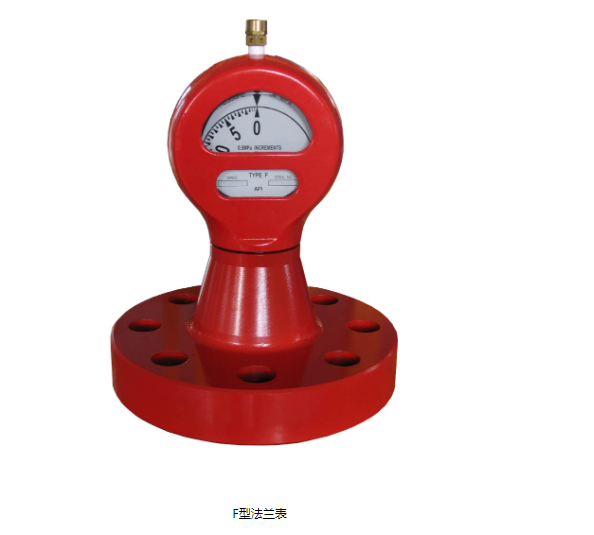

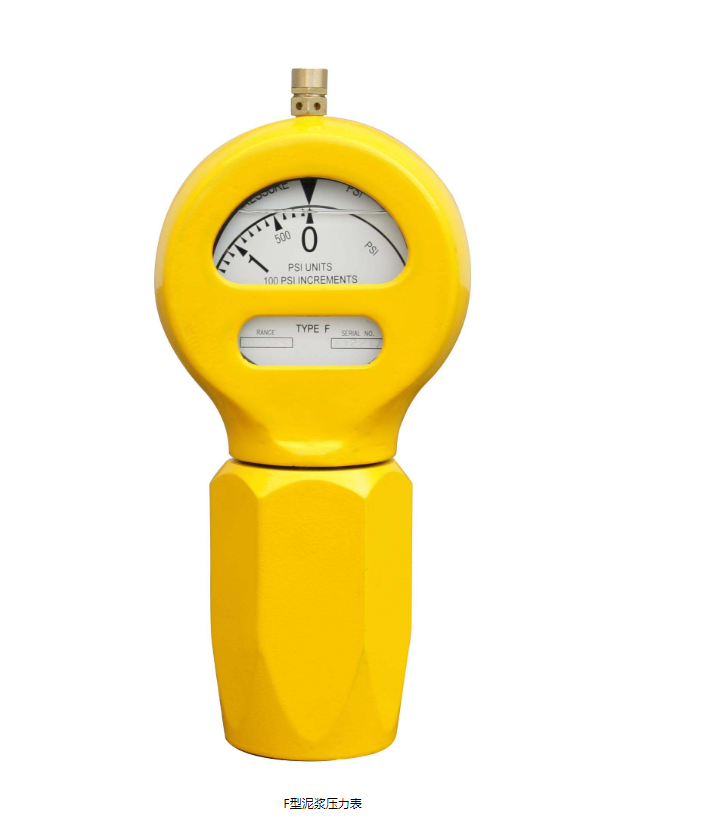

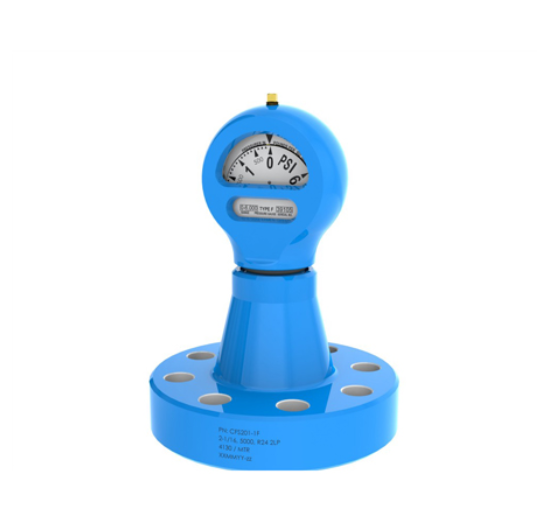

Type F Pressure Gauge (Model 6)
Model F Gauge(Model 6) for capacities up to 20,000 PSI
Features:
Diameter: 4-7/8"
Height: 9-7/8"
7MPa,14MPa,21MPa,25MPa,35MPa,40MPa,60MPa,80MPa,100MPa,120MPa and 160MPa
1,000 PSI,1500PSI 3,000 PSI. 5,000 PSI, 6,000 PSI, 10,000 PSI,15,000 PSI and 20,000PSI
70 Bar, 140 Bar, 210 Bar, 350Bar, 420 Bar, 700Bar,1,040 Bar and 1,400 Bar
Temperature range: -50°F to 180°F
Liquid surrounding gauge mechanism minimizes wear from vibration and mechanical shock
Heavy duty seals create watertight barrier around gauge mechanism
Combination threaded male 2" line pipe and threaded female 1" line pipe connection
|
Main Technical Specification
|
|||
|
Part-No.
|
Model
|
Description &Technical Parameters
|
Remarks
|
|
125-6
|
F(6)
|
Dial sizes: 4-7/8" (123 mm) dials
Accuracy: ± 1.6% of full range Pressure Range: 7MPa,14MPa,21MPa,25MPa,35MPa,40MPa,60MPa,80MPa, 100MPa,120MPa and 160MPa 1,000 PSI,1500PSI 3,000 PSI. 5,000 PSI, 6,000 PSI, 10,000 PSI,15,000 PSI and 20,000PSI 70 Bar, 140 Bar, 210 Bar, 350Bar, 420 Bar, 700Bar, 1,040 Bar and 1,400 Bar Size: 6.5" × 6" × 10.2" (16.5 × 15 × 26 cm) |
|
|
200-7
|
D(7)
|
Dial sizes: 4-7/8" (123 mm) dials
Accuracy: ± 1.6% of full range Pressure Range: 7MPa,14MPa,21MPa,25MPa,35MPa,40MPa and60MPa 1,000 PSI,1500PSI 3,000 PSI. 5,000 PSI and 6,000 PSI, 70 Bar, 140 Bar, 210 Bar, 350Bar and 420 Bar Size: 6.5" × 6" × 10.2" (16.5 × 15 × 26 cm) |
|
Our company mainly deals in Hardware Tools, combined tools, electric tools, Special Tools For Petroleum, Metal Processing Machinery and petroleum drilling equipment. Diagonal Cutting Plier，Oil Drill Pipes，Drilling Tools，Diesel Engine Etc.Our companyoperates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.
FAQ
Q1. How to get an accurate quotation?
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost
