Products Description
Model No.: JZ900 JZG72
Brand: YAOU
Place Of Origin: China
Status: New
Warranty Period: 1.5 Years
Service System: Overseas Service Center Available
Applicable Industry: Energy &Amp; Mining
Out-of-warranty Service: Video Technical Support
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Uae, Russia, Kazakhstan
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Uae
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: New Product 2020
Core Component Warranty Period: 1 Year
Core Components: Engine
Warranty: 1 Year
Condition: New
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Place Of Origin: Jiangsu, China
Applicable Industries: Energy & Mining
Material: Carbon Steel
Processing Type: Casting
Certification: Api
Type: Drill Bit
Machine Type: Drilling Equipment
Use: Well Drilling
Brand Name: Yaou
Showroom Location: Uae, Uzbekistan
Local Service Location: Egypt, Turkey, Philippines, Russia, Uae, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan
Productivity: 10
Transportation: Ocean,Air,Land
Place of Origin: China
Supply Ability: 10 Set/Sets per Week
Certificate: API
HS Code: 8431431000
Port: China
Payment Type: L/C,T/T
Incoterm: FOB
- Selling Units:
- Set/Sets
- Picture Example:
-
Products Description
16"weight indicator provides drillers with an easy to use and interpret way to track hook load and weight on bit

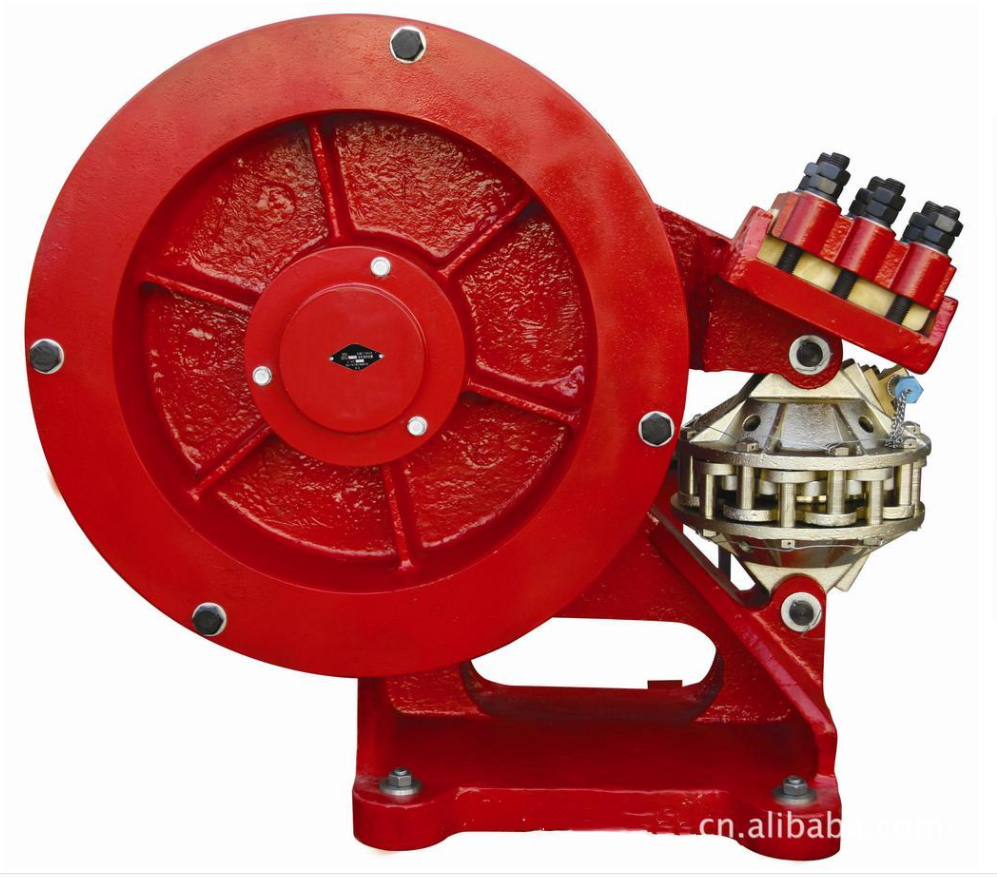

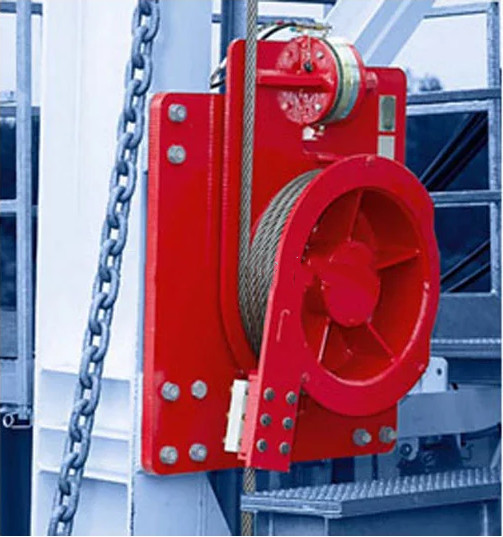

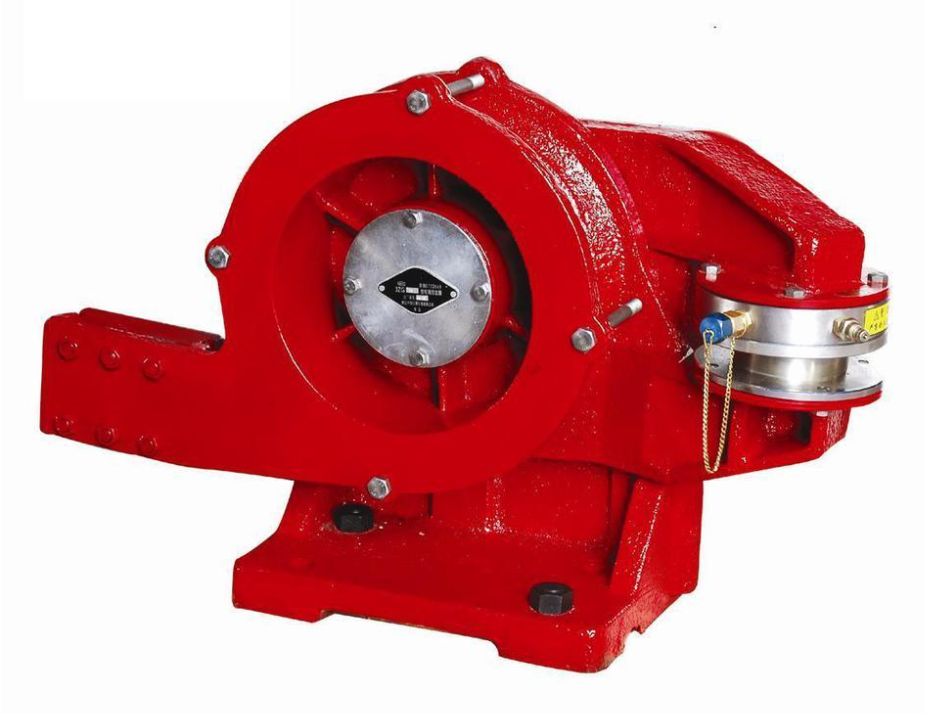

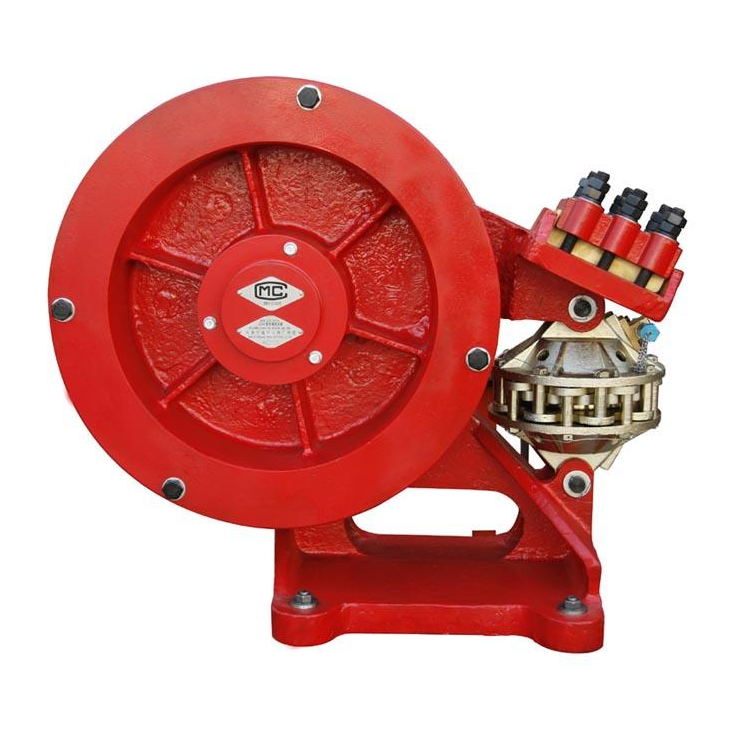

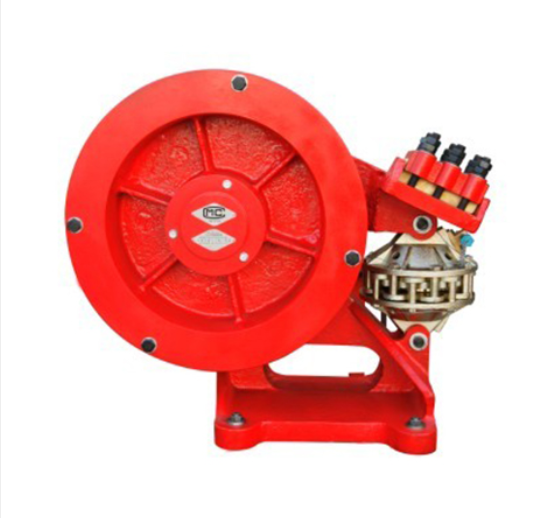

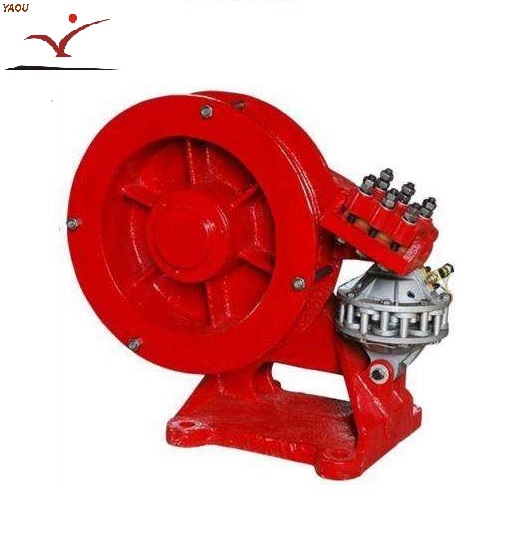

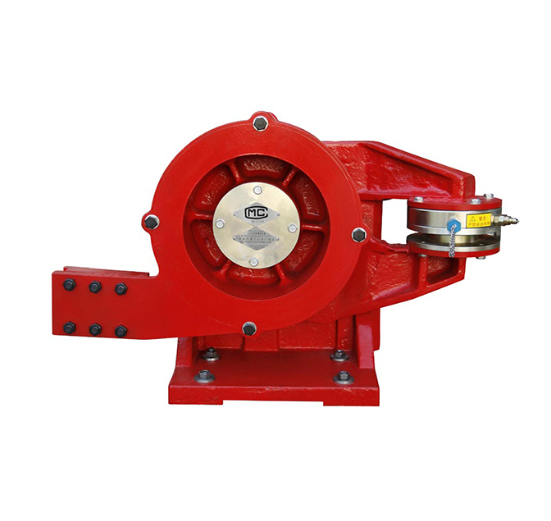

Anchor Type Weight Indicator System is compatible with various versions of drilling rigs and workover rigs. They indicate and record variation of hook load and weight on bit during drilling and well service for the driller judging the operation situation and obtain proper drilling parameters. Each set of weight indicating system consists of a deadline anchor, a weight indicator and a recorder.
JZ Series Weight Indicating System can be used by various Versions of drilling rigs and work over rigs. It can indicate and record the variation of hook load and weigh on bit in order to help driller judge the operation Status of the rig and obtain the proper drilling parameters during or well service Operation.
Features:
-Various models available for deadline loads up to 200,000 pounds
-Bit weight indicator(vernie) uses a 4:1 sensitivity movement to provide a highly accurate indication of bit weight.
-Models avaiable in a variety of sizes-from light weight models for mounting on wheel-mounted rigs and on helicopter rigs….
|
Specifications of JZ Series Weight Indicating System
|
||||||
|
Model of Weight Indicator
|
Model of Deadline Anchor
|
Installation Type
|
Max. Deadline Pull (kN)
|
Number of Lines
|
Corresponding Load
|
Deadline Anchor Output Pressure (MPa)
|
|
(kN)
|
||||||
|
JZ900
|
JZG72
|
Horizontal
|
720
|
12
|
8640
|
9
|
|
14
|
10080
|
|||||
|
JZ500
|
JZG42
|
Vertical
|
420
|
12
|
5040
|
6
|
|
10
|
4200
|
|||||
|
JZ500A
|
JZG41
|
Horizontal
|
410
|
12
|
4920
|
6.83
|
|
10
|
4100
|
|||||
|
JZ400
|
JZG35
|
Vertical
|
350
|
12
|
4200
|
6
|
|
10
|
3500
|
|||||
|
8*
|
2800
|
|||||
|
JZ400B
|
JZG34A
|
Horizontal
|
340
|
12
|
4080
|
6
|
|
10
|
3400
|
|||||
|
JZ250
|
JZG24
|
Vertical
|
240
|
12*
|
2880
|
6
|
|
10
|
2400
|
|||||
|
8
|
1920
|
|||||
|
JZ200
|
JZG20
|
Vertical
|
200
|
10
|
2000
|
6
|
|
8
|
1600
|
|||||
|
6*
|
1200
|
|||||
|
JZ150A
|
JZG18A
|
Vertical
|
180
|
10*
|
1800
|
6
|
|
8
|
1440
|
|||||
|
6
|
1080
|
|||||
|
JZ150
|
JZG18
|
Horizontal
|
180
|
10*
|
1800
|
6
|
|
8
|
1440
|
|||||
|
6
|
1080
|
|||||
|
JZ100
|
JZG15
|
Horizontal
|
150
|
10*
|
1500
|
6
|
|
8
|
1200
|
|||||
|
6
|
900
|
|||||
|
JZ100A
|
JZG15A
|
Vertical
|
150
|
10*
|
1500
|
6
|
|
8
|
1200
|
|||||
|
6
|
900
|
|||||
|
JZ60
|
JZG10
|
Straight Pull
|
100
|
8
|
800
|
4.2
|
|
6
|
600
|
|||||
|
4*
|
400
|
|||||
|
JZ40
|
JZG10A
|
Horizontal
|
100
|
6
|
600
|
6
|
|
4
|
400
|
|||||
|
JZ82
|
JZG13
|
Straight Pull
|
136.6
|
6
|
820
|
6
|
|
JZ75
|
JZG12
|
Straight Pull
|
125
|
6
|
750
|
5.2
|
|
|
|
|
|
|
|
|
Transportation is based on customers in different regions using steam, rail, road and air transportation.
Our company mainly deals in Hardware Tools, combined tools, electric tools, Special Tools For Petroleum, Metal Processing Machinery and petroleum drilling equipment. Diagonal Cutting Plier，Oil Drill Pipes，Drilling Tools，Diesel Engine Etc.Our companyoperates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers
FAQ
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost)
2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machineQ1. How to get an accurate quotation?.
