Products Description
Model No.: CMG100 CMG101 CTT100 CTT101
Certification: Gs
Customized Support: Oem, Odm, Obm
Brand Name: Yaou
Model Number: Yo080901
Type: Mechanical Rotary Torque System
Warranty Period: 3 Years
Place Of Origin: China
Place Of Origin: Shanghai, China
Support Customization: Oem
Packaging: Export standard packaging
Productivity: 100
Transportation: Express,Ocean,Land,Air
Place of Origin: CHINA
Supply Ability: 50 Piece/Pieces per Month
HS Code: 8543709100
Port: Shanghai
Payment Type: L/C,T/T
Incoterm: FOB
- Selling Units:
- Piece/Pieces
- Package Type:
- Export standard packaging
- Picture Example:
-
CMG100 CMG101 CTT100 CTT101 Torque meter
Mechanical Rotary Torque System
Delivers reliable torque measurements for rigs that use chain-driven rotary tables
Available in box-mount or panel-mount configurations, the YAOU Hydraulic Rotary Torque System provides accurate indications of
changes in torque for rigs that use chain-driven rotary tables.
Each system includes an Idler assembly and a Gauge.
Torque sensor measures torque variation of the drilling tool driven by the rotary table with rotary table torque sensor of tension
pulley type, so as to show the operating condition of the downhole drilling tool and changes in the bottom hole stratum, which is
helpful to know the downhole condition and avoid accident.
Technical Specification:
1. Output hydraulic pressure signal range: 0~6MPa
2. Tension pulley external diameter: F305mm
3. High-pressure cylinder diameter: F65mm
4. Minimum height of sensor: 355.5mm
5. Operating temperature: -40. ~+85 ºC
6. Non-linear error: 0.5%
Features:

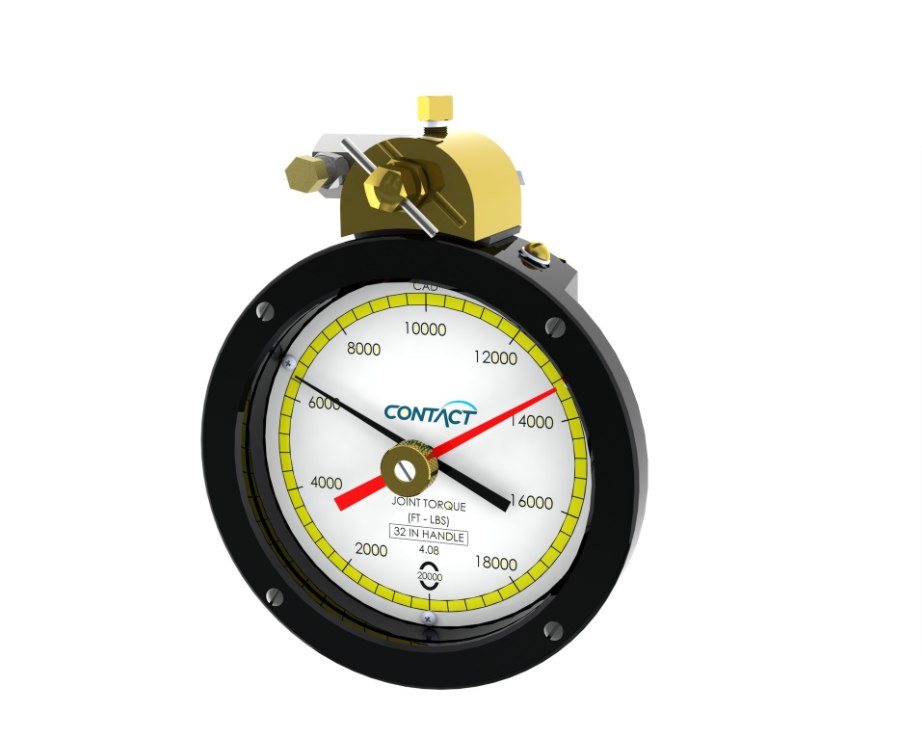

6-inch fluid-filled Gauge
Available in 500 and 1,000 points
Gauge has operator-adjustable dial to zero out drill string
in order to monitor torque at the bit
Standard 25-foot hose, with other hose lengths available
Rugged Steel Sprocket available (replaces rubber wheel located in Idler assembly)
Benefits:
Gauge damper minimizes pointer oscillations caused by drilling and drill string vibration, ensuring accurate readings and
increasing the life-span of the gauge.
Helps driller know when to change drill bits by indicating hole conditions and torque patterns.
Increases safety and optimizes drilling efficiency by providing warnings about possible twist-offs, locked cones on the bit,
out-of-gauge holes, and formation changes.
Connects easily to RIGCHINA drilling recorders to track and record trends.
To order specify:
Bracket-mount or panel-mount gauge
Gauge capacity
Chain size
Chain width (single or double)
Hose length (25 feet is standard)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Transportation is based on customers in different regions using steam, rail, road and air transportation.
Rugao You Inport & Export Co. LTD was established in 2004, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.
Our company mainly deals in Hardware Tools, combined tools, electric tools, Special Tools For Petroleum, Metal Processing Machinery and petroleum drilling equipment. Diagonal Cutting Plier，Oil Drill Pipes，Drilling Tools，Diesel Engine Etc.Our companyoperates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.
Main products:
1. Drill Pipe, Heavy Drill Pipe, Square & Hexagonal Kelly
2. Drill Collar & Non-magnetic Drill Collar
3. Stabilizers, Reamer, Hole Opener, Casing Scraper, etc
4. Kelly Valve, Safety valve, Check Valve , and float valve
5. Hydraulic or Mechanical Drilling Jar, and Absorber
6. Fishing tools (Bowen serials), including overshot, spear, etc
7. Junk Mill, Casing Cutter, Safety Joint, etc

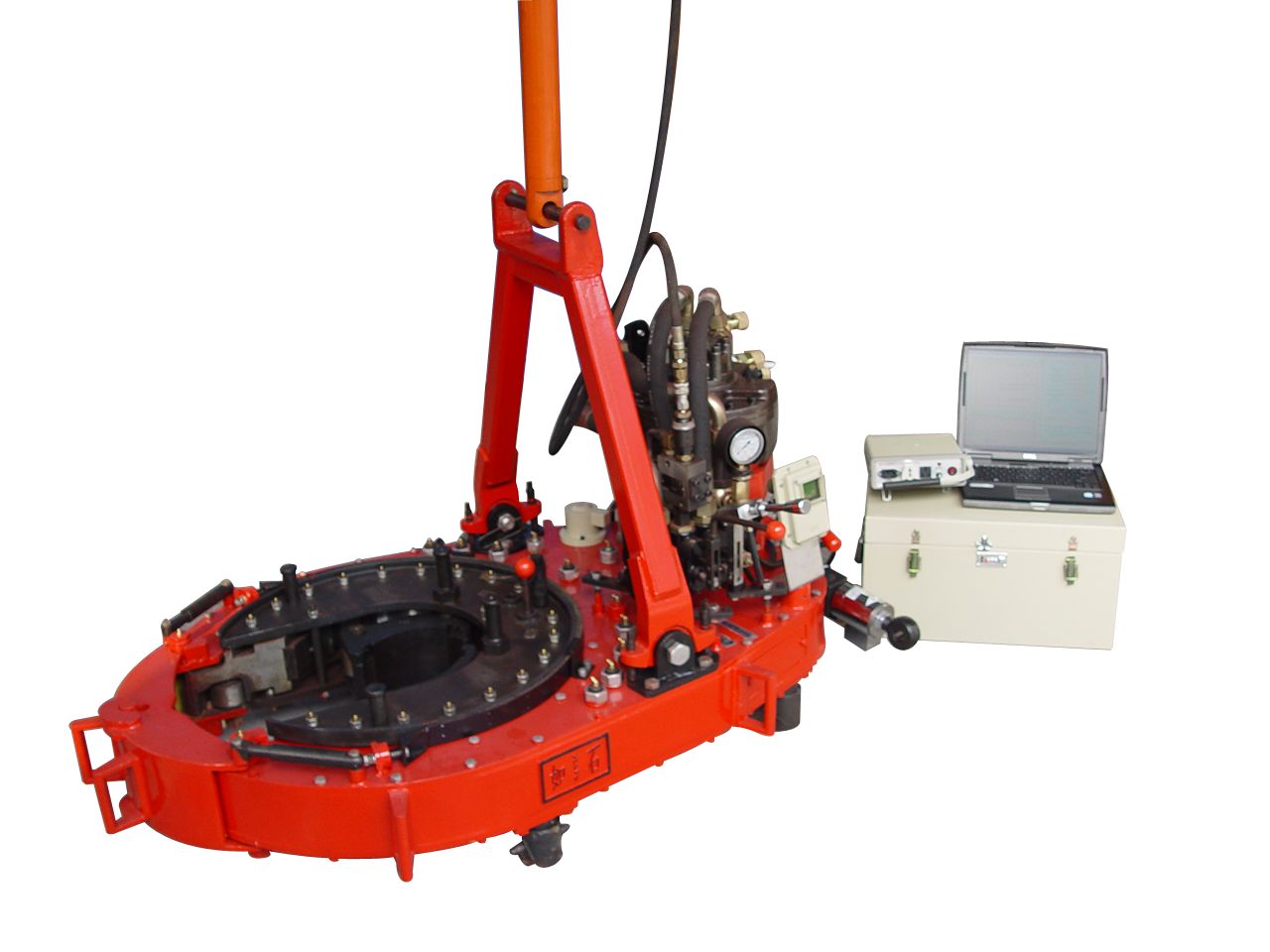

8. Hydraulic Bucking unit, Screw up and breakout Unit, Down hole motor tester, Jar tester, etc.
9 .Down hole motor
10. Processing Machinery: shears, bending machines, hydraulic presses, bending machines, etc.
11. Various coal mine winches, oil field winches, ship winches, etc.
12. Various hand tools and electric tools.
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost)
2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machineQ1. How to get an accurate quotation?.
