Products Description
Model No.: G1005 / S135
Place Of Origin: China
Status: New
Warranty Period: 1 Year
Service System: Overseas Third-Party Support Available
Applicable Industry: Energy &Amp; Mining
Out-of-warranty Service: Video Technical Support
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Uae, Uzbekistan, Russia, Mexico, India, Pakistan, Indonesia, Kyrgyzstan, Kazakhstan
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Uae, Uzbekistan
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: New Product 2020
Core Component Warranty Period: 1 Year
Condition: New
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Place Of Origin: Jiangsu, China
Applicable Industries: Energy & Mining
Technique: Hot Rolled
Material: Carbon Steel
Alloy Or Not: Non-Alloy
Warranty: 1.5 Years
Showroom Location: Uae
Section Shape: Round
Machine Type: Drilling Tool
Use: Well Drilling
Brand Name: Yaou
Type: Drilling Rigs
Local Service Location: Egypt, Canada, Turkey, Germany, Viet Nam, Brazil, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Malaysia, Australia, Morocco, Kenya, South Korea, Chile, Uae, Sri Lanka, Romania, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan
Certification: Api, Api 5dp
Processing Type: Casting, Seamless Steel Pipe
Length: R1-R3
Outer Diameter: 60.3 – 139.7 Mm
Model Number: Api 5dp,Nc Serise
Thickness: 7.11 – 12.7 Mm
Packaging: standard export packages, MARKING, BUNDLING; THREAD PROTECORS INSTALLED ON BOX AND PIN END
Productivity: 1000
Transportation: Ocean,Land
Place of Origin: CHINA
Supply Ability: 1000
Certificate: API
HS Code: 8431431000
Port: SHANGHAI
Payment Type: L/C,T/T
Incoterm: FOB
- Selling Units:
- Ton
- Package Type:
- standard export packages, MARKING, BUNDLING; THREAD PROTECORS INSTALLED ON BOX AND PIN END
Product Description

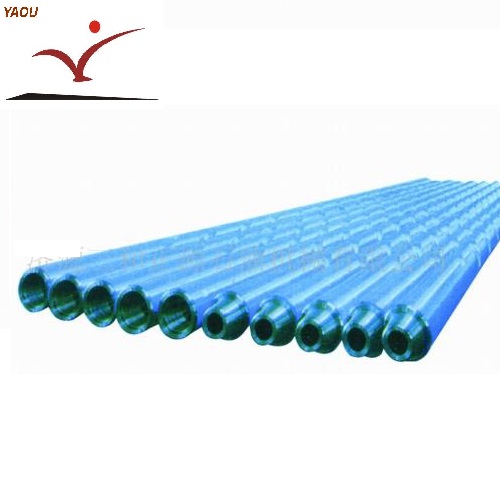

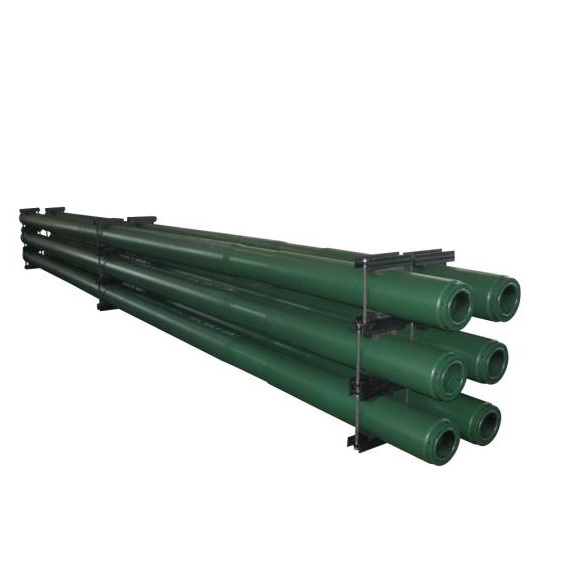

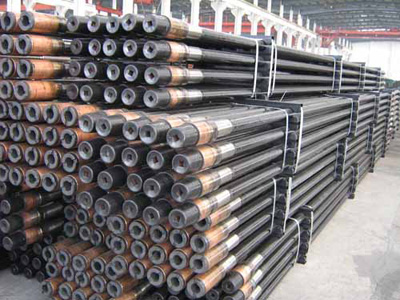

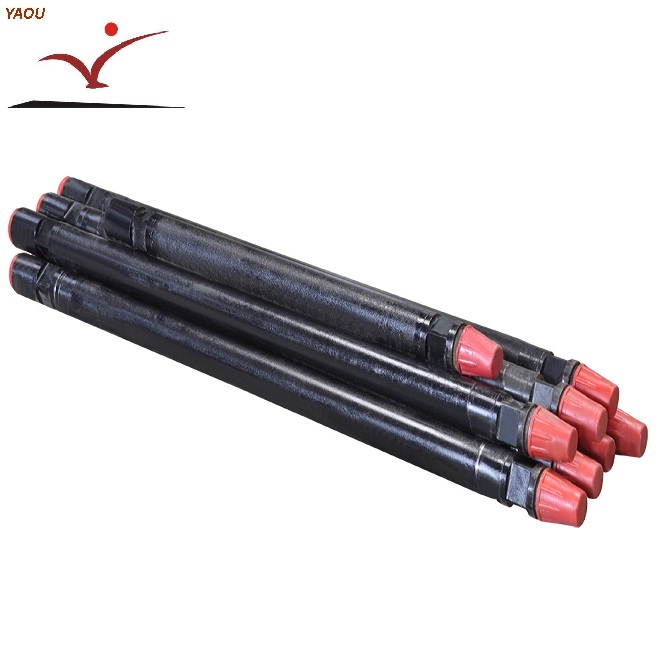

Product description of API Standard Drill Pipe
–API 5DP standard
–Good quality raw material of seamless pipe
–All self made procedure
–Factory with I/E right
1) Drill pipe OD: 2 7/8", 3 1/2", 4", 4 1/2", 5" 5-1/2"
2) Steel Grade: E75, G105, S135
3) Type of end finish: EU-external upset, IEU-internal & external upset
4) All drill rod are made according to API 5D standard
5) We can provide in many conditions, with or without hard banding (Arnco100XT, Arnco300XT, tungsten carbide etc).
Product details of API Standard Drill Pipe
|
Size (in)
|
Nominal Weight (1b/ft)
|
OD of Pipe Body
|
Wall Thickness of Pipe Body
|
Grade
|
Upset Type
|
Conn. Type
|
||
|
|
|
(in)
|
(mm)
|
(in)
|
(mm)
|
EXGS
|
EU |
|
|
2 3/8
|
6.65
|
2 3/8
|
60.32
|
0.28
|
7.11
|
NC26 (2 3/8 IF)
|
||
|
2 7/8
|
10.4
|
2 7/8
|
73.02
|
0.36
|
9.19
|
NC31 (2 7/8 IF)
|
||
|
3 1/2
|
13.3
|
3 1/2
|
88.9
|
0.37
|
9.35
|
NC38 (3 1/2 IF)
|
||
|
3 1/2
|
15.5
|
3 1/2
|
88.9
|
0.45
|
11.4
|
NC38 (3 1/2 IF)
|
||
|
4
|
14
|
4
|
101.6
|
0.33
|
8.38
|
NC46 (4 IF)
|
||
|
4 1/2
|
16.6
|
4 1/2
|
114.3
|
0.34
|
8.56
|
IEU
|
NC40 (4 IF)
|
|
|
4 1/2
|
20
|
4 1/2
|
114.3
|
0.43
|
10.92
|
NC46 (4 IF)
|
||
|
5
|
19.5
|
5
|
127
|
0.36
|
9.19
|
NC50 (4 1/2 IF)
|
||
|
5
|
19.5
|
5
|
127
|
0.36
|
9.19
|
5 1/2 FH
|
||
|
5
|
25.6
|
5
|
127
|
0.5
|
12.7
|
NC50 (4 1/2 IF)
|
||
|
5
|
25.6
|
5
|
127
|
0.5
|
12.7
|
5 1/2 FH
|
||
|
5 1/2
|
21.9
|
5 1/2
|
139.7
|
0.36
|
9.17
|
5 1/2 FH
|
||
|
5 1/2
|
24.7
|
5 1/2
|
139.7
|
0.42
|
10.54
|
5 1/2 FH
|
||
|
6 5/8
|
25.2
|
6 5/8
|
168.28
|
0.33
|
8.38
|
6 5/8 FH
|
||
|
6 5/8
|
27.7
|
6 5/8
|
168.28
|
0.36
|
9.19
|
6 5/8 FH
|
||
Product Features of API Standard Drill Pipe

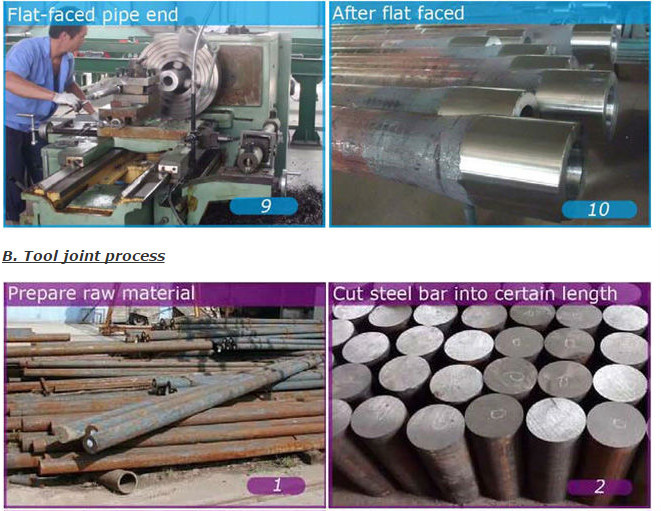

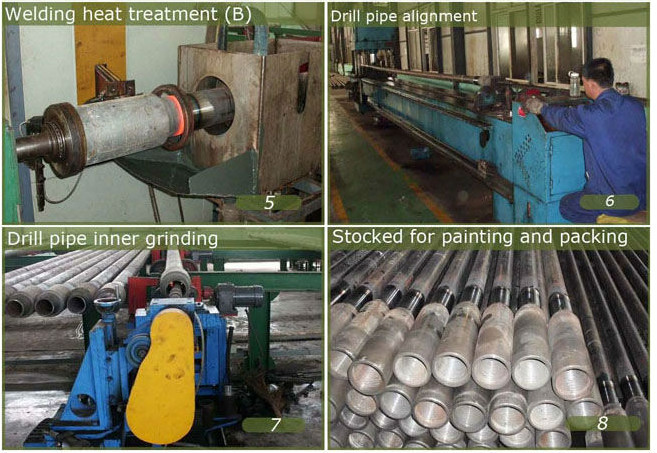

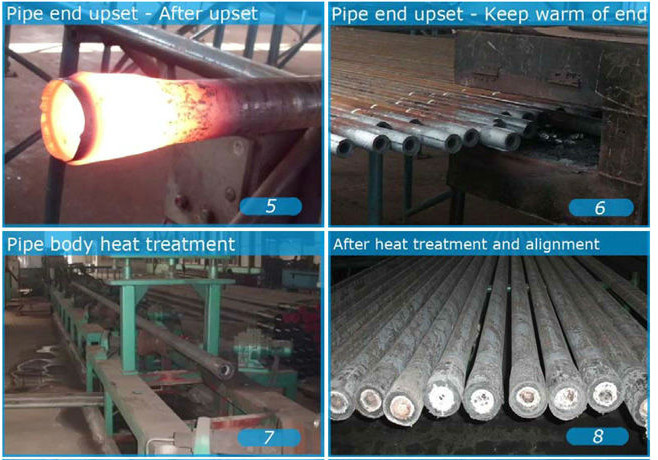

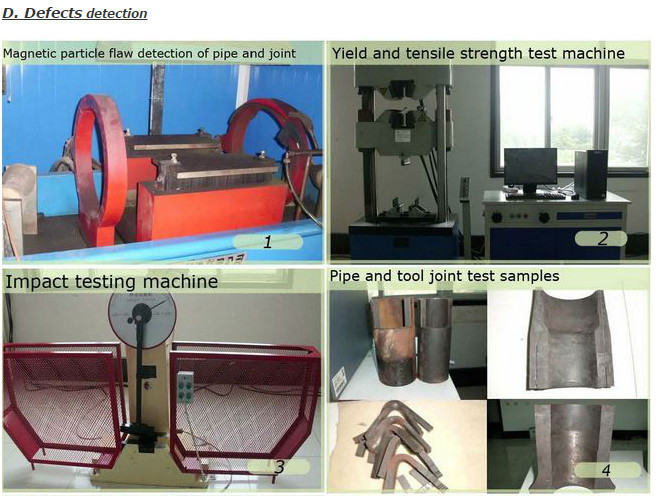

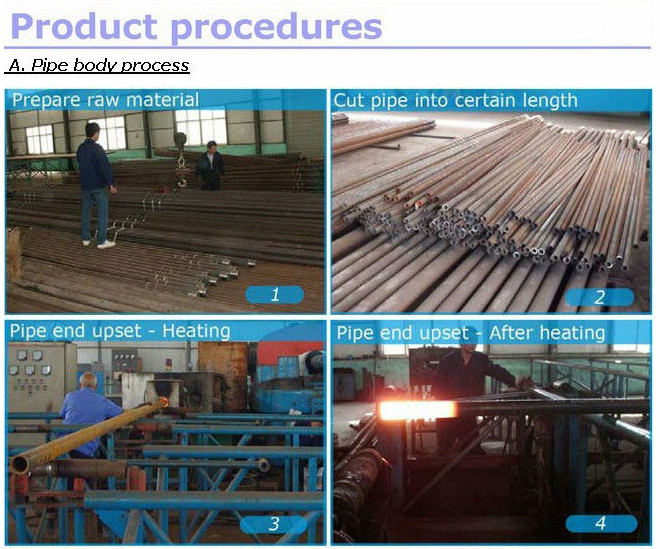

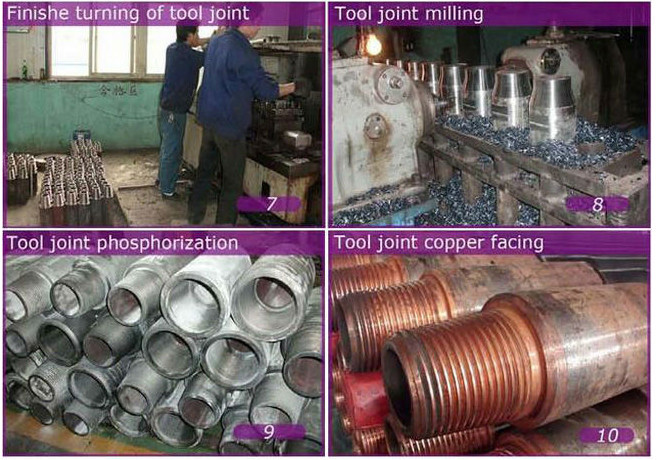

Product Procedures of API Standard Drill Pipe

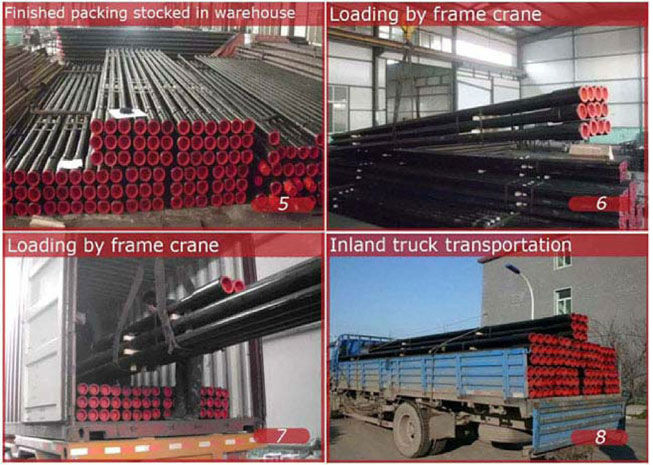

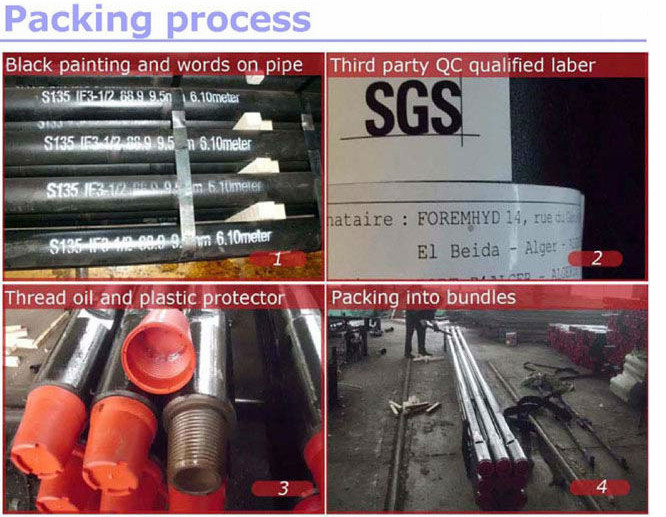

Packing Process of API Standard Drill Pipe
Company view of Rugao Yaou
Rugao You Inport & Export Co. LTD was established in 2004, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.
Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.
Packaging & Shipping
According to the volume and weight of the product and export requirements, provide multi-layer boxes and iron box packaging.
Transportation is based on customers in different regions using steam, rail, road and air transportation.
Our company mainly deals in Hardware Tools, combined tools, electric tools, Special Tools For Petroleum, Metal Processing Machinery and petroleum drilling equipment. Diagonal Cutting Plier，Oil Drill Pipes，Drilling Tools，Diesel Engine Etc.Our companyoperates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.
FAQ
Q1. How to get an accurate quotation?
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost)
2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machineQ1. How to get an accurate quotation?
