Products Description
Model No.: ZCQ
Applicable Industry: Energy &Amp; Mining
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Uae, Russia, Mexico, India, Pakistan, Indonesia, Saudi Arabia, Brazil, Uzbekistan, Kyrgyzstan, Kazakhstan, Ukraine
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Uae, Uzbekistan
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: New Product 2020
Core Component Warranty Period: 1 Year
Core Components: Pump
Status: New
Place Of Origin: China
Warranty Period: 1 Year
Warranty: 1 Year
Condition: New
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Place Of Origin: Jiangsu, China
Applicable Industries: Energy & Mining
Material: Carbon Steel
Processing Type: Casting
Certification: Api
Application: Oil
Machine Type: Drilling Equipment
Brand Name: Yaou
Showroom Location: Uae, Uzbekistan
Use: Oil Drilling Rigs
Local Service Location: Egypt, Turkey, Viet Nam, Indonesia, Pakistan, India, Russia, Chile, Uae, Colombia, Kazakhstan, Kyrgyzstan, Uzbekistan, Tajikistan
Type: Oil Drilling Rigs, Drilling Rig
Packaging: standard packages
Productivity: 10
Transportation: Ocean,Land
Place of Origin: CHINA
Supply Ability: 50 Set/Sets per Month
Certificate: API
HS Code: 8431431000
Port: CHINA
Payment Type: L/C,D/A,T/T
Incoterm: FOB
- Selling Units:
- Set/Sets
- Package Type:
- standard packages
Operation Drinciple:..

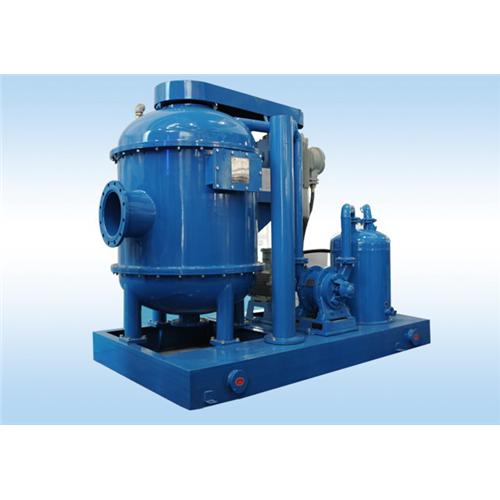

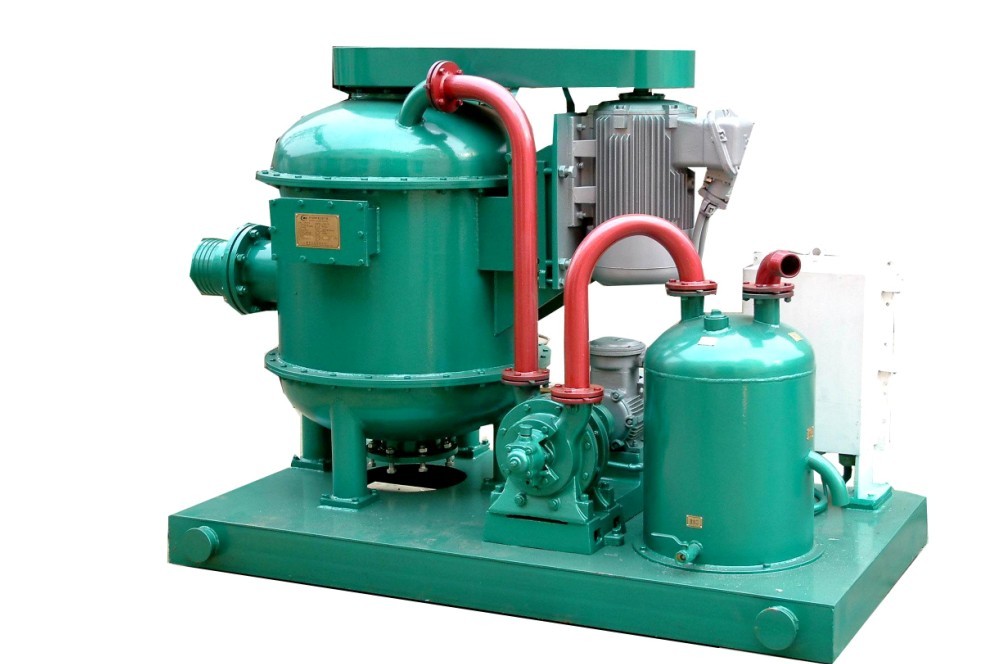

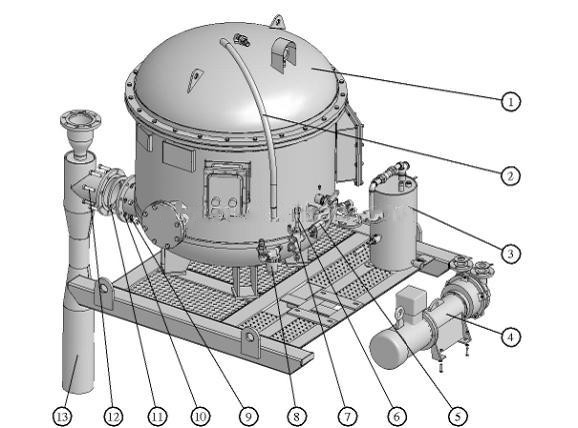

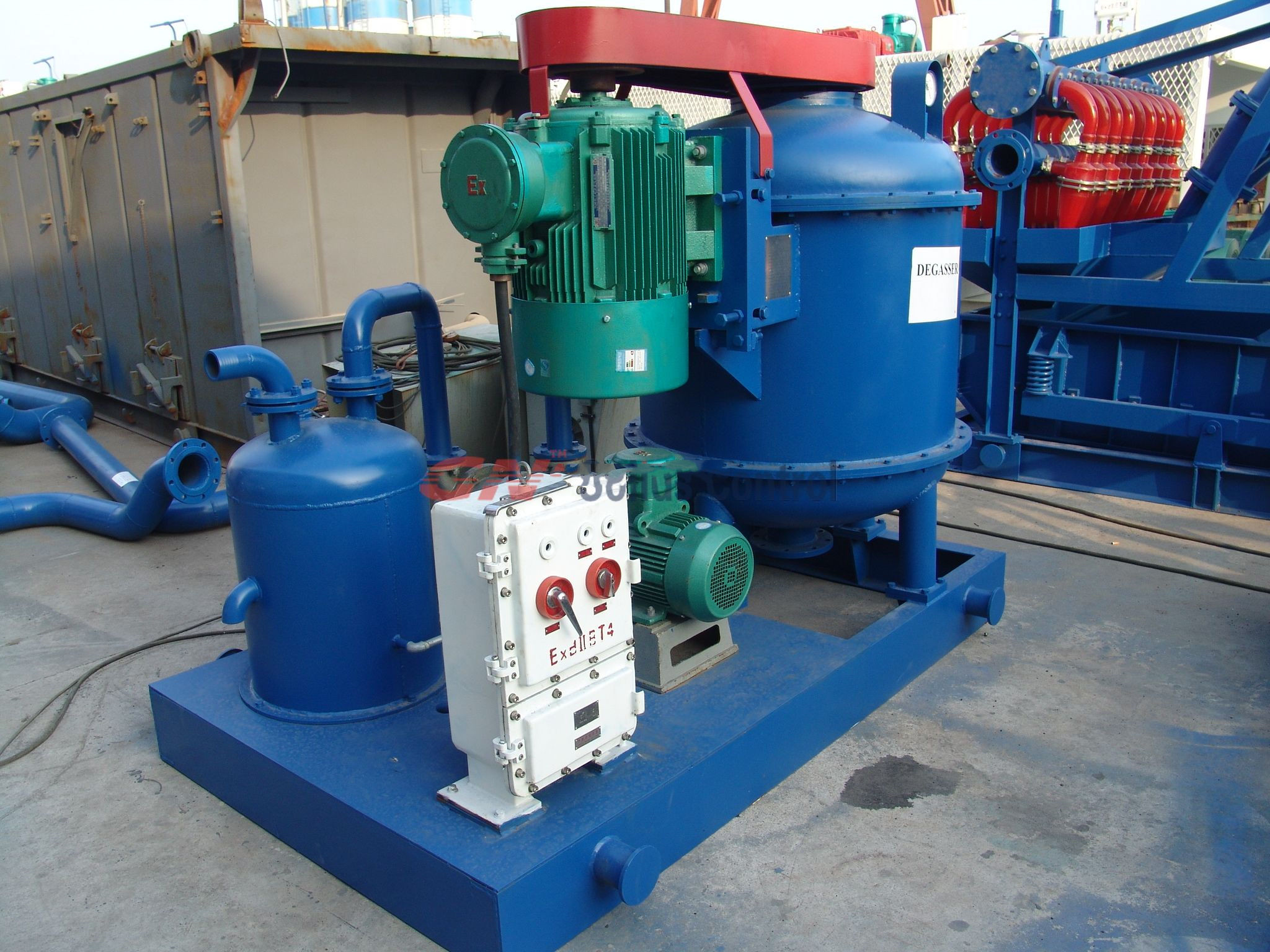

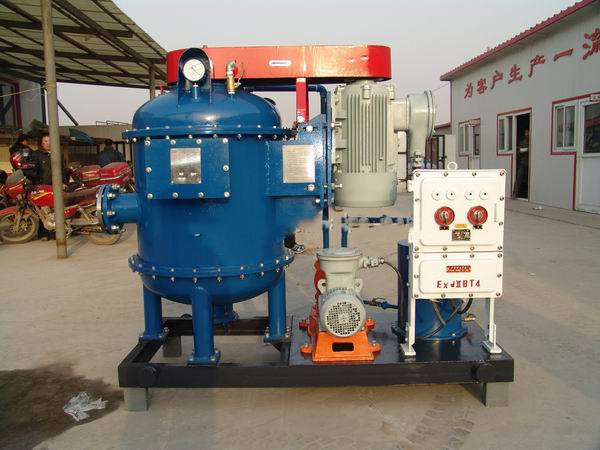

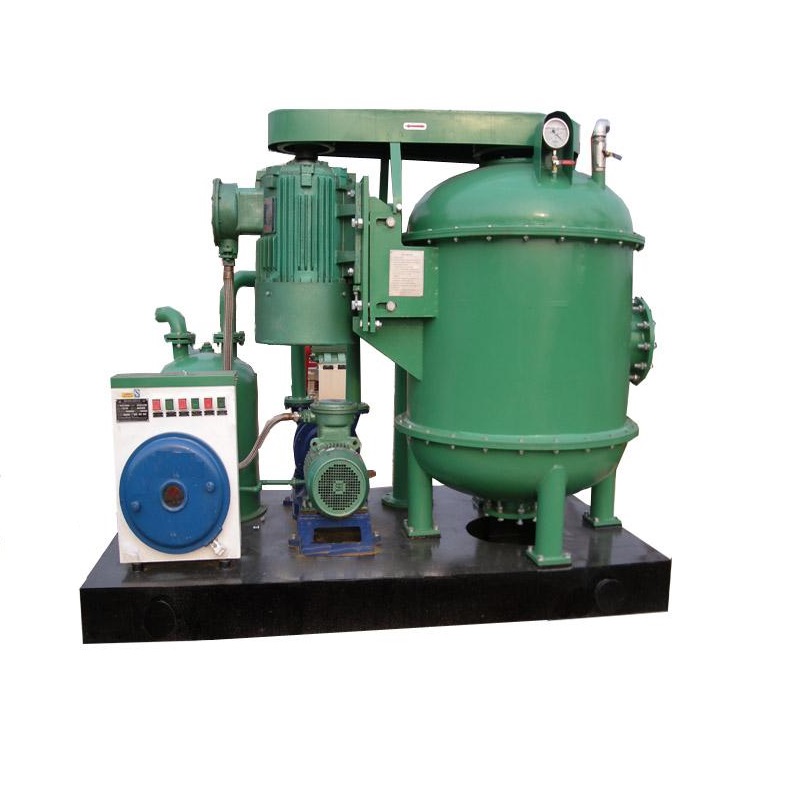

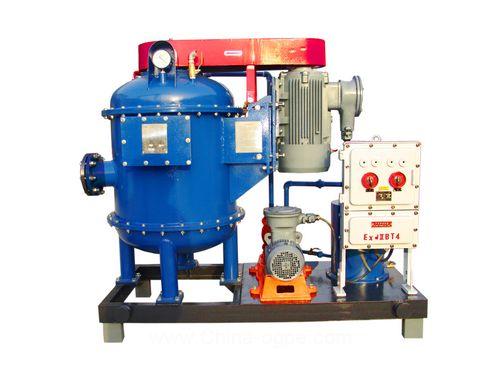

This degasser belongs to a kind of vacuum. One which uses the suction of the vacuum Pump to establish an under balanced pressure area in the vacuum cylinder and causes the drilling fluid into the hollow shaft of the rotator through suction pipe under the atmosphere pressure, and then lets the fluid spray to the walls of the cylinder from the windows on the hollow shaft, now the gas bubble cut in the mud may break and run off in the funtcion of vacuum pump suction to a safe ara due to the fluid collision and bubble separator. However, the mud will enter the drainage cavity forced by its self-weight and pass the ratator and discharge off the cylinder.In addition ,drilling mud can enter the pump cylinder only through the suction pipe, and cant be sucked in through the discharge pipe because the vacuum pump and the master motor are started simultaneously and the rotator connected to the motor will relolve at a high relolution speed too
Technique parameters.
|
Specfication
model |
ZCQ(N)
240-28 |
ZCQ(N)
270-48 |
ZCQ(N)
300-90 |
ZCQ(N)
360-180 |
ZCQ(N)
360-360 |
|
Capacitm3/h
|
240
|
270
|
300
|
360
|
360
|
|
Vacuum degreemmHg
|
300-340
|
400-550
|
400-550
|
400-550
|
400-550
|
|
Gear ration
|
1.67
|
1.68
|
1.68
|
1.72
|
1.72
|
|
Main engine power (KW)
|
15
|
22
|
30
|
37
|
37
|
|
Power of vacuum pump (KW)
|
2.2KW-4
|
2.2KW-2
|
4KW-4
|
5.5KW-4
|
11KW-4
|
|
Speed(r/min)
|
876
|
870
|
880
|
860
|
860
|
|
Displacement (m3/h)
|
28
|
48
|
90
|
180
|
360
|
|
mud weightg/cm3
|
≤2
|
≤2
|
≤2.5
|
≤2.5
|
≤2.5
|
|
degassing efficiency (%)
|
≥90
|
≥90
|
≥90
|
≥90
|
≥90
|
|
Weight(kg)
|
1200
|
1200
|
1800
|
2500
|
2600
|
|
Dimension(mm)
|
1750×765×1510
|
1950×1010×1680
|
2250×1235×1650
|
2400×1500×1900
|
2450×1500×1900
|
The company has more than 20 years of trade service team, mainly engaged in Oil Drilling Equipment, drilling special tools, various Processing Machinery, Hardware Tools, etc. At the same time, it provides some special products, so stay tuned.
Main products:
1. Drill Pipe, Heavy Drill Pipe, Square & Hexagonal Kelly
2. Drill Collar & Non-magnetic Drill Collar
3. Stabilizers, Reamer, Hole Opener, Casing Scraper, etc
4. Kelly Valve, Safety valve, Check Valve, and float valve
5. Hydraulic or Mechanical Drilling Jar, and Absorber
6. Fishing tools (Bowen serials), including overshot, spear, etc
7. Junk Mill, Casing Cutter, Safety Joint, etc
8. Hydraulic Bucking unit, Screw up and breakout Unit, Down hole motor tester, Jar tester, etc.
9 .Down hole motor
10. Processing machinery: shears, bending machines, hydraulic presses, bending machines, etc.
11. Various coal mine winches, oil field winches, ship winches, etc.
12. Various hand tools and electric tools.
Transportation is based on customers in different regions using steam, rail, road and air transportation.
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
