Products Description
Model No.: JZQJ100*12
Brand: GK
Applicable Industries: Energy & Mining
Local Service Location: Egypt, Turkey, Germany, Saudi Arabia, Pakistan, India, Mexico, Russia, Morocco, Kenya, Chile, Uae, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
Showroom Location: Egypt, Uae, Uzbekistan
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: Motor
Condition: New
Production Capacity: 160-200 M3/H
Brand Name: Yaou
Model Number: Jzqj100x16
Dimension(L*W*H): 3150x1175x2085
Features: New
Certification: Api
Warranty: 2 Years
After-sales Service Provided: Free Spare Parts, Online Support, Video Technical Support, Overseas Service Center Available
Application: Oil
Applicable Industry: Energy &Amp; Mining
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Uae, Russia, India, Pakistan, Indonesia, Philippines, Kyrgyzstan, Tajikistan, Uzbekistan
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Uae, Uzbekistan
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Core Component Warranty Period: 1 Year
Status: New
Place Of Origin: China
Warranty Period: 1 Year
Place Of Origin: Jiangsu, China
Voltage: 380v
Weight: 780kg
Packaging: Standard export packing.
Productivity: 10
Transportation: Land,Ocean
Place of Origin: CHINA
Supply Ability: 10
Certificate: API
HS Code: 8431431000
Port: SHANGHAI
Payment Type: L/C,T/T
Incoterm: FOB
- Selling Units:
- Set/Sets
- Package Type:
- Standard export packing.
- Picture Example:
-

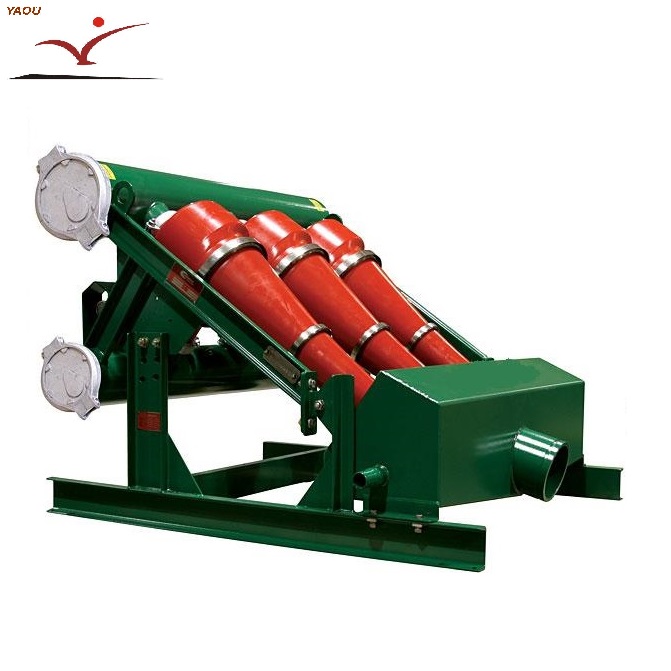

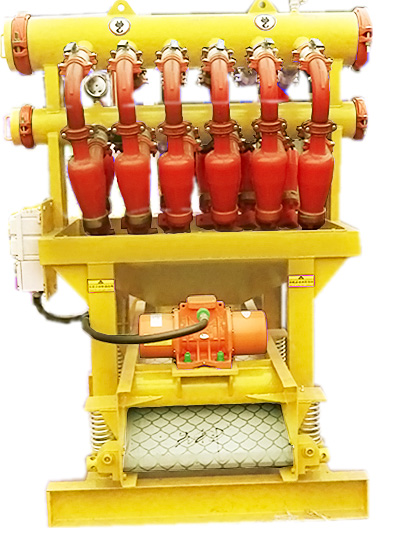

oilfield desilter
1.Usage & Application Scope
As a solids control equipment of the third stage in drilling operation, desilter is used to remove solid particles of 20-40 µm in drilling liquid. The desilter of this type that has been reformed many times on the applications for years is reliable in
technical performance and provides very good treatment results. Its water cyclone is of long service life and stable performance. It is applicable to various kinds of drills in the oilfields.
The inlet and outlet of water cyclone can be connected very quickly, which is convenient for replacement and maintenance.
2.Mechanics & Working Principle

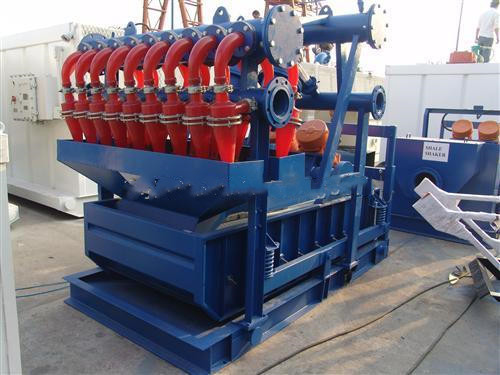

ZQJ100×12 desilter cleaner are completed with 100mm polyurethane hydrocyclones, mud trough, manifold, motor, shale shaker, base and all necessary connections(as showed in Fig.1).

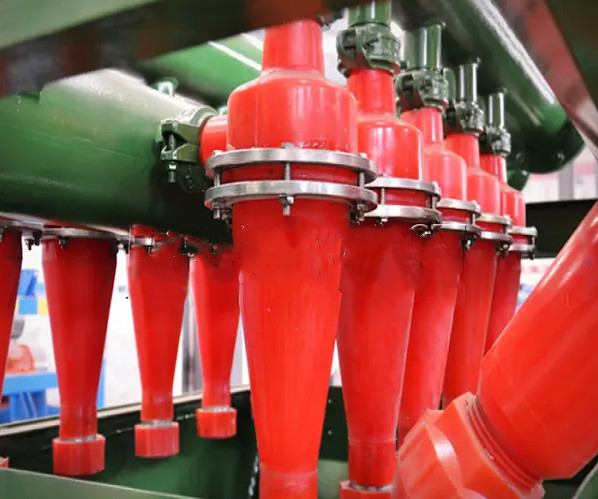

The upper part of hydrocyclone is cylindrical with a tangential suction tube and a overflow tube in center. The lower part of
hydrocyclone is cone with bottom silt discharge tube. The upper part and lower part are connected by hoop.
The shale shake consists of basket, screen, springs and motor. The basket is mounted on base through four spiral springs. The screen is fixed to the basket with hook strip. The motor has the basket vibrate to separate drilling cuttings.
3.Working Principle of ZQJ100×12 Desliter
When passing through the feed manifold, the pressured drilling fluid flow into the hydrocyclone in the direction of a tangent and spirally revolve downwards with high-speed. The drilling fluid bleed into mud tank through overflow gate and the solid in the mud is cut into the underflow that is drained to shaker screen due to the centrifugal generated by revolution.
4.Main Technical Parameter
|
Model
|
JZQJ100×12
|
JZQJ100×14
|
JZQJ100×16
|
|
Cyclone conic cylinder diameter
|
100mm
|
100mm
|
100mm
|
|
Pressure
|
0.2~0.45MPa
|
0.2~0.45MPa
|
0.2~0.45MPa
|
|
Capacity
|
160-200 m3/h
|
200-220 m3/h
|
200-240 m3/h
|
|
Screen size
|
1240×585 mm
|
1240×585 mm
|
1240×585 mm
|
|
Screen spec
|
120-200
|
120-200
|
120-200
|
|
Inlet diameter
|
6″
|
6″
|
6″
|
|
Outlet diameter
|
8″
|
8″
|
8″
|
|
Power
|
0.5 kW
|
0.5 kW
|
0.5 kW
|
|
Weight
|
720kg
|
740kg
|
780kg
|
|
Dimension
|
2650×1175×2085
|
2646×1136×2085
|
3150×1175×2085
|
Transportation is based on customers in different regions using steam, rail, road and air transportation.
Our company mainly deals in Hardware Tools, combined tools, electric tools, Special Tools For Petroleum, Metal Processing Machinery and petroleum drilling equipment. Diagonal Cutting Plier，Oil Drill Pipes，Drilling Tools，Diesel Engine Etc.Our companyoperates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.
FAQ
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost)
2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machineQ1. How to get an accurate quotation?.
Rugao Yaou Import & Export Co. LTD was established in 2004, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.
Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. Our company also operates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.
