Products Description
Model No.: XLH-200
Brand: GK
Place Of Origin: China
Status: New
Warranty Period: 1 Year
Service System: Overseas Third-Party Support Available
Applicable Industry: Energy &Amp; Mining
Out-of-warranty Service: Video Technical Support
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Uae, Russia, Pakistan, India, Indonesia, Saudi Arabia, Philippines, Kyrgyzstan, Uzbekistan
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Uae, Uzbekistan
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: New Product 2020
Core Component Warranty Period: 1 Year
Core Components: Pump
After-sales Service Provided: Engineers Available To Service Machinery Overseas
Warranty: 1 Year
Condition: New
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Place Of Origin: Jiangsu, China
Applicable Industries: Energy & Mining
Weight: 700kg
Certification: Api
Machine Type: Drilling Equipment
Use: Well Drilling
Processing Type: Forging
Showroom Location: Uae, Uzbekistan
Local Service Location: Egypt, Turkey, Germany, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Malaysia, Morocco, Kenya, Chile, Uae, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
Brand Name: Gk
Type: Rotary Table, Xlh-20l
Name: High Speed Mixer
Other Name: Dry Color Mixer
Usage: Mixer Equipment
Power(W): 55kw
Production Capacity: 180-1500kg
Material: Stainless Steel
Packaging: AS REQUIRED
Productivity: 10
Transportation: Ocean,Land,Air
Place of Origin: CHINA
Supply Ability: 10
Certificate: API
HS Code: 8431431000
Port: Shanghai
Payment Type: L/C,T/T
Incoterm: FOB
- Selling Units:
- Piece/Pieces
- Package Type:
- AS REQUIRED
- Picture Example:
-

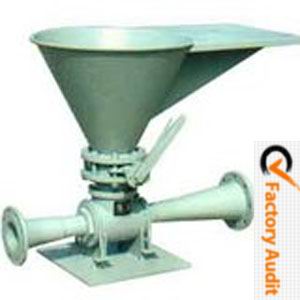

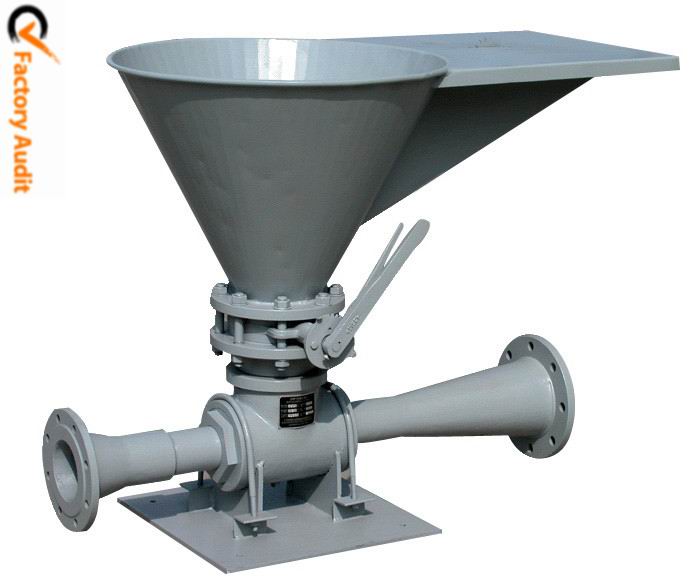

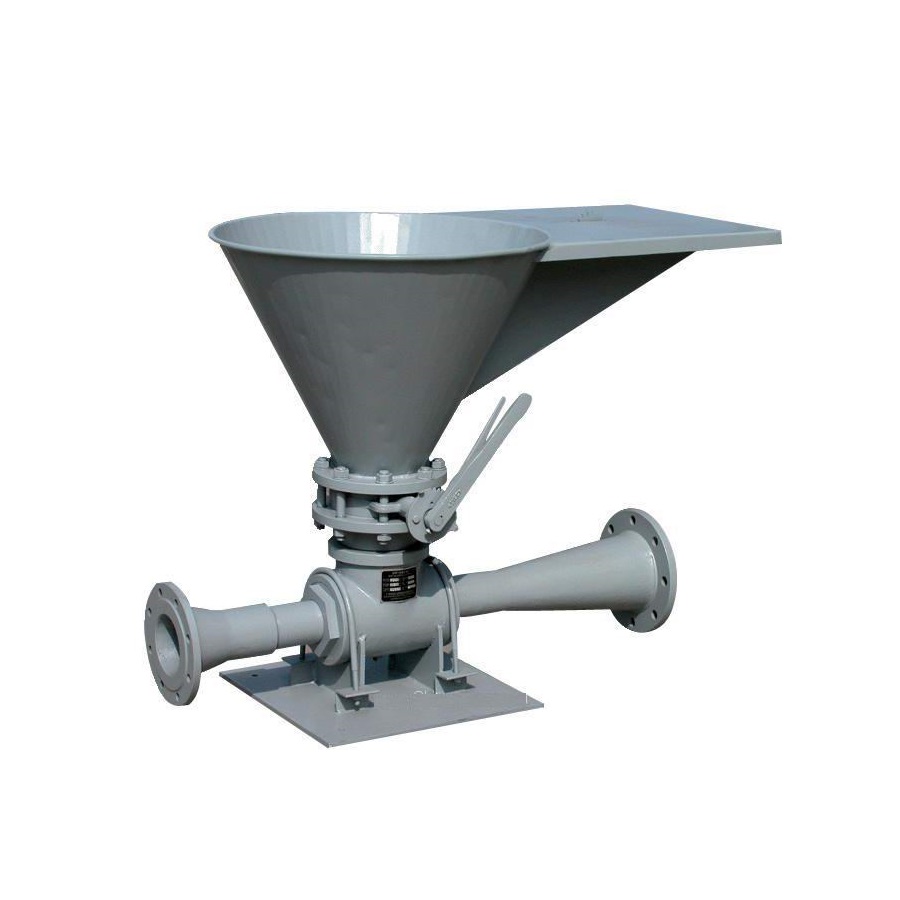

XLH-200 turn-flow amalgamate apparatus is a new mixing apparatus which can perform quick and homogeneous mixing but consumes less energy.It is mainly used to quickly and homogeneously mix drilling fluid and its additives.The fluid flows into the in-barrel at the tangential direction with high speed from the inlet pipe,and additives are cast into in-barrel from the funnel at the same time then,the fluid turns and amalgamates with additives at a high speed after that,the mixture flows into out-barrel and continues amalgamate,and finally flows into drilling fluid system from outlet pipe of the amalgamate apparatus.Its major characteristic that additives of drilling fluid,e.g.barite powder,bentonite,salt,slurry and chemical additives,etc.will be completely and homogeneously mixed with drilling fluid before entering the drilling fluid system improves the quality of drilling fluid,fully plays the function of additives,reduces consumption of additives,saves the cost of slurry,accelerates feeding and strengthens the mixing capability.
|
ecifications of XLH turn-flow amalgamate apparatus
|
|
|
|
Inlet drainage
|
150
|
|
|
Inlet head
|
≥38 m
|
|
|
Diameter of funnel
|
900 mm
|
|
|
Diameter of inlet
|
150 mm
|
|
|
Diameter of outlet
|
150 mm
|
|
|
Motor power of mixing Pump
|
55 kW
|
|
|
Amalgamate speed
|
Not lower than 300Kg/min for barite; not lower than 150Kg/min for bentonite
|
|
|
Weight
|
700 kg
|
|
|
Outline dimensions
|
950×950×1070
|
|
Transportation is based on customers in different regions using steam, rail, road and air transportation.
Our company mainly deals in Hardware Tools, combined tools, electric tools, Special Tools For Petroleum, Metal Processing Machinery and petroleum drilling equipment. Diagonal Cutting Plier，Oil Drill Pipes，Drilling Tools，Diesel Engine Etc.Our companyoperates hardware tools and has established long-term and stable cooperative relations with many retailers.
Main products:
1. Drill Pipe, Heavy Drill Pipe, Square & Hexagonal Kelly
2. Drill Collar & Non-magnetic Drill Collar
3. Stabilizers, Reamer, Hole Opener, Casing Scraper, etc
4. Kelly Valve, Safety valve, Check Valve , and float valve
5. Hydraulic or Mechanical Drilling Jar, and Absorber
6. Fishing tools (Bowen serials), including overshot, spear, etc
7. Junk Mill, Casing Cutter, Safety Joint, etc
8. Hydraulic Bucking unit, Screw up and breakout Unit, Down hole motor tester, Jar tester, etc.
9 .Down hole motor
10. Processing Machinery: shears, bending machines, hydraulic presses, bending machines, etc.
11. Various coal mine winches, oil field winches, ship winches, etc.
12. Various hand tools and electric tools.
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost)
2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machineQ1. How to get an accurate quotation?.
Rugao Yaou Import & Export Co. LTD was established in 2004, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.
Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. Our company also operates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.
