Products Description
Model No.: 1×3 1×7 1×19 1×37,7*7
Brand: NT
Steel Grade: Low Carbon Steel
Standard: Aisi, Astm
Type: Drawn Wire
Alloy Or Not: Non-Alloy
Special Use: Cold Heading Steel
Model Number: 1*3 1*7 1*19 1*37
Brand Name: Yaou
Tolerance: ±1%
Processing Service: Bending, Welding
Grade: High-Carbon Steel
Wire Gauge: 6.2mm-26mm
Place Of Origin: China
Species: Drawn Wire
Whether Alloy: Is Alloy
Special Steel: Free Cutting Steel
Place Of Origin: Jiangsu, China
Application: Construction Materilals

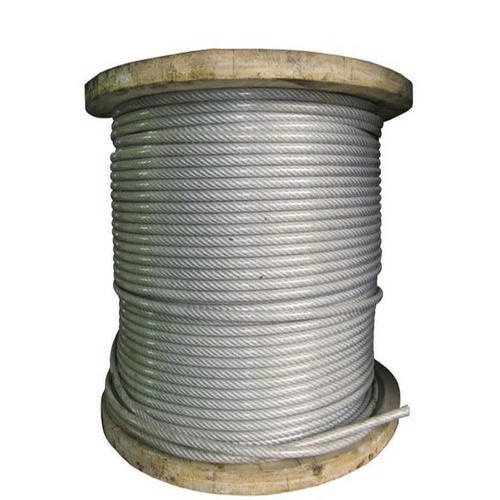

Packaging: Packing in plastic reel, paper reel ,wooden drum, steel wooden drum or as customer's requirement for High Tension Hot Dipped Galvanized Steel Wire Strand
Productivity: 1000
Transportation: Ocean,Land,Air
Place of Origin: CHINA
Supply Ability: 1000
Certificate: ISO
HS Code: 7312100000
Port: SHANGHAI
Payment Type: L/C,T/T
Incoterm: FOB
- Selling Units:
- Ton
- Package Type:
- Packing in plastic reel, paper reel ,wooden drum, steel wooden drum or as customer's requirement for High Tension Hot Dipped Galvanized Steel Wire Strand
2)Certificate:ISO9001:2000 SGS BV
3)Material:carbon steel 45#,55#,60#,65#,70#,72#, 80#,82B
4)Standard:DIN GB ISO JIS BA ANSI
5)Tensile strength:1270MPa,1370MPa,1470MPa,1570MPa,1670MPa,2160mpa
6)Zinc coating layer:normal gal.40-80g/m², high gal. 100-200g/m², super gal.200-280g/m²

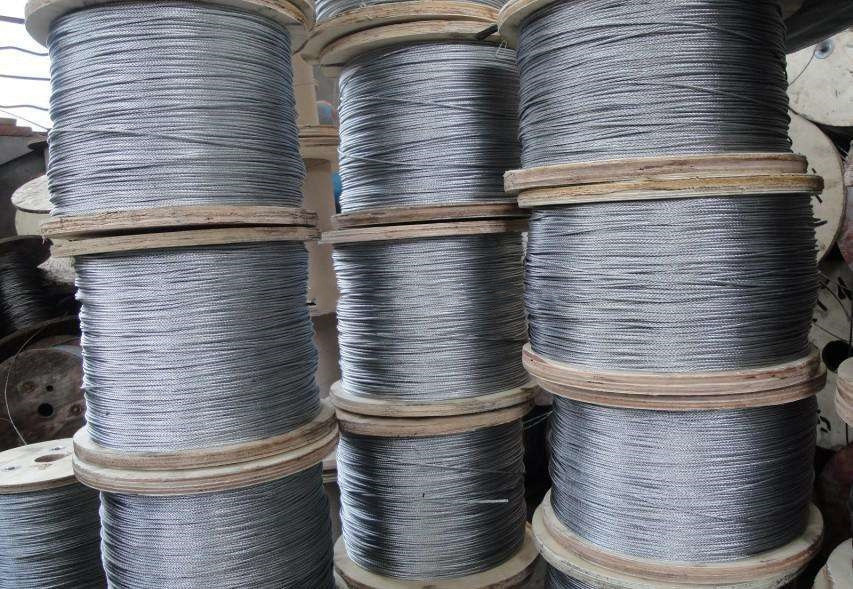

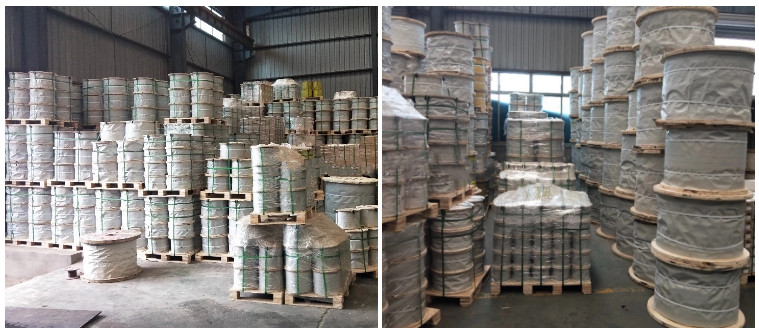

7)Pack:Wooden reel+woven bag+pallet, or as customer requirement
8)Features: 1. Good softness 2. Good stability (3) good reliability 4. High strength

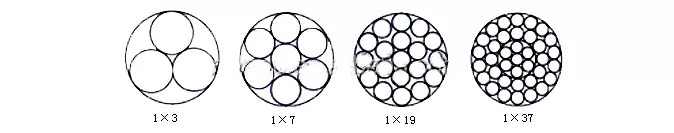

9)Structure: 1×3 1×7 1×19 1×37,7*7

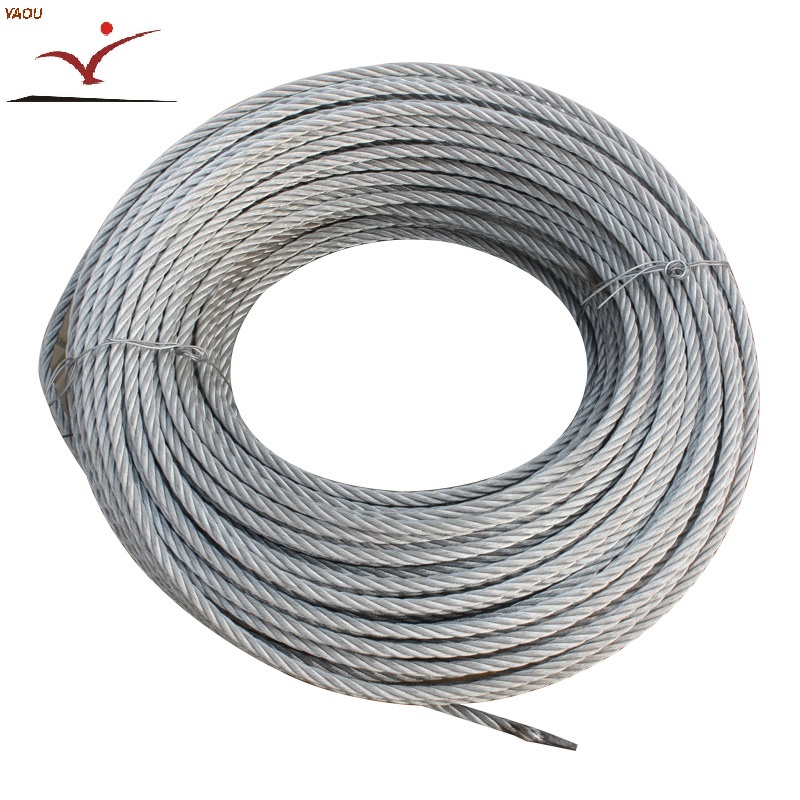

10)Length: usually 1000m / roll or as your requirments

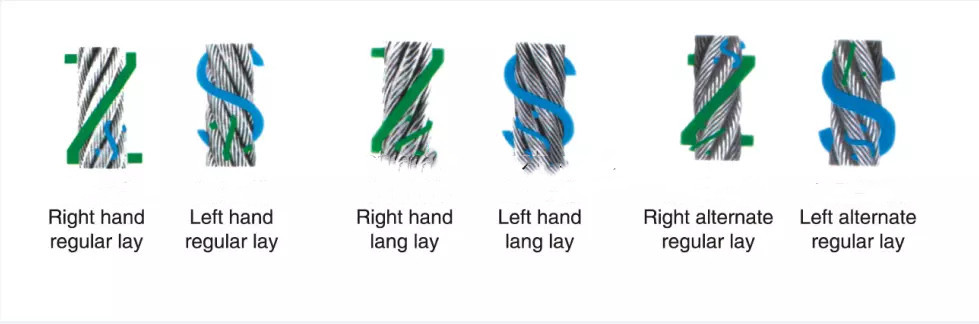

11)Lay: right hand regular lay or left hand regular lay.
12)Main Applications:Suitable for hanger,communication cable,overhead power line and fixing subject ect.
We are the professional strand manufacturer,we can produce the strand according to the requirements of users, with the detailed parameters as follows:
|
construction
|
Diameter of steel wire
(mm) |
diameter of steel strand
(mm) |
cross section of steel strand
(mm2) |
grade of nominal strength (MPa)
|
|
|
|
|
|
|||||
|
|
|
|
|
1370
|
1470
|
1570
|
1670
|
1770
|
reference weight
(kg/100m) |
|||||
|
|
|
|
|
The aggregate breaking force is not less than (KN)
|
|
|
|
|
|
|||||
|
1×3
|
2.90
3.20 3.50 4.00 |
6.2
6.4 7.5 8.6 |
19.82
24.13 28.86 37.70 |
24.98
30.41 36.38 47.52 |
26.80
32.63 39.03 50.98 |
28.63
34.85 41.68 54.45 |
30.45
37.07 44.34 57.92 |
32.27
39.29 46.99 61.39 |
16.49
20.09 24.03 31.38 |
|||||
|
1×7
|
0.13
0.30 1.00 1.20 1.40 1.60 1.80 2.00 2.30 2.60 3.00 3.20 4.23 5.00 5.33 |
0.4
0.9 3.0 3.6 4.2 4.8 5.4 6.0 6.9 7.8 9.0 9.6 12.7 15.0 16.0 |
0.093
0.495 5.50 7.92 10.78 14.07 17.81 21.99 29.07 37.16 49.48 56.30 98.33 137.38 156.11 |
0.117
0.623 6.93 9.98 13.59 17.73 22.45 27.72 36.64 46.82 62.34 70.92 123.94 173.15 196.76 |
0.125
0.669 7.43 10.71 14.58 19.03 24.09 29.74 39.31 50.24 66.90 76.10 132.98 185.80 211.12 |
0.134
0.715 7.94 11.44 15.57 20.32 25.72 31.76 41.99 53.66 71.44 81.30 142.03 198.43 225.49 |
0.143
0.760 8.45 12.16 16.56 21.62 27.36 33.78 44.66 57.08 75.99 86.45 151.07 211.07 239.85 |
0.151
0.806 8.96 12.90 17.55 22.91 29.00 35.80 47.34 60.50 80.54 91.63 160.12 223.71 254.21 |
0.082
0.411 4.54 6.59 8.97 11.71 14.83 18.50 24.20 30.93 41.19 46.87 81.95 114.30 130.05 |
|||||
|
1×19
|
0.12
0.80 1.00 1.60 1.80 2.00 2.50 3.00 3.50 4.00 |
0.6
4.0 5.0 8.0 9.0 10.0 12.5 15.0 17.5 20.0 |
0.215
9.55 14.92 38.20 48.35 59.69 93.27 134.30 128.80 238.76 |
0.265
11.775 18.40 47.10 59.60 73.60 114.94 166.00 225.00 294.00 |
0.284
12.63 19.74 50.54 63.94 78.93 123.33 178.00 242.00 316.00 |
0.304
13.50 21.00 53.90 68.30 84.30 131.00 190.00 258.00 337.00 |
0.323
14.35 22.42 57.41 72.64 89.67 140.11 202.00 275.00 359.00 |
0.342
15.21 237.67 63.85 76.99 95.04 148.50 214.00 291.00 380.00 |
0.178
7.95 12.42 31.80 40.25 49.69 77.64 118.80 152.17 198.76 |
|||||
|
1×37
|
0.20
0.80 1.00 1.60 2.00 2.30 2.60 3.00 3.71 |
1.4
5.6 7.0 11.2 14.0 16.1 18.2 21.0 26.0 |
1.162
18.59 29.6 74.39 116.24 153.65 196.44 261.54 400.00 |
1.36
21.78 34.03 87.10 136.08 180.00 230.00 306.20 468.54 |
1.46
23.36 36.51 93.46 146.02 193.11 246.28 328.55 502.74 |
1.56
24.95 39.00 99.82 115.95 206.25 263.75 350.90 5536.94 |
1.66
26.54 41.48 106.20 165.89 219.39 280.35 373.25 571.41 |
1.76
28.13 43.96 112.53 175.82 232.52 297.15 395.60 605.34 |
0.96
15.34 24.19 61.92 69.76 127.00 163.53 217.72 331.00 |
|||||
Transportation is based on customers in different regions using steam, rail, road and air transportation.
Rugao You Inport & Export Co. LTD was established in 2004, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.
The company has more than 20 years of trade service team, mainly engaged in Oil Drilling Equipment, drilling special tools, various Processing Machinery, Hardware Tools, etc. At the same time, it provides some special products, so stay tuned.
Main products:
1. Drill Pipe, Heavy Drill Pipe, Square & Hexagonal Kelly
2. Drill Collar & Non-magnetic Drill Collar
3. Stabilizers, Reamer, Hole Opener, Casing Scraper, etc
4. Kelly Valve, Safety valve, Check Valve , and float valve
5. Hydraulic or Mechanical Drilling Jar, and Absorber
6. Fishing tools (Bowen serials), including overshot, spear, etc
7. Junk Mill, Casing Cutter, Safety Joint, etc
8. Hydraulic Bucking unit, Screw up and breakout Unit, Down hole motor tester, Jar tester, etc.
9 .Down hole motor
10. Processing machinery: shears, bending machines, hydraulic presses, bending machines, etc.
11. Various coal mine winches, oil field winches, ship winches, etc.
12. Various hand tools and electric tools.
Our company mainly deals in hardware tools, combined tools, electric tools, Special Tools For Petroleum, Metal Processing Machinery and petroleum drilling equipment. Diagonal Cutting Plier，Oil Drill Pipes，Drilling Tools， Diesel Engine Etc.Our companyoperates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers
FAQ
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
