Products Description
Model No.: 6X19+IWS
Brand: NT
Steel Grade: Q195/Q235/Sae1006/Sae1008
Standard: Aisi, Gb
Type: Other, Steel Wire Rope
Application: Rope
Alloy Or Not: Non-Alloy
Special Use: Free Cutting Steel, Cold Heading Steel, Cold Heading Steel
Model Number: 6×7, 6×19, 6×37, 6×12+7fc, 6×24+7fc
Brand Name: Yo
Tolerance: ±1%
Processing Service: Decoiling
Grade: Carbon Steel
Wire Gauge: 1-50mm
Certificate: Api
Quality: Iso9001:2000
Work: Use Well
Processing Type: Casting
Applications: Drilling Line
Sell: Popular
Place Of Origin: China
Species: Drawn Wire
Whether Alloy: Is Alloy
Place Of Origin: Shanghai, China
Material: Carbon Steel

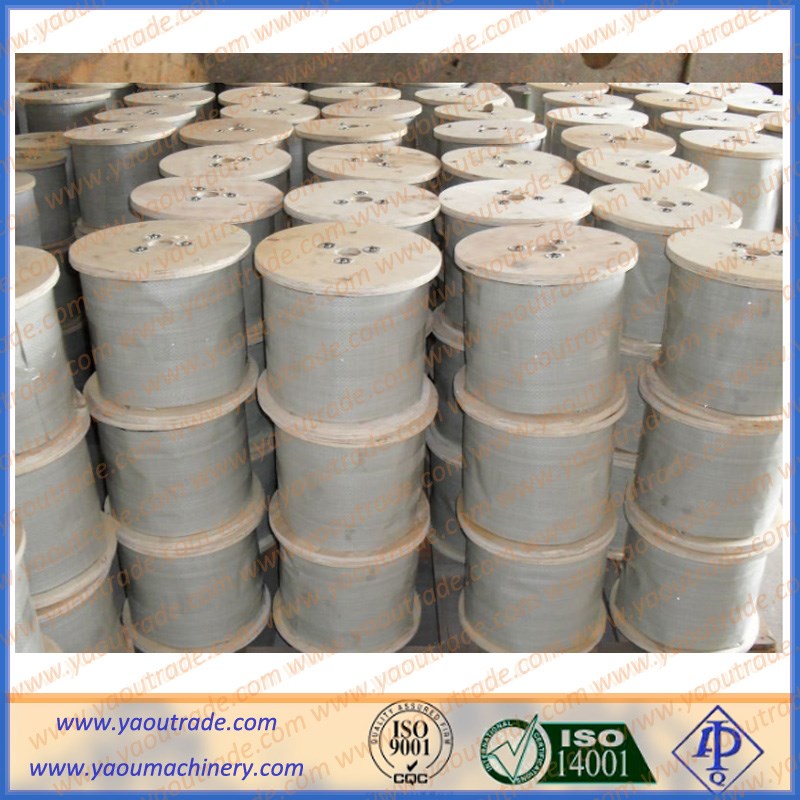

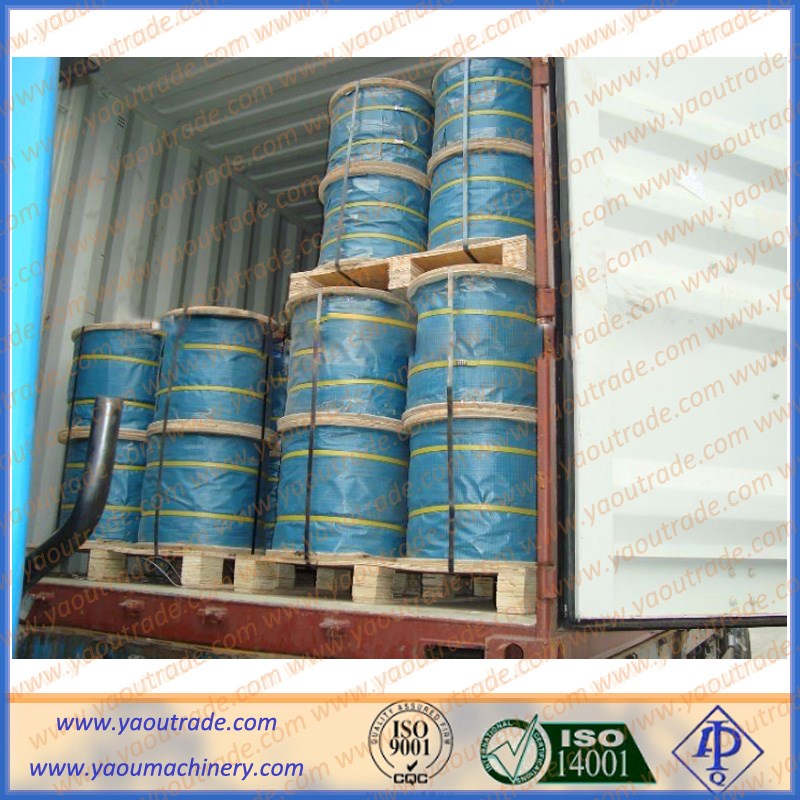

Packaging: In wooden reel , plastic reel,coil package and then can be palletized or put in the crate.Usually less than 23 tons per 20 foot container for 6X19W steel wire ropes
Productivity: 1000
Transportation: Ocean,Land,Air,Express
Place of Origin: CHINA
Supply Ability: 1000
Certificate: ISO
HS Code: 7312100000
Port: SHANGHAI
Payment Type: L/C,T/T
Incoterm: FOB
- Selling Units:
- Ton
- Package Type:
- In wooden reel , plastic reel,coil package and then can be palletized or put in the crate.Usually less than 23 tons per 20 foot container for 6X19W steel wire ropes
Wire Steel Cable for Petroleum Drilling 6X19+IWS
1) HS Code, 7312100000

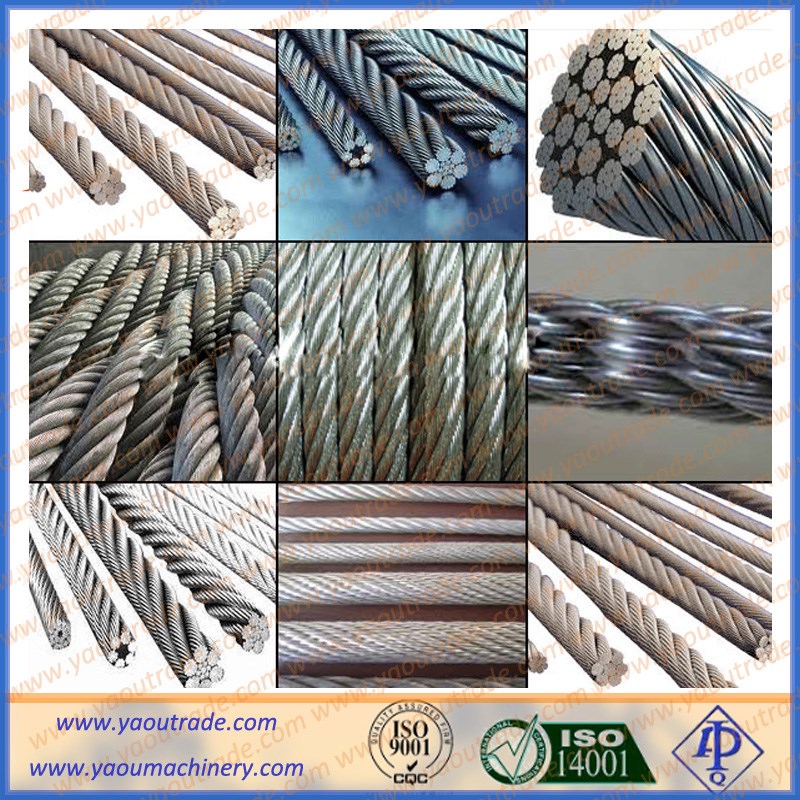

2) Available Construction: 6×7, 6×19, 6×37, 6×12+7FC, 6×24+7FC, 6x36WS, 19×7, 8x19S, 35Wx7
3) Core: fiber core and steel core (FC, IWS & IWRC)
4) Diameter: 1.5mm to 60mm
5) Main applications: for various kinds of lifting, hoisting and pulling etc.
6) Both GB/T 20116-2008 , DIN are available.
7)In-time shipment, high quality and good after-sale service will be guaranteed.
8)Nominal l tensile strength: 1570 Mpa, 1770 Mpa, 1960 Mpa etc.
Application recommendation for steel wire rope
|
Application |
Products |
Construction |
|
for aerospace controls |
wire rope |
6×7, 6×19 |
|
for elevator lifting |
wire rope |
6x19S, 8x19S,9x19s,8x25Fi,6x36SW |
|
vertical well hoisting purposes |
linear contact lay wire rope |
6x19S, 6x19W, 6x25Fi, 6x26WS, 6x31WS, 6x36WS, 6x41WS |
|
multi-strand rope |
18×7, 17×7 |
|
|
blanced wire to well |
flat ropes |
6x4x7, 8x4x7, 8x4x9, 8x4x19 |
|
wire rope |
6×37, 6x37S, 6x36WS |
|
|
multi-strand rope |
17×7, 18×7, 34×7, 36×7 |
|
|
for winch purposes |
wire rope |
6×7, 6x9W |
|
bearing to tank and cableway |
full-lock coil ropes |
see the standards of facial contacted wire rope |
|
multi-strand rope |
18×7, 17×7 |
|
|
wire rope |
6×7 |
|
|
hoisting to slope |
linear contact lay wire rope |
6x36WS, 6x37S, 6x41WS, 6x49SWS,6x55WS |
|
for petroleum drilling purposes |
linear contact lay wire rope |
6x19S, 6x19W, 6x25Fi, 6x29Fi, 6x26WS, 6x31WS, 6x36WS |
|
rubber belt conveyer, cableway |
linear contact lay wire rope |
6x19S, 6x19W, 6x25Fi, 6x29Fi, 6x26WS, 6x31WS, 6x36WS, 6x41WS |
|
fishing industry |
wire rope |
6×24, 6x24S, 6x24W, 6×19, 6x19S/W, 6x31WS, 6x36WS, 6×37, 6x37S |
|
lashing |
wire rope |
6×24, 6x24S, 6x24W |
|
for crane purpose |
linear contact lay wire rope |
6x19S+IWR, 6x19W+IWR, 6x25Fi+IWR, 6x36WS+IWR, 6x41WS+IWR |
|
multi-strand rope |
18×19, 18x19S, 18x19W, 34×7, 36×7 |
|
|
linear contact lay wire rope |
6x19W/S, 6x25Fi, 6x29Fi, 6x26SW, 6x31WS, 6x36WS, 6x37S, 6x41WS, 6x49WS, 6x55WS, 8x19S/W, 8x25Fi |
|
|
point contact wire rope |
6×19, 6×37 |
|
|
for boat loading and unloading |
linear contact lay wire rope |
6x24S/W, 6x19S/W, 6x25Fi, 6x29Fi, 6x31WS, 6x36WS, 6x37S |
|
point contact wire rope |
6×19, 6×37 |
