Products Description
Model No.: HSC100
Brand: YAOU
Applicable Industries: Hotels, Manufacturing Plant, Machinery Repair Shops, Energy & Mining
After Warranty Service: Video Technical Support, Online Support
Local Service Location: Egypt, Turkey, Pakistan, Kenya, Uae, Kazakhstan, Ukraine, Uzbekistan, Tajikistan
Showroom Location: Egypt, Uae, Nigeria, Malaysia
Condition: New, New
Type: Piston, Piston
Configuration: Stationary, Portable
Power Source: Ac Power, Natural Gas
Lubrication Style: Lubricated, Oil-Less
Mute: Yes, Yes
Brand Name: Yaou
Model Number: Hsc-100, Hsc-200, Hsc-300
Dimension(L*W*H): 68*37**40
WEIGHT: 45, 550kg
Warranty: 1 Year
After-sales Service Provided: Online Support, Overseas Third-Party Support Available
Working Pressure: 20mpa
Air Capacity: 10
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: Motor, Pump
Gas Type: Combustible Gas
Place Of Origin: China
Voltage: 24v, 220/380v, 380v/3ph/50hz(Or Customized)
Place Of Origin: Jiangsu, China
Certification: Iso, Iso
Packaging: standard packages
Productivity: 100
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 100
Certificate: ce
HS Code: 8413190000
Port: Shanghai
Payment Type: L/C,T/T,Paypal,Western Union
Incoterm: FOB,CFR,CIF,EXW
- Selling Units:
- Set/Sets
- Package Type:
- standard packages
- Picture Example:
-
fourth-stage intake air uses a cylinder scavenging method to freely suck compressed air into the cylinder. Exhaust uses a ring valve. Due to the special nature of its compressed air, care must be taken when using it.
Basic Information
1. Multiple gas drives: compressed air, nitrogen, water vapor, natural gas, etc. can be used as the driving air source for the
pump.
2. Wide range of use:
3. Automatic pressure holding: No matter what causes the pressure in the pressure holding circuit to drop, the inflator will
automatically start to supplement the leakage pressure and keep the circuit pressure constant.
4. Safe operation: It is driven by gas without arc and sparks, and is completely used in places with flammable and explosive liquids or gases.
5. Easy maintenance: Compared with other air-driven pumps, the air pump can complete the same work, but its parts and seals are fewer, and maintenance is simple
6. High cost performance: The air pump is a plunger pump. When working, the air pump quickly reciprocates. As the output pressure increases, the reciprocation of the pump slows down until it stops. At this time, the pressure of the pump is constant, and the energy consumption is lowest. Stop exercise.
Application range
1 Pipes, hoses, valves, pressure vessels, cylinders, etc. provide static and burst tests
2Static and dynamic test after maintenance of aerospace accessories
3 Calibration of safety valve
4 valve and wellhead device bubbling test in water Detection of
6 Automotive braking system test
7 communication cable inflatable equipment
8 Aircraft tires and hydraulic accumulators filled with nitrogen
9 gas-assisted injection medium and high pressure nitrogen inflation Compression of
11Pressure oxygen, nitrogen, hydrogen, air, methane and other gases Product Description

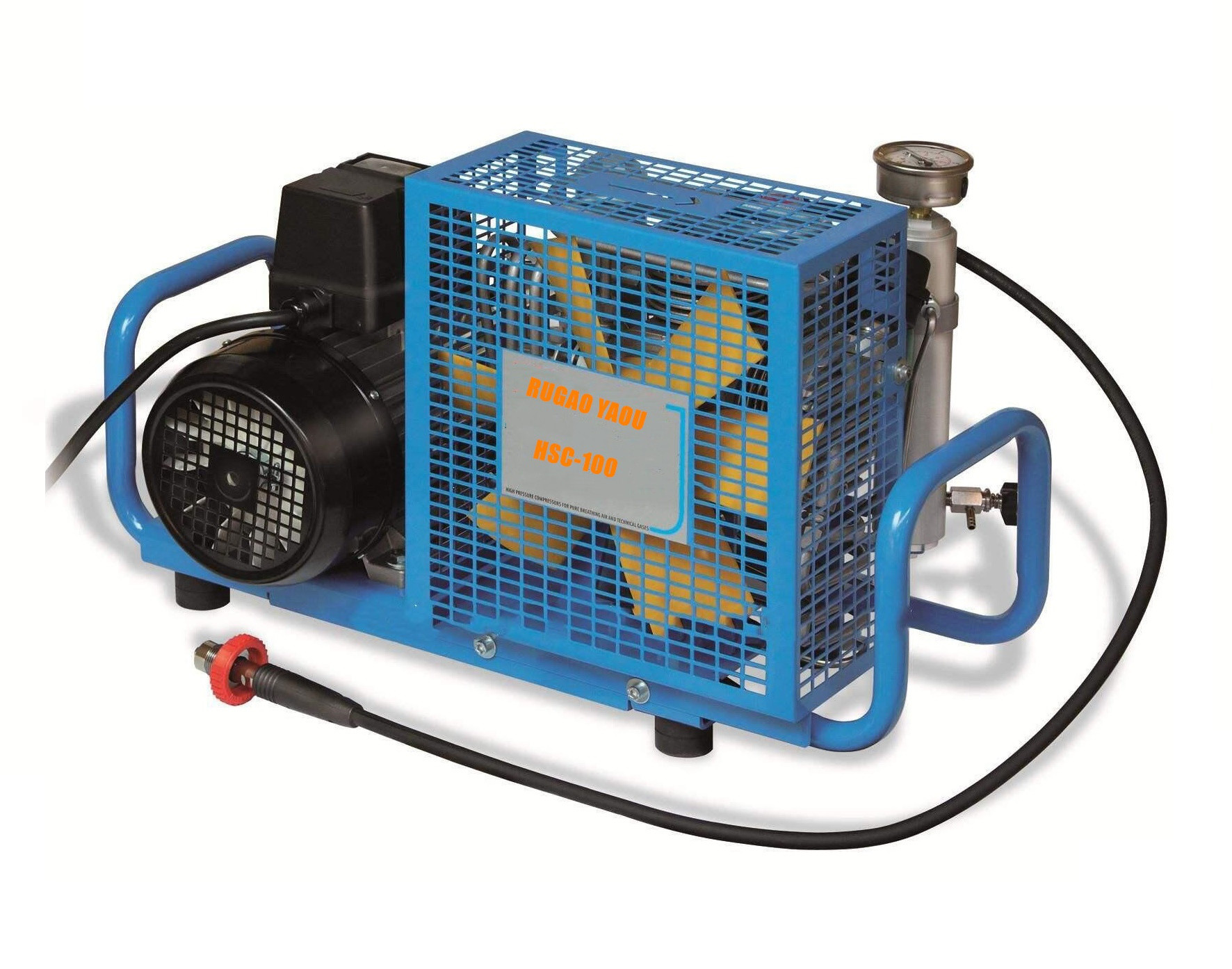

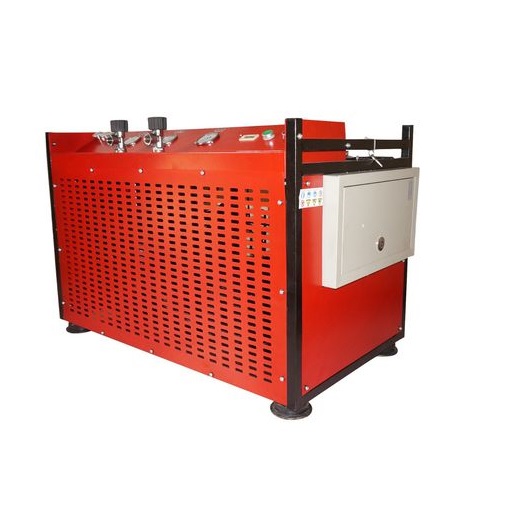

DMC high pressure air compressor
20-30Mpa, 3000-4500psi
100-500L flow capacity
Profermance:
Model: HSC100/HSC200/HSC265
Grade: 3
Capacity: 100/200/265L/min
Pressure: 20/30/30MPa.

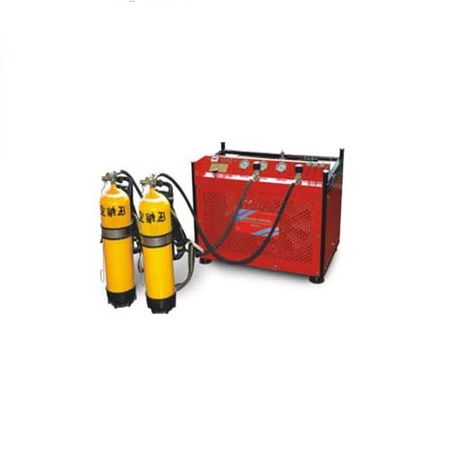

It is suitable for small and medium-sized gas supply stations with high pressure air and large exhaust capacity. It can be used in fire station inflation stations, divers base inflation stations, mines, oil field chemicals, ships, mountaineering, water sports centers and other industries. Rescue, firefighting, ambulance, and breathing equipment for breathing in underwater operations are ideal rescue equipment.
|
model
|
HSC100
|
HSC200
|
HSC300
|
|
Exhaust pressure (Mpa)
|
20~30
|
||
|
Displacement (L / min)
|
100
|
200
|
300
|
|
Lubrication method
|
Splash manner
|
||
|
Interstage pressure
|
1. 57psi 2.285psi 3. 1000psi 4. 4350psi
|
1. 5bar70psi 2. 40bar570psi 3. 225-300bar/3200-4300psi
|
|
|
Speed (rpm)
|
2260~2800
|
1300
|
1490
|
|
Motor power (kw)
|
2.2
|
4
|
7.5
|
|
Noise (dB)
|
<78
|
<79
|
<79
|
|
Piston stroke (mm)
|
13.5
|
||
|
Piston stroke (mm)
|
30
|
40
|
50
|
|
Voltage / Frequency (V / HZ)
|
220/380V 50hz/60hz
|
||
|
cooling method
|
Air-cooled
|
||
|
Dimensions (cm)
|
52*39*40
|
100*56*64
|
100*56*64
|
|
Equipment weight (kg)
|
45
|
150
|
150
|

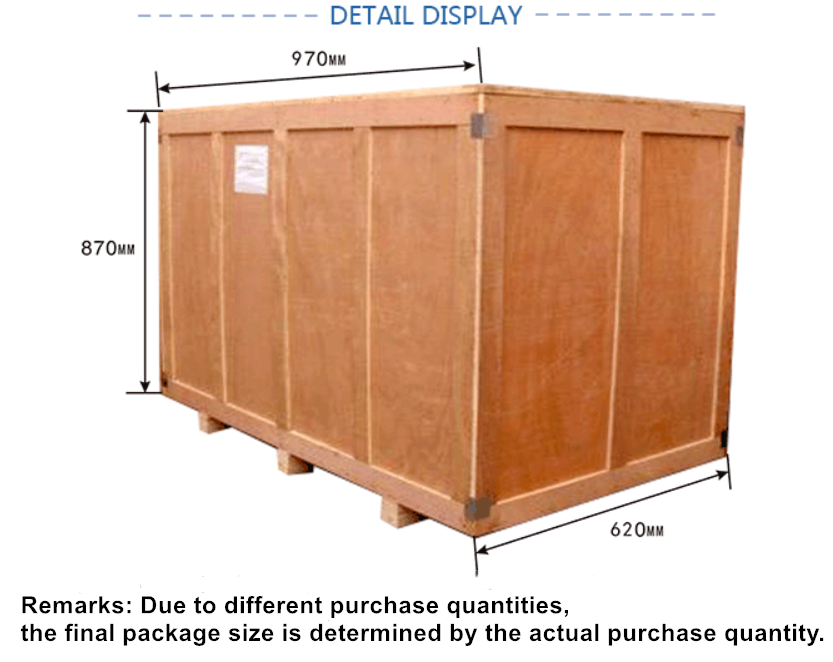

Transportation is based on customers in different regions using steam, rail, road and air transportation.
Rugao You Inport & Export Co. LTD was established in 2004, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.
Our company mainly deals in Hardware Tools , combined tools, electric tools, Special Tools For Petroleum, Metal Processing Machinery and petroleum drilling equipment. Diagonal Cutting Plier， Oil Drill Pipes ， Drilling Tools ，The company provides various centrifugal pumps , chemical pumps , screw pumps , Booster Pumps , variable frequency constant pressure pumps, hydrochloric acid pumps, testing pumps, etc. Diesel Engine Etc.Our companyoperates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.
1. Screw Compressors
2. Permanent magnet variable frequency air compressor
3. Special air compressor for laser cutting
4. Screw integrated air compressor
5. Bipolar compression energy-saving compressor
6. Oil-free water lubrication air compressor
7. High pressure screw air compressor
8. Low-pressure energy-saving air compressor
9. Swing air compressor
10. Mobile diesel air compressor
Tags:

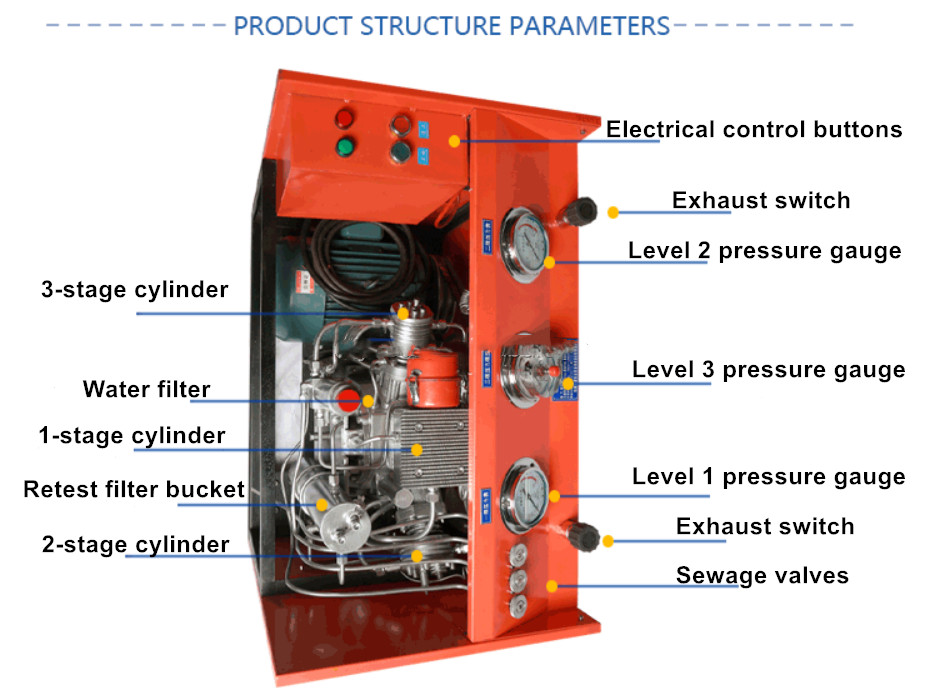

Technical parameter
