Annular BOP 13 5/8” 10000psi blowout preventer

Description

Argument

Products Description

Overview

Product Attributes

Model No.: FH-35/70

Brand: DS

Place Of Origin: China

Status: New

Warranty Period: 1 Year

Applicable Industry: Energy &Amp; Mining

Out-of-warranty Service: Video Technical Support

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Uae, Uzbekistan, Russia, Mexico, India, Pakistan, Indonesia, Saudi Arabia

Showroom Location (in Which Countries Are There Sample Rooms Overseas): Uae, Uzbekistan

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Components: Pump

Condition: New

Video Outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: New Product 2020

Place Of Origin: Jiangsu, China

Applicable Industries: Energy & Mining

Material: Carbon Steel

Warranty: 1.5 Years

Certification: Api

Machine Type: Drilling Equipment

Processing Type: Forging

Type: Bop

Brand Name: Yaou

Showroom Location: Egypt, Uae, Uzbekistan

Use: Oil Drilling Rig

Local Service Location: Egypt, Canada, Turkey, Germany, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Morocco, Kenya, South Korea, Uae, Algeria, Kazakhstan, Kyrgyzstan, Nigeria, Uzbekistan

Supply Ability & Additional Information

Packaging: Export packing

Productivity: 10

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 10

Certificate: API

HS Code: 8431431000

Port: SHANGHAI

Payment Type: L/C,T/T

Incoterm: FOB

Packaging & Delivery

Selling Units:: Set/Sets

Package Type:: Export packing

Products Description

Name : Anuular BOP, Api 16a Annular Bop

Features:

YAOU 'B' &' W' Annular BOPs are compact, strong and simple construction with reliably seal which provide positive pressure control for stripping drill into and out of hole..

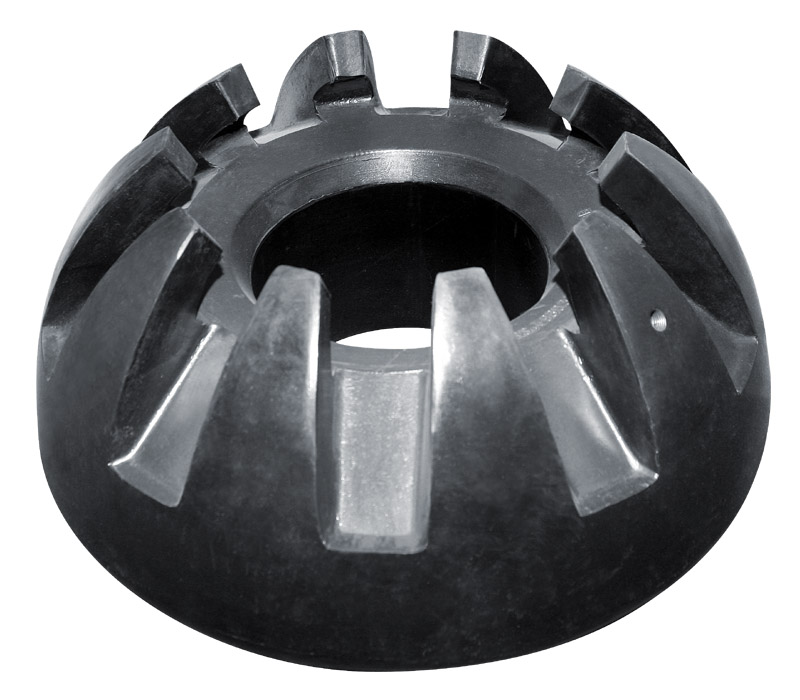

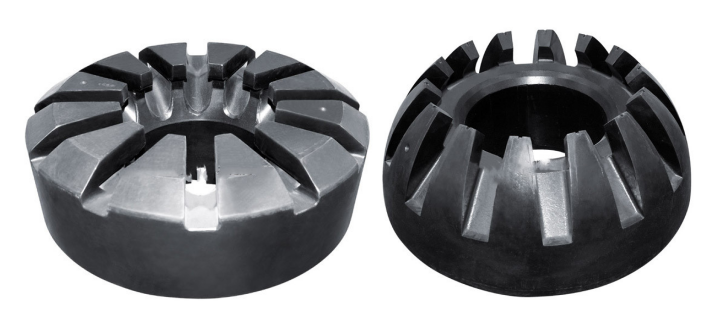

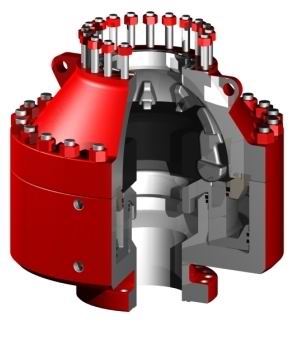

Skype:yaoutrade2API 16A hydraulic annular BOP can be used in work over and drilling operations equipped with hydraulic control systems. The BOPs are designed and manufactured in full conformity to the API 16A standard. The annular BOP mainly consists of a body, a header, a rubber core, and a piston. The inner rubber core is interchangeable. While the annular BOP can be used independently, it normally works with a single or a double BOP.It can seal the drilling tool or well bore efficiently, preventing oil well blow outs. Its anti H2S performance conforms to the NACE MR 0175 standard.

Annular BOP for Workover.

Model	FH18-21	FH18-35
Nominal diameter(in)	7 1/16	7 3/8
Rated working pressure(psi)	3000	5000
Strength pressure test(psi)	6000	7500
Oil cylinder working pressure(psi)	1200-1500	1200~1500
Piston stroke(mm)	100	100
Metal temperature class(℃)	-29~121	-29~121
Nonmetal temp. class(℃)	-18~121	-18~121
Oil cylinder closed chamber volume(L)	17	17
Oil cylinder open chamber volume(L)	11.6	11.6
Bolt quantity and diameterc	12-M30 x 3 x 140	12-M36 x 3 x 180
Ring gasket	R45	R46
Dimension(mm)	737 x 740	737 x 770
Weight(lb)	2628	2690

Model	FH35-35	FH35-70
Nominal diameter(in)	13 5/8	13 5/8
Rated working pressure(psi)	5000	10000
Strength pressure test(psi)	7500	7500
Oil cylinder working pressure(psi)	1200-1500	1200~1500
Piston stroke(mm)	100	100
Metal temperature class(℃)	-29~121	-29~121
Nonmetal temp. class(℃)	-18~121	-18~121
Oil cylinder closed chamber volume(L)	17	17
Oil cylinder open chamber volume(L)	11.6	11.6
Bolt quantity and diameterc	12-M30 x 3 x 140	12-M36 x 3 x 180
Ring gasket	R45	R46
Dimension(mm)	737 x 740	1554x 1742
Weight(lb)	2628	12750

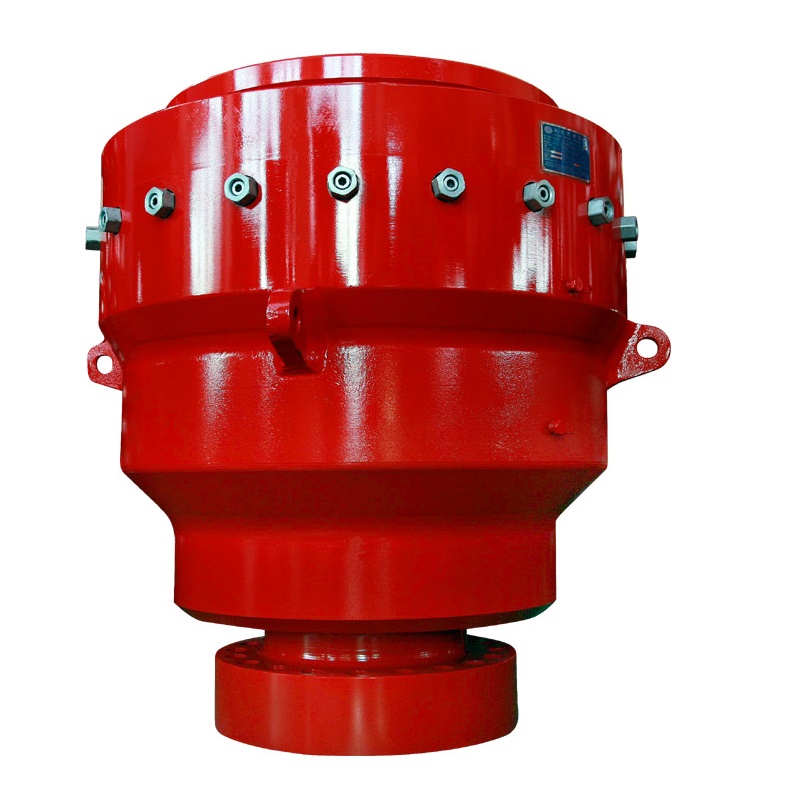

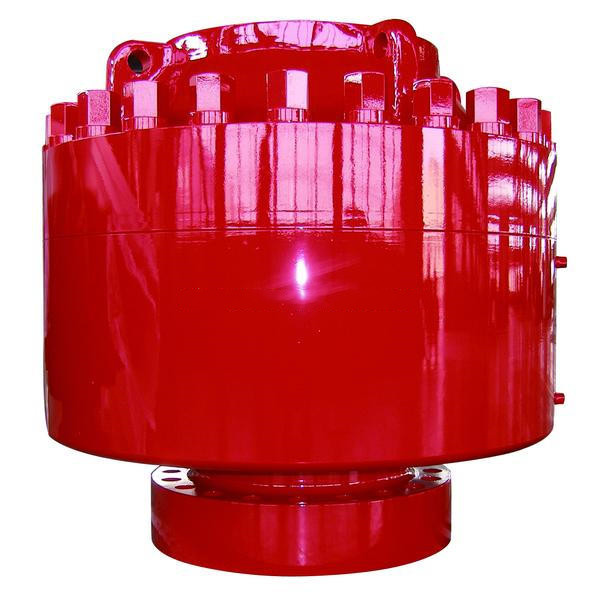

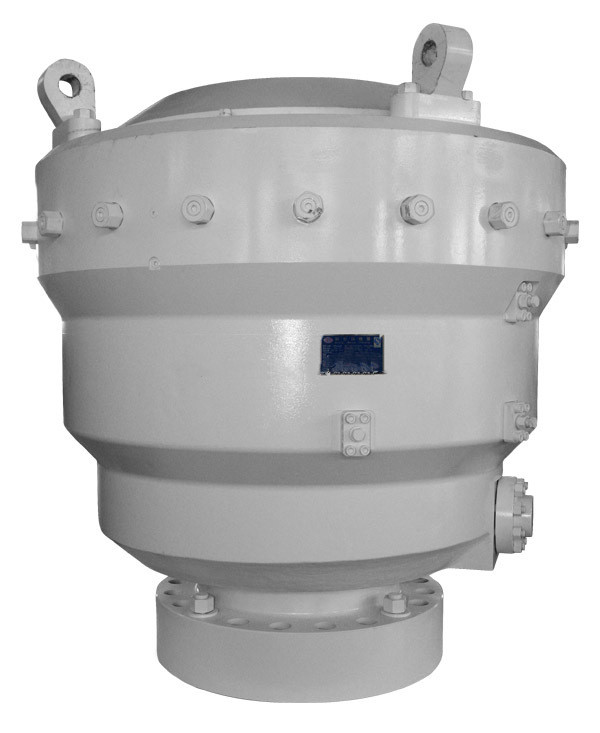

Annular BOP 13 5/8'' 10000psi blowout preventer

Details Images

Product packaging

According to the volume and weight of the product and export requirements, provide multi-layer boxes and iron box packaging.

Transportation is based on customers in different regions using steam, rail, road and air transportation.

Annular BOP 13 5/8'' 10000psi blowout preventer
