Products Description
Model No.: ZQ203-100/162-50
Warranty: 1 Year
Condition: New
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Place Of Origin: Jiangsu, China
Applicable Industries: Energy & Mining
Material: Carbon Steel
Processing Type: Casting
Certification: Api
Application: Oil
Type: Jaw Plate
Machine Type: Drilling Tool
Use: Well Drilling
Brand Name: Yaou
Showroom Location: Uae, Uzbekistan
Local Service Location: Egypt, Turkey, Germany, Brazil, Saudi Arabia, Indonesia, Pakistan, India, Russia, Spain, Japan, Malaysia, Morocco, Kenya, Chile, Uae, Sri Lanka, Romania, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan
Use: Oil Well
Applicable Industry: Energy &Amp; Mining
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Uae, Ukraine, Uzbekistan
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Uae, Ukraine, Uzbekistan, Kazakhstan, Russia
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: New Product 2020
Core Component Warranty Period: 1 Year
Core Components: Gearbox
Status: New
Types Of: Rotary Drilling Rig
Engine Type: Electric
Place Of Origin: China
Warranty Period: 1 Year
- Selling Units:
- Piece/Pieces
- Single package size:
- 176cm*100cm*163cm
- Single gross weight:
- 2500kg
- Package Type:
- Standard Export Packing.
- Picture Example:
-
- Lead Time :
-
Quantity（Piece/Pieces） 1 >1 Est. Time（days) 30 To be negotiated If you finish the payment today, your order will ship out within the delivery date.
Product Overview

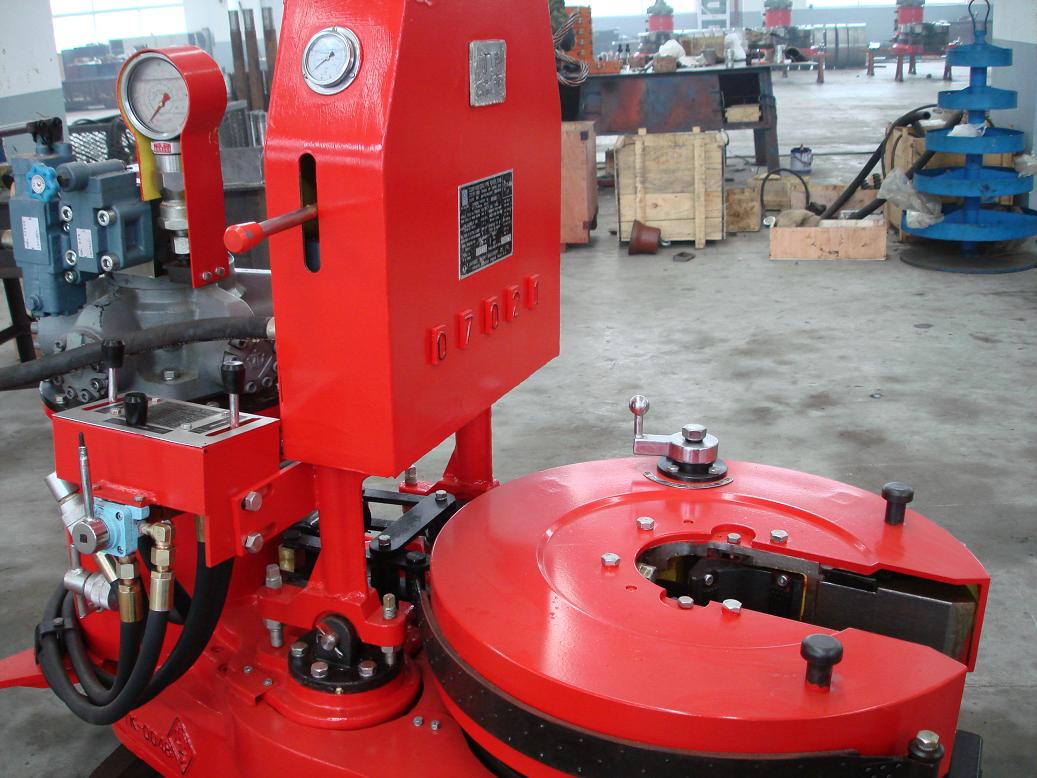

ZQ Series of Drill Pipe Power Tong
ZQ Drill Pipe Power Tong is an ideal wellhead tool for oil drilling,widely applied in madding-up and breaking-out for well
drilling and repairing on offshore and land.Ppen-throat design of the ZQ-series with high mobility allows escaping from drilling pipe freely .The tong is a combination of spinning tong and torque tong .It substitutes cathead,suspension tong and spinning rope in making-up and breaking-out.The Tongs are designed and manufactured according to API Spec7kSpecification for Drilling Equipment.
FEATURES AT A GLANCE
|
Model |
ZQ162-50Ⅱ |
ZQ203-100Ⅱ |
ZQ203-125Ⅱ |
|
||
|
Size range |
mm |
85-162 |
127-203 |
127-203 |
||
|
in |
23/8″coupling |
31/2″coupling |
31/2″coupling |
|||
|
5″coupling |
8″body |
8″body |
||||
|
Max. torque |
kN.m |
50 |
100 |
125 |
||
|
ft.lbf |
36880 |
73750 |
92200 |
|||
|
Speed (High gear) |
rpm |
60 |
40 |
40 |
||
|
Speed (Low gear0 |
rpm |
4.1 |
2.7 |
2.7 |
||
|
Air pressure |
MPa |
0.5-1 |
||||
|
Psi |
72-144 |
|||||
|
Pressure rating |
MPa |
16 |
16.6 |
20 |
||
|
psi |
2320 |
2400 |
2900 |
|||
|
Flow rating |
L/min |
120 |
114 |
114 |
||
|
gpm |
31.7 |
30 |
30 |
|||
|
Shifting distance |
mm |
1000 |
1500 |
1500 |
||
|
in |
39.4 |
59 |
59 |
|||
|
Lifting distance |
mm |
0-440 |
0-430 |
0-430 |
||
|
in |
0-17.3 |
0-17 |
0-17 |
|||
|
Size |
mm |
1570*800*1370 |
1760*1000*1630 |
1785*1080*16230 |
||
|
in |
62*31*54 |
69*39*64 |
70*42*64 |
|||
|
Weight |
Kg |
1700 |
2500 |
2750 |
||
|
lb |
3748 |
5520 |
6063 |
|||
Our company mainly deals in Hardware Tools , combined tools, electric tools, Special Tools For Petroleum, Metal Processing Machinery and petroleum drilling equipment. Diagonal Cutting Plier，Oil Drill Pipes，Drilling Tools，The company provides various centrifugal pumps, chemical pumps, screw pumps , Booster Pumps , variable frequency constant pressure pumps, hydrochloric acid pumps, testing pumps, etc. Diesel Engine Etc.Our companyoperates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.
Project in India
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost)
2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machine
Rugao Yaou Import & Export Co. LTD was established in 2004, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.
Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. Our company also operates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.
Tags:
Technical parameter

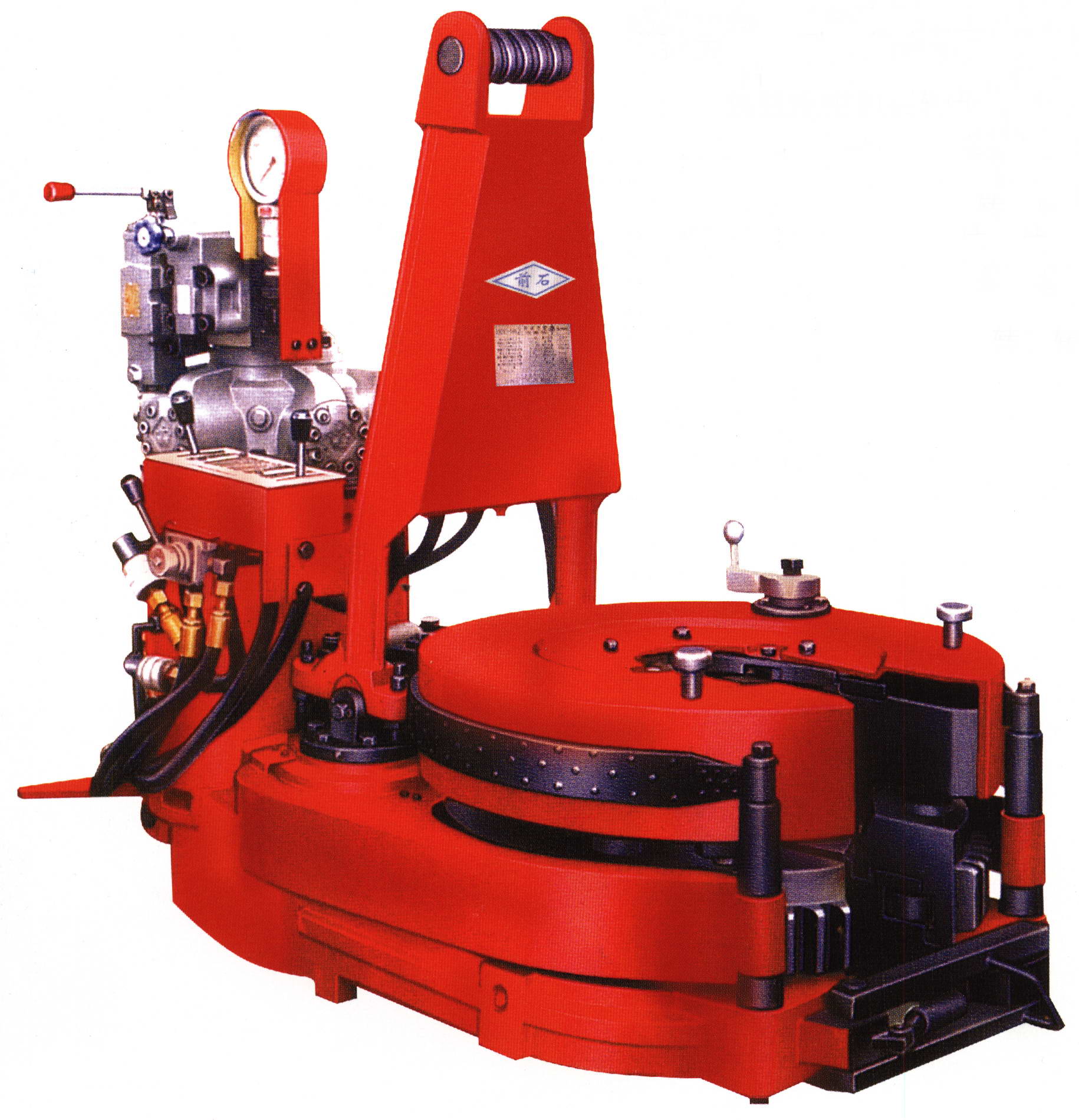

ZQ203-100/162-50 Drill Pipe Power Tong Oil drilling tools 1

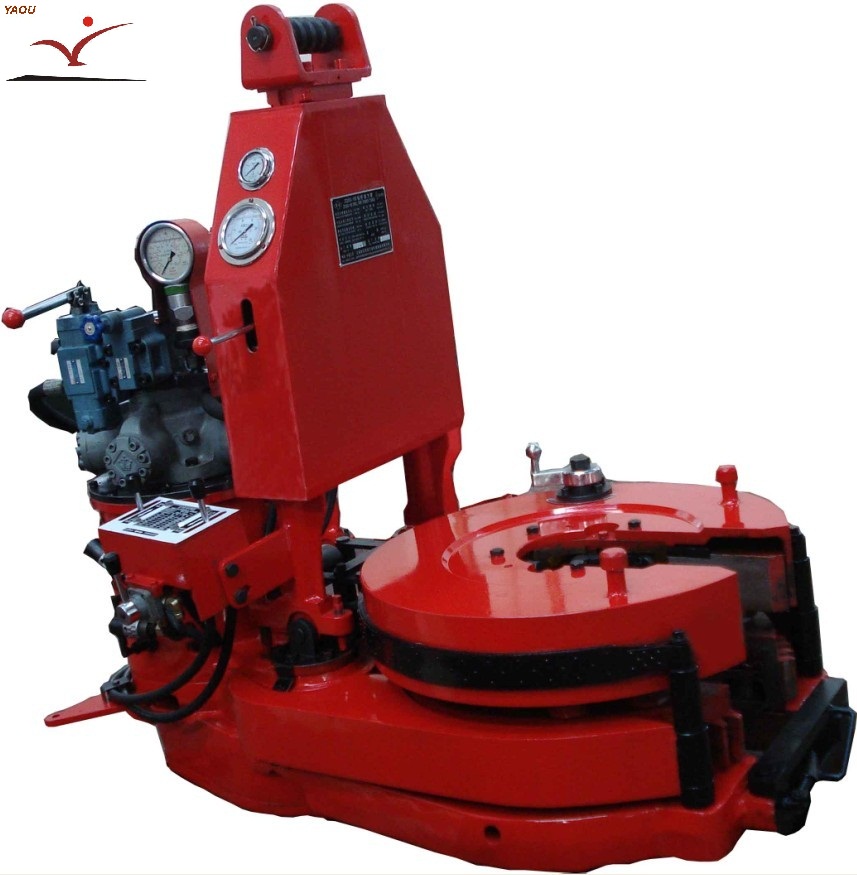

ZQ203-100/162-50 Drill Pipe Power Tong Oil drilling tools 2

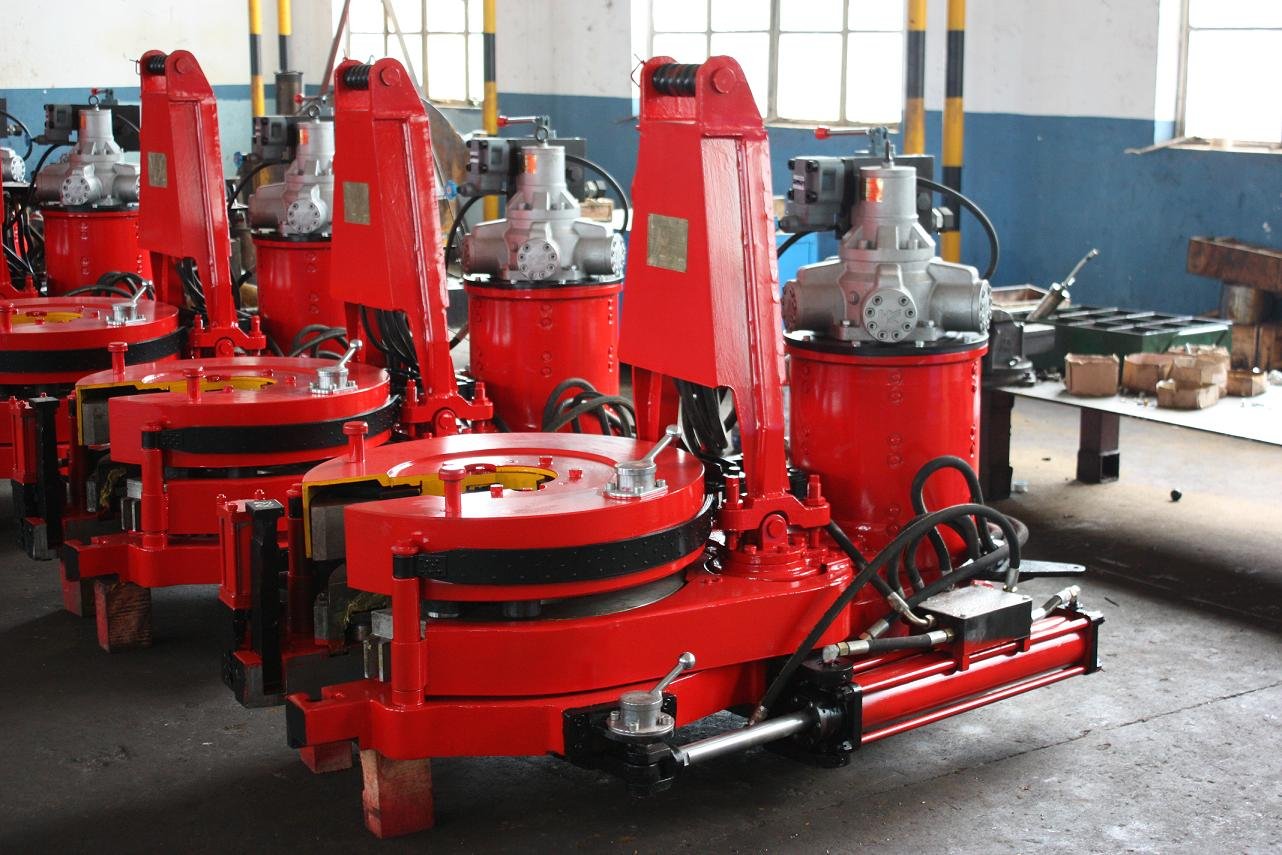

ZQ203-100/162-50 Drill Pipe Power Tong Oil drilling tools 3

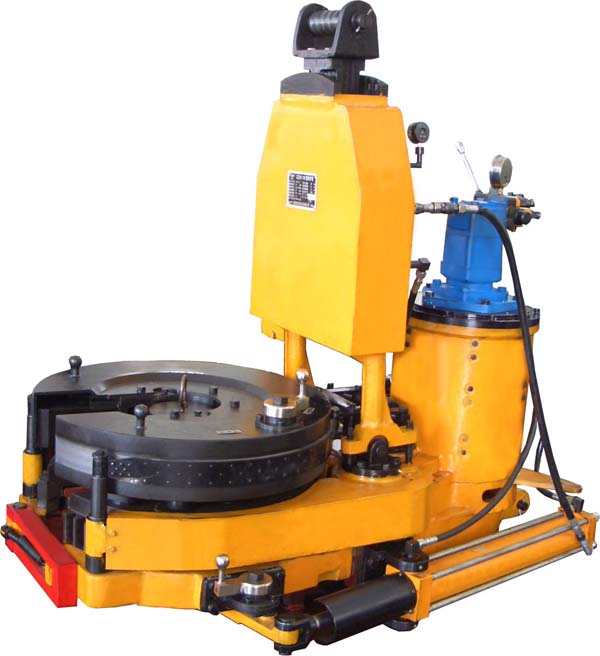

ZQ203-100/162-50 Drill Pipe Power Tong Oil drilling tools 4

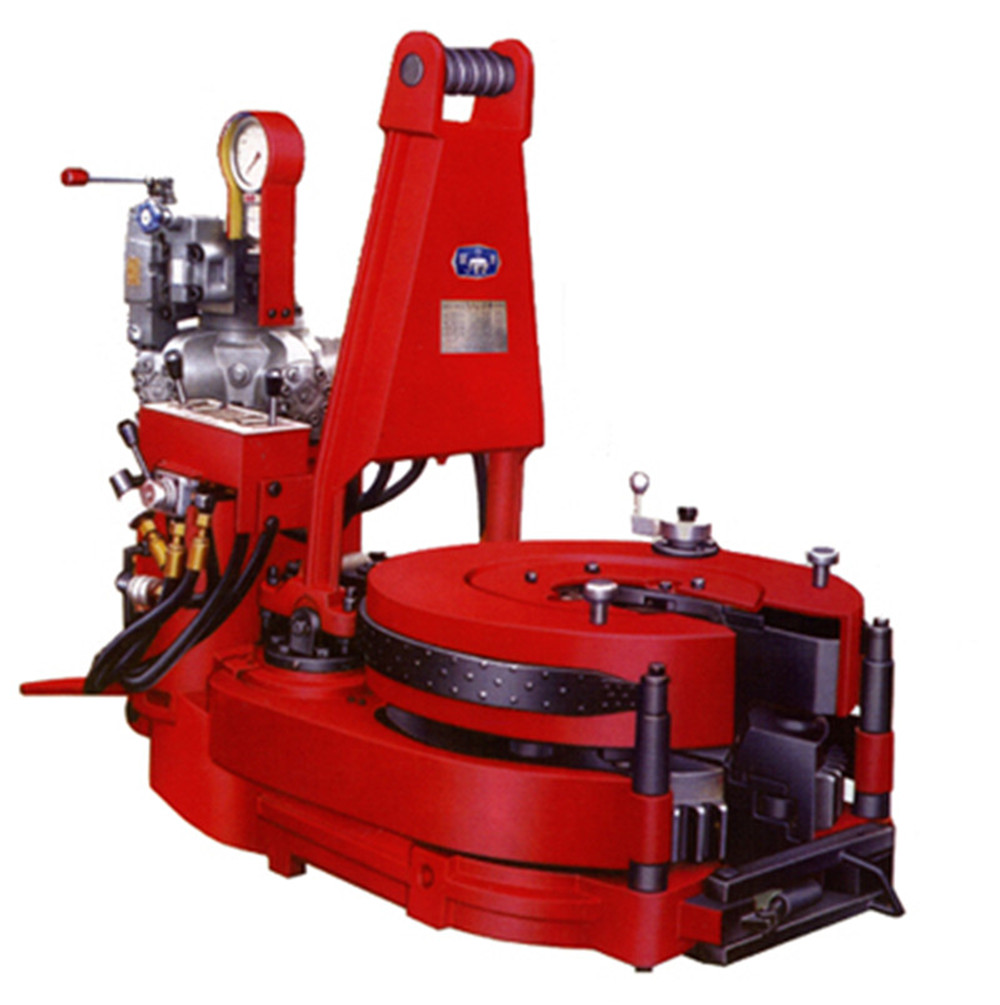

ZQ203-100/162-50 Drill Pipe Power Tong Oil drilling tools 5
