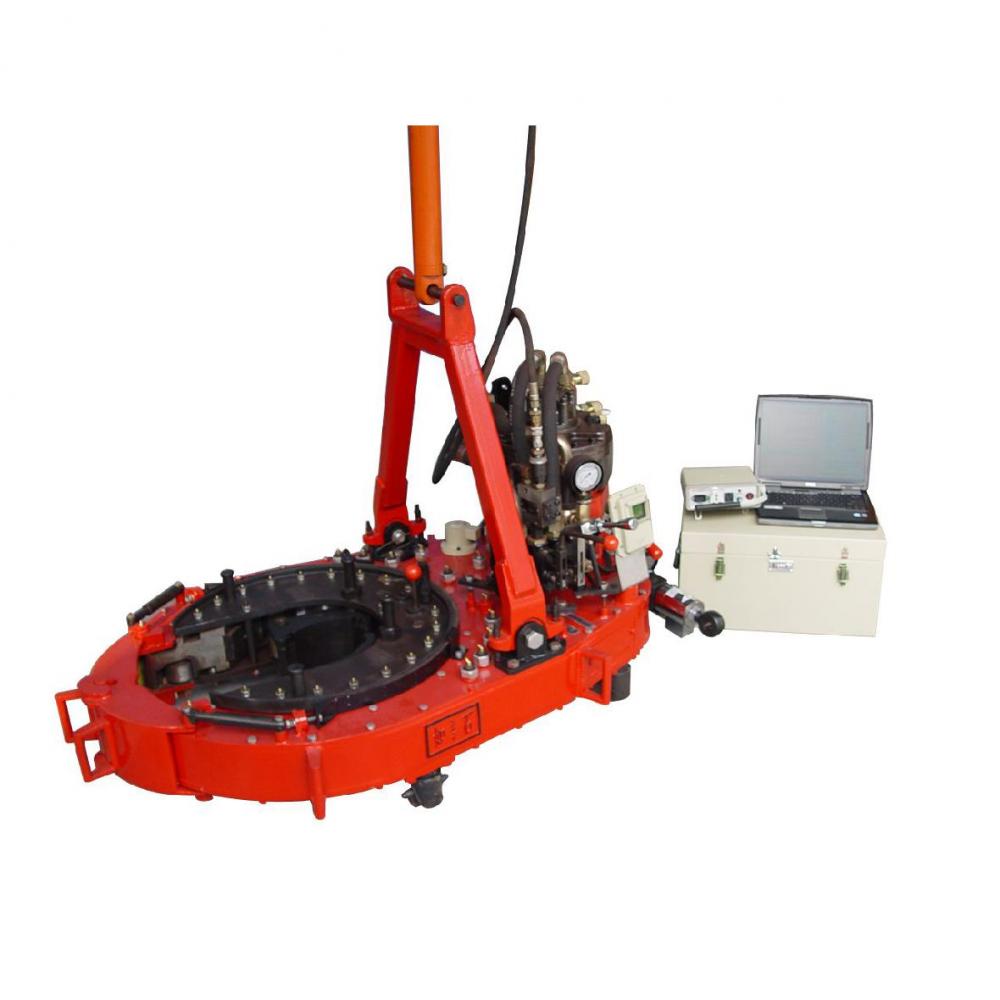

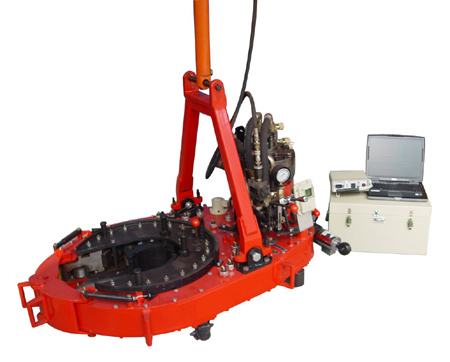

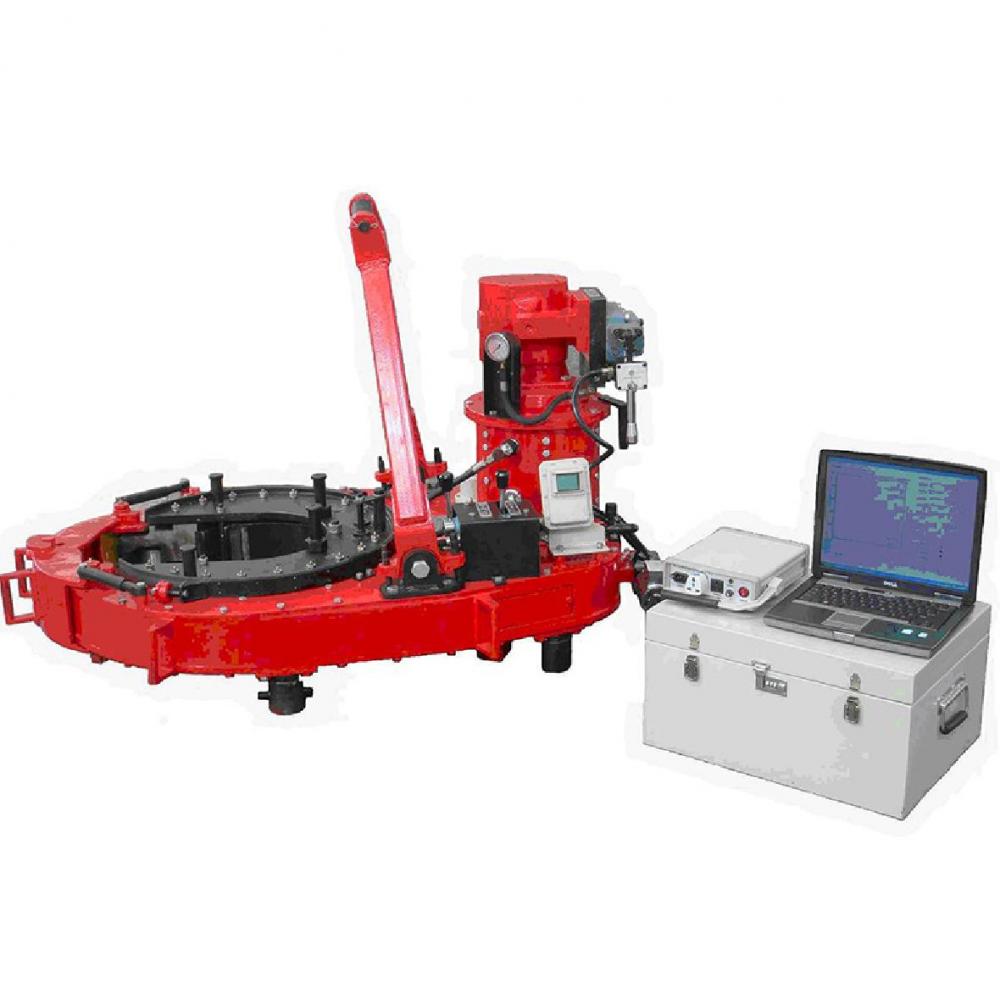

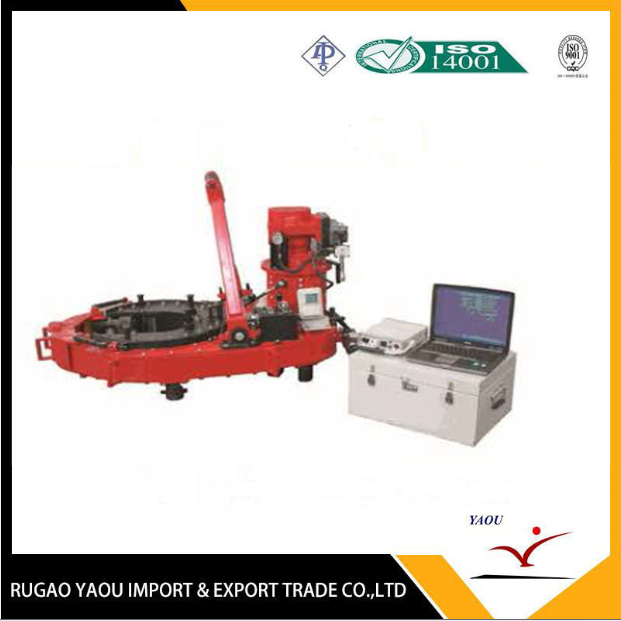

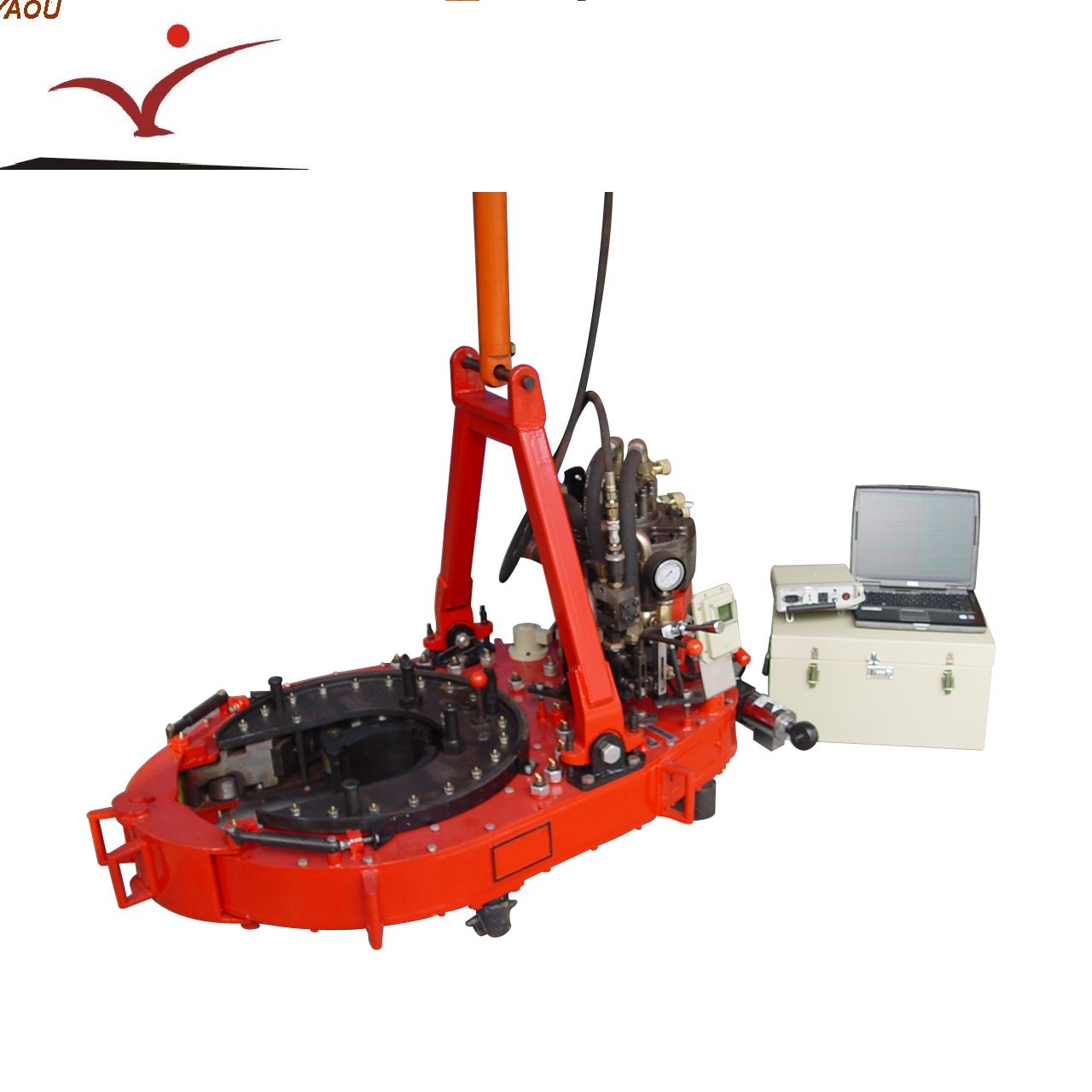

TQ340-35Y Power Tong Torque Control system

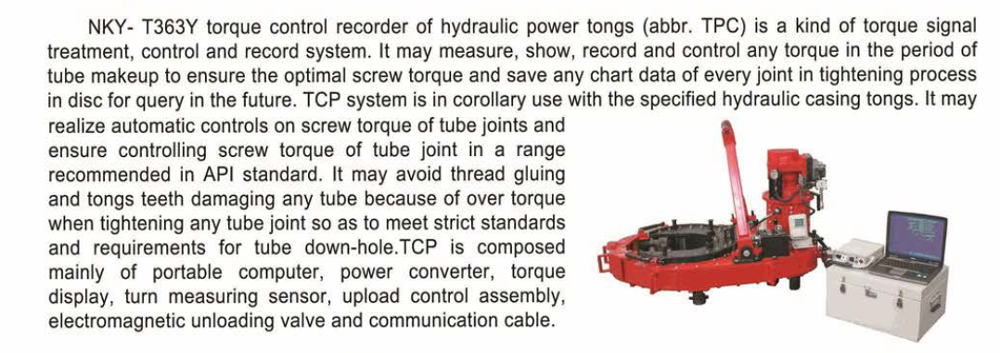

NKY-T Hydraulic Power Tong Torque Control Recorder: TPC for short. It is an advanced torque signal processing control recording system that can measure, display, record and control the torque during pipe buckling to ensure the best tightening of pipe joints. Connect the torque, and save the graph data generated by the tightening process of each joint on the disk for later query. After the work is over, use the printer to print the test data and test history curve, which can provide scientific test conclusions and basis for the production inspection unit.

TPC system and TQ178-16 type casing clamp, TQ245-20Y type casing clamp, TQ340-35YA type casing clamp, TQ340-35Y type casing clamp, TB365-35Y type casing clamp with back clamp, TQ508-70Y set The pipe wrench is used in conjunction to realize automatic control of the screwing torque of the pipe joints to ensure that the screwing torque of the pipe joints is controlled within the recommended range of the API standard, which can avoid the sticking and jaw damage caused by the overtorque when the pipe joint is tightened. , Fully meet the strict standards and requirements when the pipe goes down the well.

Our company started to develop the TPC torque control test system in 2000. After long-term research and development and improvement, the TPC system has developed from the original NKY-A and NKY-B type to the current NKY-T type. The product performance is stable and practical. wide.

1. Main functions and features

The elastic body torque sensor is used to measure the torque. The sensor is a strain sensor with stable zero point, high detection accuracy and strong anti-interference performance.

Cooperating with the electromagnetic unloading valve on the hydraulic power station, it can realize the automatic control of the make-up torque.

A high-precision, high-speed photoelectric encoder is used to record the number of up-down cycles.

Real-time display, control, and record the process data of the deduction process, and record the process data of the deduction process on the disk for later query.

Multi-page printing, A4 paper can print one graph or eight graphs.

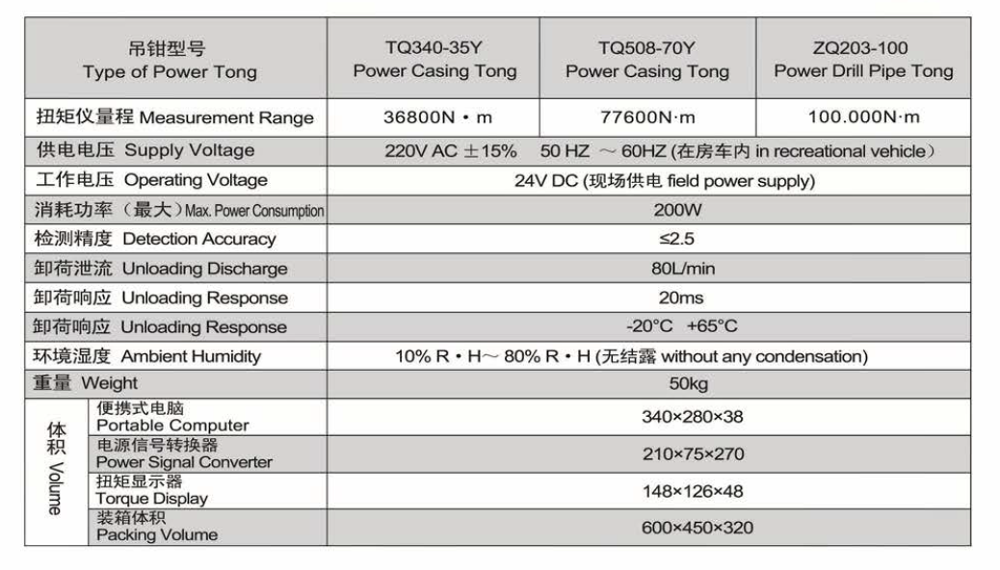

2. Main technical parameters:

Power supply voltage: 220V AC ±15% 50 to 60HZ (in the RV)

Measuring range: TQ340/35Y－36800 N.m

Control range: set on site according to requirements

Detection accuracy: ≤2.5%

Ambient temperature: -25°C to +65°C

Ambient humidity: 10% to 80% R·H (no condensation)

Packing volume 580×450×300

Weight: 50KG

Hot Sell NKY-T363Y Torque Control Recorder
