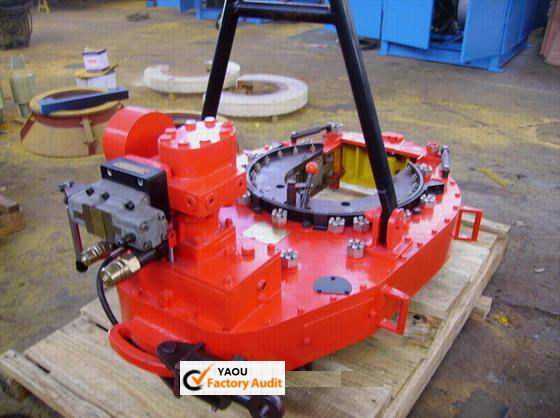

TQ 340/35Y Hydeaulic Casing power tong

Description

Argument

Products Description

Overview

Product Attributes

Model No.: TQ 340/35Y ,TQ178-16Y,TQ508-70Y

Status: New

Warranty Period: 1.5 Years

Applicable Industry: Energy &Amp; Mining

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Uae, Kazakhstan, Uzbekistan, Russia, India, Pakistan

Showroom Location (in Which Countries Are There Sample Rooms Overseas): Kazakhstan, Uzbekistan, Uae

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 3 Years

Core Components: Pump

Condition: New

Video Outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: New Product 2020

Place Of Origin: Jiangsu, China

Applicable Industries: Machinery Repair Shops, Energy & Mining

Warranty: 1.5 Years

Processing Type: Casting

Certification: Api

Application: Oil

Machine Type: Drilling Tool

Use: Well Drilling

Brand Name: Yaou

Local Service Location: Egypt, Canada, Turkey, Italy, Germany, Viet Nam, Brazil, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Malaysia, Morocco, Kenya, Chile, Uae, Romania, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan

Showroom Location: Russia, Uae

Type: Jaw Plate, Workover Rig

Material: Carbon Steel

Packaging & Delivery

Selling Units:: Set/Sets

Single package size:: 158cm*90cm*86cm

Single gross weight:: 780kg

Package Type:: Standard Export Packing.

Picture Example:

Lead Time :

Quantity（Set/Sets）	1	>1
Est. Time（days)	30	To be negotiated

If you finish the payment today, your order will ship out within the delivery date.

Product Description

TQ series of hydraulic casing tongs are widely used for making-up or breaking-out of casings or pipes. The series of casing tongs
are wholly hydraulic driven. The tongs are configured with a large-torque motor and perform mechanical gearchange. Structure is

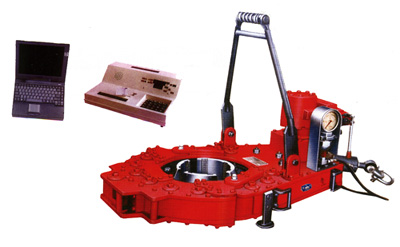

simple and operation is safe. The casing tongs can be supplied with torque device to perform computer monitoring and managing on
pressure, torque and rounds. The casing tong has been granted with National Invention Patent. The casing tongs are designed and
manufactured according to SY/T5074 and API Spec 7K "Specification for Drilling Equipment "

Model			TQ178-16Y	TQ340-35Y	TQ508-70Y
Size range		mm	101.6～178	114.3～340	244.5～508
Size range		in	4～7”	4～13 3/8”	9 ～20”
Max.pressure		MPa	18	21	20
Max.pressure		psi	2610	3045	2900
Working flow		L/min	110～160	110～170	110～170
Working flow		gpm	29.3～42.7	29.3～45.4	29.3～45.4
Max. torque	Hi. gear	kN.m	2.4～3	4.0～5.6	8.4～10.7
	Hi. gear	ft.lbf	1770～2210	2950～4130	6190～7890
	Low gear	kN.m	15～18	26～35.2	48.9～70.5
	Low gear	ft.lbf	11060～13270	19175～25960	37244～52000
Speed	High gear	rpm	54～79	57～95	26～43.6
Speed	Low gear	rpm	9～13	9～15	4～6.6
Size		mm	1500×760×780	1580×900×860	2080×1280×760
Size		in	59×30×30.7	62.2×35.4×33.9	82×50.4×30
Weight		kg	560	760	1550
Weight		lb	1230	1670	3410

Drill Equipmernt

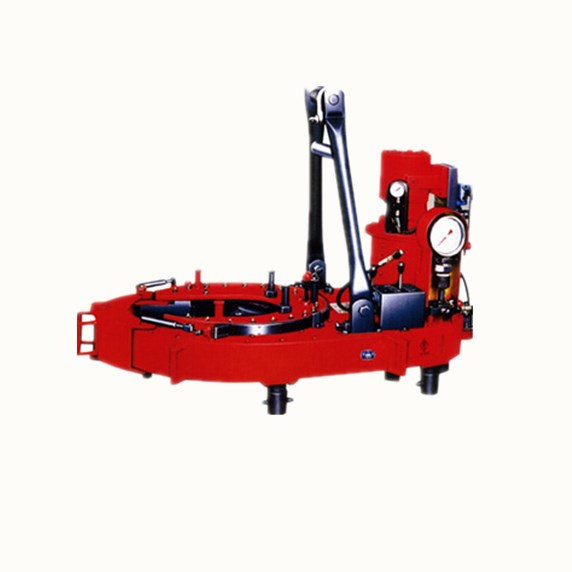

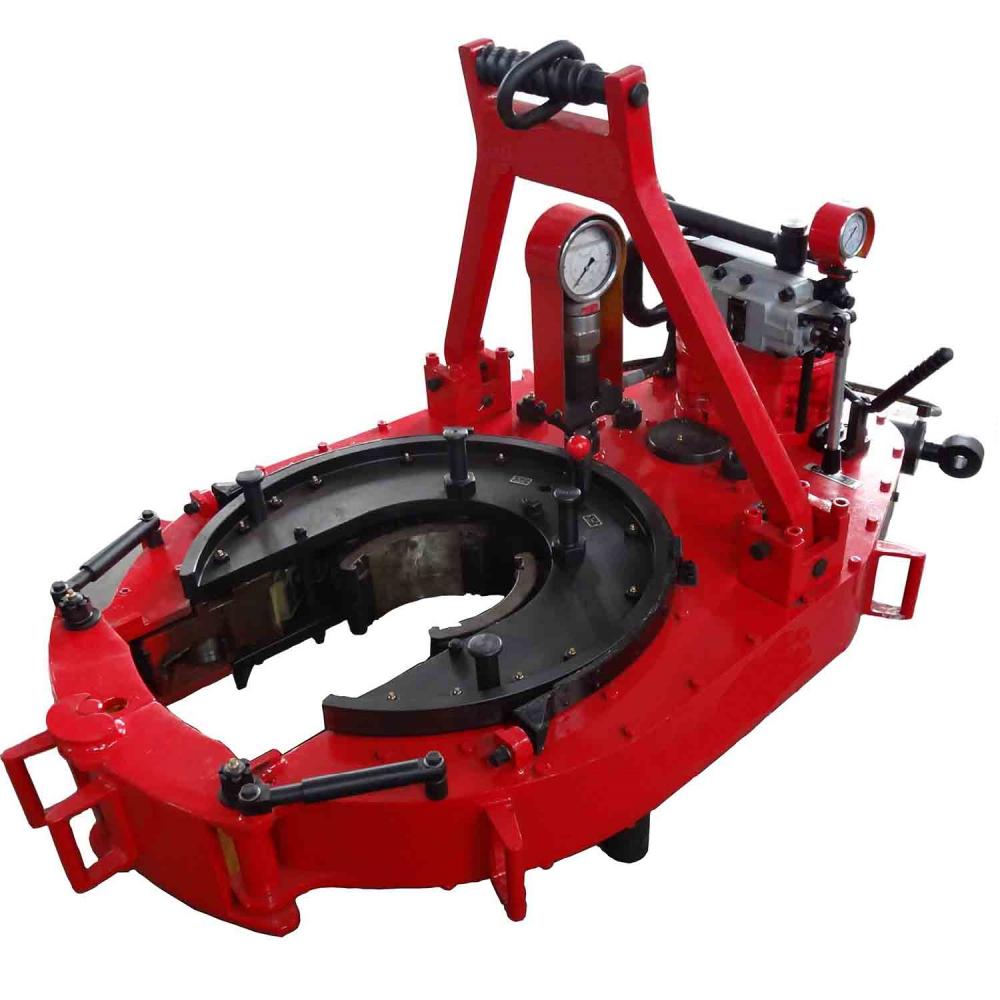

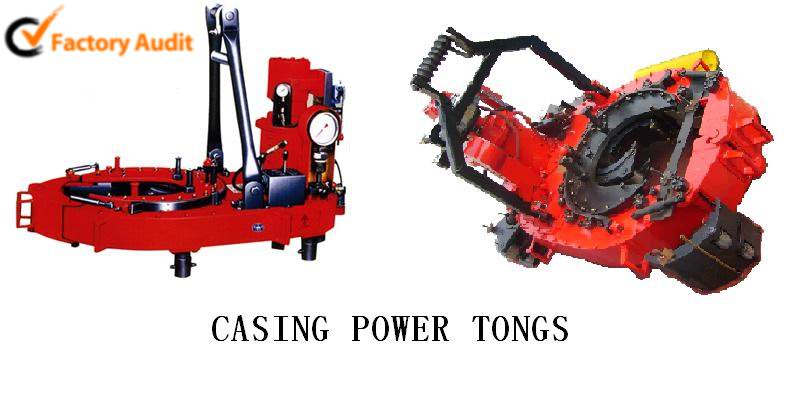

Casing Power Tong 27 Casing Power Tong 148 Casing Power tong (037)

Detailed Images

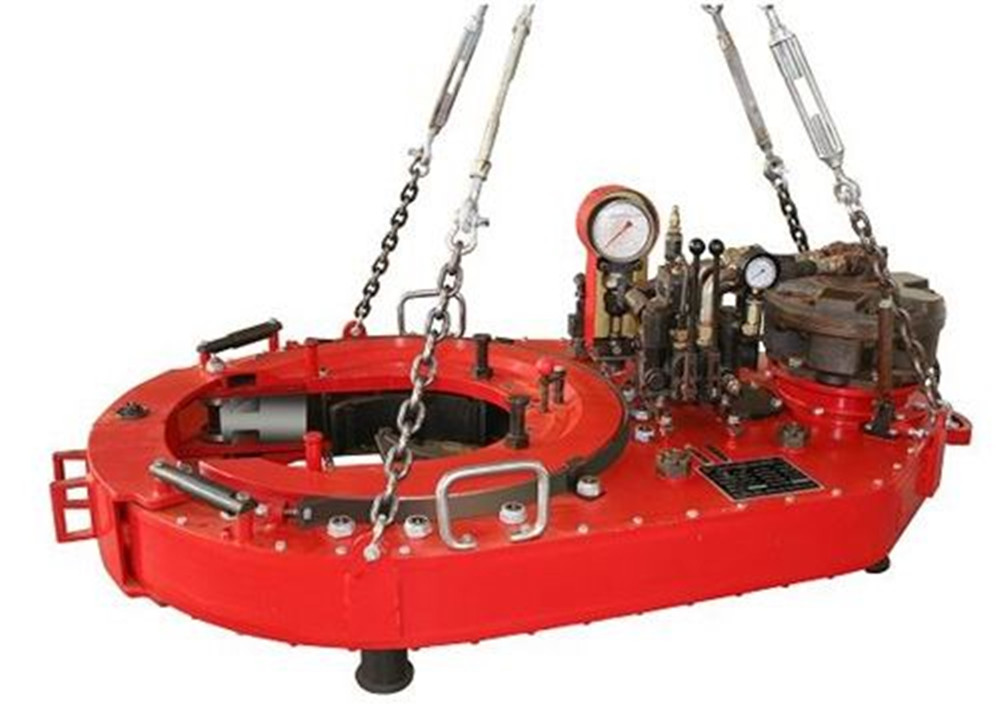

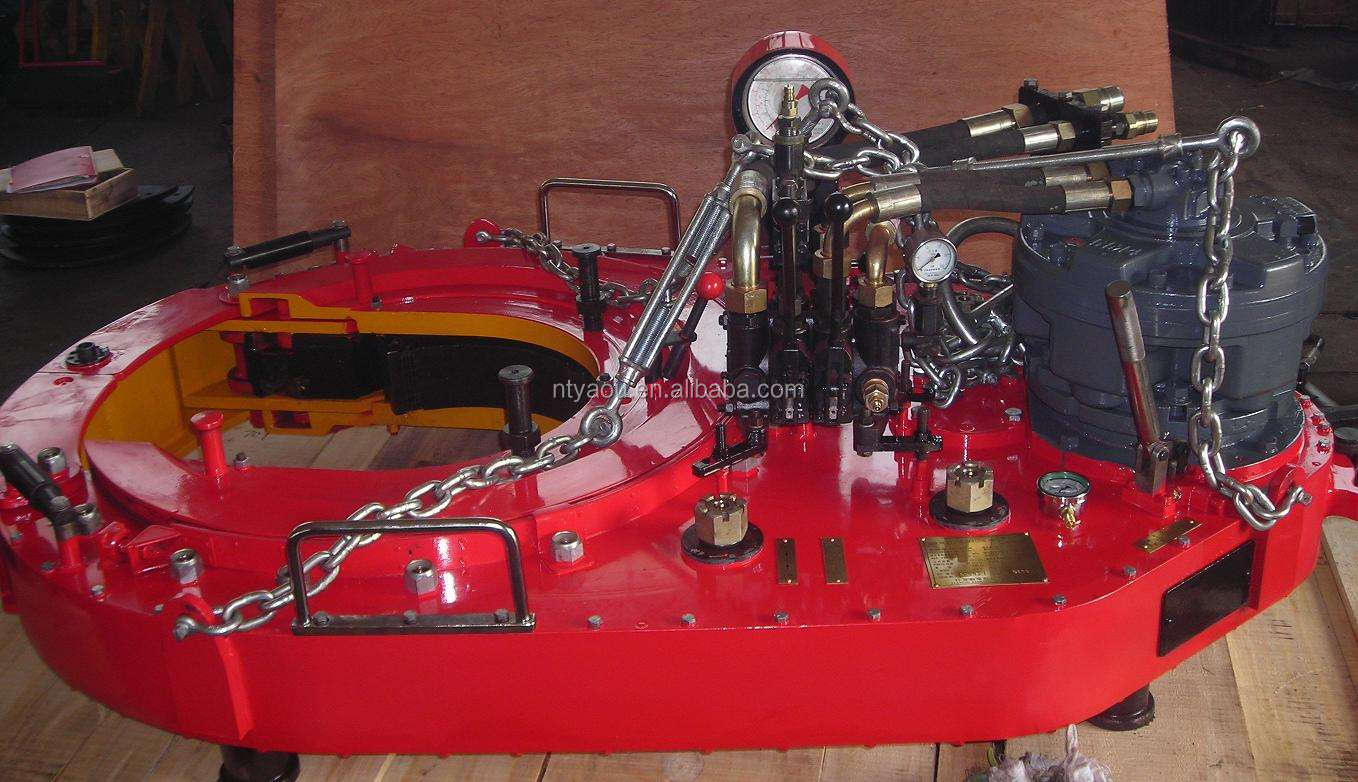

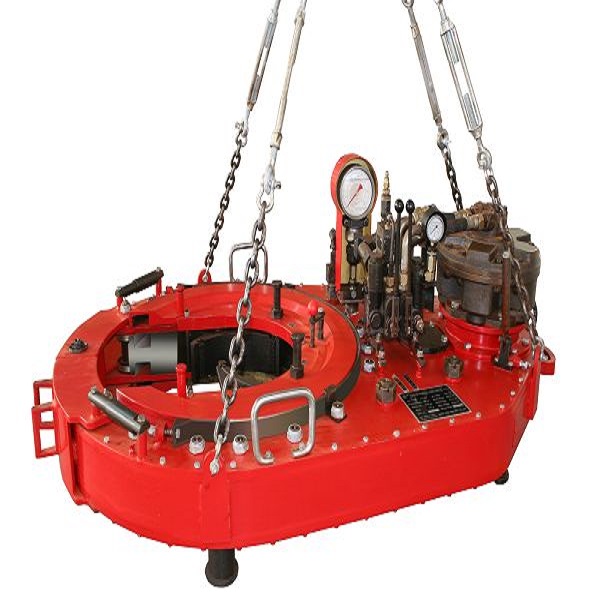

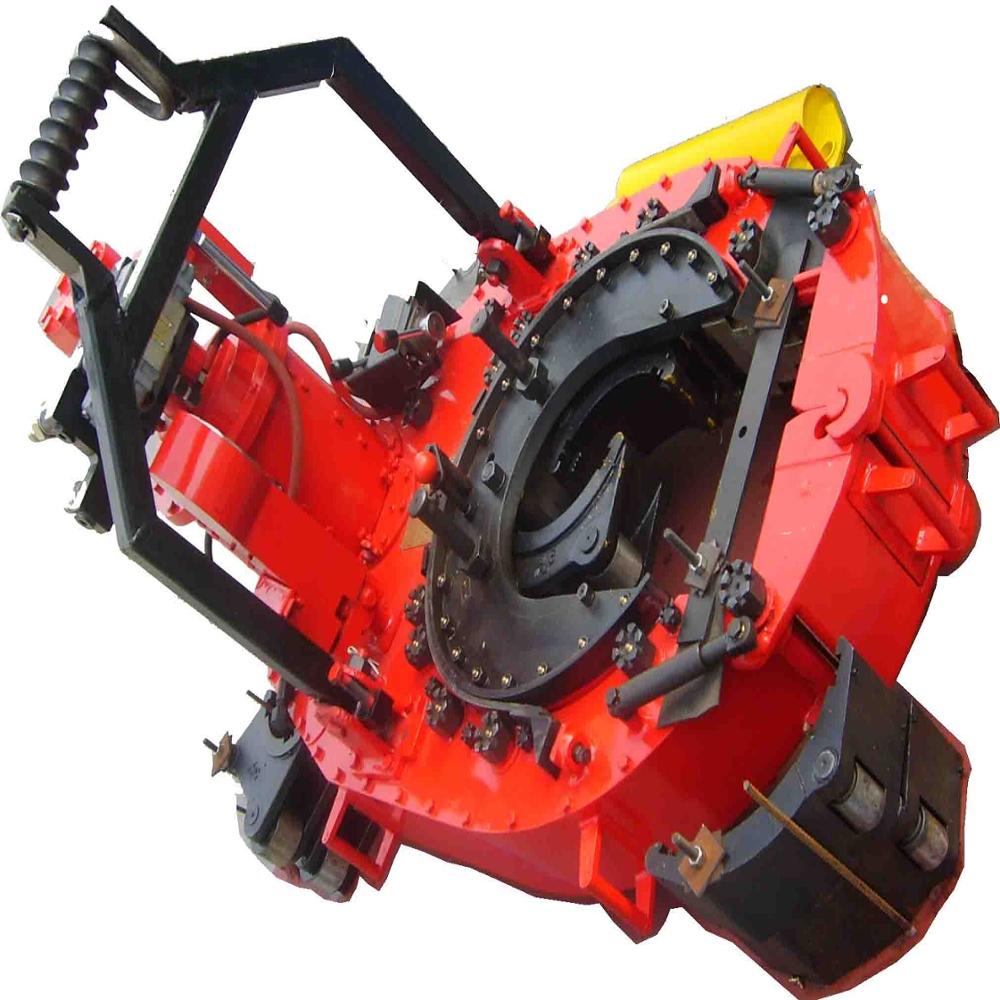

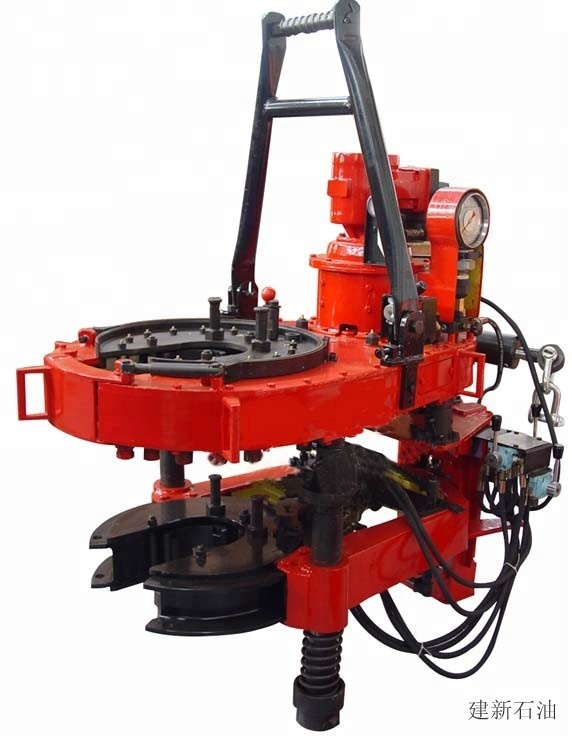

TQ series of casing tongs are widely used for making-up or breaking-out of casings or pipes.
