Products Description
Model No.: XQ89/3X. XQ114
Brand: YAOU
Condition: New
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Place Of Origin: Jiangsu, China
Applicable Industries: Energy & Mining
Material: Carbon Steel
Warranty: 1.5 Years
Processing Type: Casting
Certification: Api
Type: Jaw Plate
Machine Type: Drilling Tool
Use: Well Drilling
Brand Name: Yaou
Showroom Location: Uae, Uzbekistan
Local Service Location: Egypt, Turkey, Germany, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Malaysia, Australia, Kenya, Chile, Uae, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
Packaging: Standard export packing
Productivity: 100
Transportation: Ocean,Land,Air,Express
Place of Origin: CHINA
Supply Ability: 50
Certificate: API
HS Code: 84314310
Port: SHANGHAI
Payment Type: L/C
Incoterm: FOB
- Selling Units:
- Set/Sets
- Single package size:
- 40cm*40cm*50cm
- Single gross weight:
- 55kg
- Package Type:
- Standard export packing
- Picture Example:
-
Without changing any part within the application range.
Adopt the braking belt, reliable braking.
Adopt the patent valve which can solely control the make-up torque and have overpressure protective function.
Choose and buy lengthening guide pole assembly, the backup tong can clamp the pipe
|

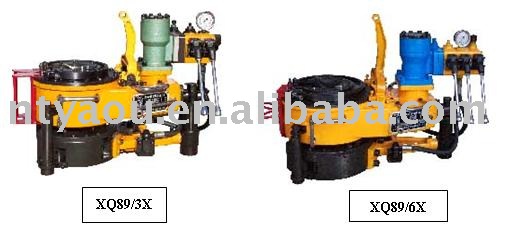

Model
|
XQ89/3B3C
|
XQ89/3X
|
XQ114/6X
|
|
Pipe Size Range of Master Tong
|
6089
23/8"31/2" |
6089
23/8"31/2" |
60114
23/8"41/2" |
|
Pipe Size Range of Backup Tong
|
60114
23/8"41/2" |
60114
23/8"41/2" |
60141.5
23/8"59/16" |
|
High Gear Rated Torque
|
1100 N.m
811 ft-lbs |
1270 N.m
937 ft-lbs |
1650 N.m
1217 ft-lbs |
|
Low Gear Rated Torque
|
3000 N.m
2213 ft-lbs |
3300 N.m
2434 ft-lbs |
6070N.m
4477 ft-lbs |
|
High Gear Rotation Speed
|
90 r/min
|
60 r/min
|
62 r/min
|
|
Low Gear Rotation Speed
|
30 r/min
|
23 r/min
|
17 r/min
|
|
Rated Operation Pressure
|
10 MPa
1450 psi |
10 MPa
1450 psi |
11MPa
1595 psi |
|
Max. Flow
|
80 L/min
21 gpm |
80 L/min
21 gpm |
100 L/min
26 gpm |
|
Dimension: L×W×H
|
650×430×550
25.6"×16.9"×21.7" |
830×430×555
32.7"×16.9"×21.9" |
950×520×640
37.4"×20.5"×25.2" |
|
Weight(Including Backup Tong)
|
158 kg
348lbs |
170 kg
375 lbs |
260kg
573 lbs |
Transportation is based on customers in different regions using steam, rail, road and air transportation.
Our company mainly deals in Hardware Tools, combined tools, electric tools, Special Tools For Petroleum, Metal Processing Machinery and petroleum drilling equipment. Diagonal Cutting Plier，Oil Drill Pipes，Drilling Tools，Diesel Engine Etc.Our companyoperates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost)
2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machineQ1. How to get an accurate quotation?.
Rugao Yaou Import & Export Co. LTD was established in 2004, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.
Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. Our company also operates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.
