Products Description
Model No.: XQ89/3C
Brand: YAOU
Status: New
Warranty Period: 1.5 Years
Applicable Industry: Energy &Amp; Mining
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Uae, Uzbekistan, Kazakhstan, Russia, Pakistan, Indonesia
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Uae
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: New Product 2020
Core Component Warranty Period: 1 Year
Core Components: Pump
Warranty: 1 Year
Condition: New
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Place Of Origin: Jiangsu, China
Applicable Industries: Energy & Mining
Certification: Api
Application: Coal Mining
Machine Type: Drilling Tool
Use: Well Drilling
Processing Type: Forging
Brand Name: Yaou
Type: Drill Pipe
Showroom Location: Egypt, Uae, Uzbekistan
Local Service Location: Egypt, Turkey, Germany, Viet Nam, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Kenya, Chile, Uae, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan
Material: Stainless Steel
Packaging: Export standard packaging
Productivity: 50
Transportation: Ocean,Land,Air
Place of Origin: China
Supply Ability: 50
Certificate: API
HS Code: 8431431000
Port: Shanghai
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
- Selling Units:
- Set/Sets
- Package Type:
- Export standard packaging
- Picture Example:
-
Products Description

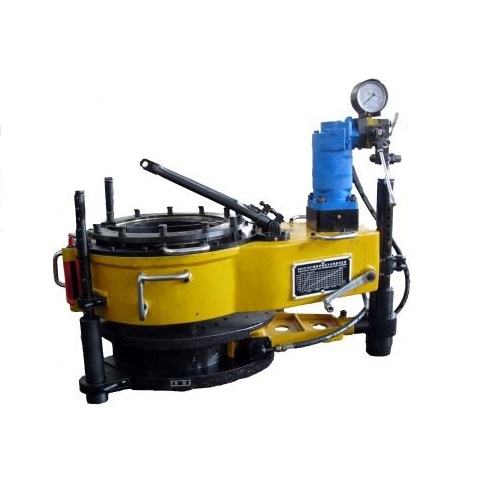

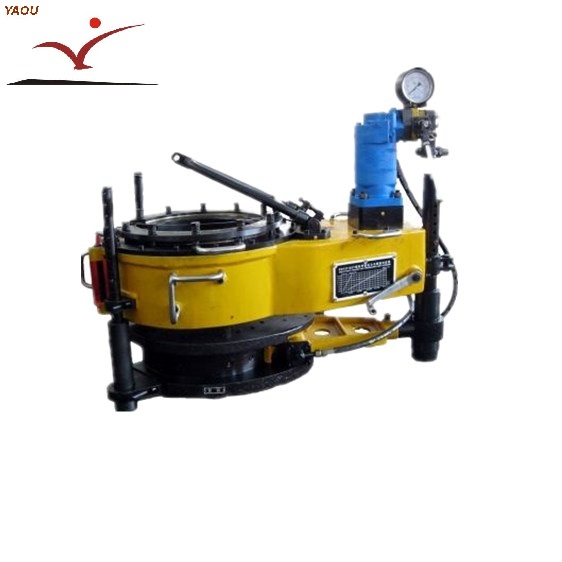

XQ89/3C Well Servicing power tong is used for quick make-up/break-out in well service operations. The tong is equipped with hydraulic backup tong and use inner curved cam to clamp. The tongs have the following features:
Clamp the tubing use corresponding dies, jaw set or die seat.
Torque Control valve may be equipped according to customers request.
Choose and buy lengthening guide pole assembly, the backup tong can clamp the pipe.
Torque Control System may be equipped according to customers request.
Remark: 1, To clamp the 23/8" tubing , special dies must be ordered for Model XQ89/3B3C
|
Model
|
XQ89/3B3C
|
|
Pipe Size Range of Master Tong
|
6089
|
| 23/8"31/2" | |
|
Pipe Size Range of Backup Tong
|
60114
|
| 23/8"41/2" | |
|
High Gear Rated Torque
|
1100 N.m
|
| 811 ft-lbs | |
|
Low Gear Rated Torque
|
3000 N.m
|
| 2213 ft-lbs | |
|
High Gear Rotation Speed
|
90 r/min
|
|
Low Gear Rotation Speed
|
30 r/min
|
|
Rated Operation Pressure
|
10 MPa
|
| 1450 psi | |
|
Max. Flow
|
80 L/min
|
| 21 gpm | |
|
Dimension: L×W×H
|
650×430×550
|
| 25.6"×16.9"×21.7" | |
|
Weight(Including Backup Tong)
|
158 kg
|
| 348lbs | |
|
1. Lord clamp |
|
|
adaptation of the |
2 3/8" ， 2 7/8" " ， 3 ½" tubing |
|
high-end torque rated |
0.6～1.1 kN.m |
|
low-grade torque rated |
1.8～3.0 kN.m |
|
Maximum torque |
4.0 kN.m |
|
rated high-grade speed |
100 r/min |
|
rated low speed |
30 r/min |
|
openings Size |
95 mm |
|
shipments quality |
105 kg |
|
2. Back clamp |
|
|
adaptation of the |
2 3/8" ",27/8" ",3 ½" style,thickening and tubing coupling |
|
openings Size |
116 mm |
|
shipments quality |
53kg |
|
portfolio clamp Dimensions |
650 x 430 X 550 mm |
|
rated pressure |
6～10 MPd |
|
the largest oil supply pressure of |
2．5 MPa (362.5psi) |
|
rated supply of |
80 L／min (21 gpm ) |
The company has more than 20 years of trade service team, mainly engaged in Oil Drilling Equipment, drilling special tools, various Processing Machinery, Hardware Tools, etc. At the same time, it provides some special products, so stay tuned.
Main products:
1. Drill Pipe, Heavy Drill Pipe, Square & Hexagonal Kelly
2. Drill Collar & Non-magnetic Drill Collar
3. Stabilizers, Reamer, Hole Opener, Casing Scraper, etc
4. Kelly Valve, Safety valve, Check Valve, and float valve
5. Hydraulic or Mechanical Drilling Jar, and Absorber
6. Fishing tools (Bowen serials), including overshot, spear, etc
7. Junk Mill, Casing Cutter, Safety Joint, etc
8. Hydraulic Bucking unit, Screw up and breakout Unit, Down hole motor tester, Jar tester, etc.
9 .Down hole motor
10. Processing machinery: shears, bending machines, hydraulic presses, bending machines, etc.
11. Various coal mine winches, oil field winches, ship winches, etc.
12. Various hand tools and electric tools.
Transportation is based on customers in different regions using steam, rail, road and air transportation.
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost)
2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machineQ1. How to get an accurate quotation?.
Rugao Yaou Import & Export Co. LTD was established in 2004, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.
Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. Our company also operates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.
