Products Description
Model No.: XQ114/6YB
Brand: YAOU
Warranty: 1 Year
Condition: New
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Place Of Origin: Jiangsu, China
Applicable Industries: Energy & Mining
Material: Carbon Steel
Processing Type: Casting
Certification: Api
Type: Jaw Plate
Machine Type: Drilling Tool
Use: Well Drilling
Showroom Location: Uae, Uzbekistan
Local Service Location: Egypt, Canada, Turkey, Germany, Viet Nam, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Kenya, Chile, Uae, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, None
Brand Name: Eckel
Packaging: Standard export packing
Productivity: 50
Transportation: Ocean,Land,Air,Express
Place of Origin: CHINA
Supply Ability: 50
Certificate: API
HS Code: 8431431000
Port: SHANGHAI
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
- Selling Units:
- Set/Sets
- Package Type:
- Standard export packing

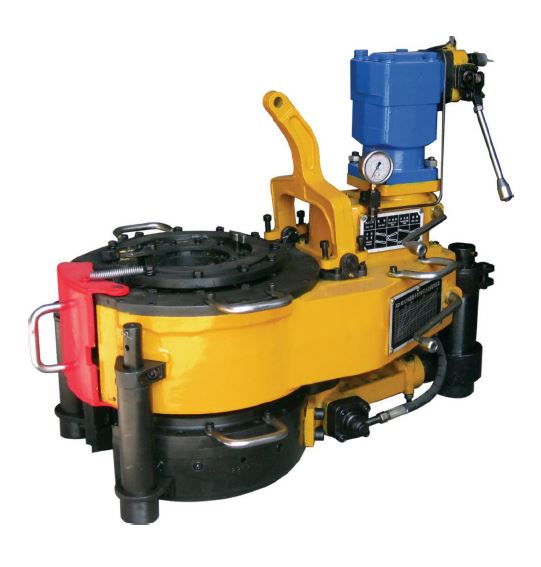

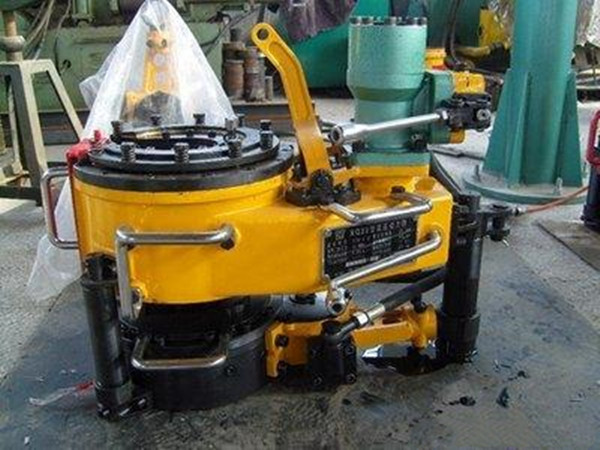

XQ114/6X power tong
XQ114/6X power tong is used for quick make-up/break-out in well service operations. The tong is equipped with hydraulic backup tong and use planetary claws to clamp, which is an up-to-date patent product. Its an ideal choice in well service operation. The tongs have the following features:
Without changing any part within the application range.
Adopt the braking belt, reliable braking.
Adopt the patent valve which can solely control the make-up torque and have overpressure protective function.
Choose and buy lengthening guide pole assembly, the backup tong can clamp the pipe..
|
Model
|
XQ89/3Y3YC
|
XQ114/6YB
|
XQ140/12Y
|
XQ140/12Y-T
|
||
|
Applicable range main tong
|
mm
|
60-89
|
60-114
|
60-140
|
48-140
|
|
|
in
|
23/8~31/2
|
23/8~41/2
|
23/8~51/2
|
1.9~51/2
|
||
|
Applicable range backup tong
|
mm
|
60-114
|
73-141.5
|
73-156
|
60-156
|
|
|
in
|
27/8~41/8
|
27/8~51/8
|
27/8~61/8
|
23/8~61/8
|
||
|
Hi-gear rated tofque
|
kN.m
|
1100
|
1500
|
2600
|
2600
|
|
|
ft.lbf
|
811
|
1106
|
1918
|
1918
|
||
|
Lo-gear rated tofque
|
kN.m
|
3300
|
6000
|
12000
|
12000
|
|
|
ft.lbf
|
2213
|
4425
|
8851
|
8851
|
||
|
Ratek Speed
|
High gear
|
rpm
|
90
|
85
|
72
|
72
|
|
Low gear
|
rpm
|
30
|
20
|
14
|
14
|
|
|
Rated pressure
|
MPa
|
10
|
11
|
12
|
12
|
|
|
psi
|
1450
|
1595
|
1740
|
1740
|
||
|
Max.oil supply
|
L/min
|
80
|
100
|
120
|
120
|
|
|
gpm
|
21
|
26
|
32
|
32
|
||
|
Size
|
mm
|
650×430×550
|
750×500×600
|
1024×582×539
|
1050×620×900
|
|
|
in
|
25.6×16.9×21.7
|
29.5×19.7×23.6
|
40.3×22.9×21.2
|
41.3×24.4×35.4
|
||
|
Weight
|
kg
|
158
|
220
|
480
|
480
|
|
|
lb
|
348
|
485
|
1060
|
1060
|
||
Torque Control System may be equipped according to customers request..
Transportation is based on customers in different regions using steam, rail, road and air transportation.
Rugao You Inport & Export Co. LTD was established in 2004, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.
Our company mainly deals in Hardware Tools, combined tools, electric tools, Special Tools For Petroleum, Metal Processing Machinery and petroleum drilling equipment. Diagonal Cutting Plier，Oil Drill Pipes，Drilling Tools，Diesel Engine Etc.Our companyoperates hardware tools and has established long-term and stable cooperative relations with many retailers.
Main products:
1. Drill Pipe, Heavy Drill Pipe, Square & Hexagonal Kelly
2. Drill Collar & Non-magnetic Drill Collar
3. Stabilizers, Reamer, Hole Opener, Casing Scraper, etc
4. Kelly Valve, Safety valve, Check Valve , and float valve
5. Hydraulic or Mechanical Drilling Jar, and Absorber
6. Fishing tools (Bowen serials), including overshot, spear, etc
7. Junk Mill, Casing Cutter, Safety Joint, etc
8. Hydraulic Bucking unit, Screw up and breakout Unit, Down hole motor tester, Jar tester, etc.
9 .Down hole motor
10. Processing Machinery: shears, bending machines, hydraulic presses, bending machines, etc.
11. Various coal mine winches, oil field winches, ship winches, etc.
12. Various hand tools and electric tools.
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost)
2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machineQ1. How to get an accurate quotation?.
Rugao Yaou Import & Export Co. LTD was established in 2004, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.
Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. Our company also operates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.
Tags:
Technical parameter

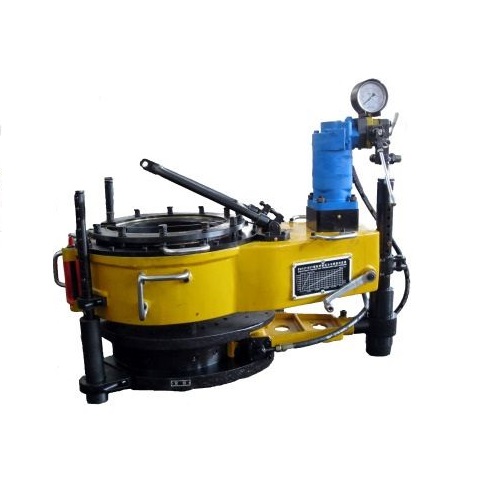

Hydraulic Power Tong XQ114/6YB Oil drilling tools 1

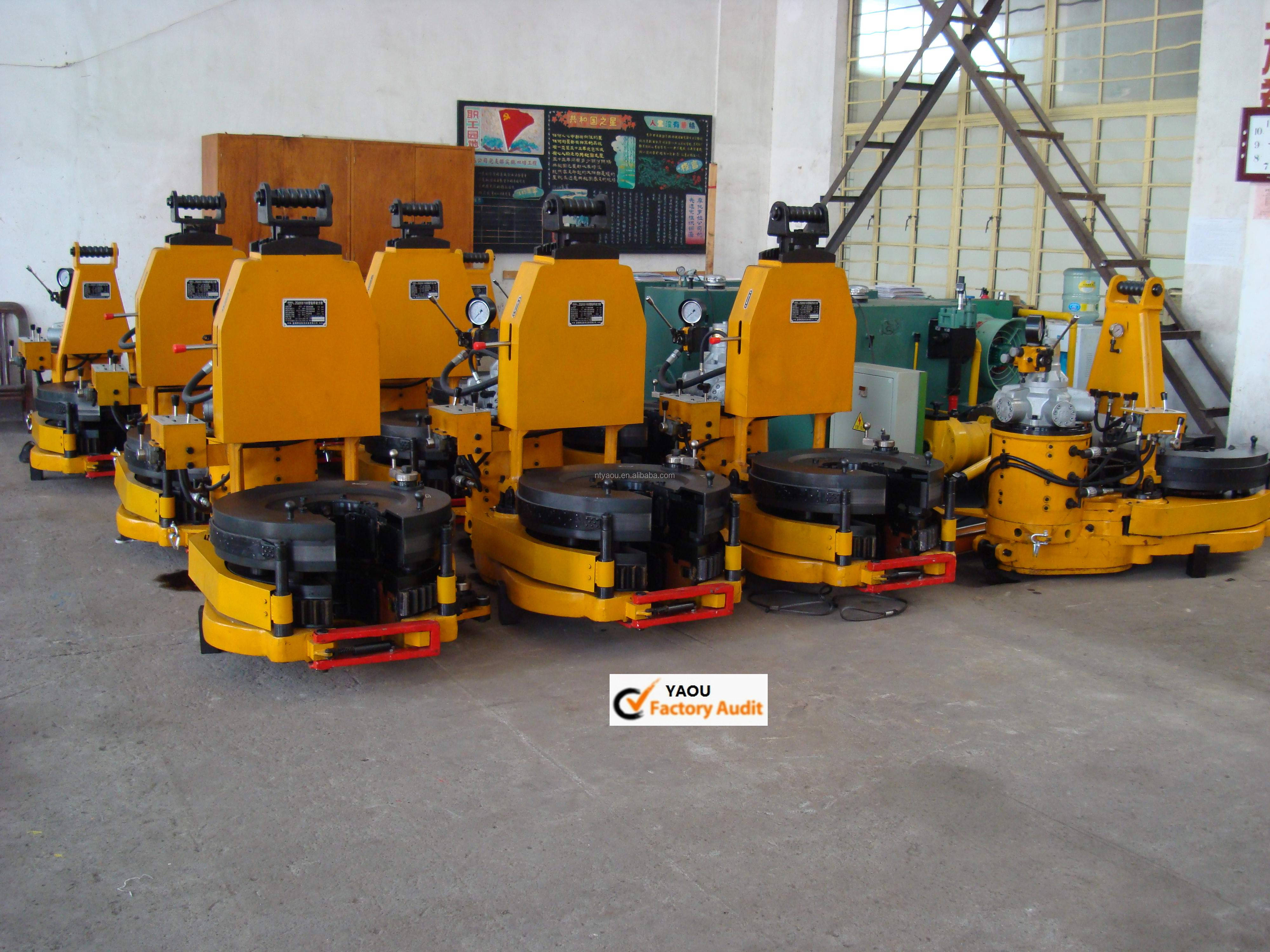

Hydraulic Power Tong XQ114/6YB Oil drilling tools 2

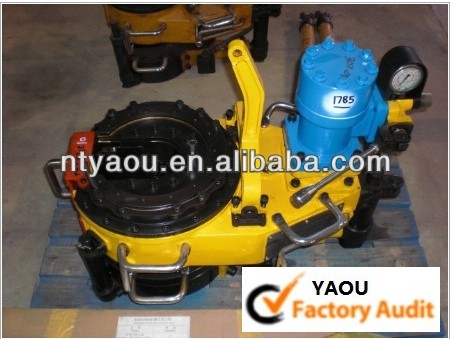

Hydraulic Power Tong XQ114/6YB Oil drilling tools 3

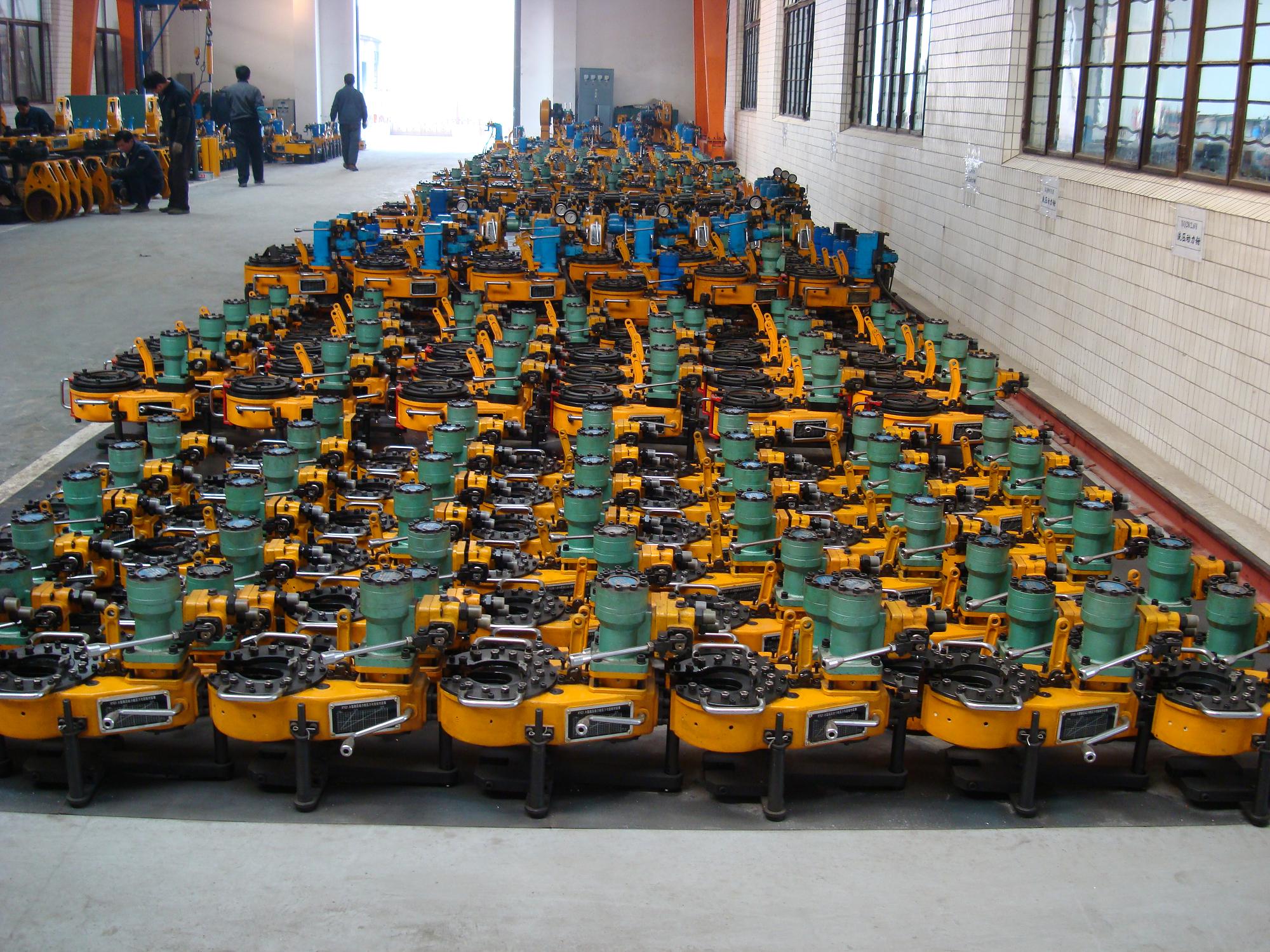

Hydraulic Power Tong XQ114/6YB Oil drilling tools 4

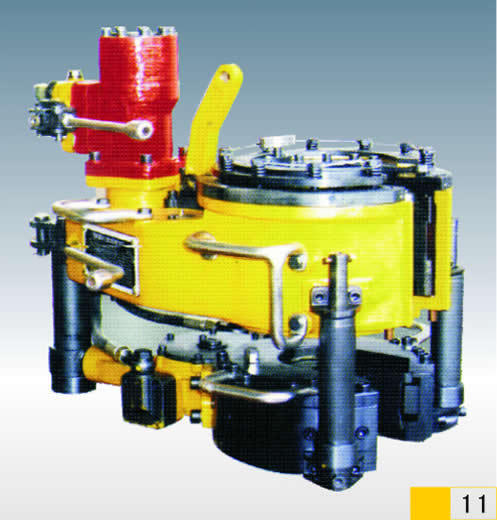

Hydraulic Power Tong XQ114/6YB Oil drilling tools 5

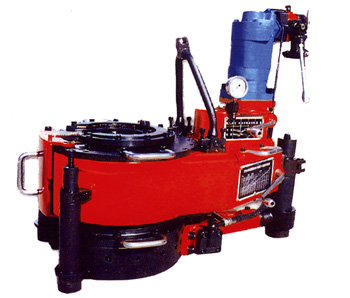

Hydraulic Power Tong XQ114/6YB Oil drilling tools 6
