Products Description
Model No.: ZQ203-125
Place Of Origin: China
Status: New
Warranty Period: 1.5 Years
Service System: Overseas Third-Party Support Available
Applicable Industry: Energy &Amp; Mining
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Uae, Tajikistan, Kazakhstan, Uzbekistan
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Uae, Uzbekistan
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: New Product 2020
Core Component Warranty Period: 1 Year
Core Components: Gearbox
Place Of Origin: Jiangsu, China
Material: Carbon Steel
Processing Type: Casting
Certification: Api
Machine Type: Drilling Tool
Use: Well Drilling
Brand Name: Yaou
Type: Drilling Rigs
- Selling Units:
- Set/Sets
- Single package size:
- 175cm*106cm*168cm
- Single gross weight:
- 2600kg
- Package Type:
- Export standard packing
- Picture Example:
-
- Lead Time :
-
Quantity（Set/Sets） 1 >1 Est. Time（days) 30 To be negotiated If you finish the payment today, your order will ship out within the delivery date.

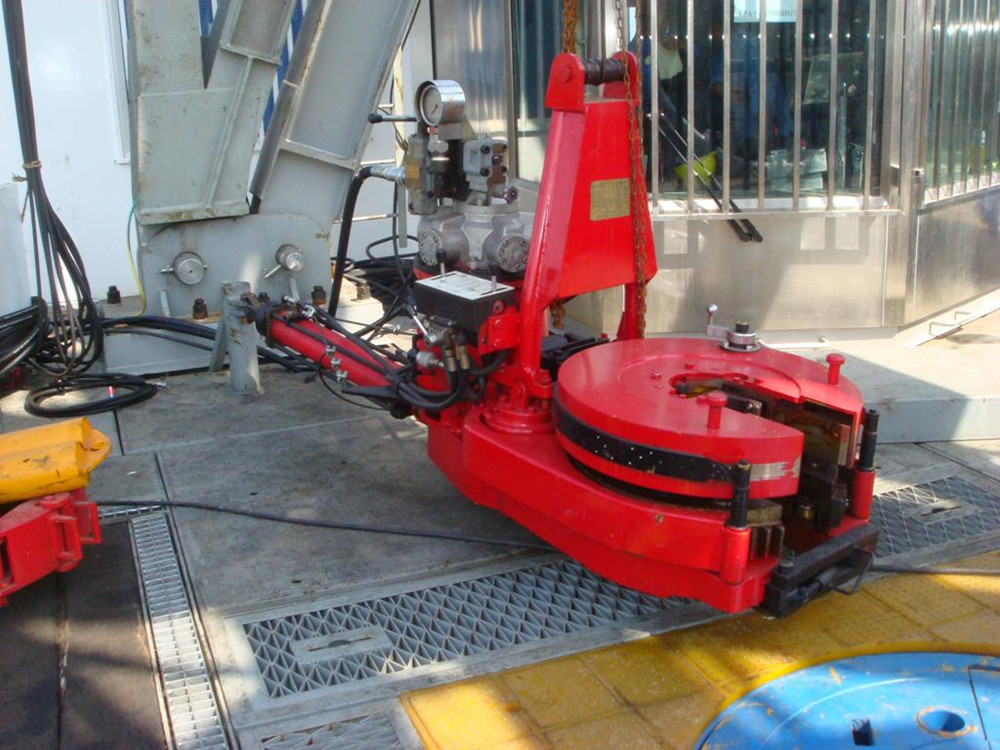

API ZQ Series of hydraulic power tong Different models of ZQ203-125 DRILL PIPE POWER TONGS

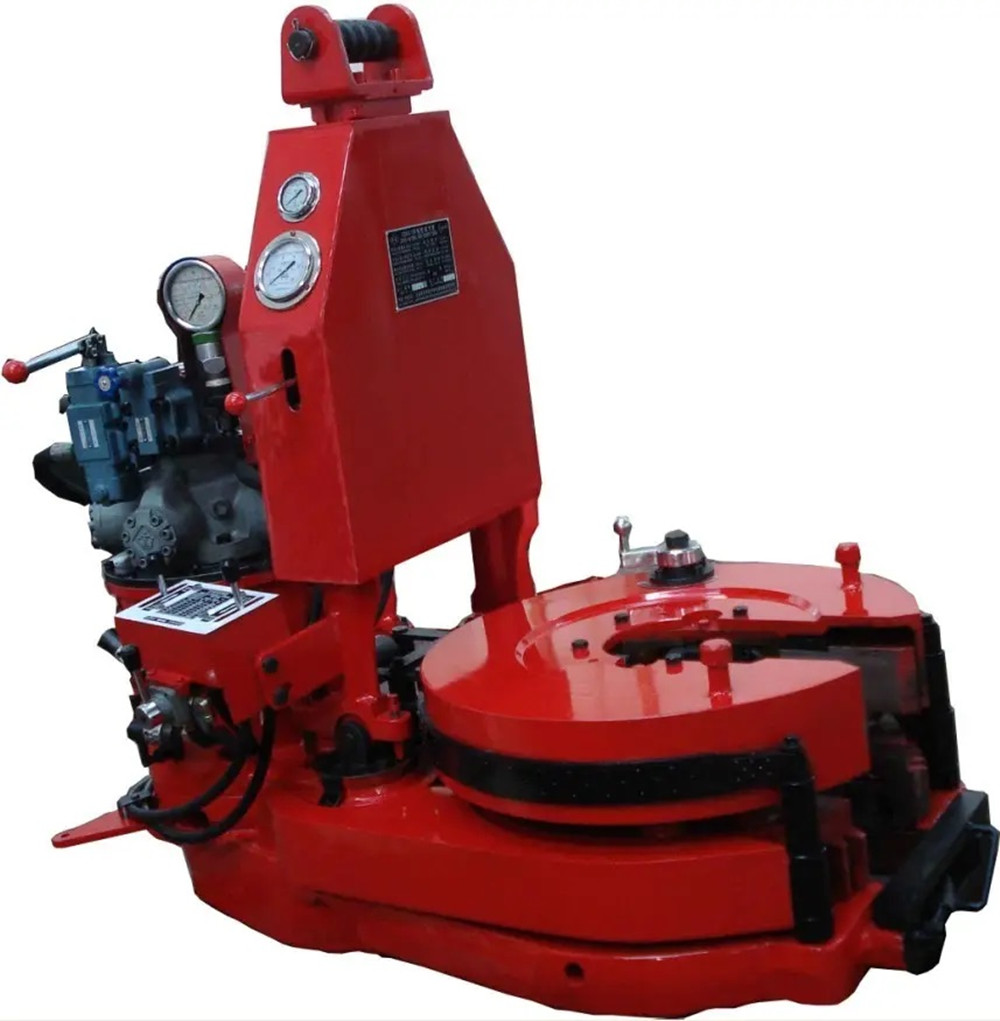

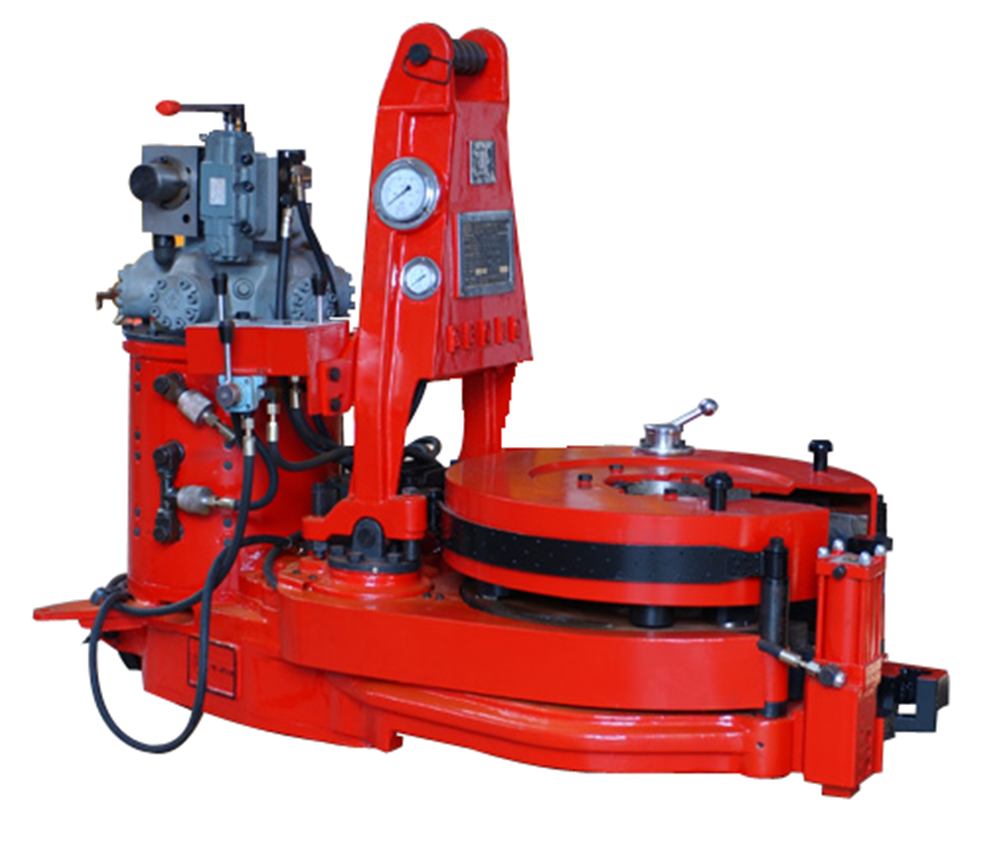

ZQ203-125 DRILL PIPE POWER TONGS
This drill pipe tong is applicable in the petroleum and mine drilling, it is safety and labor saving, and improving the working efficiency.
The tongs have the following features:
1.Using pneumatic power to shift and drive backup tong
2.It is a integral mechanism made by spin tong and torque tong
3.Changing gear allowed during operation
4.New or old drilling pipe joint could be clamped reliably
5.Both directions could run the maximum torque and rotation speed
|
Model
|
ZQ127/25Y
|
ZQ162-50
|
ZQ203-100
|
ZQ203-100-II
|
ZQ203-125
|
|
Pipe Size Range of Master Tong
|
Φ73-140
|
Φ85-162
|
Φ101-203
|
Φ114-203
|
Φ101-203
|
|
27/8" – 51/2"
|
23/8" – 5"
|
31/2" – 8"
|
27/8" – 8"
|
31/2" – 8"
|
|
|
High Gear Rated Torque
|
3500N.m
|
9500N.m
|
9500N.m
|
9500N.m
|
10000N.m
|
|
2581ft-lbs
|
7007ft-lbs
|
7007ft-lbs
|
7007ft-lbs
|
7370ft-lbs
|
|
|
Low Gear Rated Torque
|
25000N.m
|
50000N.m
|
100000N.m
|
100000N.m
|
145000N.m
|
|
18349ft-lbs
|
36880ft-lbs
|
73756ft-lbs
|
73750ft-lbs
|
106940ft-lbs
|
|
|
High Gear Rated Speed
|
≤65r/min
|
60r/min
|
40r/min
|
40r/min
|
33r/min
|
|
Low Gear Rated Speed
|
≤10r/min
|
4.1r/min
|
2.7r/min
|
2.7r/min
|
2.2r/min
|
|
Rated Operation Pressure
|
16 MPa
|
14 MPa
|
16 MPa
|
16.6 MPa
|
18 MPa
|
|
2320 psi
|
2030 psi
|
2320 psi
|
2400 psi
|
2610psi
|
|
|
Max. Flow
|
120 L/min
|
120 L/min
|
114 L/min
|
114 L/min
|
120 L/min
|
|
32 gpm
|
31.7 gpm
|
30 gpm
|
30 gpm
|
32gpm
|
|
|
Pneumatic Operation Pressure
|
|
0.5~0.9MPa
|
0.5~0.9MPa
|
0.5~0.9MPa
|
0.6~1.0MPa
|
|
72.5~130.5psi
|
72.5~130.5psi
|
72.5~130.5psi
|
72.5~130.5psi
|
||
|
Dimension :L x W x H
|
1250x 780 x 1000
|
1570 x 800 x 1190
|
1700 x 1000 x 1400
|
1760 x 1000 x 1630
|
1750 x 1060x 1680
|
|
Weight(including Backup Tong)
|
650kg
|
1500kg
|
2400kg
|
2500kg
|
2500kg
|
|
1433lbs
|
3310lbs
|
5291lbs
|
5510lbs
|
5512lbs
|
