Products Description
Overview
Product Attributes
Model No.: DDZ H-250
Brand: yaou
Condition: New
Warranty: 1.5 Years
Applicable Industries: Energy & Mining
Local Service Location: Egypt, Canada, Turkey, Germany, Viet Nam, Saudi Arabia, Indonesia, Pakistan, India, Russia, Uae, Colombia, Romania, Kazakhstan, Kyrgyzstan, Uzbekistan, Tajikistan
Showroom Location: Uae, Uzbekistan
Place Of Origin: Jiangsu, China
Brand Name: Yaou
Type: Drilling Rigs
Machine Type: Drilling Tool
Certification: Api
Material: Carbon Steel
Processing Type: Casting
Use: Well Drilling
Supply Ability & Additional Information
Packaging: Standard export packing
Productivity: 10
Transportation: Ocean,Land,Air
Place of Origin: china
Supply Ability: 10
Certificate: API
HS Code: 8431431000
Port: Shanghai,Shanghai,Shanghai
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Packaging & Delivery
- Selling Units:
- Set/Sets
- Package Type:
- Standard export packing
- Picture Example:
-
Product Description
DDZH hydraulic elevator is center latch elevator. Through changing the bushing, it can handle drilling pipe, drill collar, casing and tubing and uses the hydraulic control system, which makes the operation more convenient, effectively reduces the workers’ labor intensity and improves the work efficiency; it can also realize remote control and make the use safer and more reliable. The products shall be designed and manufactured according to the requirements in API Spec 8C Specification for Drilling and Production Hoisting Equipment
|
Model
|
DDZH-250
|
DDZH-350
|
DDZH-500
|
|
With18°taper
|
2 3/8~5
|
2 3/8~6 5/8
|
2 3/8~6 5/8
|
|
Casing
|
4 1/2~5
|
4 1/2~7
|
4 1/2~7
|
|
Drill pipe
|
3 1/8~5 1/4
|
3 1/8~6 3/4
|
3 1/8~6 3/4
|
|
Tubing
|
2 3/8~4 1/2
|
2 3/8~5 1/2
|
/
|
|
Rated Capacity ( tons)
|
250
|
350
|
500
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

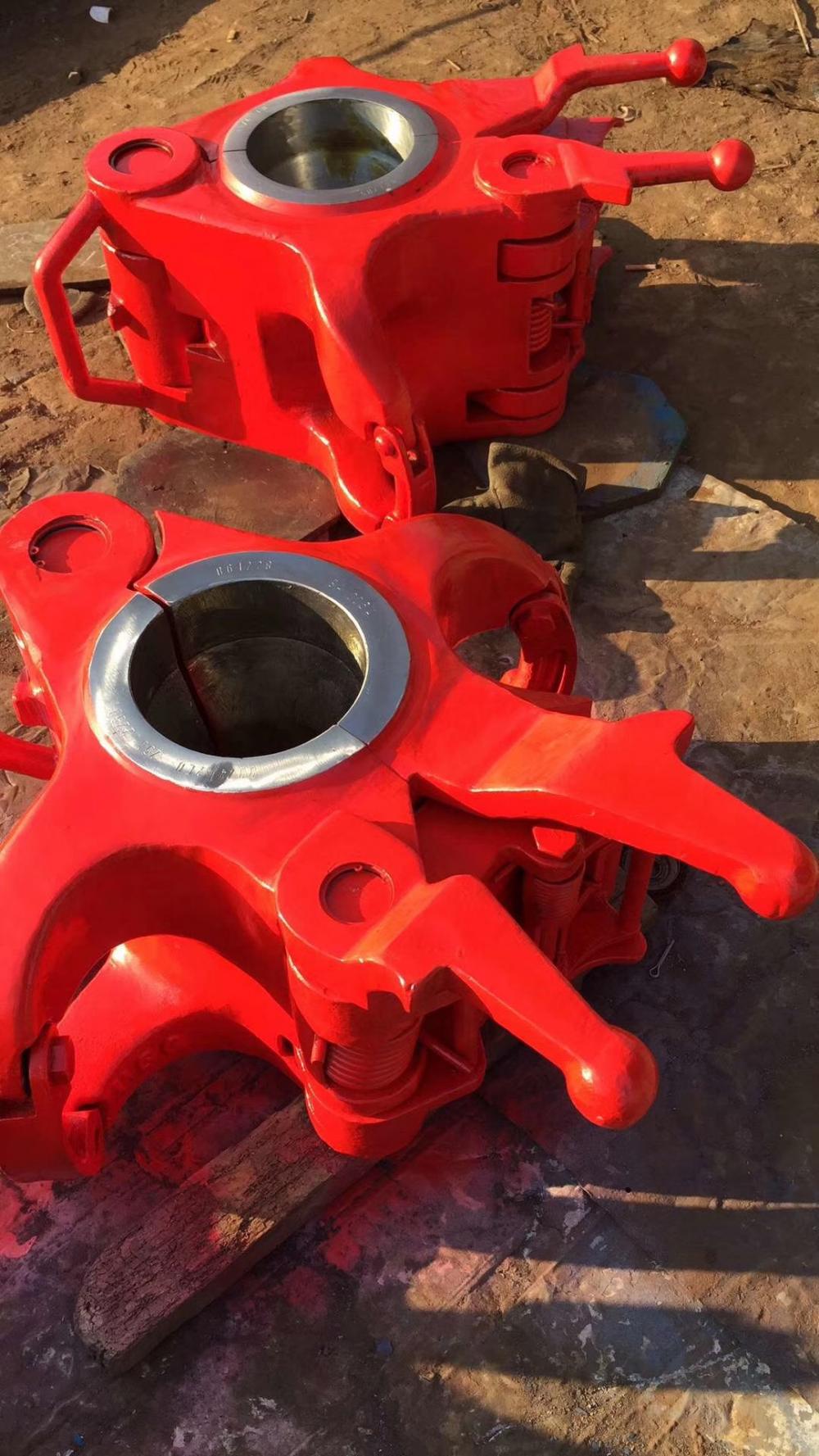

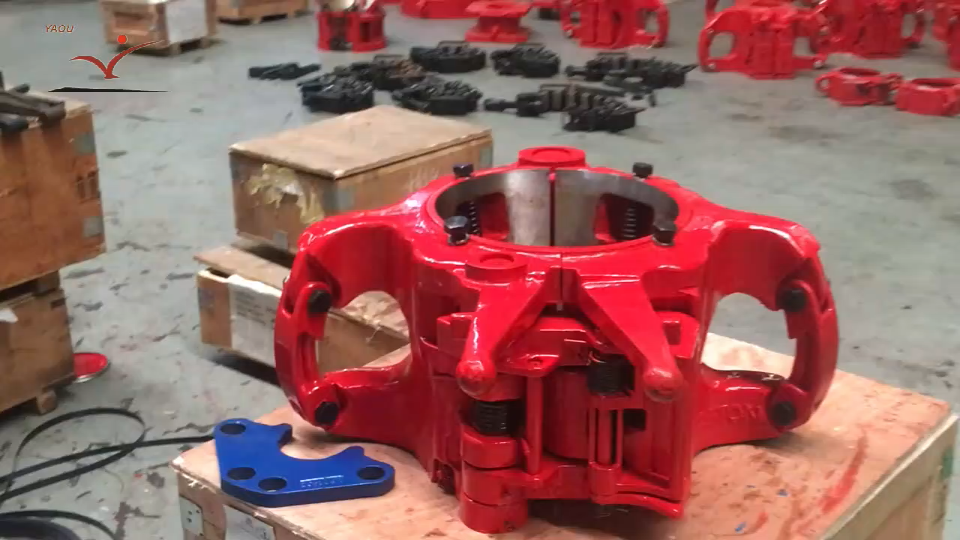

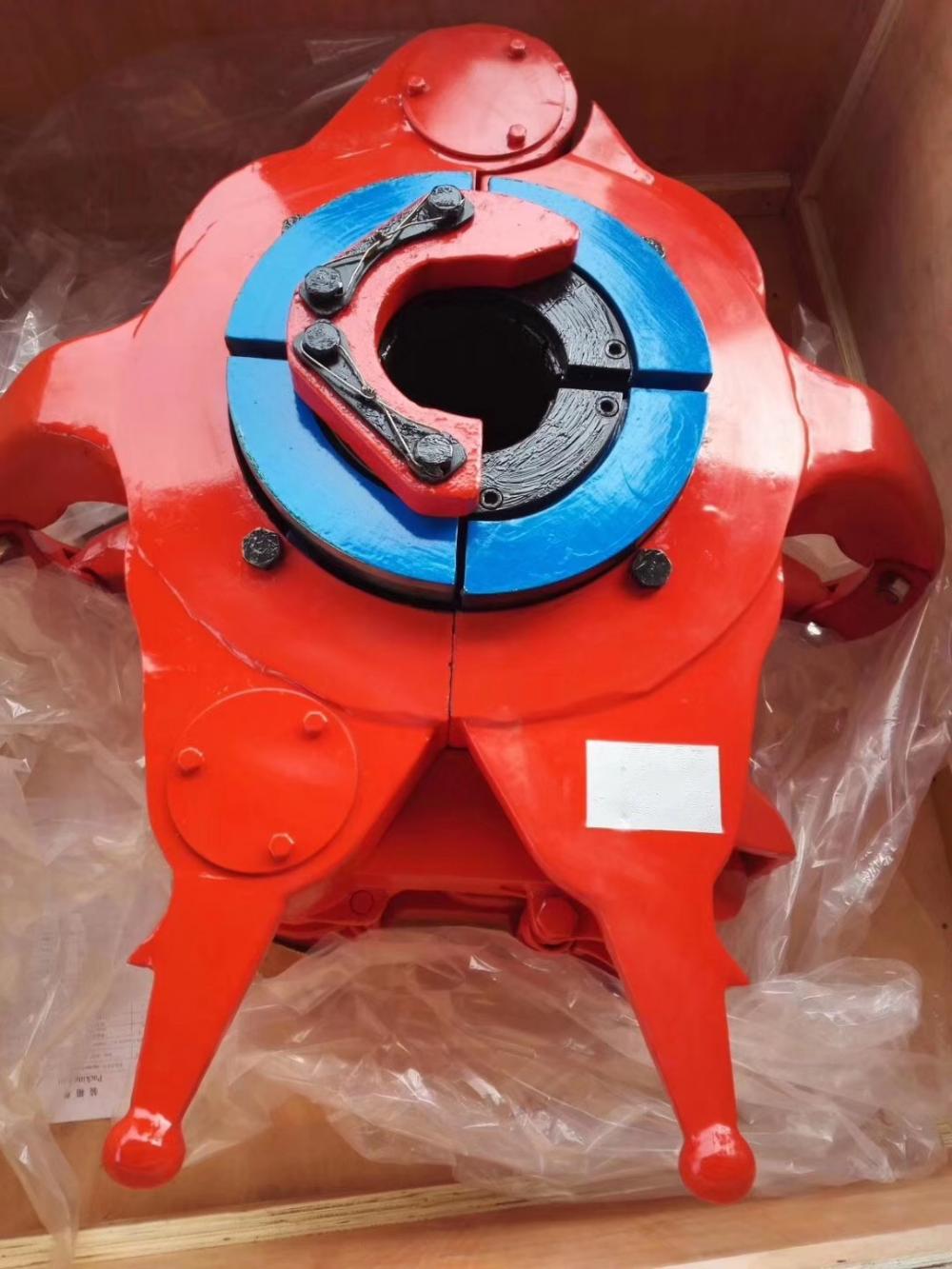

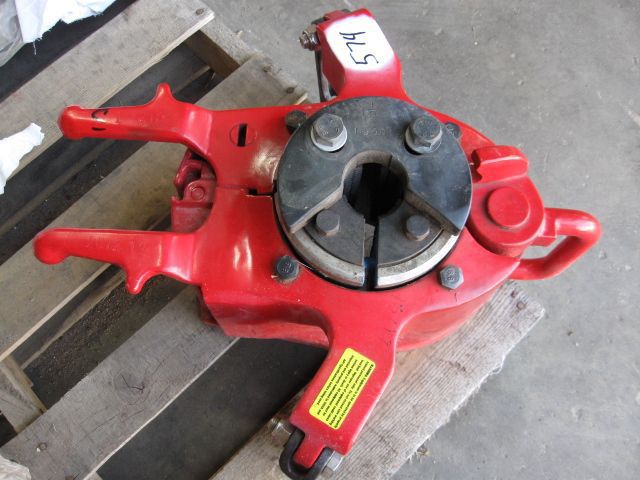

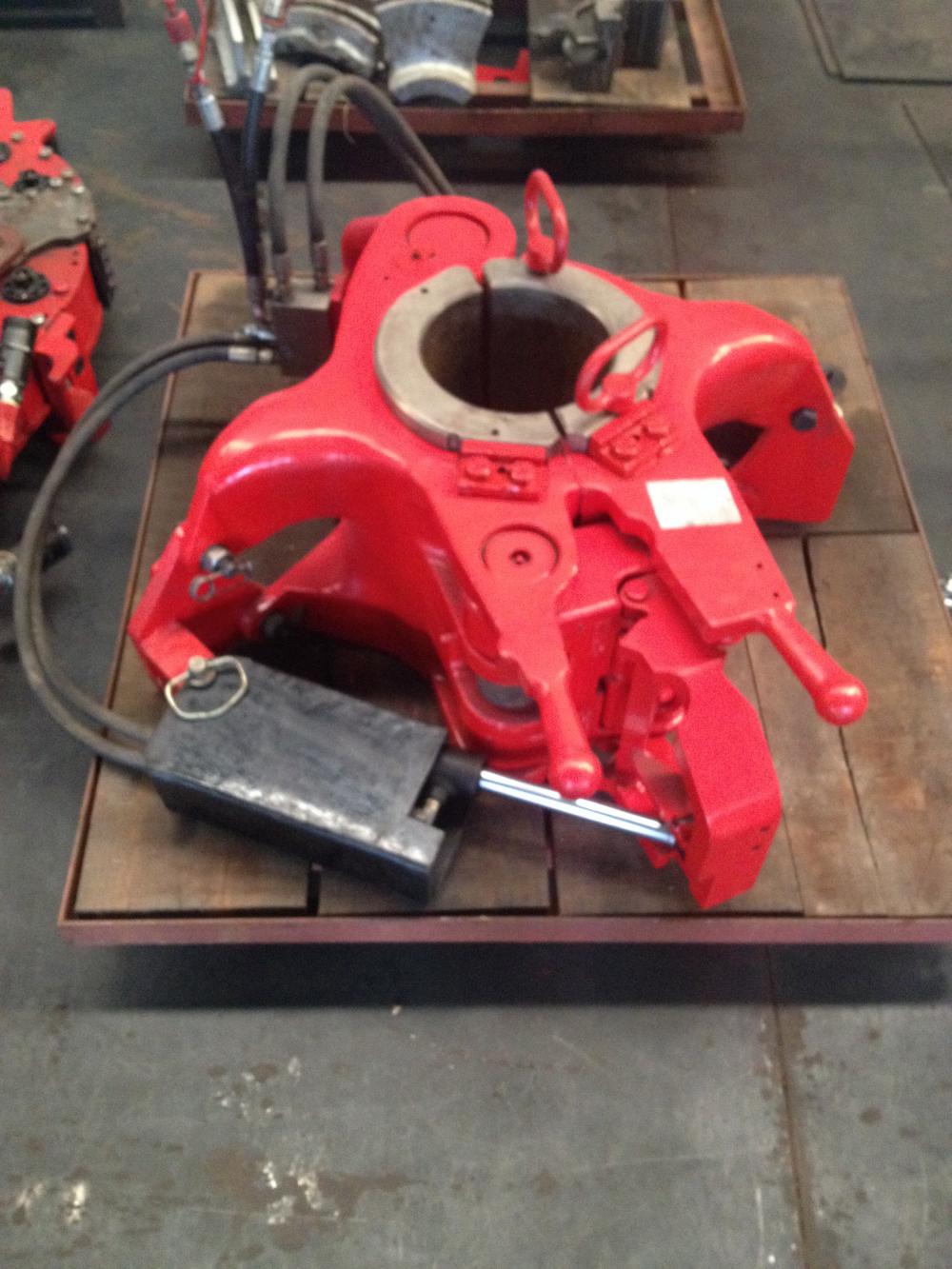

Detailed Images
API Spec 8C Specification for Drilling and Production Hoisting Equipment
Size Information
|
Size Chart of This Design
|
||||||||
|
Model
|
Tubular & Size(in)
|
S
|
M
|
L
|
Rated Capacity (short tons)
|
|||
|
|
With18°taper
|
Casing
|
DC
|
Tubing
|
31.9
|
|||
|
DDZH-250
|
2 3/8~5
|
4 1/2~5
|
3 1/8~5 1/4
|
2 3/8~4 1/2
|
250
|
|||
|
DDZH-350
|
2 3/8~6 5/8
|
4 1/2~7
|
3 1/8~6 3/4
|
2 3/8~5 1/2
|
350
|
|||
|
DDZH-500
|
2 3/8~6 5/8
|
4 1/2~7
|
3 1/8~6 3/4
|
/
|
500
|
|||
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|||
Related Products

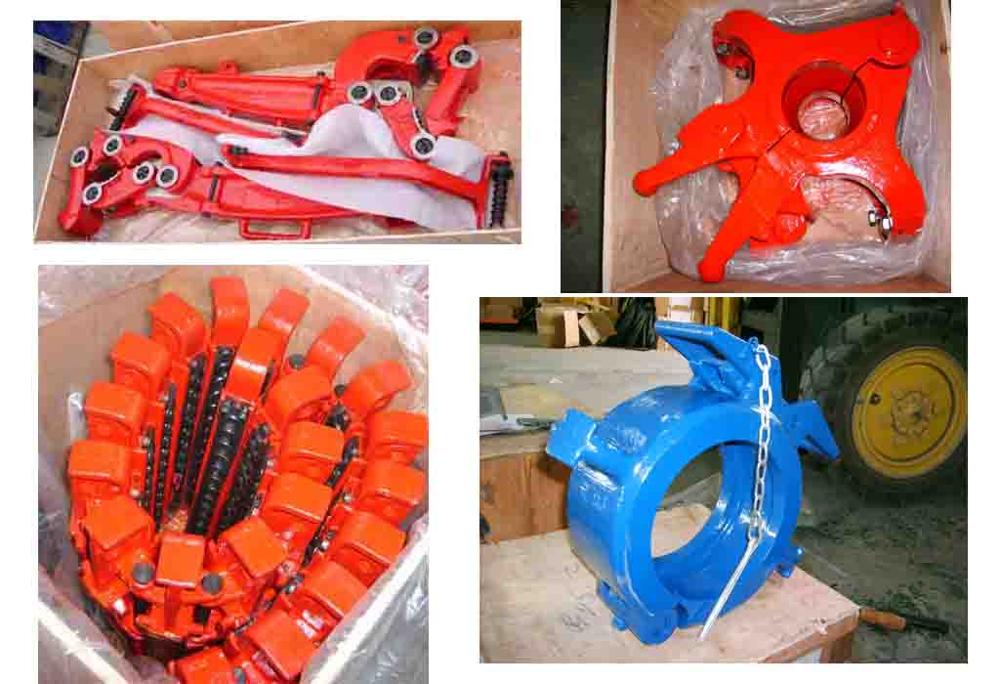

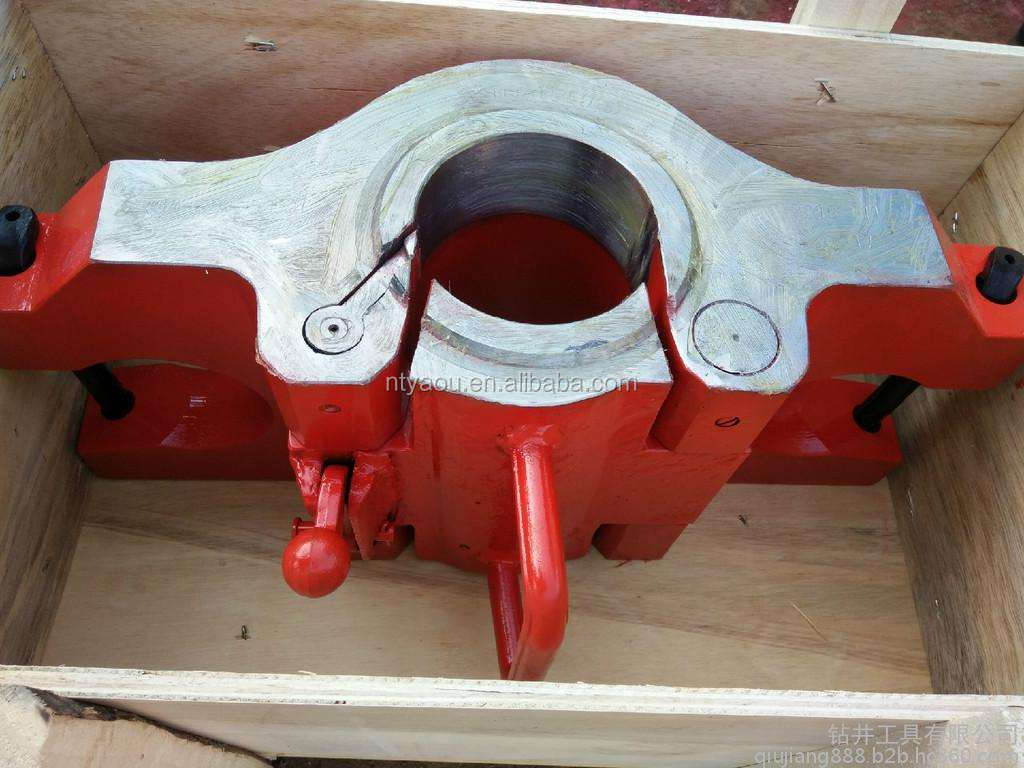

Packing&Shipping
According to the volume and weight of the product and export requirements, provide multi-layer boxes and iron box packaging. Transportation is based on customers in different regions using steam, rail, road and air transportation.
Company Profile
Our company mainly deals in Hardware Tools , combined tools, electric tools, Special Tools For Petroleum, Metal Processing Machinery and petroleum drilling equipment. Diagonal Cutting Plier，Oil Drill Pipes，Drilling Tools，The company provides various centrifugal pumps, chemical pumps, screw pumps , Booster Pumps , variable frequency constant pressure pumps, hydrochloric acid pumps, testing pumps, etc. Diesel Engine Etc.Our companyoperates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.
Certifications
Title goes here.
All products provided by the company are API certified.
Company Introduction
Rugao Yaou Import & Export Co. LTD. was established in 2004, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation. The headquarter is based in Rugao, a city of beautiful scene and efficient transportation. The branch is located in the metropolis Shanghai.
FAQ
Q1. How to get an accurate quotation?
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost)
2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machine
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost)
2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machine
Company Overview
Rugao Yaou Import & Export Co. LTD was established in 2004, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.
Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. Our company also operates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.
Company Photos
Production Certification
Tags:
Technical parameter

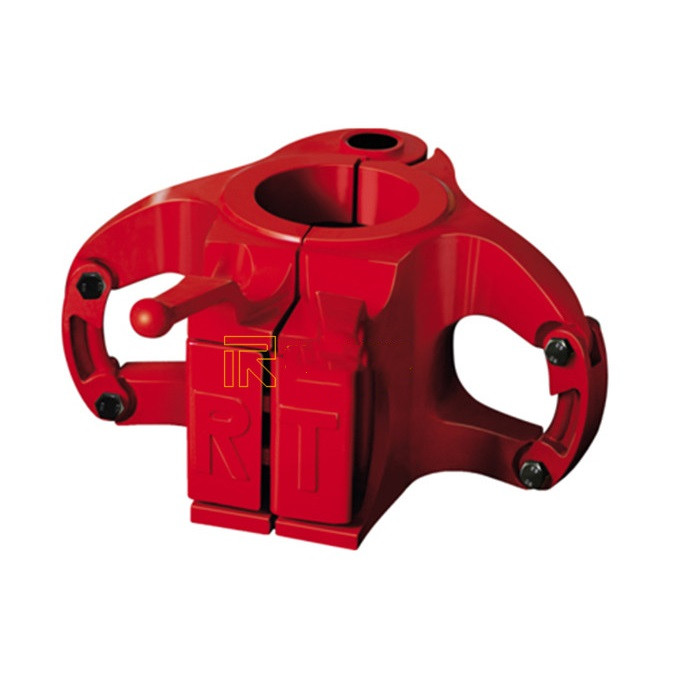

DDZ H-250 Hydraulic Elevator API Spec 8A/8C 1

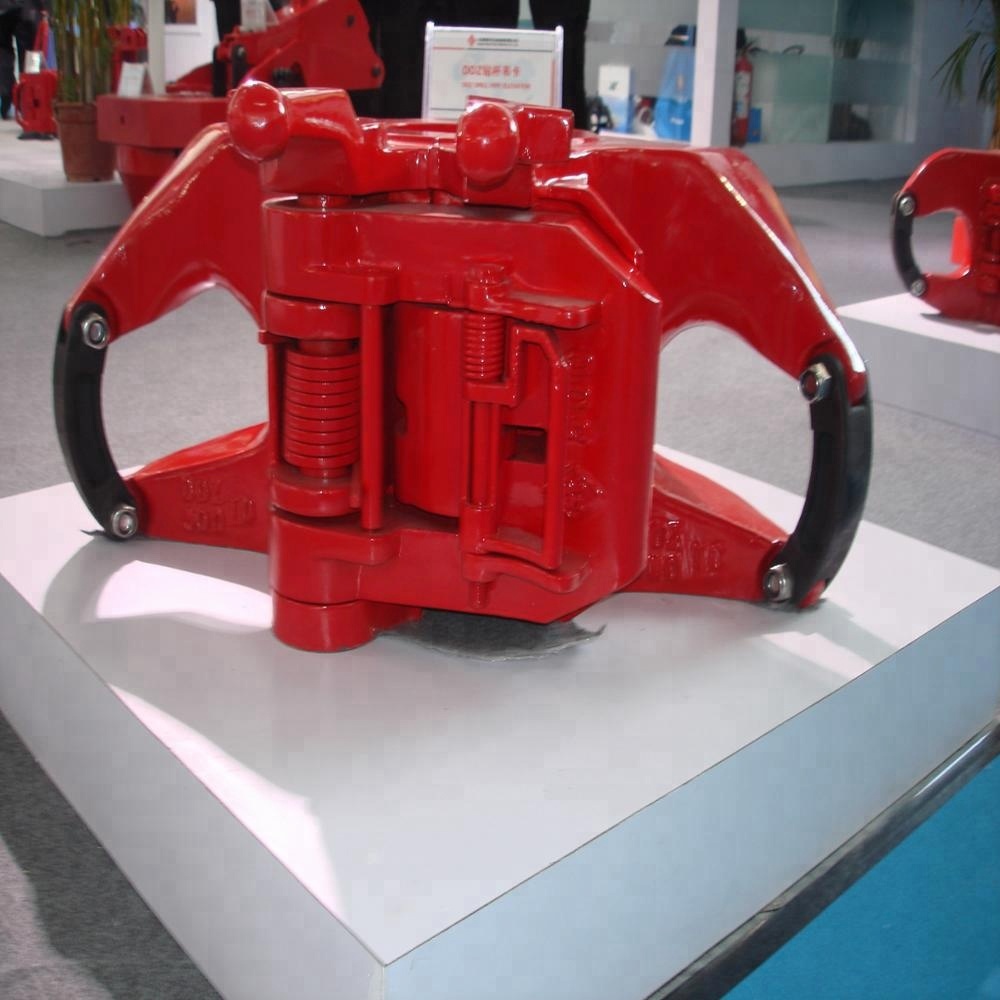

DDZ H-250 Hydraulic Elevator API Spec 8A/8C 2
DDZ H-250 Hydraulic Elevator API Spec 8A/8C 3
DDZ H-250 Hydraulic Elevator API Spec 8A/8C 4

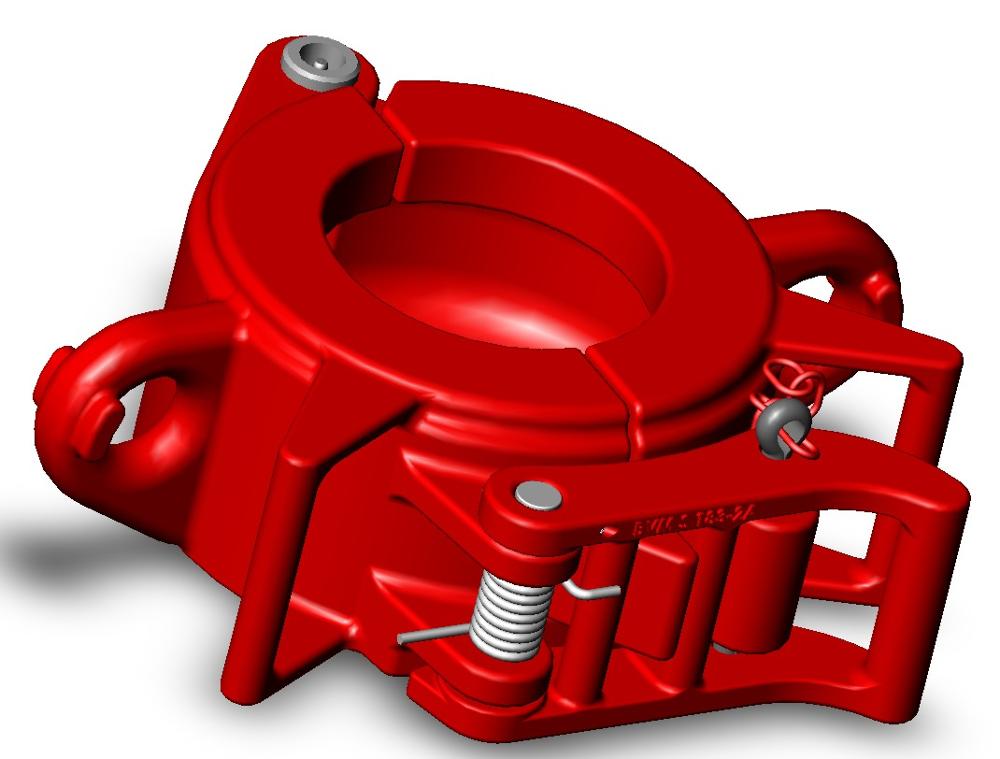

DDZ H-250 Hydraulic Elevator API Spec 8A/8C 5

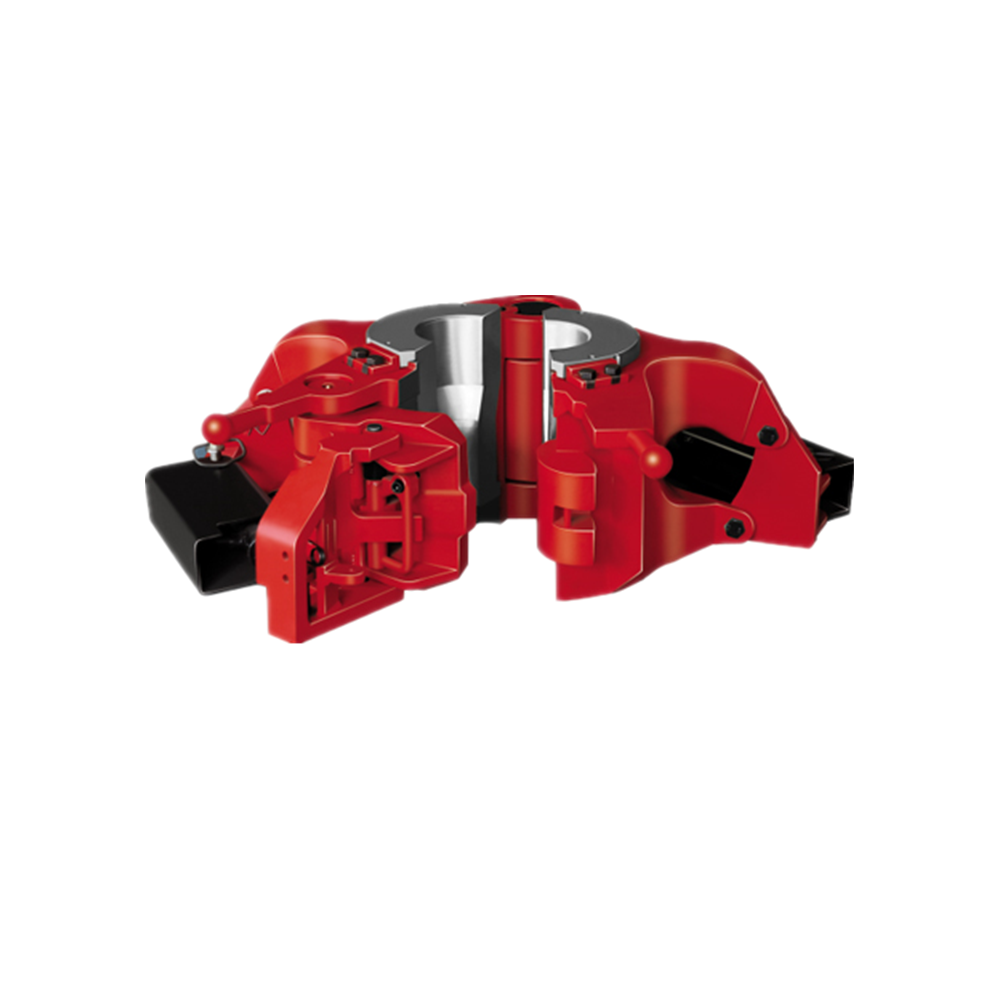

DDZ H-250 Hydraulic Elevator API Spec 8A/8C 6

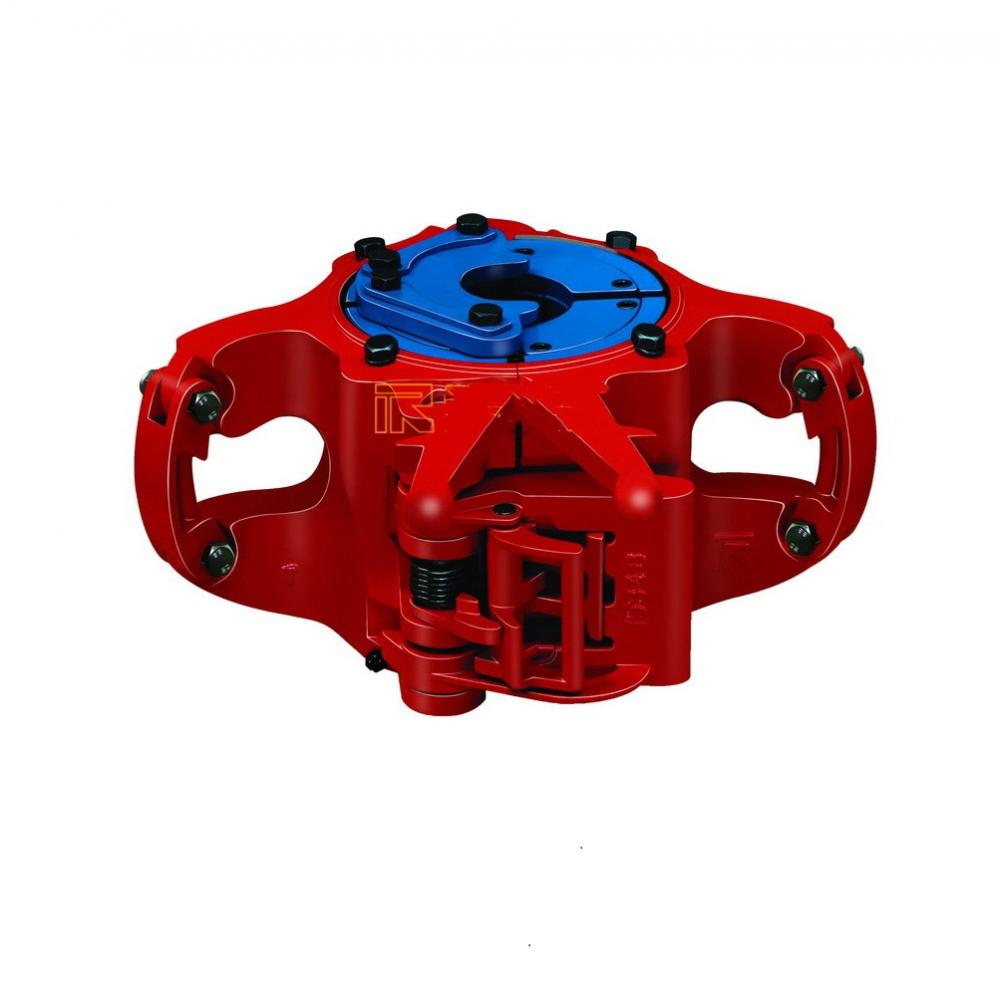

DDZ H-250 Hydraulic Elevator API Spec 8A/8C 7
