TYPE DH SINGLE ARM ELEVATOR LINKS,

Description

Argument

Products Description

Overview

Product Attributes

Model No.: DH Link

Brand: yaou

Condition: New

Warranty: 1 Year

Applicable Industries: Energy & Mining

Local Service Location: Egypt, Turkey, Viet Nam, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Morocco, Uae, Colombia, Sri Lanka, Romania, Bangladesh, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan

Showroom Location: Egypt, Uae, Kazakhstan

Place Of Origin: Jiangsu, China

Brand Name: Ysou

Type: Casing Elevators

Machine Type: Drilling Tool

Certification: Api

Material: Carbon Steel

Processing Type: Forging

Use: Well Drilling

Supply Ability & Additional Information

Packaging: Standard Export Package

Productivity: 10

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 100 Set/Sets per Month

Certificate: API

HS Code: 8431431000

Port: China

Payment Type: L/C,D/A,D/P,T/T

Packaging & Delivery

Selling Units:: Piece/Pieces

Package Type:: Standard Export Package

Product Description

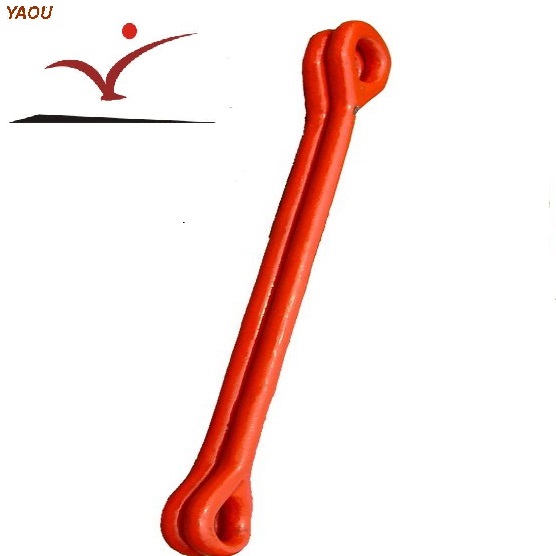

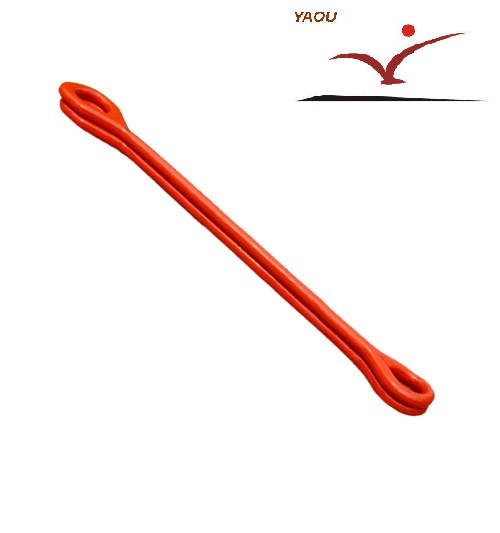

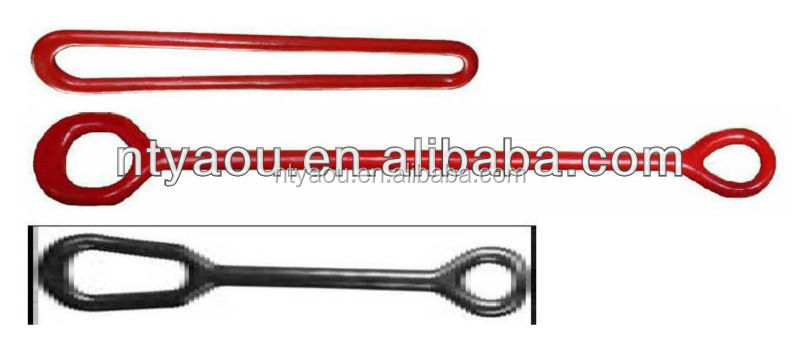

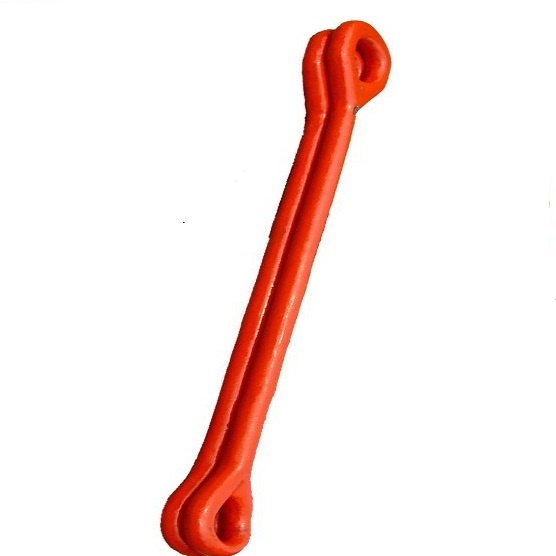

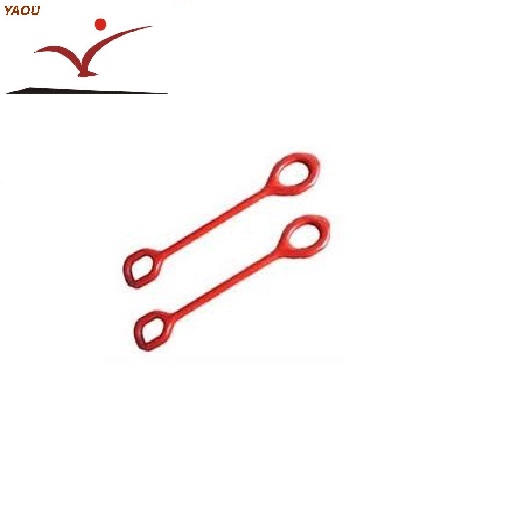

TYPE DH SINGLE ARM ELEVATOR LINKS

Elevators links are suitable for hanging pipes in the operation of well drilling or repairing.According to the structures,they have two forms:Type DH & Type SH..

MAIN PARAMETERS OF TYPE DH SINGLE ARM ELEVATOR LINKS

Type	Connecting sizes between elevator link lower ears and elevators(mm)					Connecting sizes between elevator link upper ears and drilling hooks(mm)					L(mm)	Rated Cap.Per Set KN(t)
Type	r₁≤	R₁≥	l₁≥	l₂≥	l₃≥	r≤	R₂≥	l₄≤	l₅≥	l₆≥	L(mm)	Rated Cap.Per Set KN(t)
DH360	20	51	20	100	150	22	38	60	120	180	1200	360(40)
DH585	22	51	20	100	150	22	64	70	120	180	1100	585(65)
DH900	22	51	20	100	150	29	64	80	140	190	1500	900(100)
DH1350	24	51	25	100	150	29	64	100	140	210	1800	1350(150)
DH2250	31	70	30	140	200	35	102	140	200	250	2700	2250(250)
DH3150	37	70	35	140	200	35	102	140	200	250	3300	3150(350)
DH4500	48	83	50	170	250	48	121	160	240	300	3600	4500(500)
DH6750	57	127	50	190	318	63	127	190	262	305	3660	6750(750)
L:Dimensions of recomendation .It can be changed if necessary.

Elevator Links001

20071026152324833

Company Information

Rugao You Inport & Export Co. LTD was established in 2004, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.

Our company mainly deals in Hardware Tools , combined tools, electric tools, Special Tools For Petroleum, Metal Processing Machinery and petroleum drilling equipment. Diagonal Cutting Plier，Oil Drill Pipes，Drilling Tools，The company provides various centrifugal pumps, chemical pumps, screw pumps , Booster Pumps , variable frequency constant pressure pumps, hydrochloric acid pumps, testing pumps, etc. Diesel Engine Etc.Our companyoperates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.

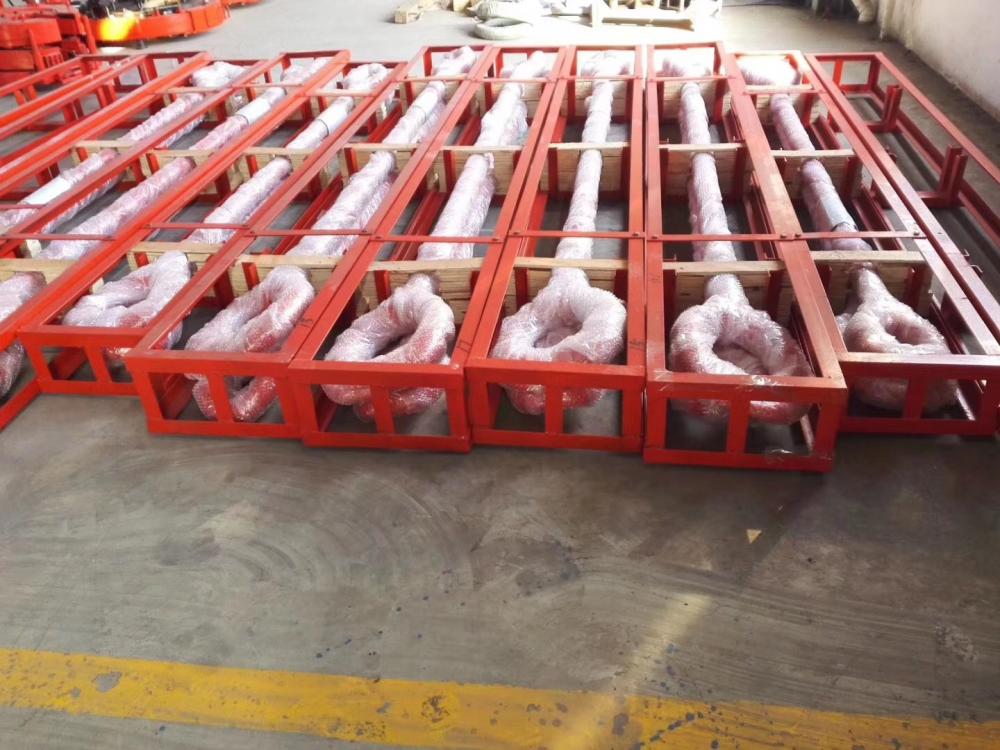

Packaging & Shipping

According to the volume and weight of the product and export requirements, provide multi-layer boxes and iron box packaging.

Transportation is based on customers in different regions using steam, rail, road and air transportation.

FAQ

Q1. How to get an accurate quotation?
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost)
2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machineQ1. How to get an accurate quotation?

Company Overview

Rugao Yaou Import & Export Co. LTD was established in 2004, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.

Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. Our company also operates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.

Company Photos
