Products Description
Model No.: QC11Y
Brand: YAOU
Brand Name: Yaou
Condition: New
Type: Cnc Plasma Cutters, Igbt
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: Motor
Dimension(L*W*H): 3880*2150*2000mm
Year: 2020
Warranty: 1 Years
Key Selling Points: Multifunctional
After Warranty Service: Video Technical Support, Online Support
Applicable Industries: Machinery Repair Shops, Manufacturing Plant
Local Service Location: Egypt, Pakistan, India, Mexico, Russia, Kenya, Uae, Romania, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan
Showroom Location: Uae, Uzbekistan
Weight (KG): 8000 Kg
After-sales Service Provided: Overseas Third-Party Support Available
Name: Cnc Plasma Cutting Machine
Product Name: Small Cnc Plasma Cutting Machine
Cutting Material: Metal Stainless Steel Carbon Steel Aluminum
Cutting Mode: Machenical
Place Of Origin: China
Status: New
Equipment Classification: Cnc Plasma Cutters
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Core Component Warranty Period: 1 Year
Warranty Period: 1 Year
Core Selling Point: Multifunctional
Out-of-warranty Service: Video Technical Support
Applicable Industry: Manufacturing Plant, Machinery Repair Shops
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Uae, Russia, Italy, United States, United Kingdom, Egypt, Malaysia, Tajikistan, Bangladesh, Kazakhstan, Uzbekistan, Thailand
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Uae, Uzbekistan
Place Of Origin: Jiangsu, China
Voltage: 380v
Rated Power: 8.5kw
Certification: Iso
Packaging: in container
Productivity: 10
Transportation: Ocean,Land
Place of Origin: China
Supply Ability: 1 Set/Sets per Quarter
Certificate: ISO
HS Code: 8462391000
Port: Any Port in China
Payment Type: L/C,D/P,D/A,T/T,MoneyGram
Incoterm: FOB
- Selling Units:
- Piece/Pieces
- Package Type:
- in container
- Picture Example:
-

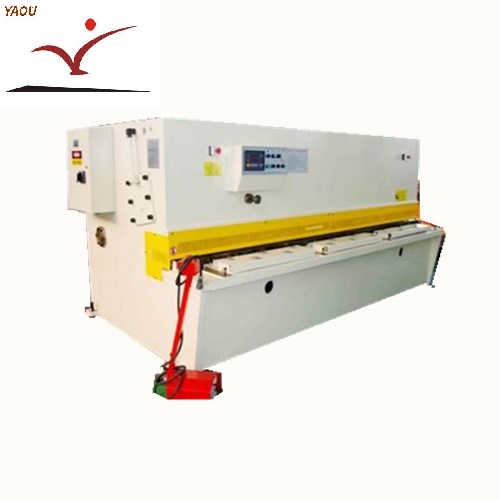

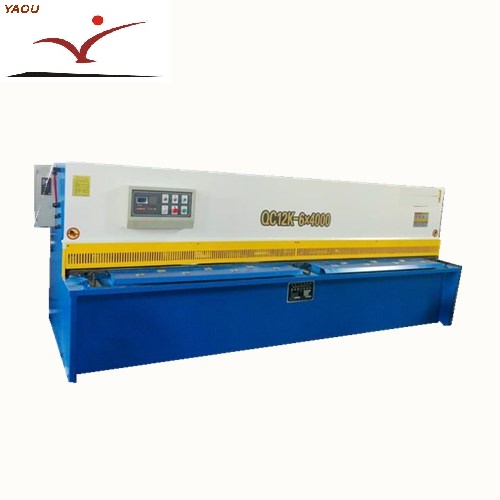

QC11Y guillotine hydraulic Shearing Machine
Product Description of QC11Y-HYDRAULIC GUILLOTINE SHEAR (CUTTING MACHINE)

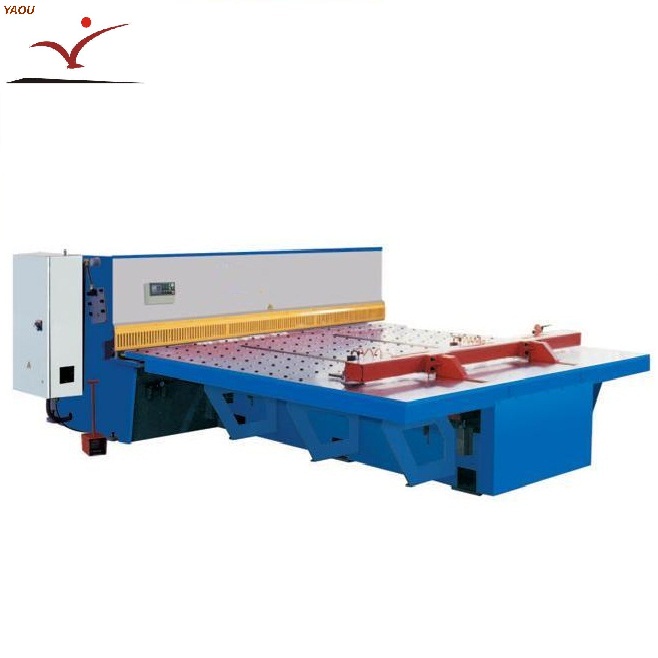

1. The metal sheet is moved easily by the rolling balls and the support block located on the table to ensure the surface quality of the sheet to be cut. There are front support arms and side squaring arm.
2. Mechanical rear stopper with manual fine tuning and digital indication.

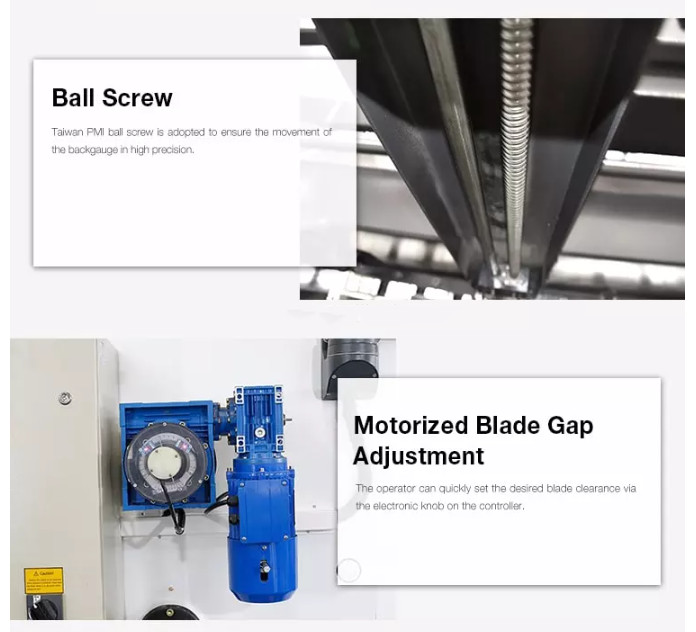

3.clearance in between shearing blades adjusted by hand wheel to be quick, accurate and convenient.
4.rectangular blades with four cutting edges to prolong working life, adjustable shearing angle to reduce deformation of the sheet.
5. the top blades’ holder adopts inner slanting construction to ease unloading working piece to promote the quality of working piece. the stoke of top blade could be adjusted stepless.
6.the cutting angle can be adjusted through pressure the button on control box. The angle degree is show by indication light. It’s very easy and convenient.
7. Protective fence and the safety interlocker to ensure the operation safety. Power supply switch that is set in the electric box will be automatically turned off when the box's door is opened or the fence is turned up. Protecting barrier with safety
interlocker is mounted on the back of the machine. Another, there are travel limit protection and foot pedestal mounted emergency off switch.
|
Model |
Cutting Thickness |
Cutting Width |
Stroke |
Backgauge Range |
Cutting Angle |
Main Power |
Weight |
Overall Dimensions |
|
mm |
mm |
times/min |
mm |
° |
KW |
Ton |
mm |
|
|
Q11Y/K-6*2500 |
6 |
2500 |
16-35 |
20-800 |
30`-1°30` |
7.5 |
6 |
3200*1880*2100 |
|
Q11Y/K-6*3200 |
6 |
3200 |
14-35 |
20-800 |
30`-1°30` |
7.5 |
6.8 |
3900*1880*2150 |
|
Q11Y/K-6*4000 |
6 |
4000 |
10-30 |
20-800 |
30`-1°30` |
7.5 |
9.5 |
4640*1950*2100 |
|
Q11Y/K-6*5000 |
6 |
5000 |
8-25 |
20-800 |
30`-1°30` |
15 |
14.5 |
5700*2150*2380 |
|
Q11Y/K-6*6000 |
6 |
6000 |
8-25 |
20-800 |
30`-1°30` |
15 |
19.6 |
6750*2150*2500 |
|
Q11Y/K-8*2500 |
8 |
2500 |
14-30 |
20-800 |
30`-1°30` |
11 |
6.5 |
3150*1865*2055 |
|
Q11Y/K-8*3200 |
8 |
3200 |
12-30 |
20-800 |
30`-1°30` |
11 |
7 |
3950*1910*2100 |
|
Q11Y/K-8*4000 |
8 |
4000 |
10-25 |
20-800 |
30`-1°30` |
15 |
10.8 |
4350*2020*2400 |
|
Q11Y/K-8*5000 |
8 |
5000 |
10-25 |
20-800 |
30`-1°30` |
15 |
16 |
5700*1950*2600 |
|
Q11Y/K-8*6000 |
8 |
6000 |
8-20 |
20-800 |
30`-1°30` |
18.5 |
19.8 |
6530*2050*2615 |
|
Q11Y/K-13*2500 |
13 |
2500 |
8-25 |
20-800 |
30`-2° |
22 |
10 |
3250*1910*2250 |
|
Q11Y/K-13*3200 |
13 |
3200 |
8-25 |
20-800 |
30`-2° |
22 |
10.2 |
3830*2020*2315 |
|
Q11Y/K-13*4000 |
13 |
4000 |
8-25 |
20-800 |
30`-2° |
22 |
12.5 |
4800*2080*2460 |
|
Q11Y/K-13*5000 |
13 |
5000 |
8-20 |
20-1000 |
30`-2° |
22 |
22.5 |
5800*2150*2700 |
|
Q11Y/K-13*6000 |
13 |
6000 |
6-20 |
20-1000 |
30`-2° |
30 |
27 |
7000*2450*3000 |
|
Q11Y/K-16*2500 |
16 |
2500 |
8-25 |
20-800 |
30`-2°30` |
22 |
11 |
3280*1970*2270 |
|
Q11Y/K-16*3200 |
16 |
3200 |
8-25 |
20-800 |
30`-2°30` |
22 |
12 |
3850*2100*2500 |
|
Q11Y/K-16*4000 |
16 |
4000 |
8-15 |
20-800 |
30`-2°30` |
22 |
15.5 |
4800*2090*2500 |
|
Q11Y/K-16*6000 |
16 |
6000 |
6-15 |
20-1000 |
30`-2°30` |
37 |
36 |
7000*2100*3000 |
|
Q11Y/K-16*8000 |
16 |
8000 |
3-7 |
20-1000 |
30`-2°30` |
45 |
63 |
9000*3180*3500 |
|
Q11Y/K-20*2500 |
20 |
2500 |
6-20 |
20-800 |
30`-3° |
30 |
14 |
3400*2220*2520 |
|
Q11Y/K-20*3200 |
20 |
3200 |
6-20 |
20-800 |
30`-3° |
30 |
16.5 |
4100*2150*2570 |
|
Q11Y/K-20*4000 |
20 |
4000 |
6-20 |
20-800 |
30`-3° |
37 |
19 |
4850*2400*2800 |
|
Q11Y/K-20*6000 |
20 |
6000 |
6-15 |
20-1000 |
30`-3° |
30*2 |
43 |
7000*2850*3300 |
|
Q11Y/K-25*2500 |
25 |
2500 |
5-20 |
20-800 |
30`-3°30` |
37 |
15 |
3270*2000*2650 |
|
Q11Y/K-25*3200 |
25 |
3200 |
5-10 |
20-800 |
30`-3°30` |
37 |
19 |
3970*2180*2670 |
|
Q11Y/K-25*4000 |
25 |
4000 |
6-12 |
20-1000 |
30`-3°30` |
45 |
27 |
4900*2600*2950 |
|
Q11Y/K-30*2500 |
30 |
2500 |
6-12 |
20-1000 |
30`-3° |
45 |
23 |
3450*2600*2750 |
|
Q11Y/K-30*3200 |
30 |
3200 |
8-12 |
20-1000 |
30`-3°30` |
55 |
28 |
4150*2700*2850 |
|
Q11Y/K-30*4000 |
30 |
4000 |
3-7 |
20-1000 |
30`-3°30' |
55 |
36 |
5200*3100*3350 |
|
Q11Y/K-40*2500 |
40 |
2500 |
4-10 |
20-1000 |
30`-4° |
55 |
38 |
4000*2950*3150 |
Our company mainly deals in Hardware Tools , combined tools, electric tools, Special Tools For Petroleum, Metal Processing Machinery and petroleum drilling equipment. Diagonal Cutting Plier，Oil Drill Pipes，Drilling Tools， Diesel Engine Etc.Our companyoperates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.
The company provides a variety of metal Processing Machinery: shears, rolling machines, bending machines, hydraulic presses, etc.
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost)
2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machineQ1. How to get an accurate quotation?.
