Products Description
Model No.: WC67Y-63-2500
Brand: NTYAOU
Automatic Level: Fully Automatic
Machine Type: Torsion Bar
Length Of Working Table (mm): 2500
Width Of Working Table (mm): 100 Mm
Dimension: 2605*1725*2655
Condition: New
Brand Name: Yaou
Material / Metal Processed: Stainless Steel, Carbon Steel
Automation: Automatic
Extra Services: Machining
Certification: Ce
Year: 2020
Key Selling Points: Multifunctional
Warranty: 1 Year
After-sales Service Provided: Video Technical Support, Online Support, Overseas Service Center Available
After Warranty Service: Video Technical Support, Online Support
Applicable Industries: Machinery Repair Shops, Manufacturing Plant
Local Service Location: Egypt, Turkey, Saudi Arabia, Indonesia, Pakistan, India, Russia, Kenya, Chile, Uae, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
Showroom Location: Uae, Uzbekistan
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 3 Months
Core Components: Motor, Pump
Power: Cnc
Raw Material: Sheet / Plate Rolling
Color: Customized
Nominal Pressure (kN): 630
Degree Of Automation: Fully Automatic
Length Of Worktable (mm): 6000
Old And New: New
Place Of Origin: China
Machinable Material: Stainless Steel
Additional Features: Machining
Core Selling Point: Automatic
Warranty Period: 1 Year
Out-of-warranty Service: Video Technical Support
Applicable Industry: Manufacturing Plant, Machinery Repair Shops
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Uae, Russia, Italy, India, Pakistan, Indonesia, Morocco, Canada, Romania, Kyrgyzstan, Uzbekistan, Kazakhstan
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Uae
Mechanical Test Report: Provided
Video Factory Inspection: Provided
Core Component Warranty Period: 1 Year
Slider Stroke (mm): 100 Mm
Throat Depth (mm): 300 Mm
Place Of Origin: Jiangsu, China
Weight (KG): 2500
Motor Power (kw): 5.5 Kw
Packaging: EXPORT STANDARD PACKING
Productivity: 10
Transportation: Ocean,Land
Place of Origin: China
Supply Ability: 20 Set/Sets per Month
Certificate: ISO
HS Code: 8462219000
Port: Shanghai
Payment Type: L/C,T/T
Incoterm: FOB
- Selling Units:
- Set/Sets
- Package Type:
- EXPORT STANDARD PACKING

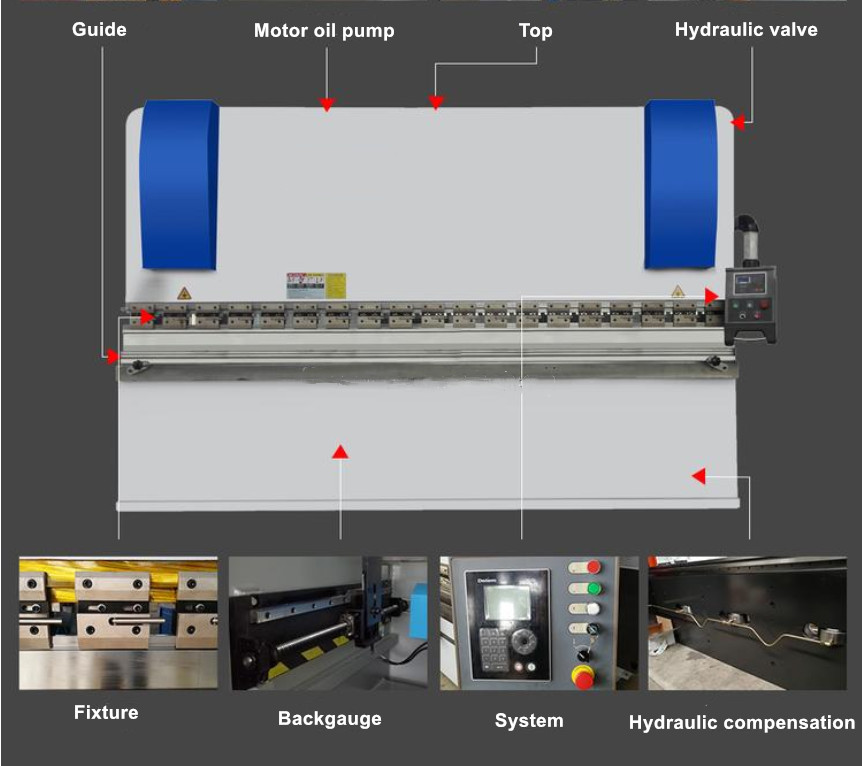

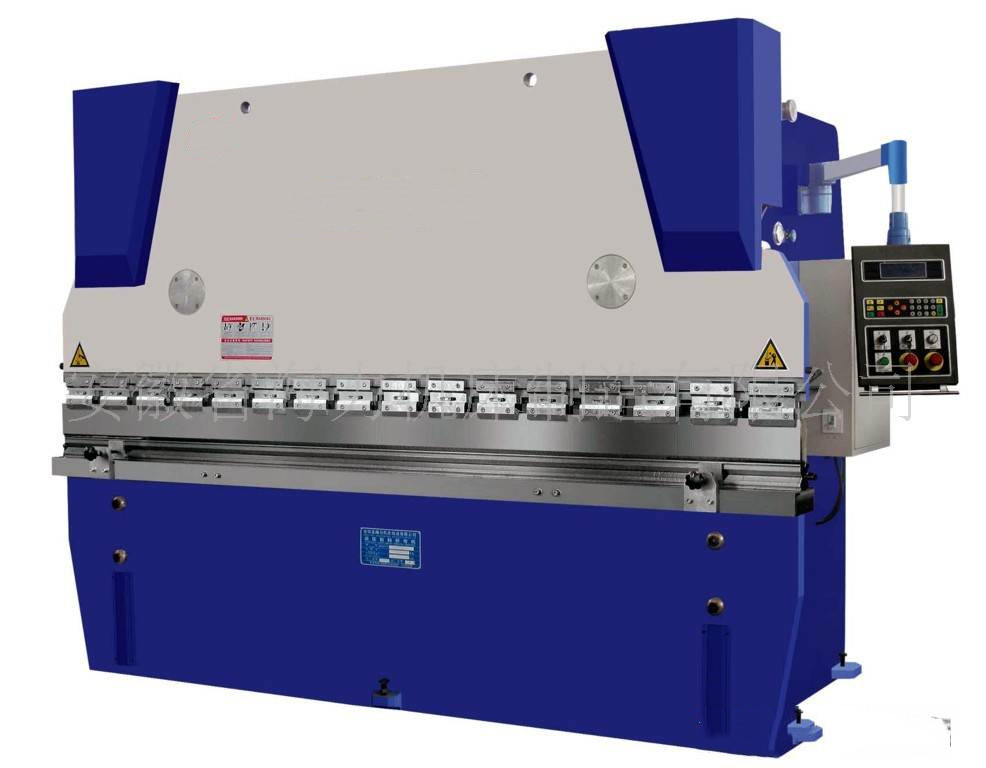

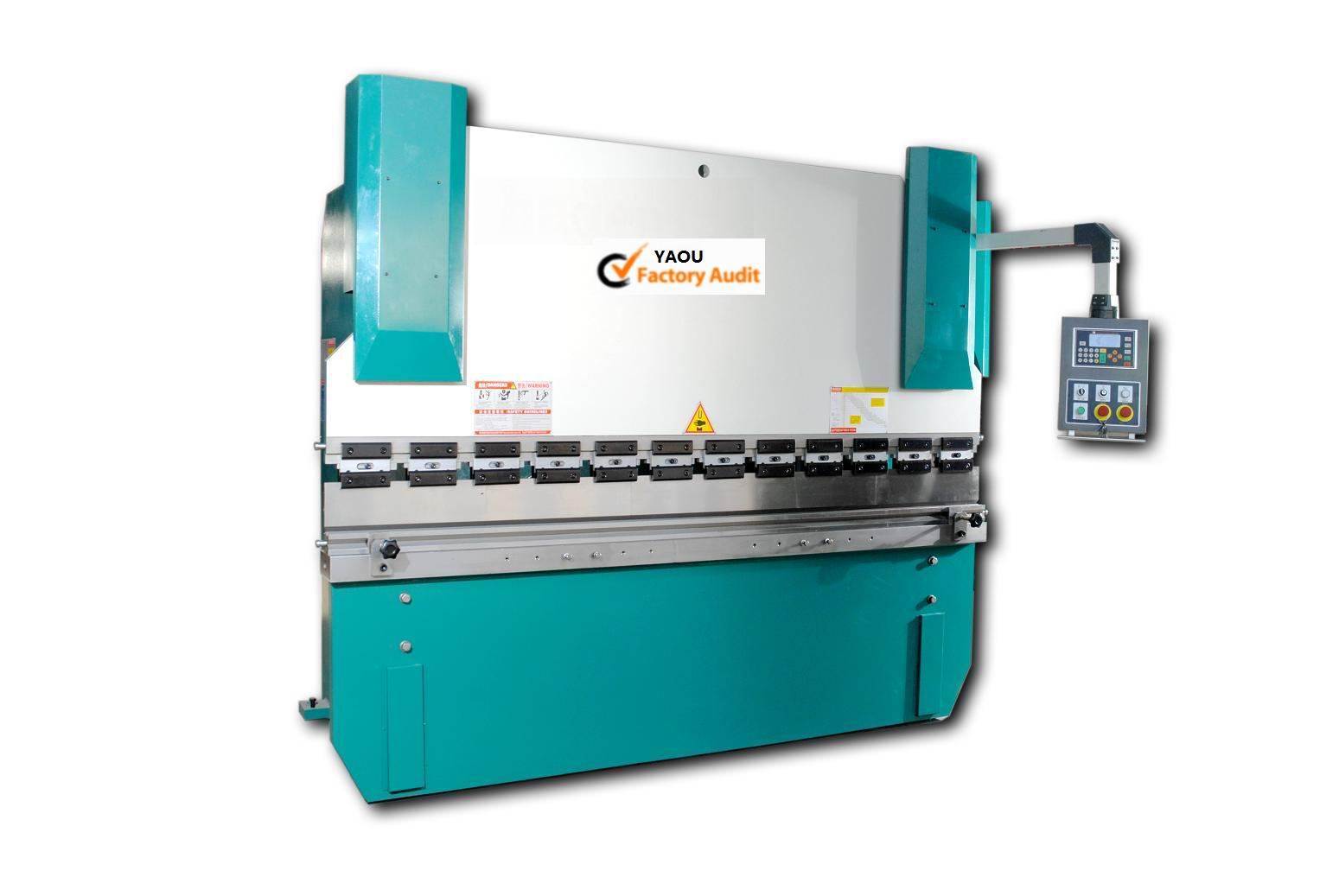

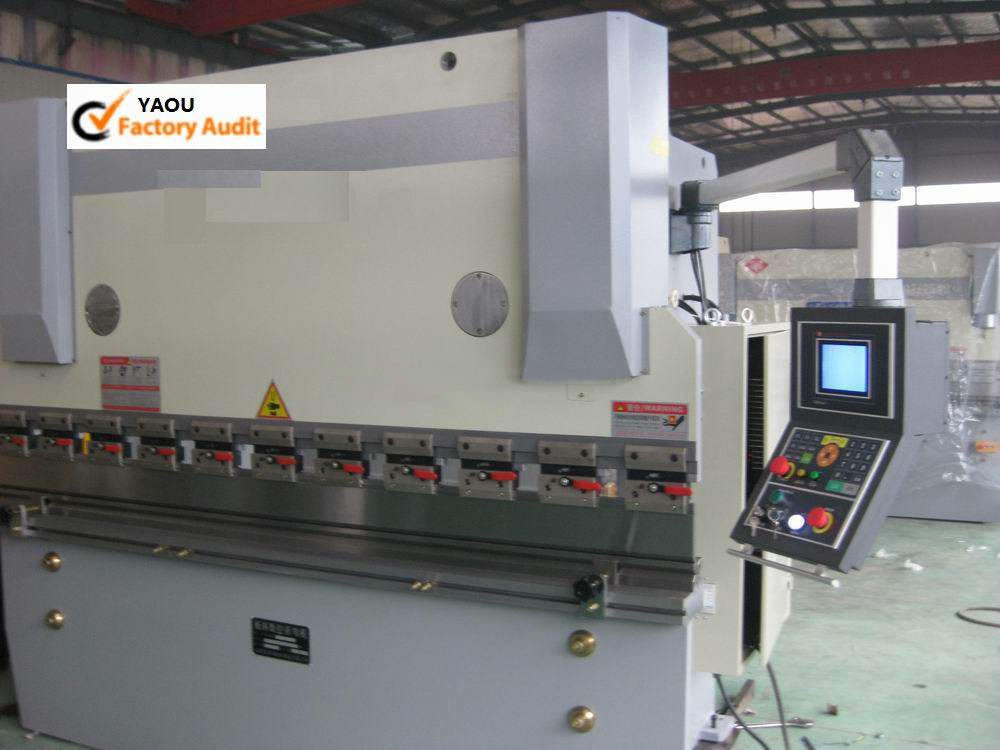

1. Hydraulic press brake all Steel Welded, Vibration eliminate stress, high mechanical intensity, good rigidity.Hydraulic upper transmission, steady and reliable.
2. Hydraulic top-drive, steadiness and reliability, mechanical stop, steel torsion bar to maintain synchronization, high
precision.
3. Ensure the high control precision, bending accuracy and repositioning accuracy are also reach to the high level.
hydraulic press brake back gauge can be multi-axes controlled.
4. Back gauge distance, upper ram stroke can be adjusted by motor-drive,manual operation micro-adjust equipment, numerical display.

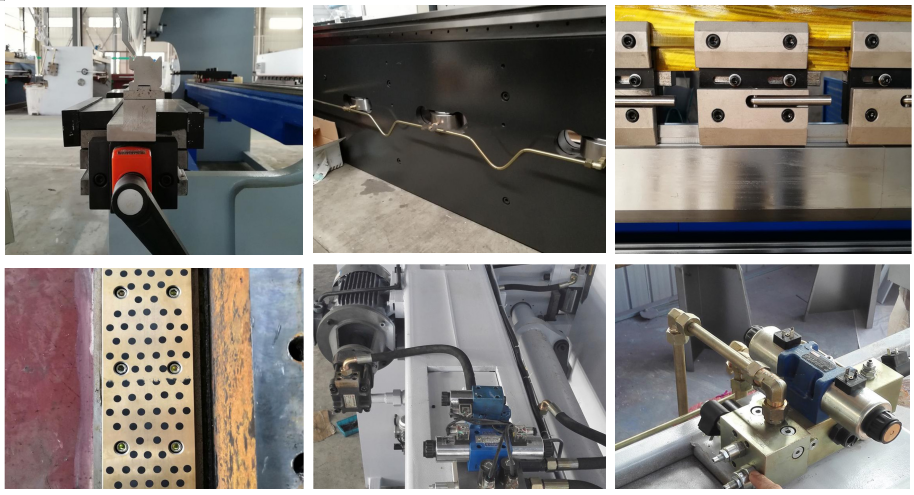

5. Our hydraulic press brake machine worktable full deflection compensation
6. Adopt integrated hydraulic system, more reliable and easy for maintenance.
7. Travel limit protection, full hydraulic press brake machine guarding with safety interlocker.
8. Mechanical synchronous mechanism and the complex compensation are designed so as to raise the workpieces precision.
9. Inch, single mode being designed for the hydraulic press brake machine and reversing and maintain time can be controlled by the time relays
10. Safe fence and the electric interlocker have been designed for the hydraulic press brake machine to ensure the operation safety.
11. Standard punches and dies. Front arm material support. Foot pedal with emergency stop.
12. Control system for hydraulic press brake: Estun NC E21, CNC DELEM DA41, DA52, DA66T,etc.
|
specifications
|
Nominal pressure(kN)
|
The length of the table(mm)
|
The distance between the pillars(mm)
|
The depth of the throat and mouth(mm)
|
stroke(mm)
|
Main motor power(kw)
|
|
WC67Y40/2200
|
400
|
2200
|
1700
|
200
|
100
|
4
|
|
WC67Y40/2500
|
400
|
2500
|
1900
|
200
|
100
|
4
|
|
WC67Y50/2500
|
500
|
2500
|
1900
|
250
|
100
|
4
|
|
WC67Y50/3200
|
500
|
3200
|
2500
|
250
|
100
|
4
|
|
WC67Y63/2500
|
630
|
2500
|
1900
|
250
|
120
|
5.5
|
|
WC67Y63/3200
|
630
|
3200
|
2500
|
250
|
120
|
5.5
|
|
WC67Y80/3200
|
800
|
3200
|
2500
|
250
|
120
|
5.5
|
|
WC67Y80/4000
|
800
|
4000
|
3000
|
250
|
120
|
5.5
|
|
WC67Y100/2500
|
1000
|
2500
|
1900
|
320
|
120
|
7.5
|
|
WC67Y100/3200
|
1000
|
3200
|
2500
|
320
|
120
|
7.5
|
|
WC67Y100/4000
|
1000
|
4000
|
3000
|
320
|
120
|
7.5
|
|
WC67Y100/5000
|
1000
|
5000
|
4000
|
320
|
120
|
7.5
|
|
WC67Y125/2500
|
1250
|
2500
|
1900
|
320
|
120
|
7.5
|
|
WC67Y125/3200
|
1250
|
3200
|
2500
|
320
|
120
|
7.5
|
|
WC67Y125/4000
|
1250
|
4000
|
3000
|
320
|
120
|
7.5
|
|
WC67Y125/5000
|
1250
|
5000
|
4000
|
320
|
120
|
7.5
|
|
WC67Y160/3200
|
1600
|
3200
|
2500
|
320
|
200
|
11
|
|
WC67Y160/4000
|
1600
|
4000
|
3000
|
320
|
200
|
11
|
|
WC67Y160/5000
|
1600
|
5000
|
4000
|
320
|
200
|
15
|
|
WC67Y160/6000
|
1600
|
6000
|
4800
|
320
|
200
|
15
|
|
WC67Y200/3200
|
2000
|
3200
|
2600
|
320
|
200
|
15
|
|
WC67Y200/4000
|
2000
|
4000
|
3100
|
320
|
200
|
15
|
|
WC67Y200/5000
|
2000
|
5000
|
4000
|
320
|
200
|
15
|
|
WC67Y200/6000
|
2000
|
6000
|
4800
|
320
|
200
|
15
|
|
WC67Y250/3200
|
2500
|
3200
|
2600
|
400
|
250
|
18.5
|
|
WC67Y250/4000
|
2500
|
4000
|
3200
|
400
|
250
|
18.5
|
|
WC67Y250/5000
|
2500
|
5000
|
4000
|
400
|
250
|
18.5
|
|
WC67Y300/4000
|
3000
|
4000
|
3300
|
400
|
250
|
22
|
|
WC67Y300/5000
|
3000
|
5000
|
4000
|
400
|
250
|
22
|
|
WC67Y300/6000
|
3000
|
6000
|
5800
|
400
|
250
|
22
|
|
WC67Y400/5000
|
4000
|
5000
|
4000
|
400
|
250
|
30
|
|
WC67Y400/6000
|
4000
|
6000
|
4800
|
400
|
250
|
30
|
|
WC67Y500/6000
|
5000
|
6000
|
4800
|
400
|
300
|
37
|
|
WC67Y600/7000
|
6000
|
6000
|
5600
|
400
|
300
|
45
|
|
WC67Y700/7000
|
7000
|
7000
|
5600
|
400
|
|
|
Transportation is based on customers in different regions using steam, rail, road and air transportation.
Rugao You Inport & Export Co. LTD was established in 2004, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.
Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.
Our company mainly deals in Hardware Tools, combined tools, electric tools, Special Tools For Petroleum, Metal Processing Machinery and petroleum drilling equipment. Diagonal Cutting Plier，Oil Drill Pipes，Drilling Tools，Diesel Engine Etc.Our companyoperates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers
FAQ
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost)
2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machineQ1. How to get an accurate quotation?
