Products Description
Model No.: QC12Y/K
Brand: YAOU
Brand Name: Yaou
Condition: New
Dimension(L*W*H): 9100x3400x2900
Warranty: 1 Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas
Place Of Origin: China
Status: New
Equipment Classification: Shearing Machines
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: New Product 2020
Core Component Warranty Period: 1 Year
Core Components: Pump, Motor
Warranty Period: 1 Year
Core Selling Point: Multifunctional
Out-of-warranty Service: Video Technical Support
Applicable Industry: Machinery Repair Shops, Manufacturing Plant
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Uae, Italy, United States, United Kingdom, Malaysia, Uzbekistan, Kazakhstan
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Uae, Uzbekistan
Place Of Origin: Jiangsu, China
Voltage: 220v/380v
Rated Power: 22kw
Certification: Iso9001:2008
Weight: 1000kg
Packaging: Interior is plastic film or according to your requirements for Qy12Y/K- ORDINARY (CNC) HYDRAULIC SWING BEAM SHEAR MACHINE(CUTTING MACHINE)
Productivity: 10
Transportation: Ocean,Land
Place of Origin: China
Supply Ability: 10 Set/Sets per Week
Certificate: CE
HS Code: 8462391000
Port: china port
Payment Type: L/C,T/T
Incoterm: FOB
- Selling Units:
- Set/Sets
- Package Type:
- Interior is plastic film or according to your requirements for Qy12Y/K- ORDINARY (CNC) HYDRAULIC SWING BEAM SHEAR MACHINE(CUTTING MACHINE)
Product Description

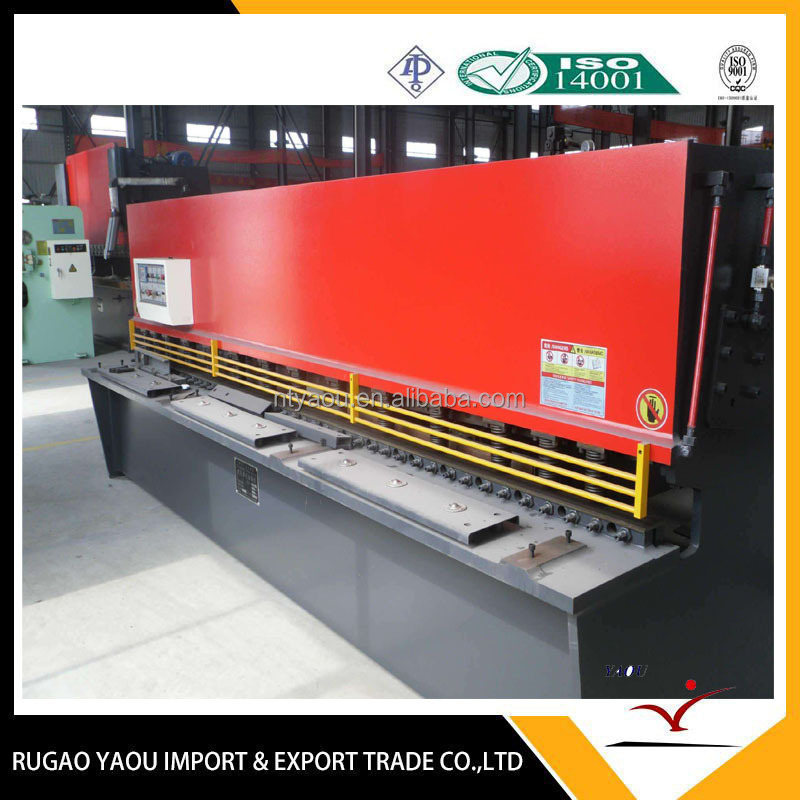

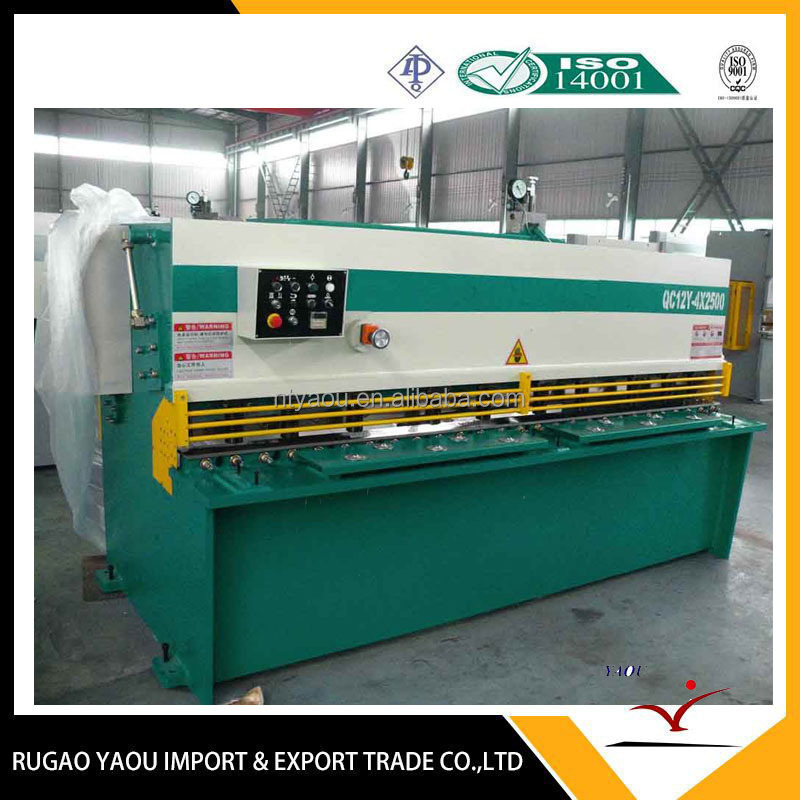

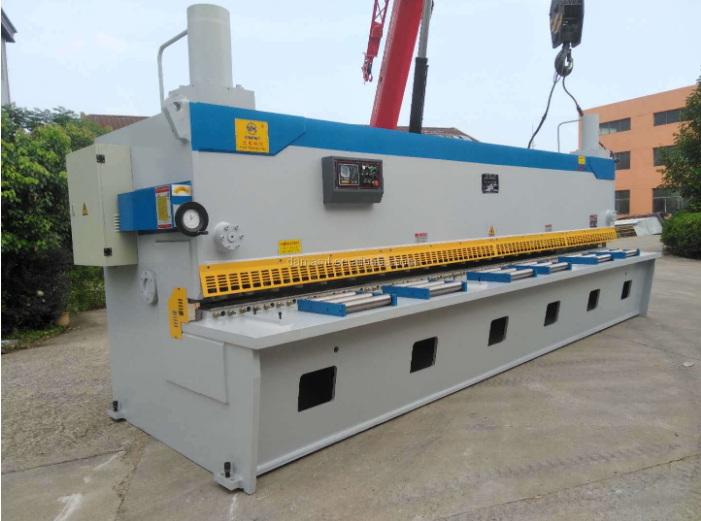

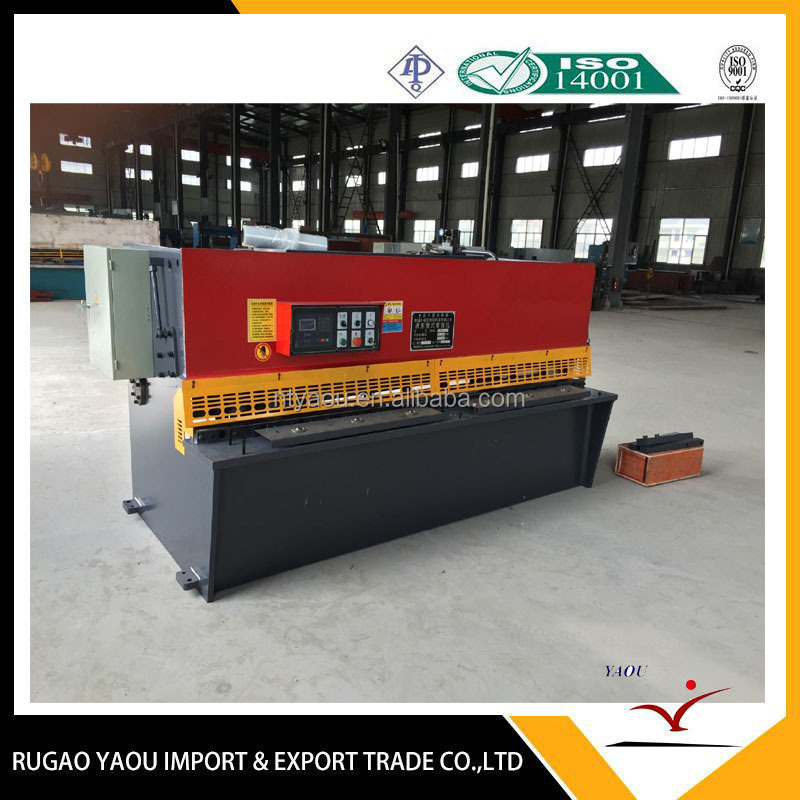

The performance of our metal sheet cutting machine(Shearing Machine):

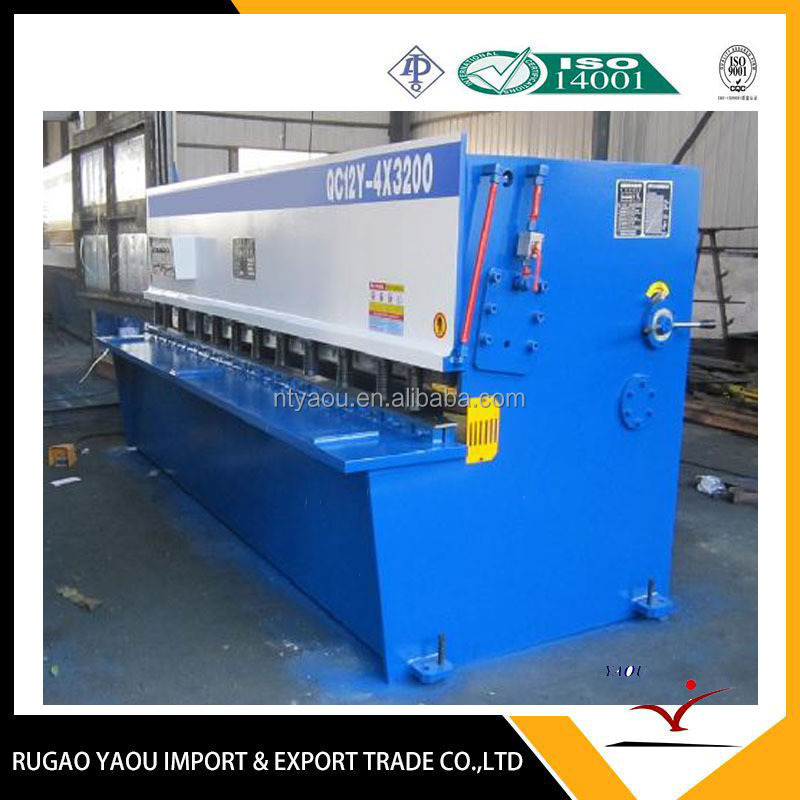

model: serials QC12Y

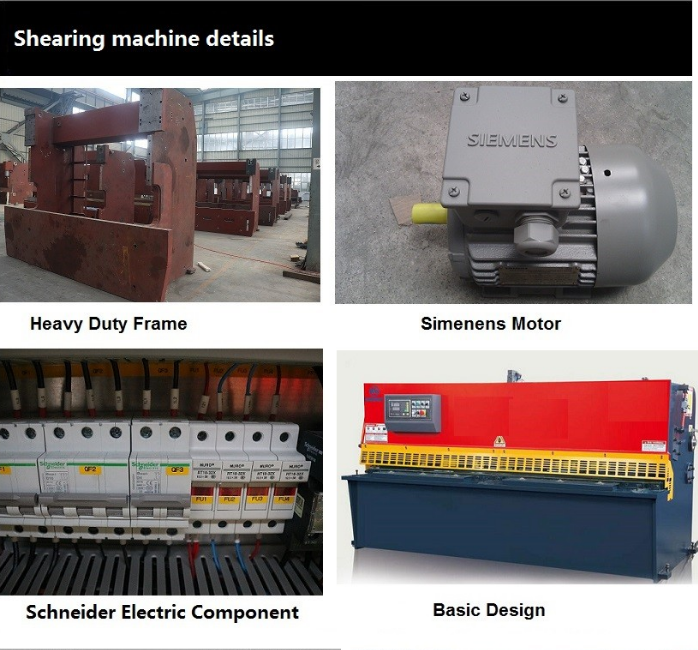

1. The frame is steel-welded construction, vibrating to eliminate stress, with high strength and good rigidity.
2. Hydraulic driven and returning stroke is activated by the accumulator or nitrogen cylinder smoothly and promptly.

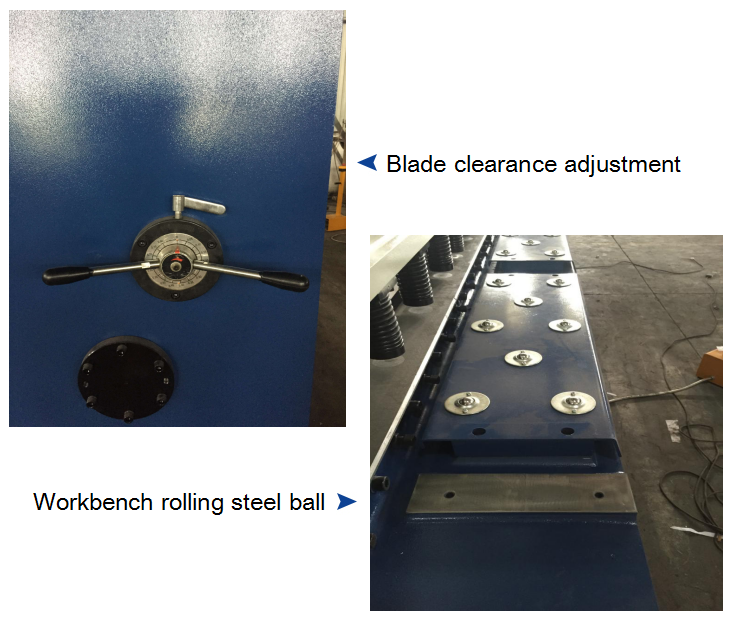

3. The sheet is moved easily through rolling ball equipped on worktable and protect the surface of sheet plate.

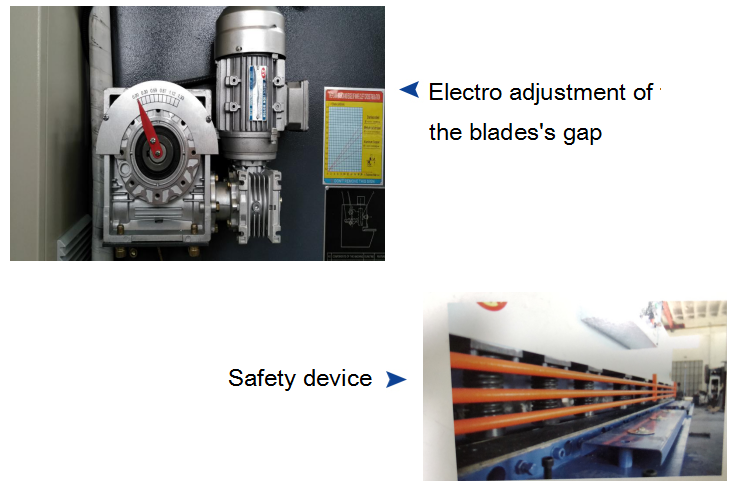

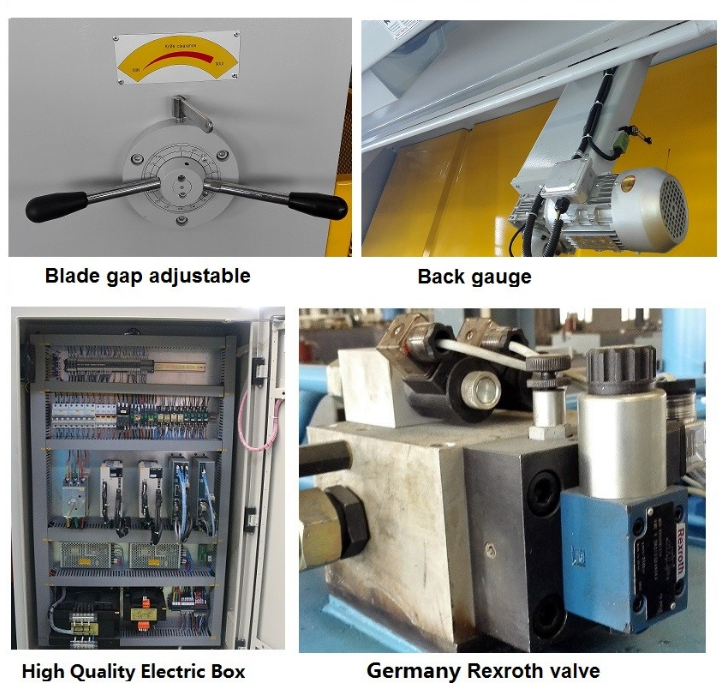

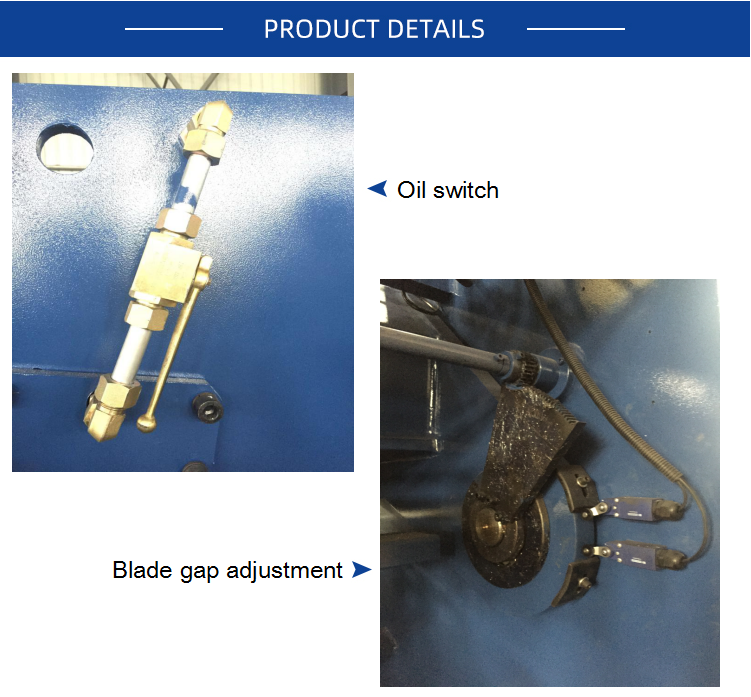

4. Adjusting of the gap between blades is portable and prompt, the value of the gap is indicated on a dial
5.The back gauge is motorized adjustable and manual fine adjusted. The adjusted value is shown on the numerator on the front of the machine.
6. There is a display to count the number of cutting, the stroke of beam could be adjusted stepless.
7. The clearance of blades could be adjusted by hand wheel, the value adjusted is display on the indicating plate.
8. Full machine is guarded with safety guard with interlocker to prevent the operator from injured.
Optional:
1. the adjusted value can be shown on a digital readout(electronic display)
2. pneumatic sheet support
3. any tailor-made are available on request.
|

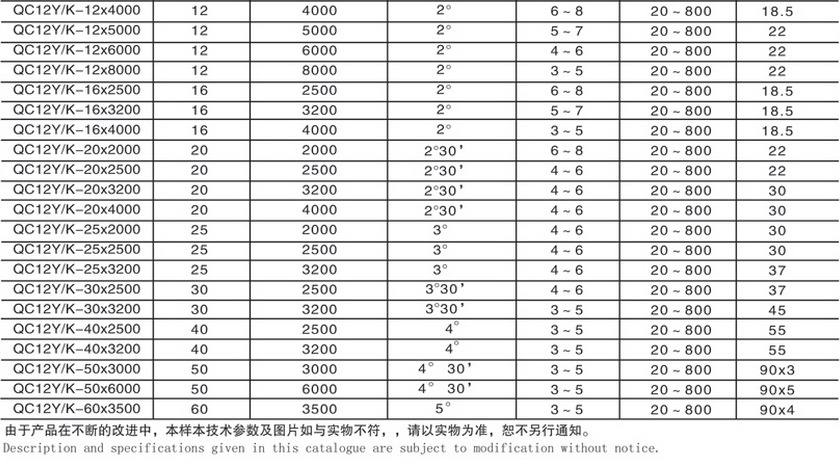

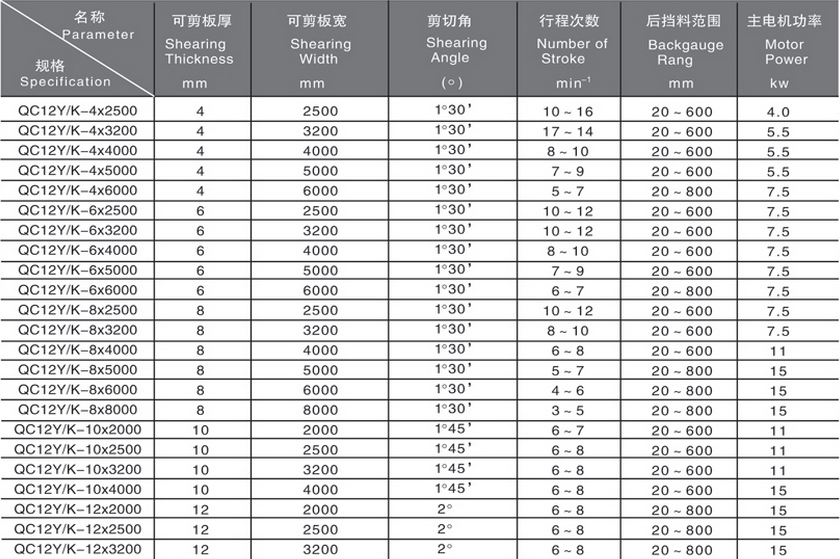

Model |
Max cutting thickness mm |
Max cutting length mm |
cutting angle . |
Ram strokes n/min |
Back stop range mm |
Motor kw |
Machine size mm |
|

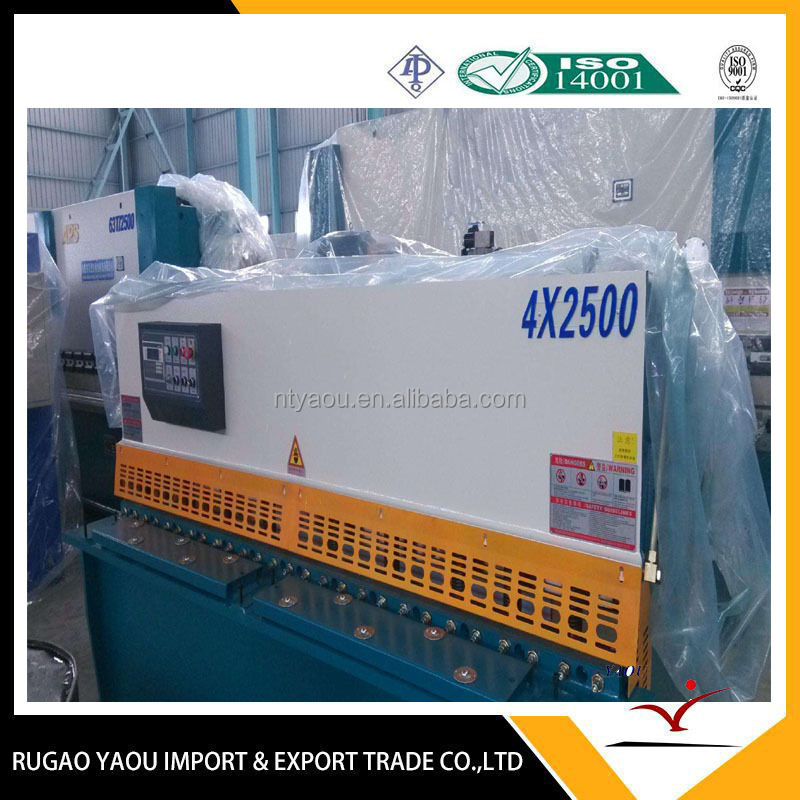

4×2500 |
4 |
2500 |
1.30 |
16 |
20-500 |
4 |
3100x1400x1700 |
|
4×3200 |
4 |
3200 |
1.30 |
13 |
20-500 |
5.5 |
3800x1560x1700 |
|
4×4000 |
4 |
4000 |
1.30 |
10 |
20-600 |
5.5 |
4800x1650x1750 |
|
4×6000 |
4 |
6000 |
1.30 |
5 |
20-800 |
7.5 |
6500x1800x2180 |
|
6×2500 |
6 |
2500 |
1.30 |
15 |
20-500 |
7.5 |
3100x1600x1750 |
|
6×3200 |
6 |
3200 |
1.30 |
12 |
20-500 |
7.5 |
3800x1600x1750 |
|
6×4000 |
6 |
4000 |
1.30 |
9 |
20-600 |
7.5 |
4800x1650x1750 |
|
6×5000 |
6 |
5000 |
1.30 |
8 |
20-600 |
7.5 |
5650x1830x2250 |
|
6×6000 |
6 |
6000 |
1.30 |
5 |
20-800 |
11 |
6650x1890x2380 |
|
8×2500 |
8 |
2500 |
1.30 |
11 |
20-500 |
7.5 |
3100x1650x1780 |
|
8×3200 |
8 |
3200 |
1.30 |
8 |
20-500 |
7.5 |
3800x1650x1800 |
|
8×4000 |
8 |
4000 |
1.30 |
8 |
20-600 |
7.5 |
4800x1650x1800 |
|
8×5000 |
8 |
5000 |
1.30 |
8 |
20-600 |
7.5 |
5800x2000x2500 |
|
8×6000 |
8 |
6000 |
1.30 |
8 |
20-800 |
11 |
6800x2100x2700 |
|
10×2500 |
10 |
2500 |
1.30 |
10 |
20-500 |
11 |
3200x1750x1750 |
|
10×3200 |
10 |
3200 |
1.30 |
10 |
20-500 |
11 |
3900x1750x1800 |
|
10×4000 |
10 |
4000 |
1.30 |
10 |
20-600 |
11 |
4900x1800x1850 |
|
10×6000 |
10 |
6000 |
1.30 |
10 |
20-800 |
15 |
6900x2210x2800 |
|
12×2500 |
12 |
2500 |
2.0 |
12 |
20-600 |
18.5 |
3200x1800x1800 |
|
12×3200 |
12 |
3200 |
2.0 |
10 |
20-600 |
18.5 |
3900x1800x1800 |
|
12×4000 |
12 |
4000 |
2.0 |
10 |
20-600 |
18.5 |
4900x1850x1900 |
|
12×5000 |
12 |
5000 |
2.0 |
6 |
20-600 |
18.5 |
5150x2150x2800 |
|
12×6000 |
12 |
6000 |
2.0 |
5 |
20-1000 |
18.5 |
6900x2300x3100 |
|
16×2500 |
16 |
2500 |
2.30 |
10 |
20-600 |
18.5 |
3200x1850x2300 |
|
16×3200 |
16 |
3200 |
2.30 |
10 |
20-600 |
18.5 |
3900x1850x2400 |
|
16×4000 |
16 |
4000 |
2.30 |
10 |
20-800 |
18.5 |
4800x1950x2590 |
|
16×5000 |
16 |
5000 |
2.0 |
6 |
20-1000 |
18.5 |
6000x2250x2900 |
|
16×6000 |
16 |
6000 |
2.0 |
5 |
20-1000 |
22 |
7000x2300x3000 |
|
20×2500 |
20 |
2500 |
3.0 |
8 |
20-800 |
22 |
3200x1880x2450 |
|
20×3200 |
20 |
3200 |
3.0 |
8 |
20-800 |
22 |
4100x1880x2700 |
|
20×4000 |
20 |
4000 |
3.0 |
5 |
20-1000 |
22 |
4900x2150x2850 |
|
20×6000 |
20 |
6000 |
3.0 |
4 |
20-1000 |
22 |
7000x2350x3000 |
|
25×2500 |
25 |
2500 |
3.0 |
8 |
20-1000 |
37 |
3400x2000x2700 |
|
25×3200 |
25 |
3200 |
3.0 |
5 |
20-1000 |
37 |
4100x2150x2900 |
|
30×2500 |
30 |
2500 |
3.0 |
4 |
20-1000 |
37 |
3300x2900x3000 |
|
30×3200 |
30 |
3200 |
3.30 |
4 |
20-1000 |
40 |
4200x2500x2600 |
|
40×2500 |
40 |
2500 |
4.0 |
3 |
20-1000 |
75 |
3200x3300x3200 |
|
40×3200 |
40 |
3200 |
4.0 |
3 |
20-1000 |
90 |
4300x3300x3000 |
