Products Description
Model No.: QC12K-NC
Brand: YAOU
Max. Cutting Width (mm): 2500
Max. Cutting Thickness (mm): 4 Mm
Automatic Level: Fully Automatic
Shearing Angle: 1°30'
Backgauge Travel (mm): 20 – 500 Mm
Condition: New
Brand Name: Yaou
Dimension(L*W*H): 3140x1610x1650
Year: 2020
Warranty: 1 Year
After-sales Service Provided: Online Support, Video Technical Support, Overseas Service Center Available
Key Selling Points: Multifunctional
After Warranty Service: Video Technical Support, Online Support
Applicable Industries: Machinery Repair Shops, Manufacturing Plant
Local Service Location: Egypt, Turkey, Italy, Germany, Philippines, Brazil, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Malaysia, Morocco, Kenya, South Korea, Chile, Uae, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine
Showroom Location: Uae
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor, Pump
Maximum Board Width That Can Be Cut (mm): 3200
Degree Of Automation: Fully Automatic
Status: New
Place Of Origin: China
Warranty Period: 1 Year
Out-of-warranty Service: Video Technical Support
Applicable Industry: Manufacturing Plant, Machinery Repair Shops
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Uae, Uzbekistan, United States, Italy, Russia, Kazakhstan, Morocco, Turkey, Romania
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Uae
Mechanical Test Report: Provided
Video Factory Inspection: Provided
Core Component Warranty Period: 1 Year
Blade Length (mm): 2500 Mm
Throat Depth (mm): 50 Mm
Power (kW): 4.0 Kw
Weight (KG): 5200 Kg
Place Of Origin: Jiangsu, China
Certification: Iso
Voltage: 380v

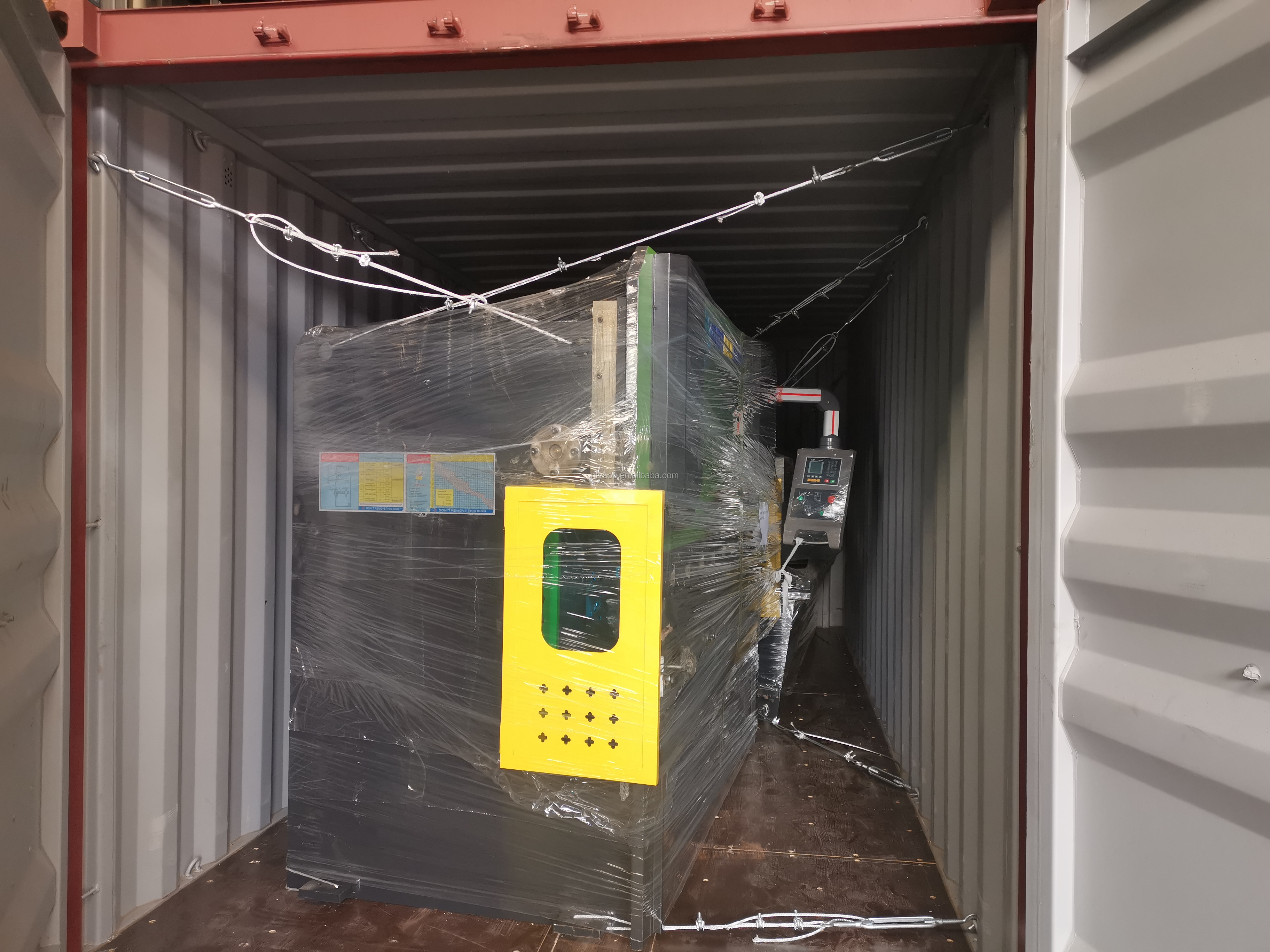

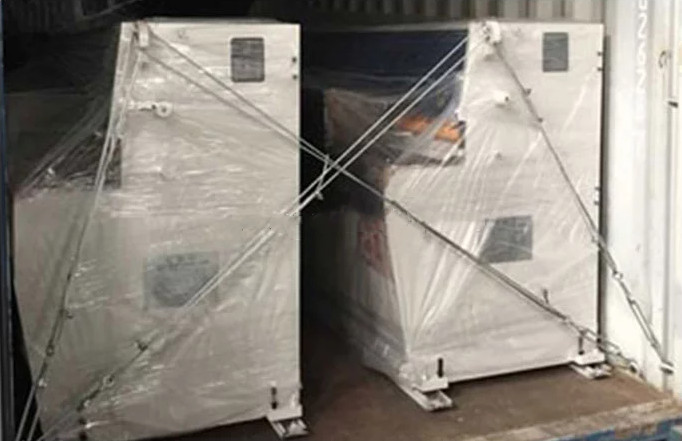

Packaging: Export standard packing.
Productivity: 10
Transportation: Ocean,Land
Place of Origin: China
Supply Ability: 10
Certificate: CE
HS Code: 8462391000
Port: Shanghai
Payment Type: L/C,T/T,D/P,Paypal,Western Union
Incoterm: FOB,CFR,CIF,EXW
- Selling Units:
- Set/Sets
- Package Type:
- Export standard packing.
Product Description:

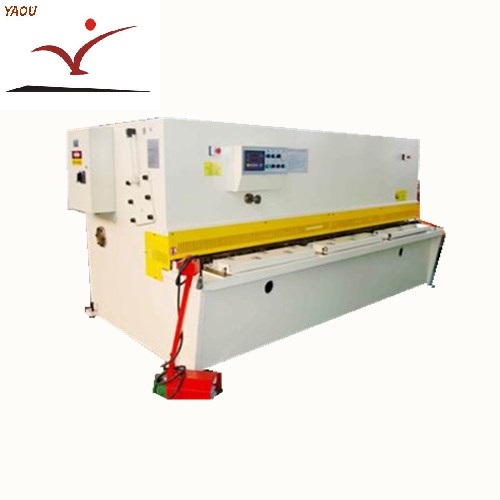

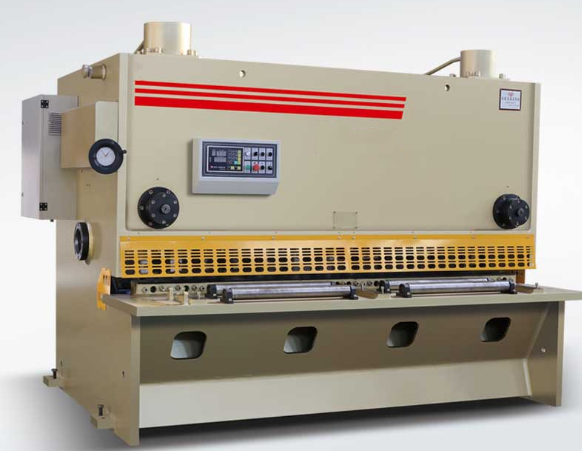

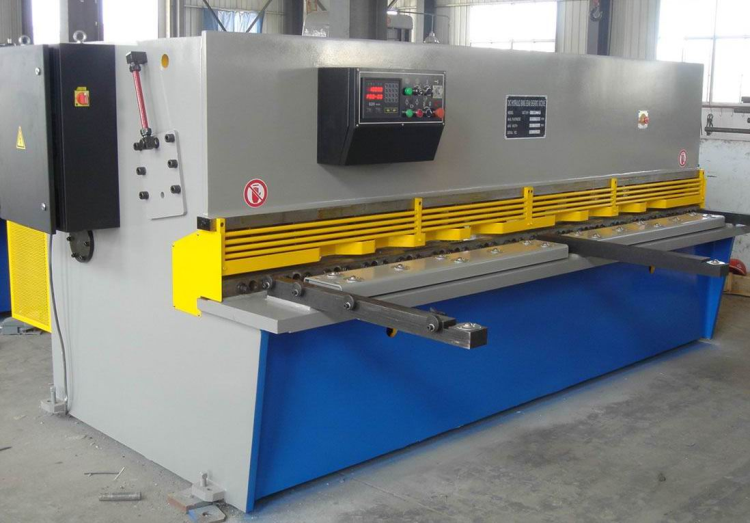

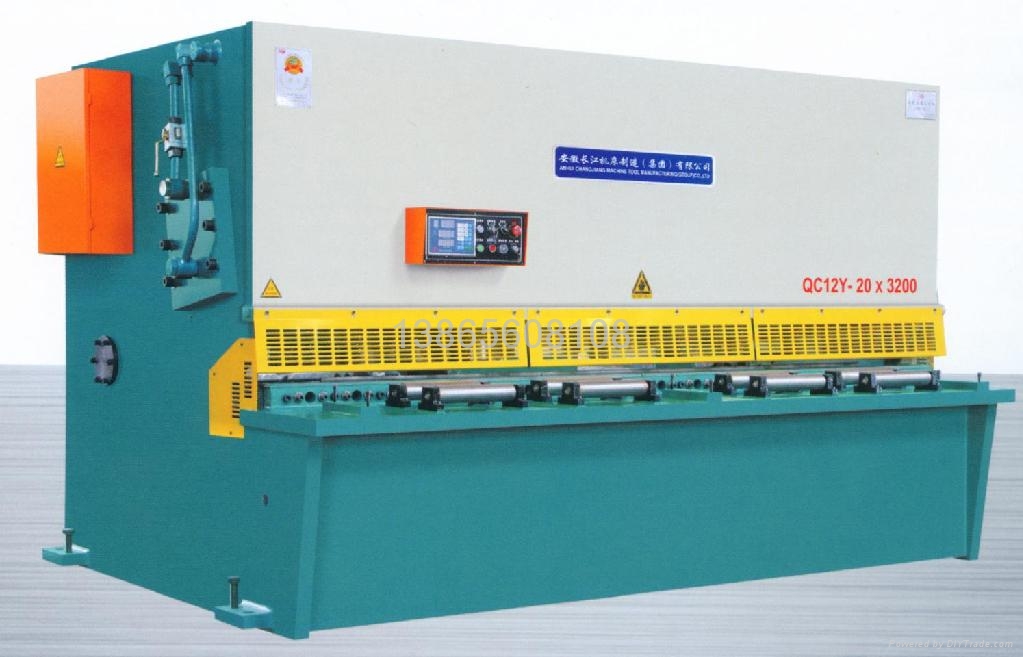

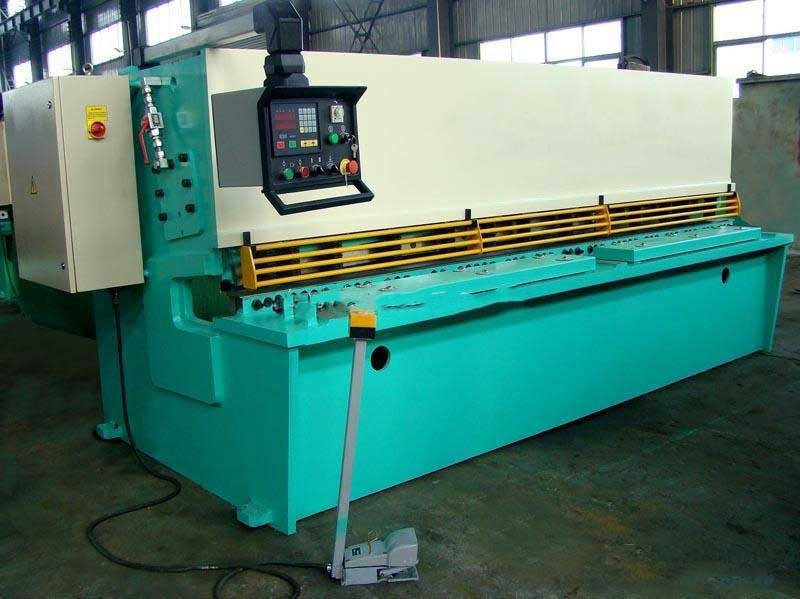

The performance of our metal sheet cutting machine(Shearing Machine):
model: serial QC12K

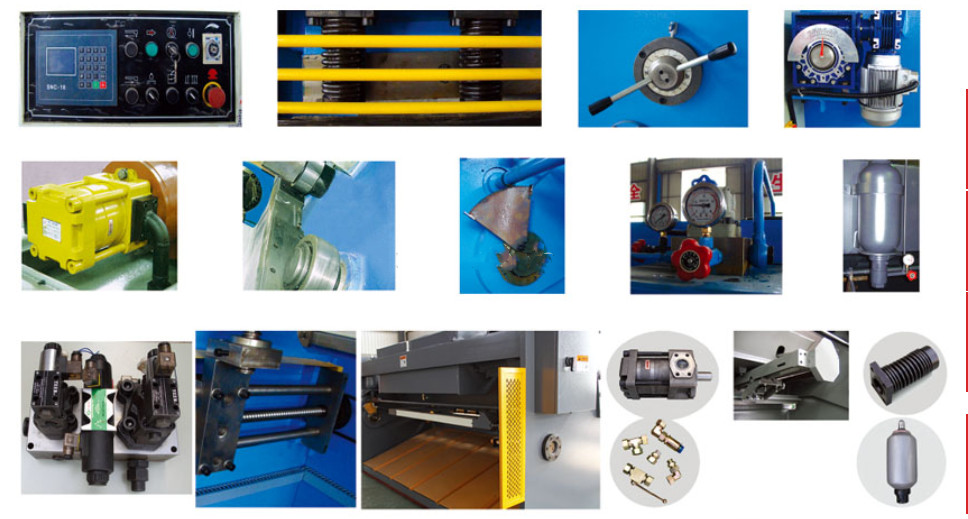

1. The frame is steel-welded construction, vibrating to eliminate stress, with high strength and good rigidity.
2. Hydraulic driven and returning stroke is activated by the accumulator or nitrogen cylinder smoothly and promptly.
3. The sheet is moved easily through rolling ball equipped on worktable and protect the surface of sheet plate.
4. Closed loop control system is composed of NC controller and the encoder. It has the automatic function of inspection and compensation.
5. The back gauge driven by servo motor adopts rolling ball screw, rolling guiding way, so it's positioning precision could reach 0.10mm.
6. There is a display to count the number of cutting, the stroke of beam could be adjusted stepless.
7. The clearance of blades could be adjusted by hand wheel, the value adjusted is display on the indicating plate.
8. Full machine is guarded with safety guard with interlocker to prevent the operator from injured.

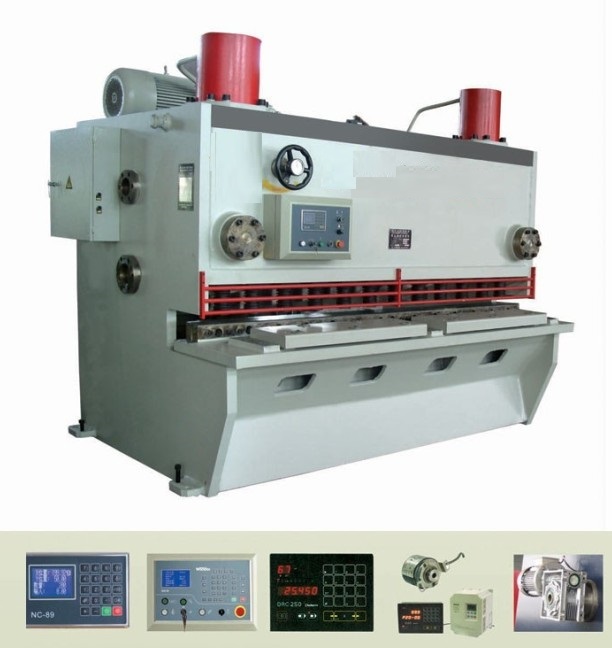

9. it is available as optional with E20,DA-250 and DA-350system
|
|
|
model
|
Shear size
|
Shear angle
|
Cutting number
|
Back gauge
|
Main motor
|
Weight
|
Overall
|
|
(mm)
|
|
(min-1)
|
(mm)
|
(KW)
|
(kg)
|
dimensions
|
|
|
QC12K-4X2000
|
4X2000
|
1°30
|
≥18
|
20-600
|
7.5
|
4000
|
2650x1610x1650
|
|
QC12K-4X2500
|
4X2500
|
1°30
|
≥18
|
20-600
|
7.5
|
5200
|
3140x1610x1650
|
|
QC12K-6X2500
|
6X2500
|
1°30
|
≥18
|
20-600
|
7.5
|
5200
|
3140x1610x1650
|
|
QC12K-6X3200
|
6X3200
|
1°30
|
≥14
|
20-600
|
7.5
|
6260
|
3840x1610x1650
|
|

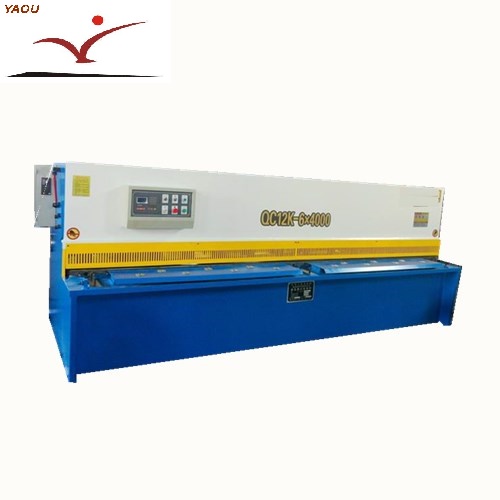

QC12K-6X4000
|
6X4000
|
1°30
|
≥10
|
20-600
|
11
|
8700
|
4640x1610x1700
|
|
QC12K-6X6000
|
6X6000
|
1°30
|
≥7
|
20-800
|
15
|
23000
|
6800x2300x2360
|
|
QC12K-8X2500
|
8X2500
|
1°30
|
≥14
|
20-600
|
11
|
5300
|
3140x1610x1650
|
|
QC12K-8X3200
|
8X3200
|
1°30
|
≥10
|
20-600
|
11
|
6300
|
3840x1610x1650
|
|
QC12K-8X4000
|
8X4000
|
1°30
|
≥8
|
20-600
|
11
|
9650
|
4680x1705x1700
|
|
QC12K-8X5000
|
8X5000
|
1°30
|
≥7
|
20-750
|
15
|
21000
|
5786x2252x2310
|
|
QC12K-10X2500
|
10X2500
|
2°
|
≥10
|
20-600
|
15
|
9150
|
4050x1690x1850
|
|
QC12K-10X3200
|
10X3200
|
1°48
|
≥8
|
20-600
|
15
|
9150
|
4050x1690x1850
|
|
QC12K-10X4000
|
10X4000
|
2°
|
≥10
|
20-800
|
18.5
|
14500
|
4765x2200x2100
|
|
QC12K-12X2500
|
12X2500
|
2°
|
≥10
|
20-600
|
15
|
7380
|
3350x1690x1850
|
|
QC12K-12X3200
|
12X3200
|
1°30
|
≥8
|
20-800
|
18.5
|
12500
|
4000x2050x2005
|
|
QC12K-12X4000
|
12X4000
|
2°
|
≥7
|
20-800
|
18.5
|
18000
|
4820x2300x2200
|
|
QC12K-16X2500
|
16X2500
|
2°
|
≥8
|
20-800
|
18.5
|
12200
|
7200x4100x4900
|
|
QC12K-16X3200
|
16X3200
|
2°
|
≥7
|
20-800
|
18.5
|
16300
|
4050x2190x2050
|
|
QC12K-16X4000
|
16X4000
|
2°
|
≥7
|
25-800
|
30
|
20000
|
4850x2350x2300
|
|
QC12K-20X2500
|
20×2500
|
2°30
|
≥6
|
20-800
|
37
|
14000
|
3440x2088x2570
|
|
QC12K-20X3200
|
20xx3200
|
2°30
|
≥5
|
25-800
|
37
|
20000
|
4150x2303x2636
|
|
QC12K-20X4000
|
20×4000
|
2°30
|
≥5
|
30-1000
|
37
|
25000
|
4950x2400x2730
|
Transportation is based on customers in different regions using steam, rail, road and air transportation.
Our company mainly deals in Hardware Tools, combined tools, electric tools, Special Tools For Petroleum, Metal Processing Machinery and petroleum drilling equipment. Diagonal Cutting Plier，Oil Drill Pipes，Drilling Tools，Diesel Engine Etc.Our companyoperates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost)
2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machineQ1. How to get an accurate quotation?.
