Products Description
Model No.: WC67Y-63-3200
Brand: YAOU
Automatic Level: Fully Automatic
Machine Type: Torsion Bar
Length Of Working Table (mm): 3200
Width Of Working Table (mm): 150 Mm
Dimension: 3280*1820*2450
Condition: New
Brand Name: Yaou
Material / Metal Processed: Carbon Steel
Automation: Automatic
Extra Services: Machining
Certification: Ce
Year: 2020
Key Selling Points: Multifunctional
Warranty: 1 Year
After-sales Service Provided: Video Technical Support, Online Support, Overseas Service Center Available
After Warranty Service: Video Technical Support, Online Support
Applicable Industries: Machinery Repair Shops, Manufacturing Plant
Local Service Location: Egypt, Saudi Arabia, Indonesia, Mexico, Russia, Kenya, Chile, Uae, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan
Showroom Location: Uae, Uzbekistan
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor
Raw Material: Sheet / Plate Rolling
Power: Hydraulic
Color: Customized
Nominal Pressure (kN): 630
Place Of Origin: China
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): France, Italy, Germany, Uae
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Uae, Italy, France, Germany
Slider Stroke (mm): 100 Mm
Throat Depth (mm): 320 Mm
Place Of Origin: Jiangsu, China
Weight (KG): 4300
Motor Power (kw): 5.5 Kw
Degree Of Automation: Semi-Automatic
Length Of Worktable (mm): 2500
Old And New: New
Machinable Material: Carbon Steel, Brass / Copper, Stainless Steel, Alloy, Aluminum, Plastic, Pvc
Additional Features: Machining
Core Selling Point: Multifunctional
Warranty Period: 1 Year
Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts
Applicable Industry: Machinery Repair Shops, Printing Shops, Manufacturing Plant, Construction Works, Energy &Amp; Mining
Mechanical Test Report: Provided
Video Factory Inspection: Provided
Core Component Warranty Period: 1 Year
Packaging: EXPORT STANDARD PACKING
Productivity: 1000
Transportation: Ocean,Land
Place of Origin: CHINA
Supply Ability: 20 Set/Sets per Month
Certificate: ISO
HS Code: 8462299000
Port: Shanghai
Payment Type: L/C,T/T
Incoterm: FOB
- Selling Units:
- Set/Sets
- Package Type:
- EXPORT STANDARD PACKING

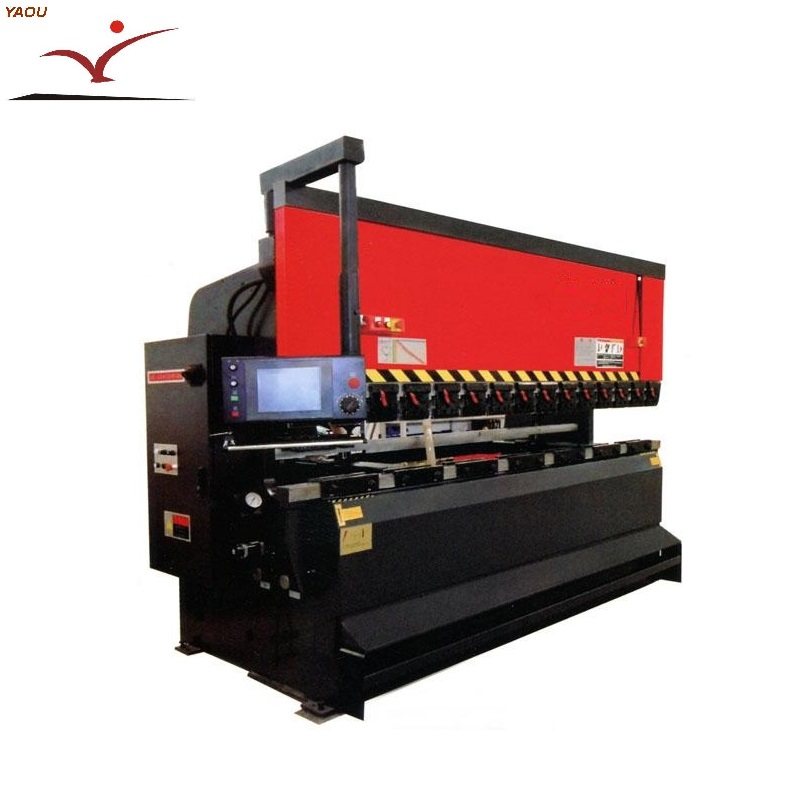

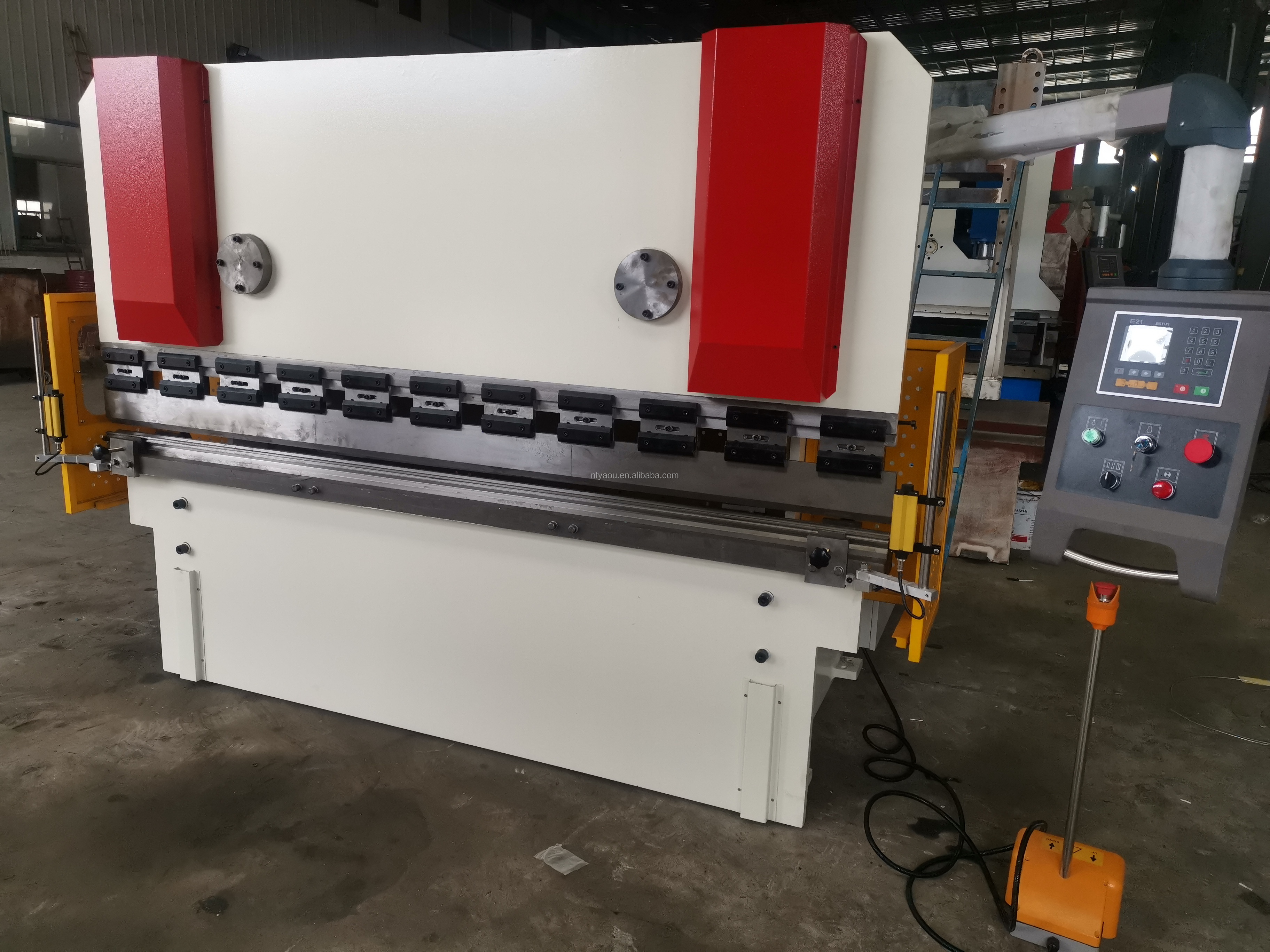

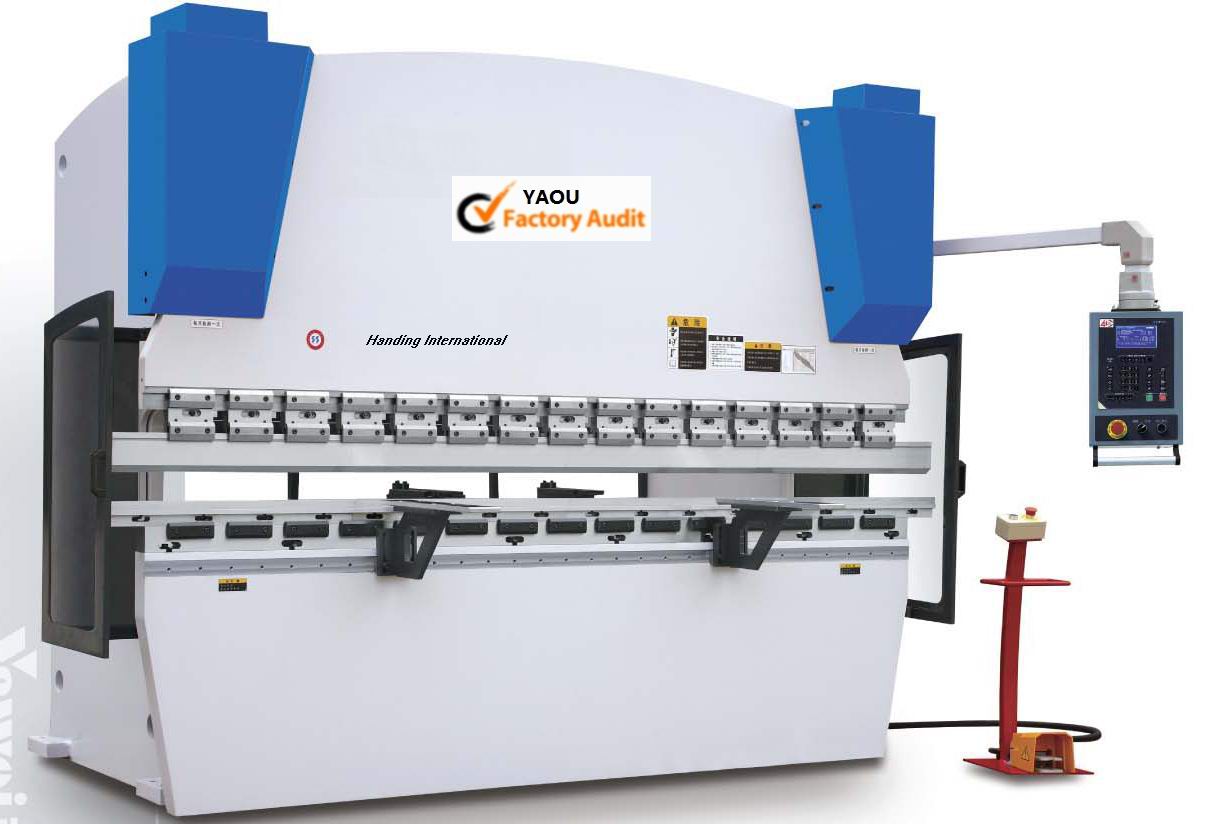

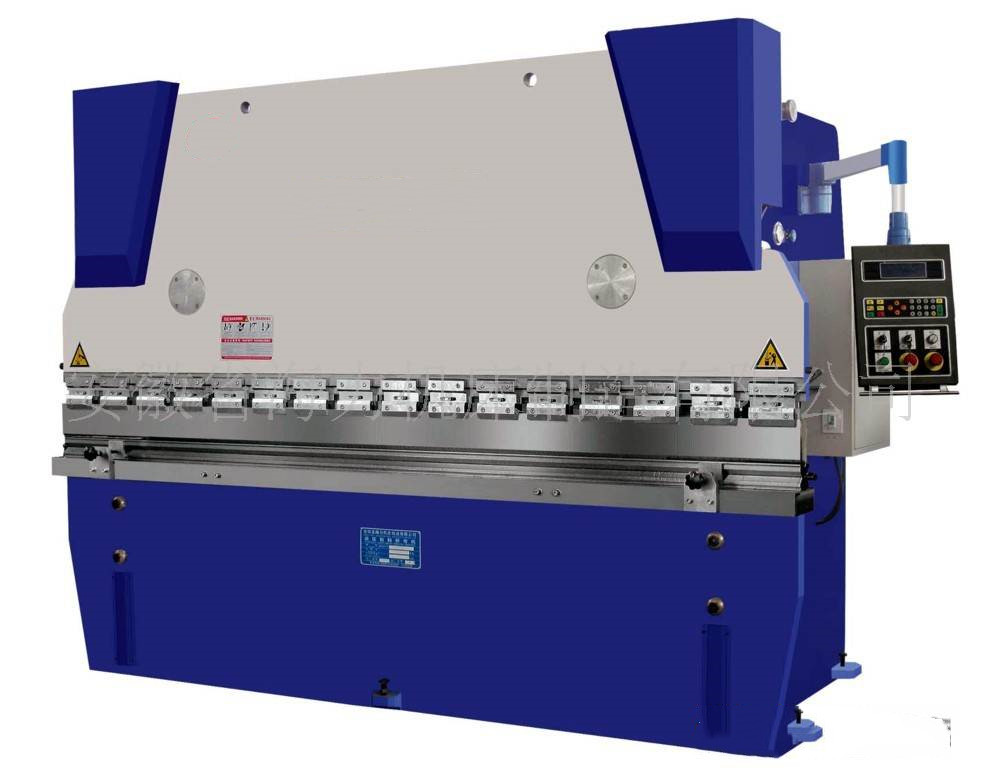

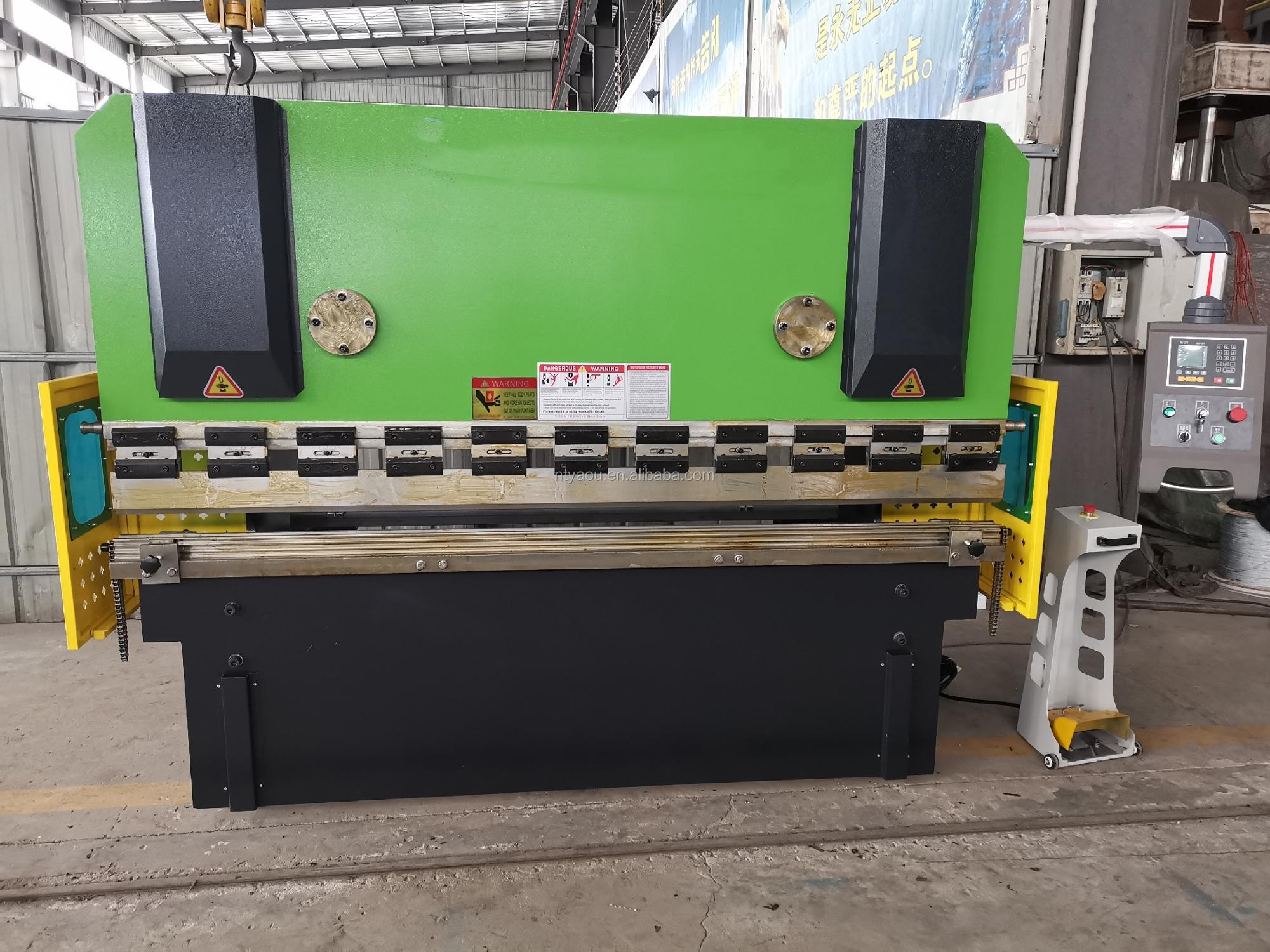

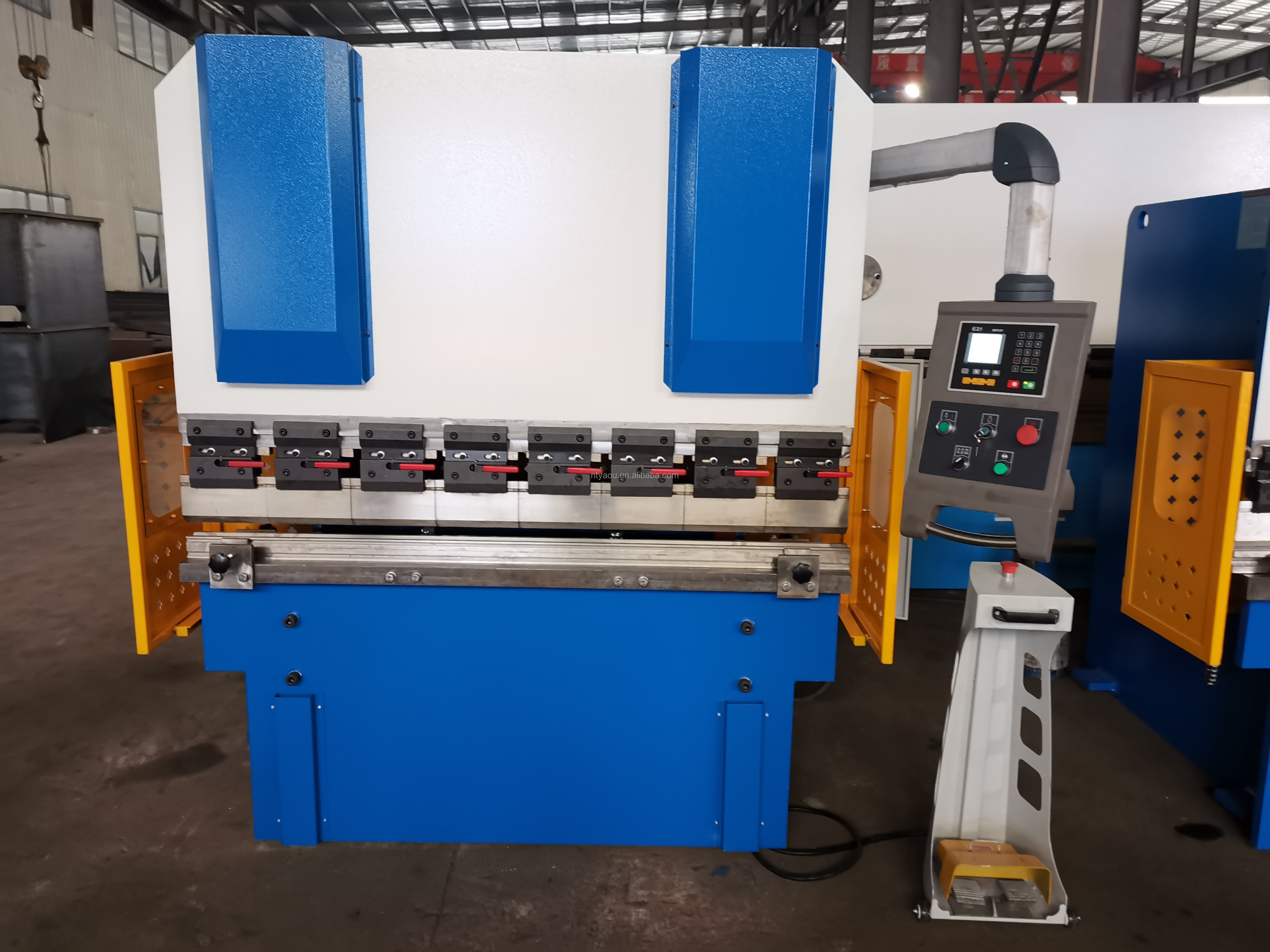

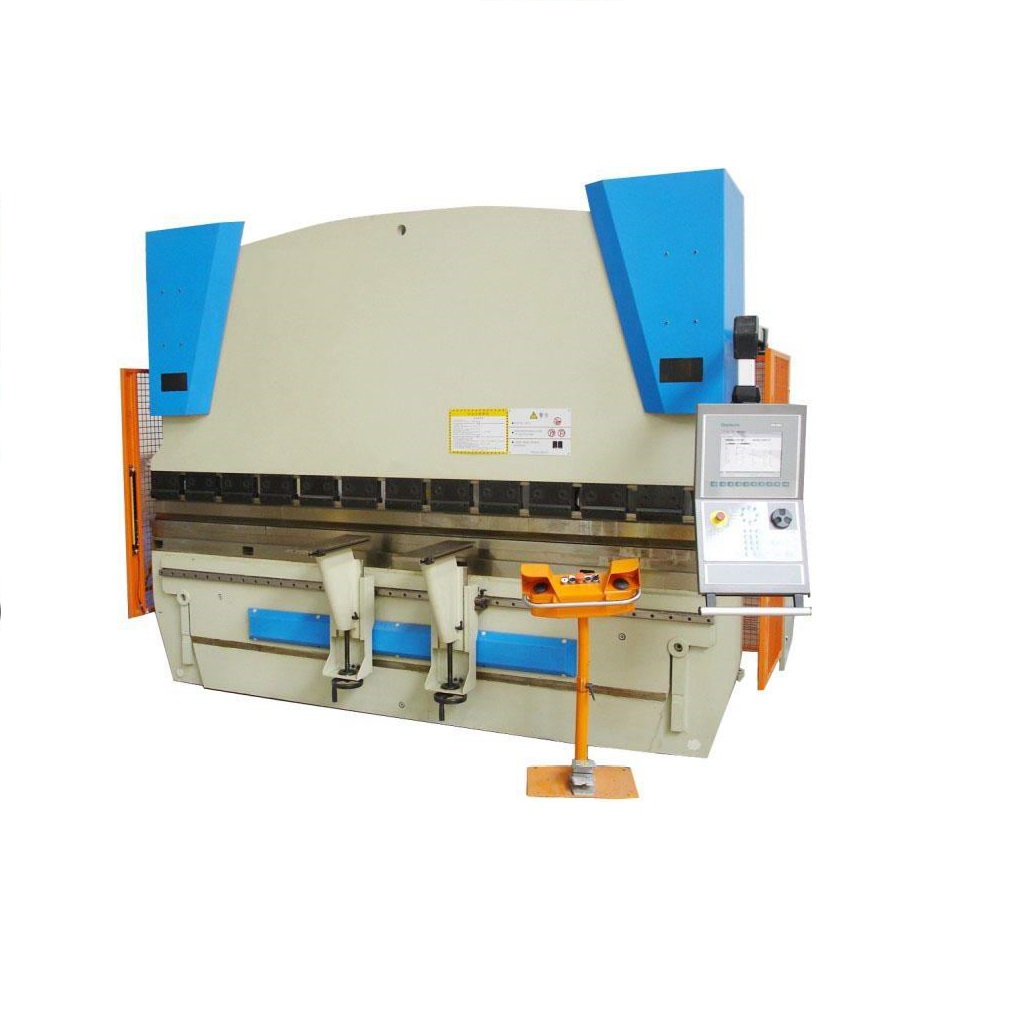

1–Hydraulic Press brake is a steel sheet Bending Machine, it is composed by supporting frame, worktable and pressing board.
2–The main frame is processed by annealing art, long time using, there is no shape changing, keep high bending precision.
3–Bending die is processed by special art, keet long using life.Hydraulic press brake also named CNC press brake, CNC steel sheet bending machine, electro-hydraulic synchronized CNC press brake,NC steel sheet bending machine. Which is mainly used for steel sheet bending or stainless bending.
4–Mainly in steel metal processing industry,Like cabinet processing, decoration, electrical lift surface wrapping, and other
steel metal or stainless board processing industry.
|
specifications
|
Nominal pressure(kN)
|
The length of the table(mm)
|
The distance between the pillars(mm)
|
The depth of the throat and mouth(mm)
|
stroke(mm)
|
Main motor power(kw)
|
|
WC67Y40/2200
|
400
|
2200
|
1700
|
200
|
100
|
4
|
|
WC67Y40/2500
|
400
|
2500
|
1900
|
200
|
100
|
4
|
|
WC67Y50/2500
|
500
|
2500
|
1900
|
250
|
100
|
4
|
|
WC67Y50/3200
|
500
|
3200
|
2500
|
250
|
100
|
4
|
|
WC67Y63/2500
|
630
|
2500
|
1900
|
250
|
120
|
5.5
|
|
WC67Y63/3200
|
630
|
3200
|
2500
|
250
|
120
|
5.5
|
|
WC67Y80/3200
|
800
|
3200
|
2500
|
250
|
120
|
5.5
|
|
WC67Y80/4000
|
800
|
4000
|
3000
|
250
|
120
|
5.5
|
|
WC67Y100/2500
|
1000
|
2500
|
1900
|
320
|
120
|
7.5
|
|
WC67Y100/3200
|
1000
|
3200
|
2500
|
320
|
120
|
7.5
|
|
WC67Y100/4000
|
1000
|
4000
|
3000
|
320
|
120
|
7.5
|
|
WC67Y100/5000
|
1000
|
5000
|
4000
|
320
|
120
|
7.5
|
|
WC67Y125/2500
|
1250
|
2500
|
1900
|
320
|
120
|
7.5
|
|
WC67Y125/3200
|
1250
|
3200
|
2500
|
320
|
120
|
7.5
|
|
WC67Y125/4000
|
1250
|
4000
|
3000
|
320
|
120
|
7.5
|
|
WC67Y125/5000
|
1250
|
5000
|
4000
|
320
|
120
|
7.5
|
|
WC67Y160/3200
|
1600
|
3200
|
2500
|
320
|
200
|
11
|
|
WC67Y160/4000
|
1600
|
4000
|
3000
|
320
|
200
|
11
|
|
WC67Y160/5000
|
1600
|
5000
|
4000
|
320
|
200
|
15
|
|
WC67Y160/6000
|
1600
|
6000
|
4800
|
320
|
200
|
15
|
|
WC67Y200/3200
|
2000
|
3200
|
2600
|
320
|
200
|
15
|
|
WC67Y200/4000
|
2000
|
4000
|
3100
|
320
|
200
|
15
|
|
WC67Y200/5000
|
2000
|
5000
|
4000
|
320
|
200
|
15
|
|
WC67Y200/6000
|
2000
|
6000
|
4800
|
320
|
200
|
15
|
|
WC67Y250/3200
|
2500
|
3200
|
2600
|
400
|
250
|
18.5
|
|
WC67Y250/4000
|
2500
|
4000
|
3200
|
400
|
250
|
18.5
|
|
WC67Y250/5000
|
2500
|
5000
|
4000
|
400
|
250
|
18.5
|
|
WC67Y300/4000
|
3000
|
4000
|
3300
|
400
|
250
|
22
|
|
WC67Y300/5000
|
3000
|
5000
|
4000
|
400
|
250
|
22
|
|
WC67Y300/6000
|
3000
|
6000
|
5800
|
400
|
250
|
22
|
|
WC67Y400/5000
|
4000
|
5000
|
4000
|
400
|
250
|
30
|
|
WC67Y400/6000
|
4000
|
6000
|
4800
|
400
|
250
|
30
|
|
WC67Y500/6000
|
5000
|
6000
|
4800
|
400
|
300
|
37
|
|
WC67Y600/7000
|
6000
|
6000
|
5600
|
400
|
300
|
45
|
|
WC67Y700/7000
|
7000
|
7000
|
5600
|
400
|
300
|
45
|

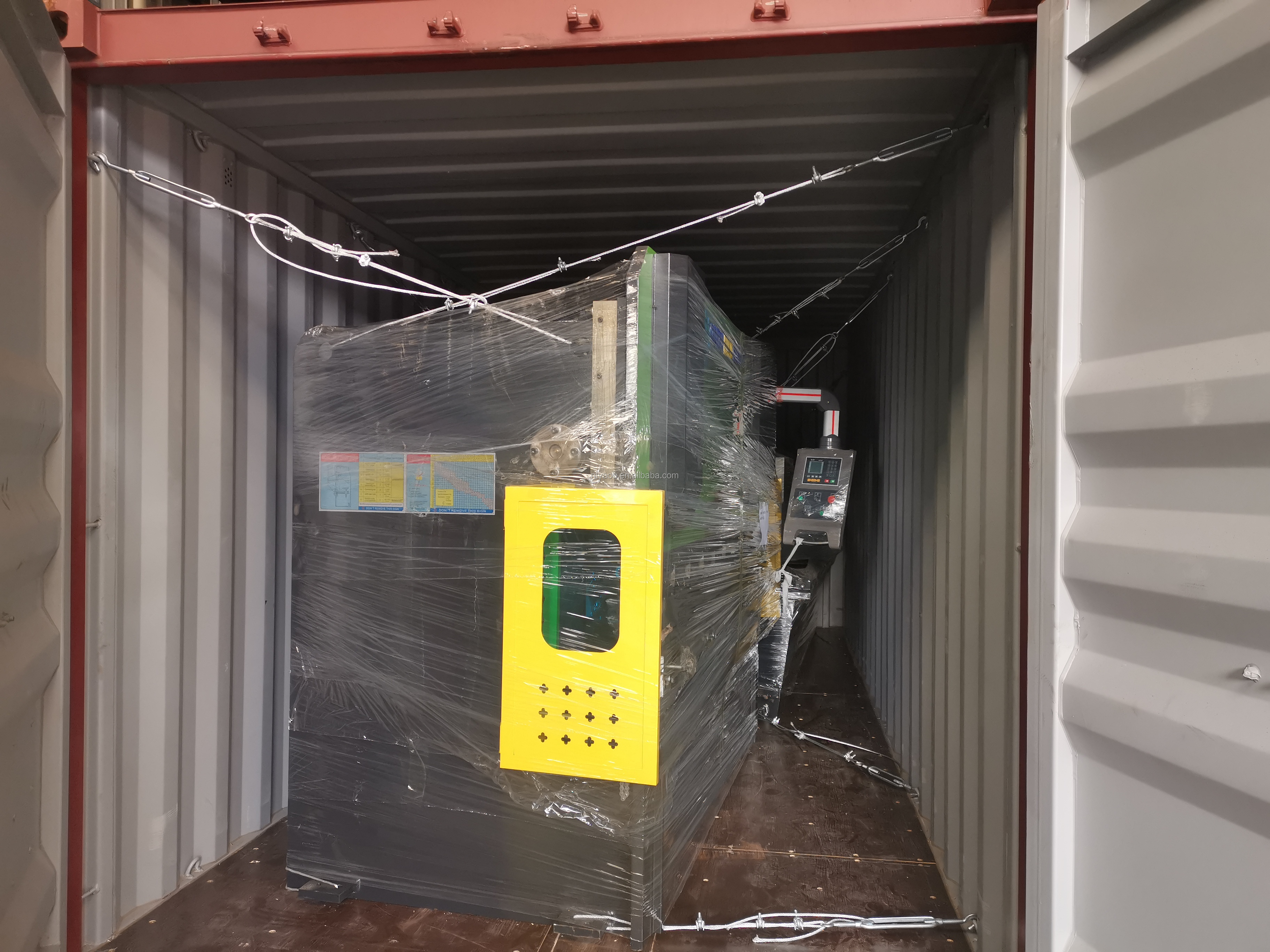

Transportation is based on customers in different regions using steam, rail, road and air transportation.
Rugao You Inport & Export Co. LTD was established in 2004, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.
Our company mainly deals in Hardware Tools , combined tools, electric tools, Special Tools For Petroleum, Metal Processing Machinery and petroleum drilling equipment. Diagonal Cutting Plier，Oil Drill Pipes，Drilling Tools， Diesel Engine Etc.Our companyoperates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.
The company provides a variety of metal Processing Machinery: shears, rolling machines, bending machines, hydraulic presses, etc.
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost)
2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machineQ1. How to get an accurate quotation?.
