Products Description
Model No.: QC12K
Brand: YAOU
Maximum Board Width That Can Be Cut (mm): 4000
Degree Of Automation: Fully Automatic
Status: New
Place Of Origin: China
Warranty Period: 1 Year
Out-of-warranty Service: Video Technical Support
Applicable Industry: Machinery Repair Shops, Manufacturing Plant
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Uae, India, United States, Uzbekistan, United Kingdom, Turkey, Canada, Morocco, Kenya, Malaysia
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Uae
Marketing Type: New Product 2020
Mechanical Test Report: Provided
Video Factory Inspection: Provided
Core Component Warranty Period: 1 Year

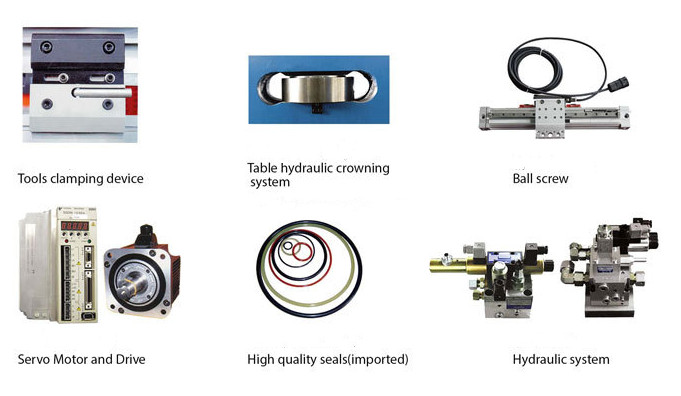

Core Components: Pump, Motor
Certification: Iso
Warranty: 1 Year
Condition: New
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
After Warranty Service: Video Technical Support, Online Support
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Place Of Origin: Jiangsu, China
Original: China
Year: 2020
Key Selling Points: Multifunctional
Colour: Any
Applicable Industries: Machinery Repair Shops, Manufacturing Plant
Brand Name: Yaou
Showroom Location: Uae, Uzbekistan
Core Components: Motor, Gearbox
Max. Cutting Width (mm): 2500
Automatic Level: Fully Automatic
Shearing Angle: 1-3
Blade Length (mm): 3000 Mm
Backgauge Travel (mm): 750 – 1000 Mm
Throat Depth (mm): 100 Mm
Power (kW): 11 Kw
Weight (KG): 4200 Kg
Voltage: 220v-380v
Dimension(L*W*H): 3140*1740*2040
After-sales Service Provided: Free Spare Parts, Video Technical Support, Engineers Available To Service Machinery Overseas
Local Service Location: Egypt, Turkey, Germany, Viet Nam, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Japan, Malaysia, Morocco, Kenya, South Korea, Chile, Uae, Colombia, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan
Rated Power: 11kw

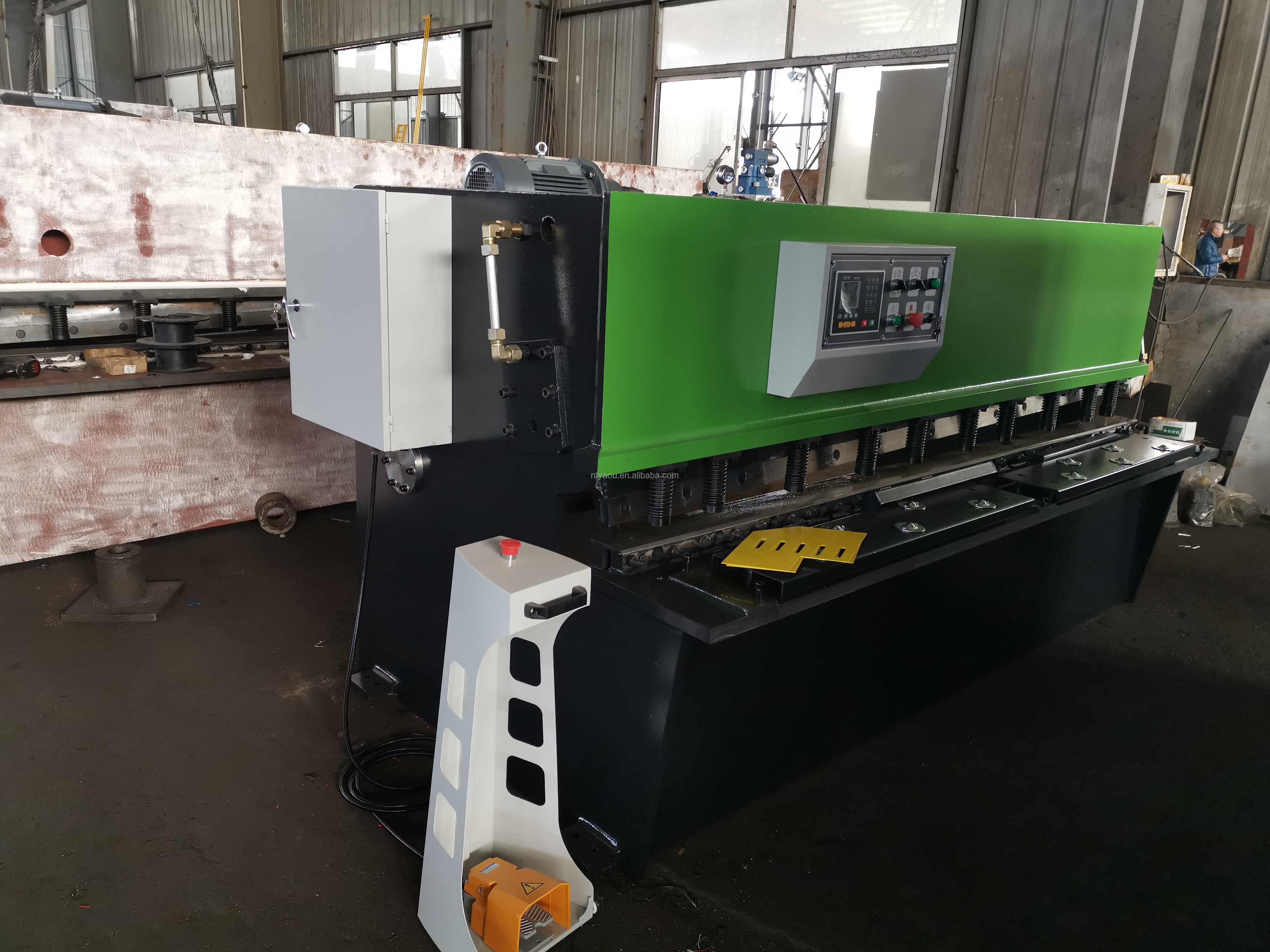

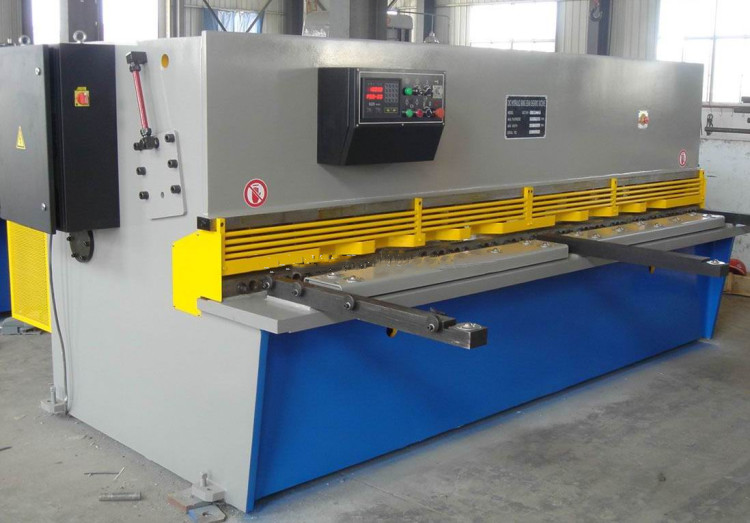

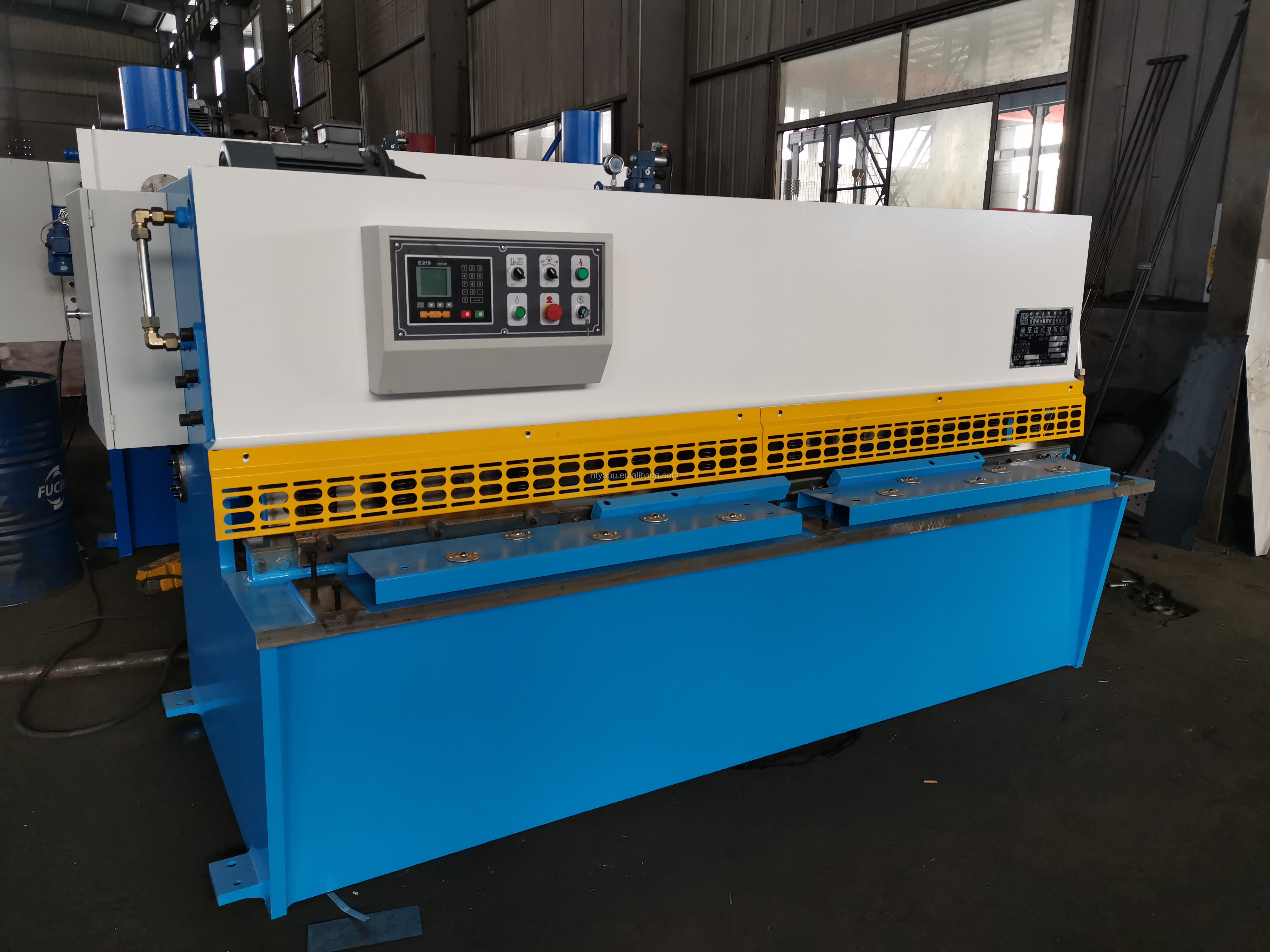

Name: Hydraulic Swing Beam Shear
Max. Cutting Thickness (mm): 6 Mm
Packaging: Standard export packing.
Productivity: 10
Transportation: Ocean,Land
Place of Origin: China
Supply Ability: 10 Set/Sets per Week
Certificate: CE
HS Code: 8462391000
Port: China
Payment Type: L/C,T/T,Western Union
Incoterm: FOB,CFR,CIF,EXW
- Selling Units:
- Set/Sets
- Package Type:
- Standard export packing.
Performance and characteristics:
Host selection SGS pendulum plate shears.

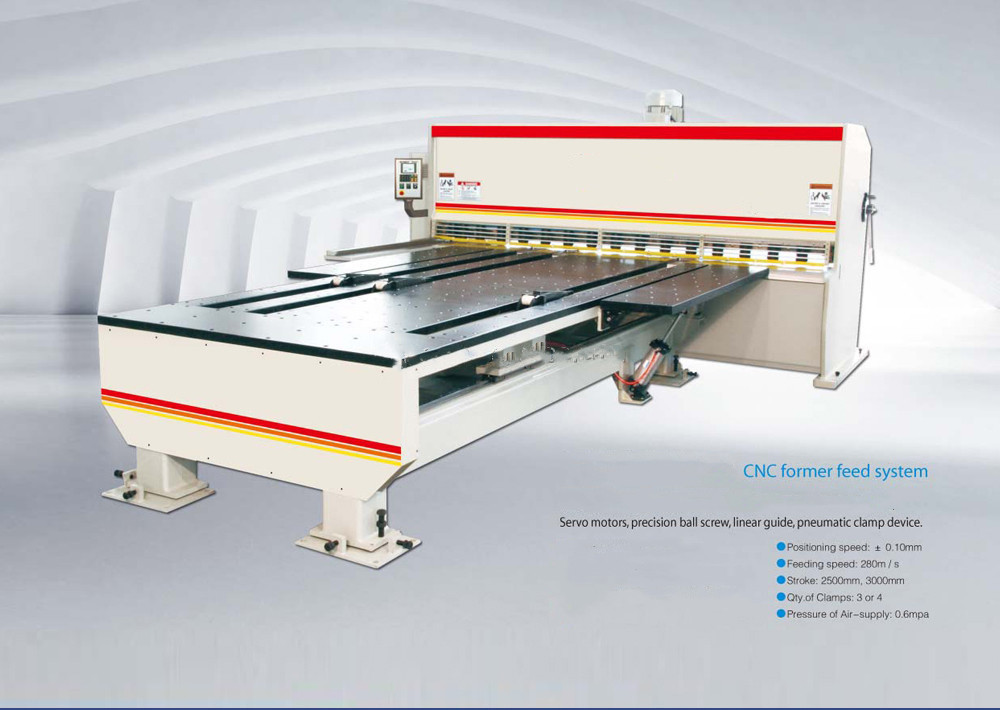

CNC control of the automatic feed mechanism can improve work efficiency.
Rolling the material holding the ball device to avoid the scratch the surface of the sheet.

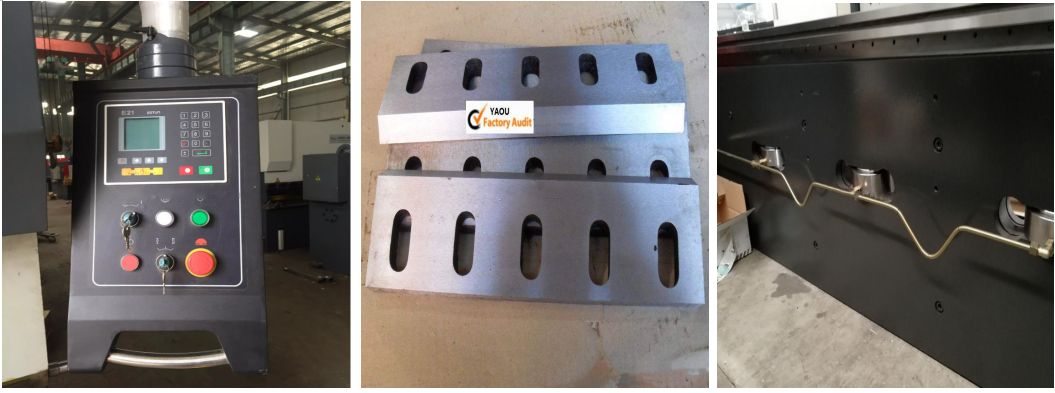

The numerical control system use the Netherlands DELEM DAC250.
|
model
|
Shear size
|
Shear angle
|
Cutting number
|
Back gauge
|
Main motor
|
Weight
|
Overall
|
|
(mm)
|
|
(min-1)
|
(mm)
|
(KW)
|
(kg)
|
dimensions
|
|
|
QC12K-4X2000
|
4X2000
|
1°30
|
≥18
|
20-600
|
7.5
|
4000
|
2650x1610x1650
|
|
QC12K-4X2500
|
4X2500
|
1°30
|
≥18
|
20-600
|
7.5
|
5200
|
3140x1610x1650
|
|
QC12K-6X2500
|
6X2500
|
1°30
|
≥18
|
20-600
|
7.5
|
5200
|
3140x1610x1650
|
|
QC12K-6X3200
|
6X3200
|
1°30
|
≥14
|
20-600
|
7.5
|
6260
|
3840x1610x1650
|
|
QC12K-6X4000
|
6X4000
|
1°30
|
≥10
|
20-600
|
11
|
8700
|
4640x1610x1700
|
|
QC12K-6X6000
|
6X6000
|
1°30
|
≥7
|
20-800
|
15
|
23000
|
6800x2300x2360
|
|
QC12K-8X2500
|
8X2500
|
1°30
|
≥14
|
20-600
|
11
|
5300
|
3140x1610x1650
|
|
QC12K-8X3200
|
8X3200
|
1°30
|
≥10
|
20-600
|
11
|
6300
|
3840x1610x1650
|
|
QC12K-8X4000
|
8X4000
|
1°30
|
≥8
|
20-600
|
11
|
9650
|
4680x1705x1700
|
|
QC12K-8X5000
|
8X5000
|
1°30
|
≥7
|
20-750
|
15
|
21000
|
5786x2252x2310
|
|
QC12K-10X2500
|
10X2500
|
2°
|
≥10
|
20-600
|
15
|
9150
|
4050x1690x1850
|
|
QC12K-10X3200
|
10X3200
|
1°48
|
≥8
|
20-600
|
15
|
9150
|
4050x1690x1850
|
|
QC12K-10X4000
|
10X4000
|
2°
|
≥10
|
20-800
|
18.5
|
14500
|
4765x2200x2100
|
|
QC12K-12X2500
|
12X2500
|
2°
|
≥10
|
20-600
|
15
|
7380
|
3350x1690x1850
|
|
QC12K-12X3200
|
12X3200
|
1°30
|
≥8
|
20-800
|
18.5
|
12500
|
4000x2050x2005
|
|
QC12K-12X4000
|
12X4000
|
2°
|
≥7
|
20-800
|
18.5
|
18000
|
4820x2300x2200
|
|
QC12K-16X2500
|
16X2500
|
2°
|
≥8
|
20-800
|
18.5
|
12200
|
7200x4100x4900
|
|
QC12K-16X3200
|
16X3200
|
2°
|
≥7
|
20-800
|
18.5
|
16300
|
4050x2190x2050
|
|
QC12K-16X4000
|
16X4000
|
2°
|
≥7
|
25-800
|
30
|
20000
|
4850x2350x2300
|
|
QC12K-20X2500
|
20×2500
|
2°30
|
≥6
|
20-800
|
37
|
14000
|
3440x2088x2570
|
|
QC12K-20X3200
|
20xx3200
|
2°30
|
≥5
|
25-800
|
37
|
20000
|
4150x2303x2636
|
|
QC12K-20X4000
|
20×4000
|
2°30
|
≥5
|
30-1000
|
37
|
25000
|
4950x2400x2730
|
|
|
Transportation is based on customers in different regions using steam, rail, road and air transportation.
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost)
2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machineQ1. How to get an accurate quotation?.
Tags:

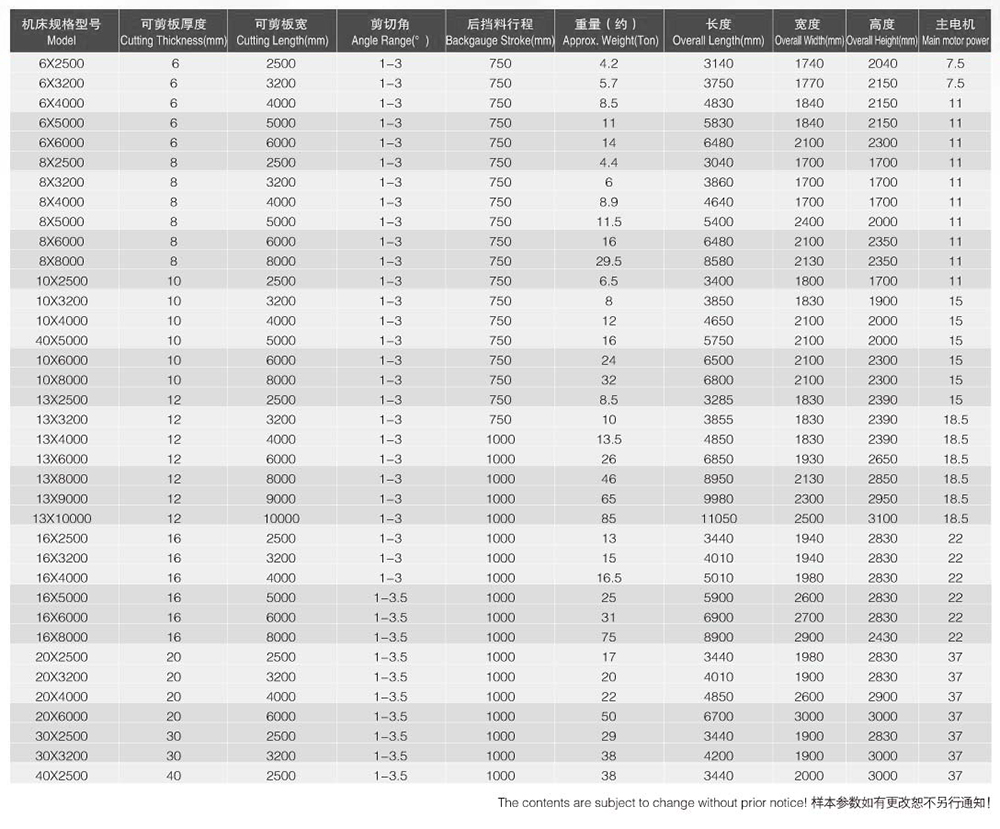

Technical parameter

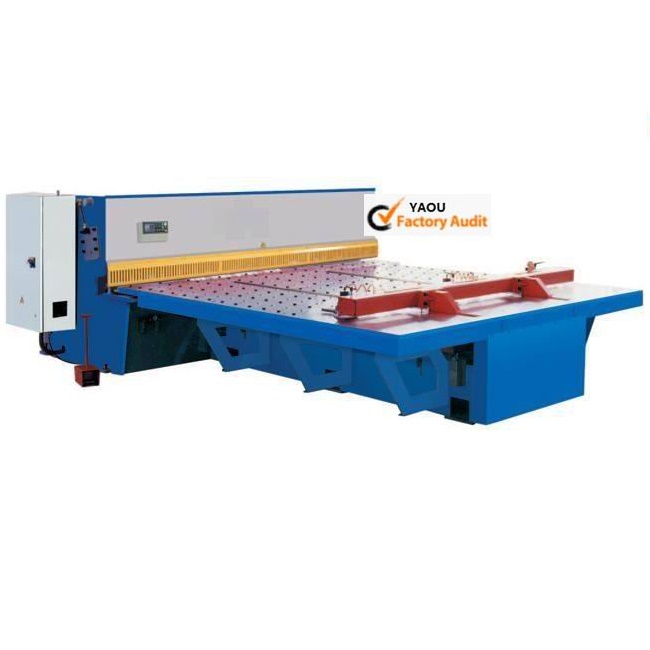

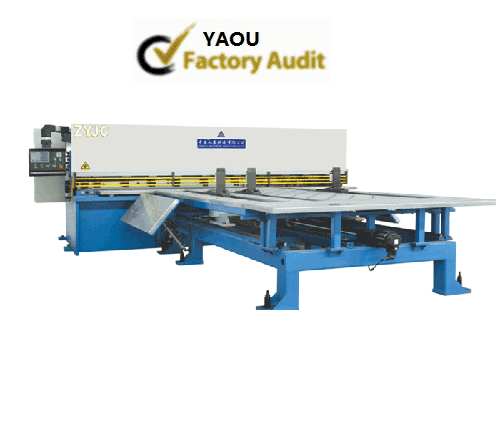

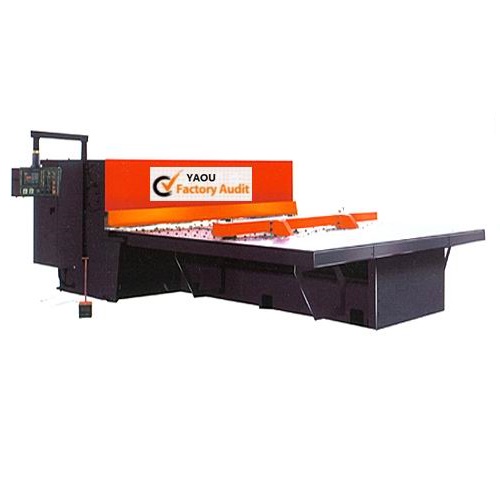

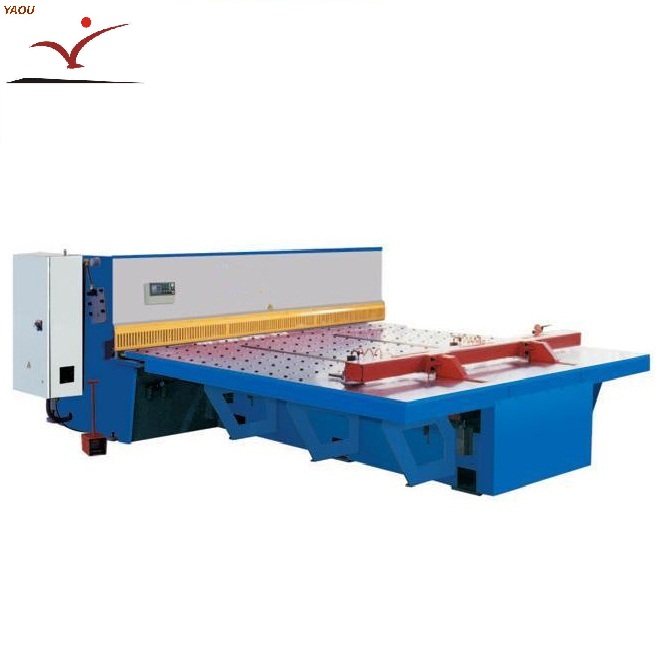

QC12K series hydraulic pendulum front feeding 1
