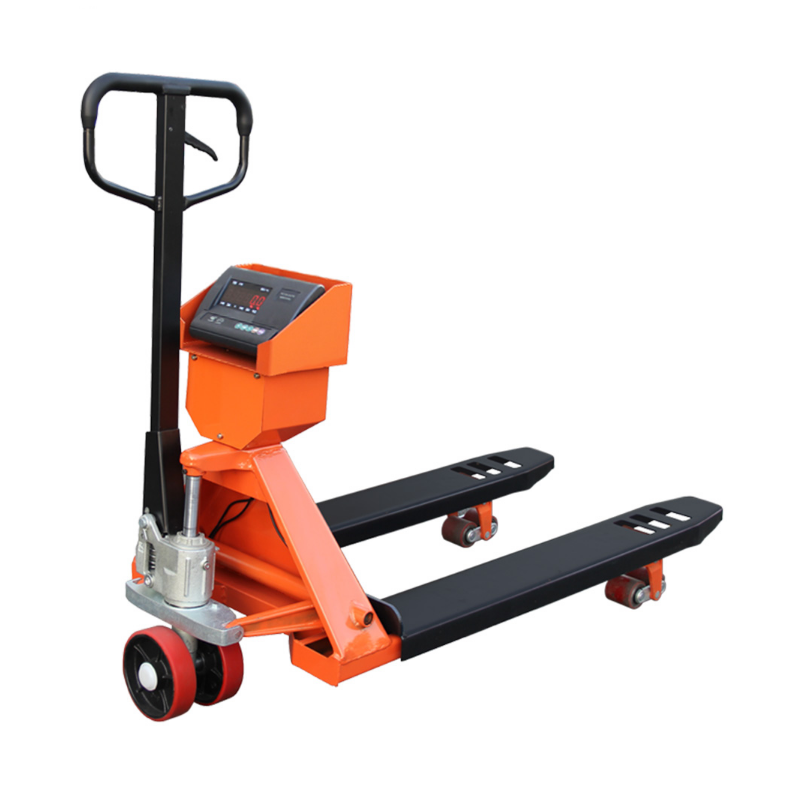

Manual hydraulic handling forklift lifting pallet cart

Description

Argument

Products Description

Overview

Product Attributes

Model No.: DF

Brand: yaou

Condition: New

Warranty: 1.5 Years

Applicable Industries: Manufacturing Plant, Construction Works

After Warranty Service: Video Technical Support, Online Support

Local Service Location: Egypt, Canada, United States, Philippines, Saudi Arabia, Indonesia, Russia, Japan, Uzbekistan

Showroom Location: Uae

Video Outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: New Product 2020

Status: New

Warranty Period: 1 Year

Applicable Industry: Machinery Repair Shops, Manufacturing Plant, Energy &Amp; Mining

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Uae

Showroom Location (in Which Countries Are There Sample Rooms Overseas): Uae

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Place Of Origin: China

Place Of Origin: Jiangsu, China

Supply Ability & Additional Information

Packaging: Standard export packing

Productivity: 100

Transportation: Ocean,Land,Air,Express

Place of Origin: china

Supply Ability: 100

Certificate: ISO

HS Code: 8427900000

Port: Shanghai

Payment Type: L/C,T/T,D/P,D/A

Incoterm: FOB,CFR,CIF,EXW

Packaging & Delivery

Selling Units:: Set/Sets

Package Type:: Standard export packing

Products Description

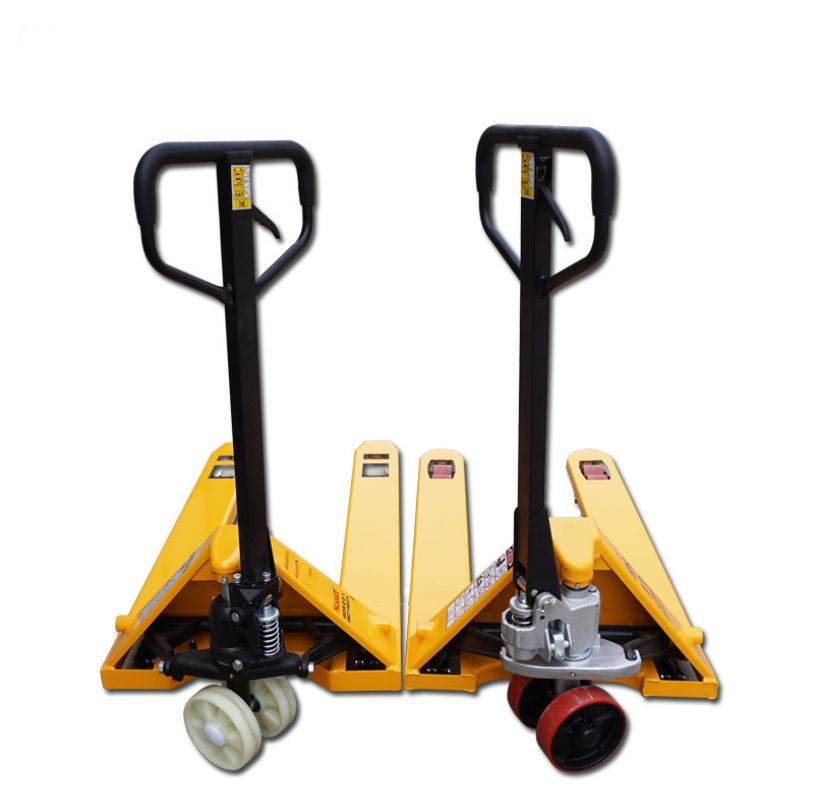

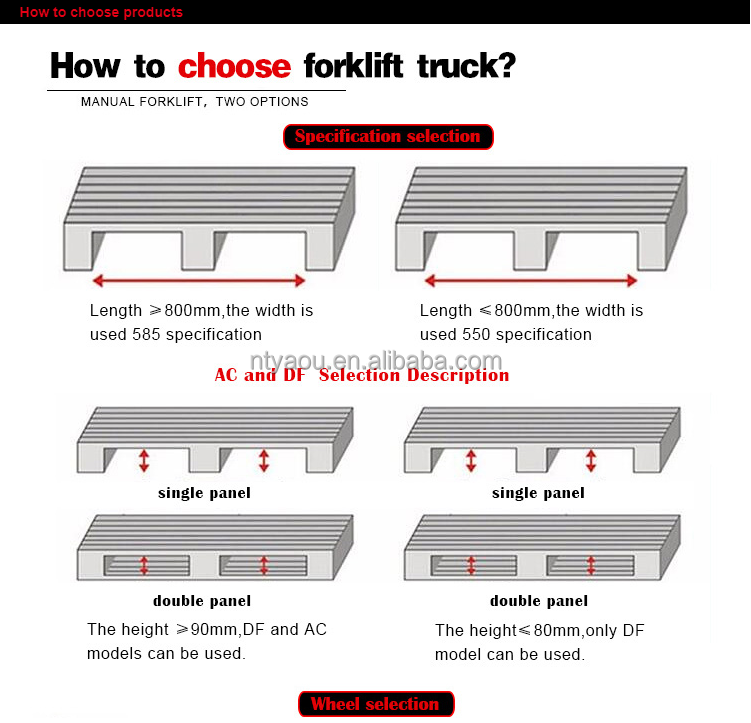

AC type and DF type: the difference between the two is in the oil Pump :
AC oil pump is a one-piece pump: it is cast and formed at one time. The advantage of the integrated pump is that it saves energy after loading; the valve of the integrated pump is an imported integrated valve core, which has a long service life; the key parts are imported from Germany to eliminate the drawbacks of oil leakage; the large and small piston rods are chrome-plated, and the structure is firm. , The internal relief valve has overload protection, which effectively avoids overloading.

DF's oil pump is a split pump: it is split welded, and the split pump is a split valve core
If wholesale, please ask Wangwang to consult the reserve price… We look forward to the cooperation and win-win of wholesalers! !
Starting at 6 units to enjoy the wholesale price-large quantity favorably-factory direct sales-nationwide delivery-genuine goods at a reasonable price

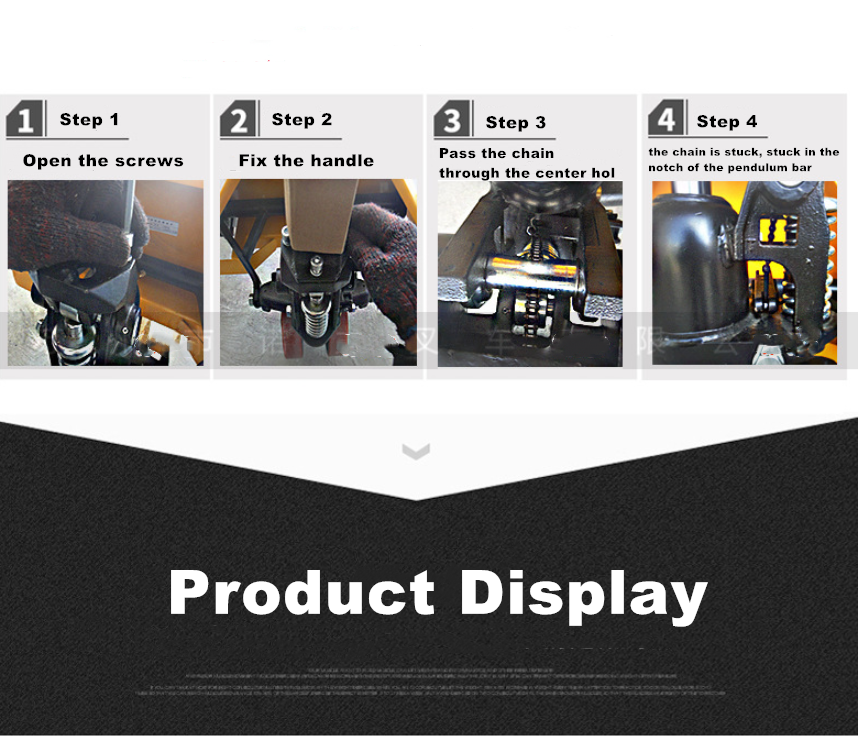

Note: The handle needs to be installed by the buyer. The oil pump is guaranteed for one year. The frame and the wearing parts of the wheels are not covered by the warranty. The goods belong to the large-scale delivery logistics. It is inevitable that there will be small areas of paint bumps, which are normal and do not affect the use.

Model	Size Parameters （MM）	Price
DF1.68 tons (narrow)	Load 1.68 tons, outer width 550MM, fork length 1150MM	1170
DF2 tons (narrow)	Load 2 tons, outer width 550MM, fork length 1150MM	1230
DF2 tons (width)	Load 2 tons, outer width 685MM, fork length 1220MM	1250
DF2.5 tons (narrow)	Load 2.5 tons, outer width 550MM, fork length 1150MM	1350
DF2.5 tons (width)	Load 2.5 tons, outer width 685MM, fork length 1220MM	1370
DF3 tons (narrow)	Load 3 tons, outer width 550MM, fork length 1150MM	1450
DF3 tons (width)	Load 3 tons, outer width 685MM, fork length 1220MM	1480
AC2.5 tons (narrow)	Load 2.5 tons, outer width 540MM, fork length 1150MM	1440
AC2.5 tons (width)	Load 2.5 tons, outer width 685MM, fork length 1220MM	1460
AC3 tons (narrow)	Load 3 tons, outer width 540MM, fork length 1150MM	1520
AC3 tons (width)	Load 3 tons, outer width 685MM, fork length 1220MM	1540

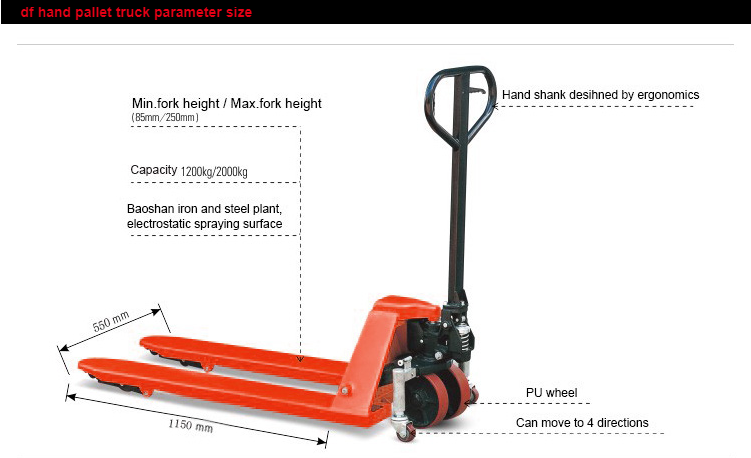

DF Transport Car parameters
model	Unit	DF168	DF20	DF25	DF30
specified load	Kg	1680	2000	2500	3000
Lower fork height	mm	75
Lifting height of fork	mm	190
Steering wheel, rear big wheel	mm	180*50
Load wheel, front small wheel	mm	74*55			74*70
Fork size	mm	150*50			160*60
Total fork width	mm	520*550	550/685
Fork length	mm	900/1150	900/1150/1220
Own weight	kg	55	55-65	65-70	73-80

AC Transport Car parameters
model	Unit	C25	AC30
specified load	Kg	2500	3000
Lower fork height	mm	85
Lifting height of fork	mm	200
Steering wheel, rear big wheel	mm	185*50
Load wheel, front small wheel	mm	80*70
Fork size	mm	160*50	160*60
Total fork width	mm	540*685
Fork length	mm	1150/1220
Own weight	kg	75	80

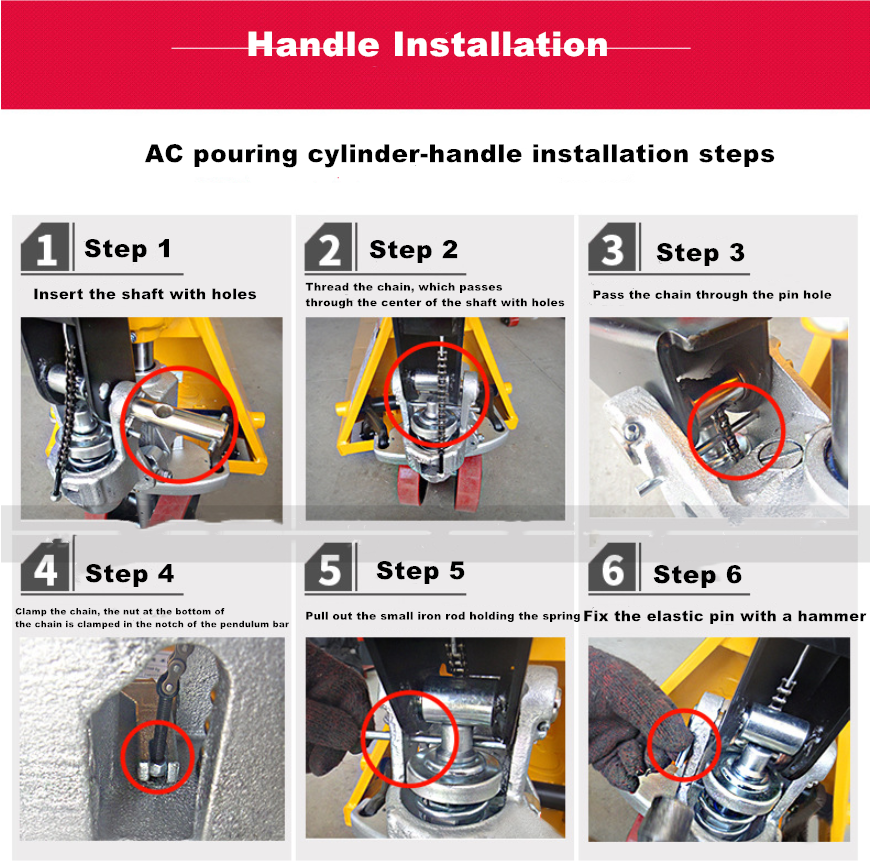

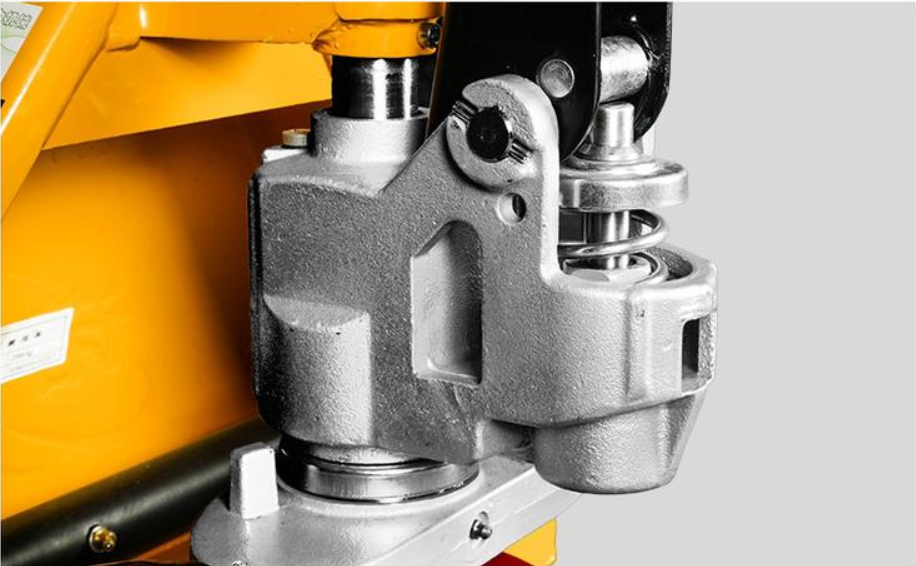

AC integrated casting pump

1.Good sealing performance:Overall seal, avoid leaking
2.Each piston rod with chromium plating treatment
3.Overflow valve has overload protection
4.Whole overflow valve in view,so can be fixed easy
Notice:The min lifting height is 85mm

DF welding pump

Reduce the whole pallet truck costs, affordable,
with the following advantages:
1. Oil pump with manual slow down Control valve, high safety
2. Three adjustable handle for easy operation
3. In the front of fork is cambered, easy to insert the pallet
4. C-type fork can support heavy load, durable
5. The fork can be manually adjusted to control
the minimum height of the fork
Notice:The min lifting height is 75mm

Strengthen the reinforcement more firmly Forklift fork back leg 4 80cm strengthen Steel bar, firmer.

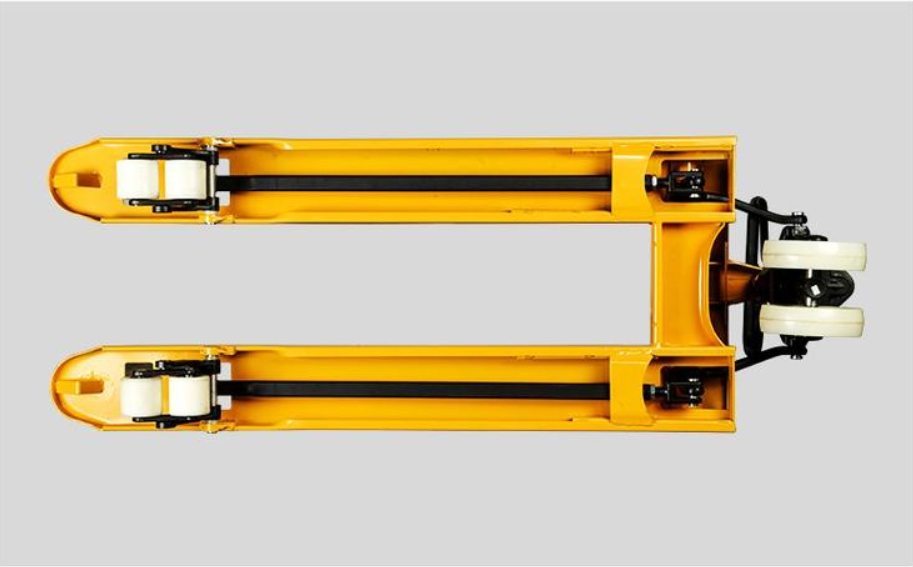

Fully enclosed rail Fully enclosed type steel rail, bearing force stronger.

Thickening wheel bracket pin 20cm wheel frame pin shaft to strengthen the sturdiness.

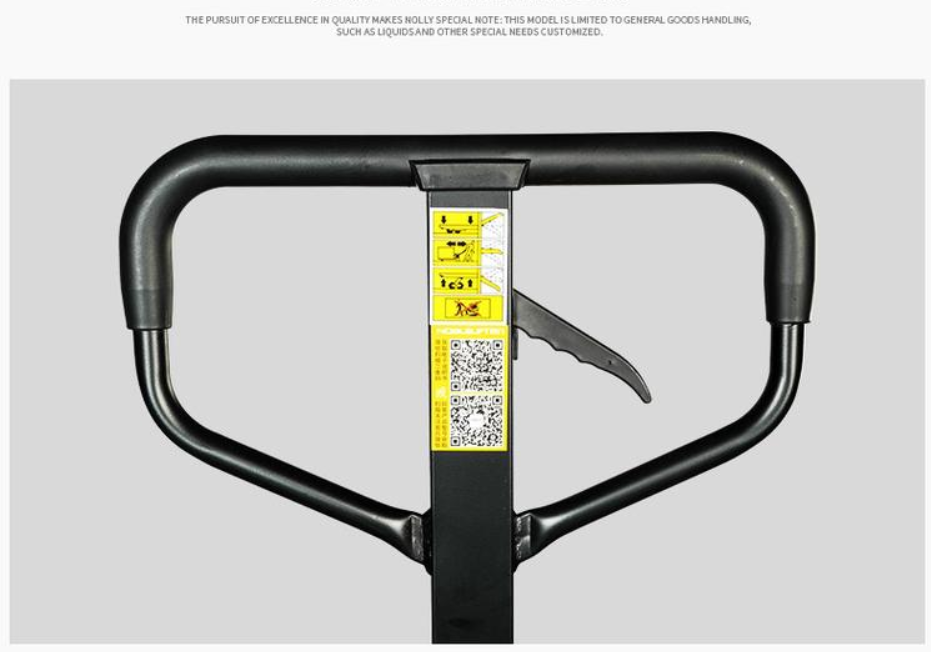

Groove wrapped handle Heart design, groove wrap, Feel good, not cool in winter, summer is not hot.

Forklift material Forklift material Forklift steel plate thickness up to 4 mm.

Welding technology Manual welding with welding machine, welding seam levelinglncrease product carrying capacity.

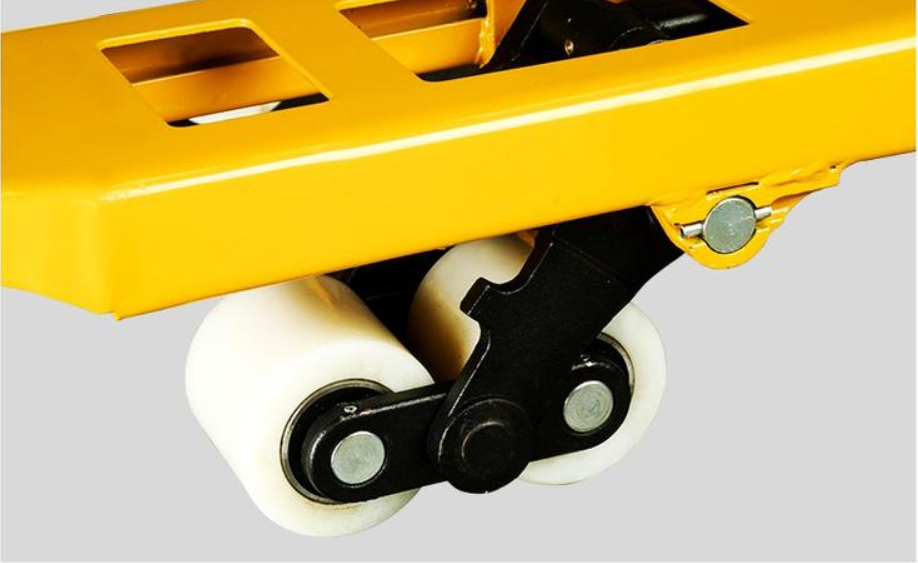

The nylon wheel has low turning power,

Light pulling, stable chemical properties and so on,

Suitable for the use of cement ground

PU wheel (also called polyurethane wheel)

Wear resistance, no indentation, mute, shock absorption,

It is suitable for marble, paint and epoxy floor

Product packaging

According to the volume and weight of the product and export requirements, provide multi-layer boxes and iron box packaging.
Transportation is based on customers in different regions using steam, rail, road and air transportation.

Company Profile

Rugao You Inport & Export Co. LTD was established in 2004, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.

Our company mainly deals in Hardware Tools, combined tools, electric tools, Special Tools For Petroleum, Metal Processing Machinery and petroleum drilling equipment. Diagonal Cutting Plier，Oil Drill Pipes，Drilling Tools，Diesel Engine Etc.Our companyoperates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.

Certifications

FAQ

Q1. How to get an accurate quotation?
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost)
2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machineQ1. How to get an accurate quotation?.
