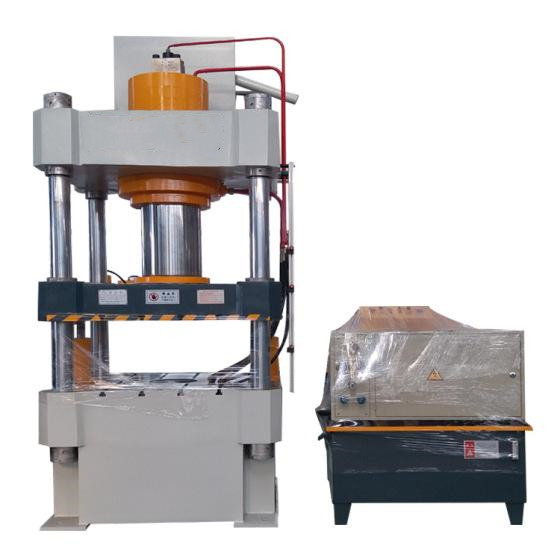

ZY32 400T four columns hydraulic press machine

Description

Argument

Products Description

Overview

Product Attributes

Model No.: ZY32 400T

Brand: NTDY

Slide Stroke (mm): 800

Machine Type: Four-Column Two-Beam Hydraulic Press

Ejector Force (kN): 630

System: Normal

Condition: New

Brand Name: Yaou

Year: 2020

Dimension(L*W*H): 3235*2200*4500

Weight (T): 17.5 T

Model Number: Zy32 400t

Key Selling Points: Multifunctional

Warranty: 1 Year

After-sales Service Provided: Online Support, Video Technical Support

After Warranty Service: Video Technical Support, Online Support, Spare Parts

Applicable Industries: Machinery Repair Shops, Manufacturing Plant, Energy & Mining

Local Service Location: Egypt, Turkey, Viet Nam, Indonesia, Pakistan, India, Mexico, Russia, Morocco, Kenya, Uae, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan

Showroom Location: Egypt, Uae, Uzbekistan

Marketing Type: New Product 2020

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Warranty Of Core Components: 1 Year

Core Components: Motor, Pump

CNC Or Not: Cnc

Power Source: Hydraulic

Material: Carbon

Type: Press, Hydraulic Press

Certificate: Iso9001

Capacity: 400ton

Colour: Any

Nominal Force (kN): 4000

Status: New

Place Of Origin: China

Core Selling Point: Automatic

Warranty Period: 3 Years

Out-of-warranty Service: Video Technical Support

Applicable Industry: Machinery Repair Shops, Manufacturing Plant

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Uae, Uzbekistan, United States, Mexico, Russia, Italy, Pakistan, United Kingdom, Indonesia, Saudi Arabia, Turkey, South Africa, Kazakhstan

Showroom Location (in Which Countries Are There Sample Rooms Overseas): Uae

Mechanical Test Report: Provided

Video Factory Inspection: Provided

Core Component Warranty Period: 1 Year

Return Force (kN): 630 Kn

Place Of Origin: Jiangsu, China

Voltage: 220v-380v

Certification: Iso, Din

Motor Power (kw): 22 Kw

Model: Zy32

Nominal Force (kN): 4000 Kn

Supply Ability & Additional Information

Packaging: packed in wooden box or container

Productivity: 10

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 10

Certificate: ISO

HS Code: 8462919000

Port: Shanghai

Payment Type: T/T,L/C,D/P

Incoterm: FOB,CFR,CIF,EXW

Packaging & Delivery

Selling Units:: Set/Sets

Package Type:: packed in wooden box or container

Picture Example:

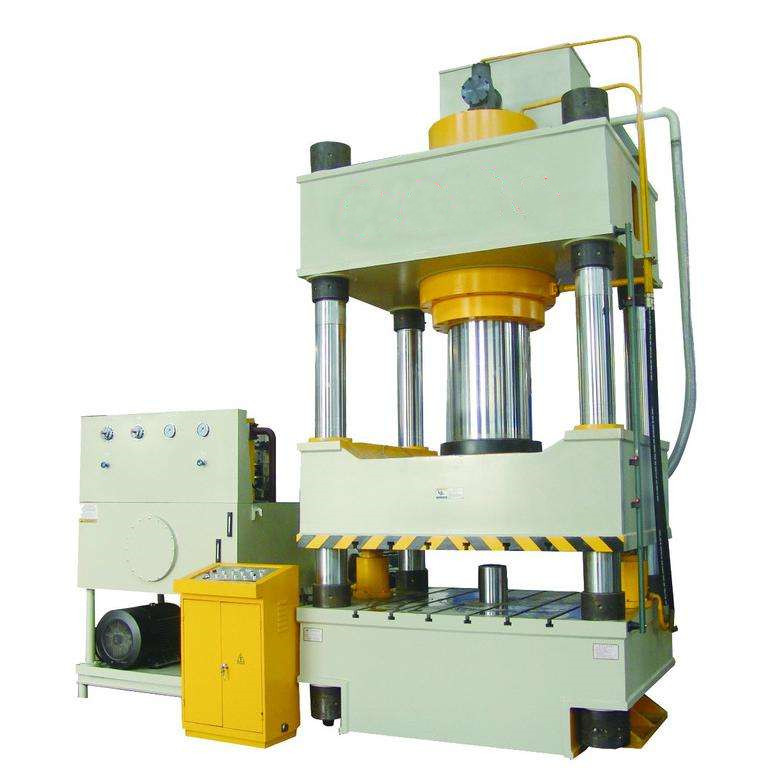

Product Overview

ZY32 400T Four Columns Hydraulic Press Machine,Factory processing equipment

This series product applies to press techniques of various plastic materials, such as punching, bending, crimping, etc. Besides, it can also be used for amendment, pushing mounting, forming of grinding wheel, press forming of plastic, rubber and powder products.
The host machine of this series applies three-girder and four-pillar structure. The hydraulic system applies Cartridge Valve oil line. The electric system applies relay or PLC to control circuit. It has the adjustable and semi-automatic operation mode. The whole machine features simple and compact structure, economical and reasonable price, reliable operation, long-term life, slight hydraulic impact force and less connection pipelines and leakage..
The work pressure, press speed, stroke range of this series can be adjustable within the specific range according to technical requirements and process preset pressure mode and stroke mode. During the preset pressure forming, there is pressure maintenance delay and automatic return after the press. There is the knockouts device used as hydraulic cushion for forming of drawing products except for knocking out products

FEATURES AT A GLANCE

ZY32 400T four columns Hydraulic Press Machine,Factory processing equipment，Metal Processing Machinery, shears, bending machines, bending machines, etc.
.

Parameter		Unit	ZY32-400
Nominal pressure		KN	4000
Hydraulic cushion force		KN	630
Max work pressure of liquid		Mpa	25
Slide block stroke		mm	800
Max stroke of cushion		mm	300
Max distance from bottom surface of slide block to worktable		mm	1300
Slide block stroke speed	Descent	mm/s	120
	Pressing	mm/s	5-7
	Return	mm/s	45
Worktable Dimension	left/right	mm	1200
Worktable Dimension	front/behind	mm	1200
Cushion Dimension	left/right	mm	3235
Cushion Dimension	front/behind	mm	2200
Height above ground		mm	4500
Electric Power		kw	22
Weight		kg	17500

Right elevation

Left elevation

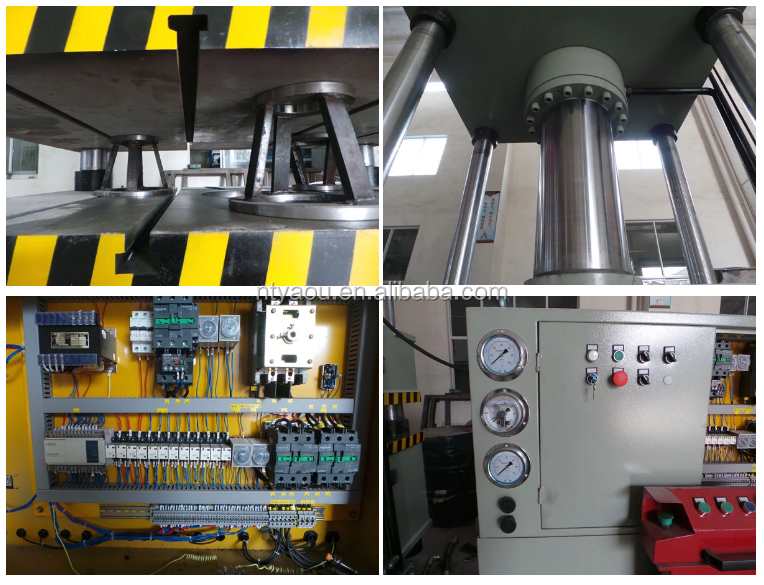

PRODUCT CONFIGURATION

SALES AND SERVICE NETWORK

Successful Project

Our company mainly deals in Hardware Tools , combined tools, electric tools, Special Tools For Petroleum, metal Processing Machinery and petroleum drilling equipment. Diagonal Cutting Plier，Oil Drill Pipes，Drilling Tools， Diesel Engine Etc.Our companyoperates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.

FAQ

Q1. How to get an accurate quotation?
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost)
2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machineQ1. How to get an accurate quotation?.
