Products Description
Model No.: Y32-100T
Nominal Force (kN): 1000
Machine Type: Four-Column Two-Beam Hydraulic Press
System: Servo
Status: New
Place Of Origin: China
Core Selling Point: Automatic
Warranty Period: 1 Year
Out-of-warranty Service: Video Technical Support
Applicable Industry: Manufacturing Plant, Machinery Repair Shops
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Uae, Uzbekistan, Russia, United Kingdom, United States, Turkey, Morocco
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Uae
Marketing Type: New Product 2020
Mechanical Test Report: Provided
Video Factory Inspection: Provided
Core Component Warranty Period: 1 Year
Core Components: Motor, Pump
Warranty: 1 Year
Condition: New
Place Of Origin: Jiangsu, China
Color: Blue
Applicable Industries: Manufacturing Plant, Machinery Repair Shops
Material: Carbon Steel
Processing Type: Other
Certification: Api
Machine Type: Drilling Equipment
Use: Well Drilling
Showroom Location: Egypt, Uae, Uzbekistan, Morocco
Type: Hydraulic Support
Local Service Location: Egypt, Canada, Turkey, Indonesia, Pakistan, India, Mexico, Russia, Malaysia, Morocco, Argentina, Chile, Uae, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan
Brand Name: Yaou
Productivity: 1000
Transportation: Ocean,Land,Air
Place of Origin: CHINA
Supply Ability: 10
Port: Shanghai
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
- Selling Units:
- Set/Sets
- Picture Example:
-

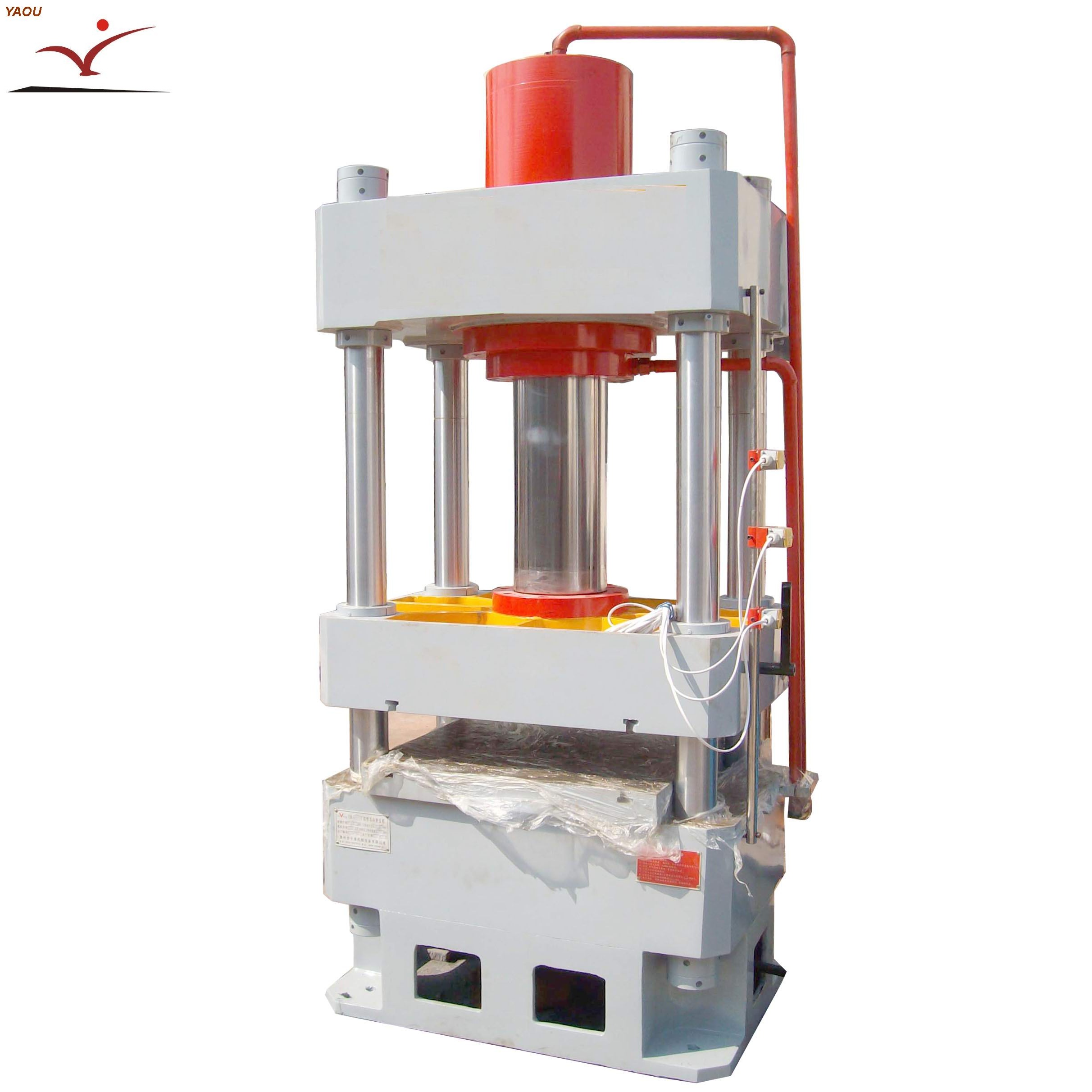

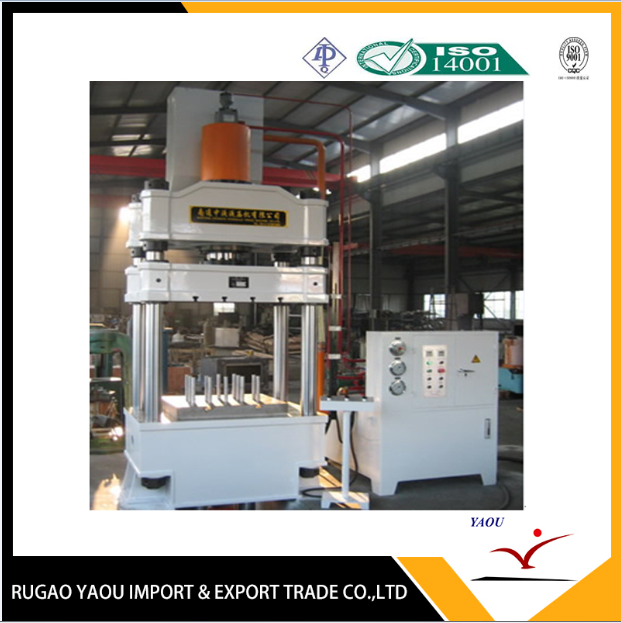

Y32-100 press machine
Use end and characteristics:
This series product applies to press techniques of various plastic materials, such as punching, bending, crimping, etc. Besides, it can also be used for amendment, pushing mounting, forming of grinding wheel, press forming of plastic, rubber and powder products.
The host machine of this series applies three-girder and four-pillar structure. The hydraulic system applies Cartridge Valve oil line. The electric system applies relay or PLC to control circuit. It has the adjustable and semi-automatic operation mode. The whole machine features simple and compact structure, economical and reasonable price, reliable operation, long-term life, slight hydraulic impact force and less connection pipelines and leakage.
The work pressure, press speed, stroke range of this series can be adjustable within the specific range according to technical requirements and process preset pressure mode and stroke mode. During the preset pressure forming, there is pressure maintenance delay and automatic return after the press. There is the knockouts device used as hydraulic cushion for forming of drawing products except for knocking out products.
Main technical parameter:
|
Parameter |
Unit |
Four-pillar Versatile Hydraulic Press |
|
|
ZY32-100 |
|||
|
Nominal pressure |
KN |
630 |
|
|
Knockouts force |
KN |
190 |
|
|
Max work pressure of liquid |
Mpa |
25 |
|
|
Stroke of Slide block |
mm |
400 |
|
|
Stroke of Knockouts |
mm |
150 |
|
|
Max distance from bottom surface of the slide block to worktable |
mm |
700 |
|
|
Stroke speed of slide block |
Descent |
mm/s |
220 |
|
Processing |
mm/s |
16 |
|
|
Return |
mm/s |
150 |
|
|
Worktable dimension |
Left/Right |
mm |
580 |
|
font/behind |
mm |
500 |
|
|
Overall Dimension |
Left/Right |
mm |
2400 |
|
font/behind |
mm |
1400 |
|
|
Height above ground |
mm |
3100 |
|
|
Electric Power |
kw |
5.5 |
|
|
Weight |
kg |
3800 |
|
According to the volume and weight of the product and export requirements, provide multi-layer boxes and iron box packaging.
Transportation is based on customers in different regions using steam, rail, road and air transportation.
Our company mainly deals in Hardware Tools, combined tools, electric tools, Special Tools For Petroleum, Metal Processing Machinery and petroleum drilling equipment. Diagonal Cutting Plier，Oil Drill Pipes，Drilling Tools，Diesel Engine Etc.Our companyoperates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers
FAQ
Q1. How to get an accurate quotation?
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost)
2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machine
