Custom high speed full automatic Hydraulic Press Machine

Description

Argument

Products Description

Overview

Product Attributes

Model No.: Y32-100

Brand: NTDY

Brand Name: Yaou

Condition: New

Warranty: 1 Year

After-sales Service Provided: Online Support, Video Technical Support, Engineers Available To Service Machinery Overseas

Key Selling Points: Automatic

After Warranty Service: Video Technical Support, Online Support

Local Service Location: Japan, Malaysia, Morocco, Uae, Kazakhstan, Uzbekistan, Tajikistan, Turkey, United Kingdom, Italy, Pakistan, India, Mexico, Russia

Applicable Industries: Machinery Repair Shops, Manufacturing Plant, Energy & Mining

Showroom Location: Uae, Kyrgyzstan, United States

Place Of Origin: China

Status: New

Machine Type: Hydraulic Scrap Shears

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Motor, Pump

Warranty Period: 1 Year

Core Selling Point: Automatic

Out-of-warranty Service: Video Technical Support

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Uae, Russia, Turkey, Australia, Indonesia, India, Viet Nam

Applicable Industry: Manufacturing Plant, Machinery Repair Shops

Showroom Location (in Which Countries Are There Sample Rooms Overseas): Uae, Indonesia

Place Of Origin: Jiangsu, China

Machine Type: Processmachine

Supply Ability & Additional Information

Packaging: packed in the wooden box

Productivity: 10

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 10

Certificate: CE

HS Code: 8462919000

Port: shanghai

Payment Type: L/C,T/T

Incoterm: FOB

Packaging & Delivery

Selling Units:: Set/Sets

Package Type:: packed in the wooden box

Product Description

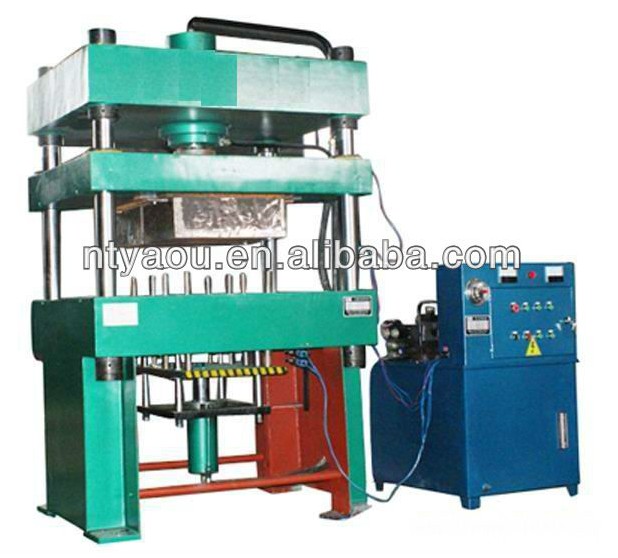

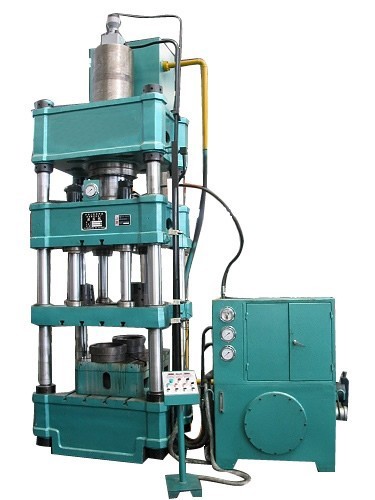

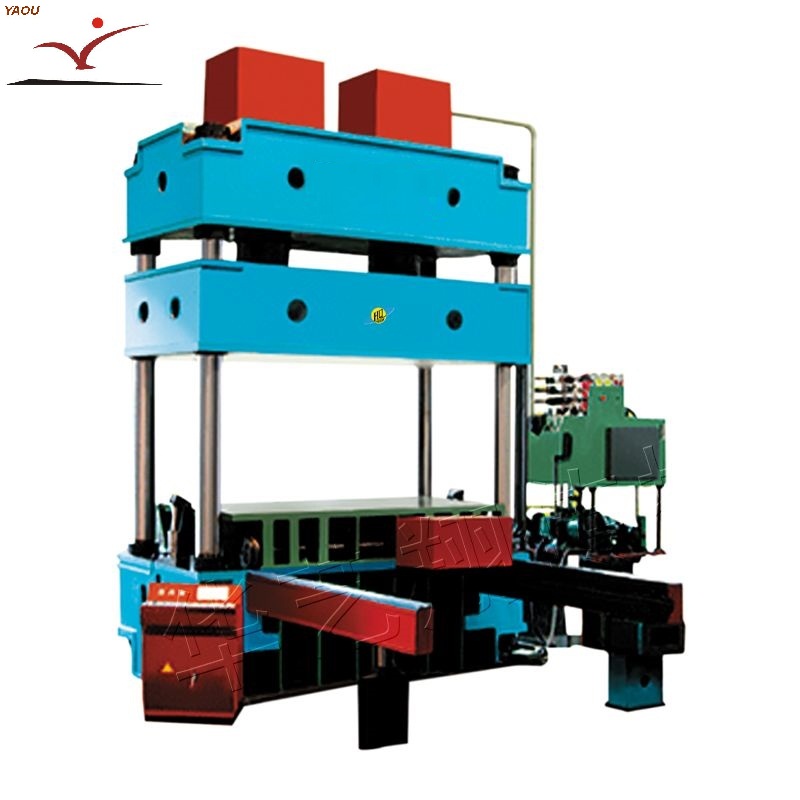

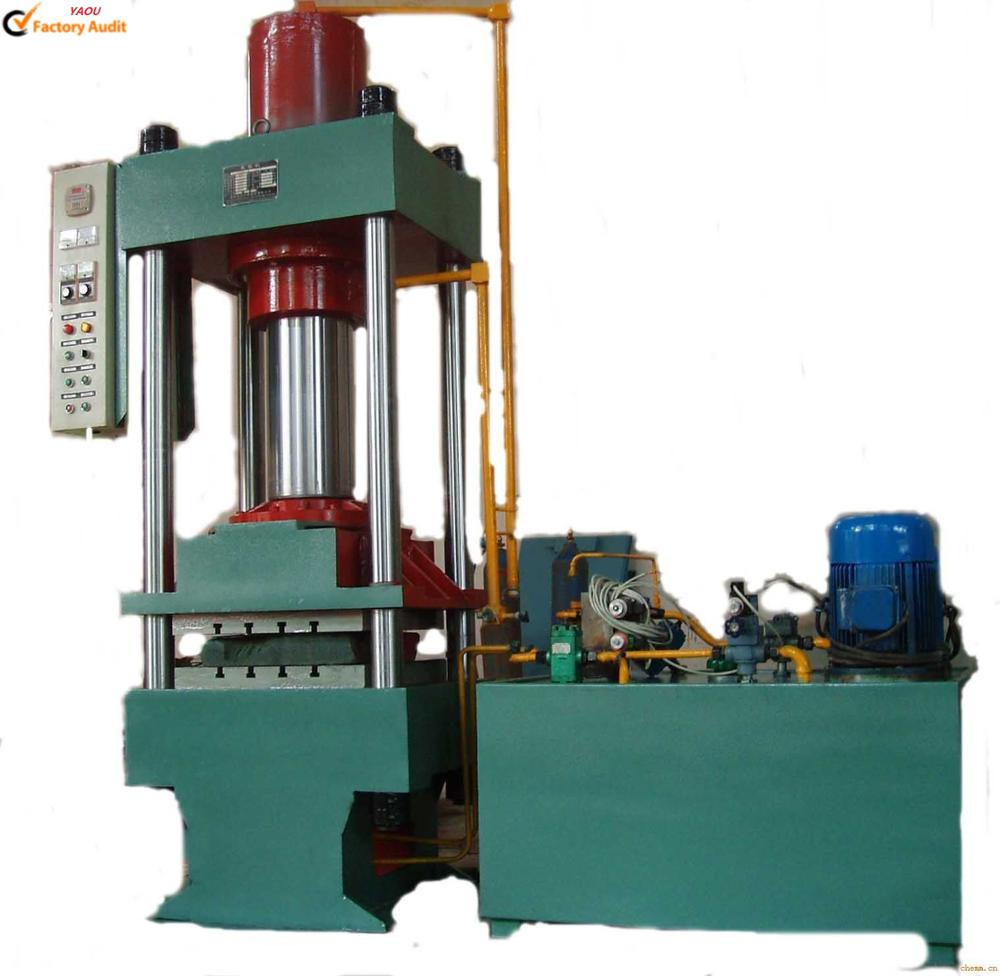

Y32 Series Hydraulic Press Machine

Characteristics :

This machine is suitable for the plastic material suppressed craft,like flushes carries,is curving,the flange,the thin steel plate stretch and so on. Also may be engaged in the adjustment,the pressure attire,the grinding wheel takes shape,the cold extrusion metal parts takes shape,the plastic product and the powder product suppression takes shape the craft,affter is joined to the blanking buffer mechanism to be possible to use in the punch holes,the material processing.
This machine has the independent actuating unit and the electrical system,and uaes the button common control,may realize the adjustment,manual and the semiautomatic three operating mode.
This machine working pressure,the suppressed speed,the travelling schedule scope may need to carry on the adjustment according to the craft.And can complete the constant pressure and decide the regulation two crafts ways,craft of way the constant pressure has after the suppression guarantees presses with the time delay automatic return trip movement

Options:

·Photoelectricity protective device
·Hydraulic system
·The travelling schedule,the pressure,the time number reveal
·The hydraulic system heats up,the cooling systen
·PLC programmable controler
·Blanking buffer mechanism
·The mold heats up and warm controls the installment
·Trades the mold and rolls the bracket with the fluctuation guide rail.

Technical specifications:

Item		Unit	Y32-40	Y32-63	Y32-100	Y32-100A	Y32-160	Y32-200	Y32-200A	Y32-315	Y32-315A	Y32-400
Nominal force		kN	400	630	1000	1000	1600	2000	2000	3150	3150	4000
Return force		kN	180	135	315	165	200	450	240	630	300	500
Ejector force		kN	100	100	190	190	240	400	400	630	630	630
Max.pressure of liquid		MPa	25	25	25	25	25	25	25	25	25	25
Max.slide stroke		mm	450	500	600	600	700	700	700	800	800	800
Max.stroke of knock out		mm	150	150	200	200	200	250	250	250	250	300
Slide to work table maximum range		mm	700	800	900	900	1050	1100	1100	1250	1250	1300
Slide speed	Quick under	mm/s	40	100	22	160	160	100	200	100	200	120
	Slow under	mm/s	8-20	8-20	6-14	6-14	6-10	6-12	6-12	6-12	6-12	4-10
	Return trip	mm/s	52	100	47	85	70	60	100	60	120	70
Slide bolck speed	Goes against	mm	95	50	70	70	65	65	65	55	55	55
Slide bolck speed	Returns	mm	120	100	140	140	100	95	95	110	110	110
Table area	L-R	mm	460	580	720	720	1000	1000	1000	1250	1250	1200
Table area	F-B	mm	460	480	580	580	700	900	900	1120	1120	1200
Overali dimensions	L-R	mm	1385	2000	2160	2160	2700	2825	2825	3200	3200	3200
Overali dimensions	F-B	mm	920	1500	1504	1504	1700	2060	2050	2100	2100	2100
Total power		kW	5.5	7.5	7.5	7.5	11	15	15	22	22	22

Item		Unit	Y32- 500	Y32- 500A	Y32- 630	Y32- 630A	Y32- 800	Y32- 800A	Y32- 1000	Y32- 1000A	Y32- 1250	Y32- 1600	Y32 -2000
Nominal force		kN	5000	5000	6300	6300	8000	8000	10000	10000	12500	16000	20000
Return force		kN	1000	1000	1250	1250	1200	1200	1300	1300	1100	2000	2600
Ejector force		kN	1000	1000	1000	1000	1000	1600	1000	1000	2000	2000	2000
Max.pressure of liquid		MPa	25	25	25	25	25	25	25	25	25	25	25
Max.slide stroke		mm	900	900	900	900	900	1000	900	1000	900	900	1000
Max.stroke of knock out		mm	350	350	350	350	350	350	350	400	300	450	300
Slide to work table maximum range		mm	1500	1500	1500	1500	1500	1600	1500	1600	1400	1600	2500
Slide speed	Quick under	mm/s	120	160	120	120	120	120	120	120	120	120	120
	Slow under	mm/s	5-12	5-12	5-8	5-8	6-15	6-15	5-12	5-12	4-10	6-10	4-8
	Return trip	mm/s	80	80	60	60	110	110	100	100	120	150	120
Slide bolck speed	Goes against	mm	80	80	80	80	140	140	140	140	70	100	100
Slide bolck speed	Returns	mm	160	160	150	150	150	150	150	150	150	200	200
Table area	L-R	mm	1400	2200	1320	1600	1500	2000	1500	2000	1500	2500	2000
Table area	F-B	mm	1400	1400	1200	1600	1500	1500	1500	1800	1500	1800	2000
Overali dimensions	L-R	mm	4060	5000	4000	4200	5100	4300	4900	4750	5250	5800	8000
Overali dimensions	F-B	mm	3525	3525	2350	4200	4200	1600	3400	2650	3800	4000	3000
Total power		kW	37	37	45	45	74	74	74	74	74	90	100

Hydraulic Press Machine

SKYE:YAOUTADE2….

Certifications

Rugao Yaou Import and Export Trade Co., Ltd is an international integrative corporation in oil/gas drilling industry, combined with sales, service and technical consult. it was founded in 2002.

Our supply scope has covered most products of oil/gas drilling and service: Oil Drilling Rig/workover rig, spare parts on rig, drill handling tools, Downhole Tools, pipe line, wellhead control equipment, solid control equipment. Well cement tools, fishing tools, Oil Production Tools etc, as well as accessories.

yaou(API9001)

Our Services

We provide the technical support for whole life. Meanwhile,

if any parts go broken and not artificial damage, we will send you new ones for free.

When need the technician to go abroad, we will arrange the technician.

But the buyer should take all the cost, including Visa, Round-trip ticket, suitable accommodation and pay the service fee to the technician with $50/days

Packaging & Shipping

According to the volume and weight of the product and export requirements, provide multi-layer boxes and iron box packaging.

Transportation is based on customers in different regions using steam, rail, road and air transportation.

Global Logistics

FAQ

Q1. How to get an accurate quotation?

A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,

Q2. What if I use this machine for the first time and know nothing of it ?

A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.

Q3. How does your factory do regarding quality control?

A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .

Q4. How about your delivery time?

A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.

Q5. What is the warrantee period of the machine?

A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.

Q6. after-sales service

A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and

accommodation cost)

2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machine
