Products Description
Model No.: YJZ28 series
Brand: NTDY
Slide Stroke (mm): 300-2000
Machine Type: Four-Column Two-Beam Hydraulic Press
Ejector Force (kN): 190-16000
System: Normal
Condition: New
Brand Name: Yaou
Year: 2020
Dimension(L*W*H): 1260*1160
Weight (T): 10 T
Model Number: Yjz28
Key Selling Points: Multifunctional
Warranty: 1 Year
After-sales Service Provided: Online Support, Video Technical Support, Engineers Available To Service Machinery Overseas
After Warranty Service: Video Technical Support, Online Support
Applicable Industries: Machinery Repair Shops, Manufacturing Plant
Local Service Location: Egypt, Turkey, United Kingdom, Germany, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Thailand, Malaysia, Morocco, Kenya, South Korea, Chile, Uae, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan
Showroom Location: Egypt, Uae, Uzbekistan
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1.5 Years
Core Components: Motor, Pump
CNC Or Not: Cnc
Power Source: Hydraulic
Nominal Force (kN): 30000
Status: New
Place Of Origin: China
Core Selling Point: Multifunctional
Warranty Period: 2 Years
Out-of-warranty Service: Video Technical Support
Applicable Industry: Manufacturing Plant, Machinery Repair Shops
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Uae, Russia, Uzbekistan, United Kingdom, Malaysia
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Uae, Uzbekistan
Mechanical Test Report: Provided
Video Factory Inspection: Provided
Core Component Warranty Period: 1 Year
Return Force (kN): 100 Kn
Place Of Origin: Jiangsu, China
Voltage: 380v/220v Optional
Certification: Iso9001:2008
Motor Power (kw): 7.5 Kw
Packaging: export standard packing for YJZ28 series Four Column frame type Double Action Sheet Stretching Hydraulic Press machine
Productivity: 10
Transportation: Ocean,Land
Place of Origin: China
Supply Ability: 100 Set/Sets per Month
Certificate: CE
HS Code: 8462919000
Port: China Port
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
- Selling Units:
- Set/Sets
- Package Type:
- export standard packing for YJZ28 series Four Column frame type Double Action Sheet Stretching Hydraulic Press machine

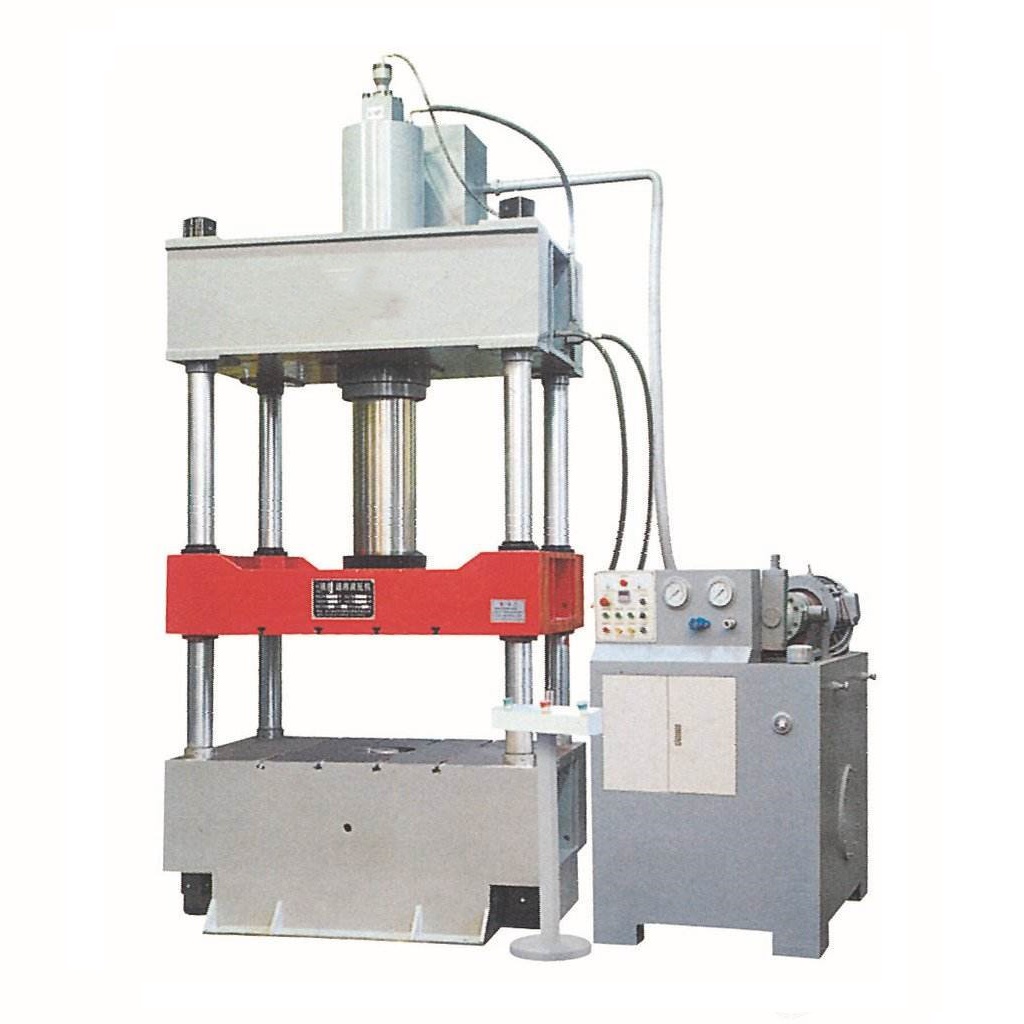

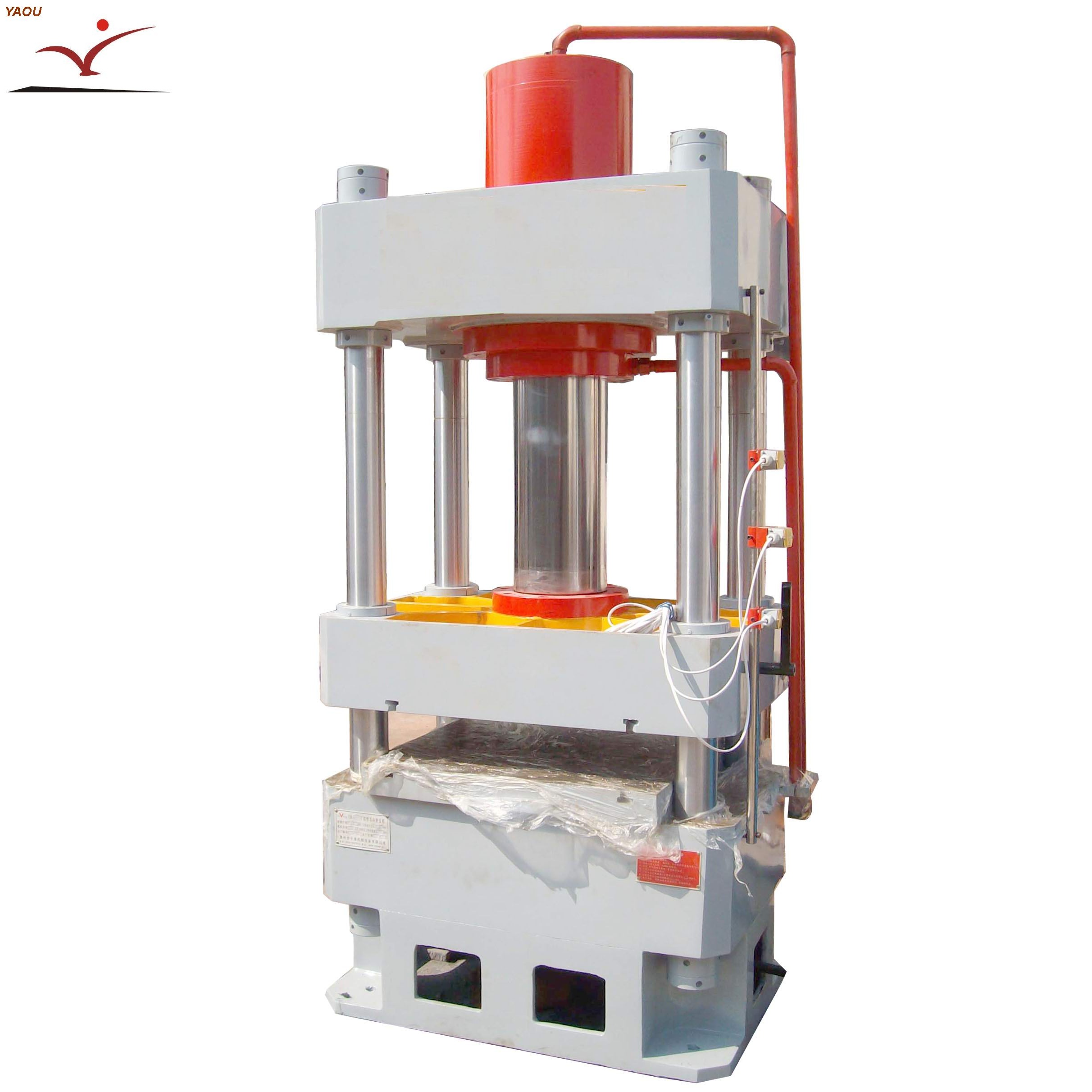

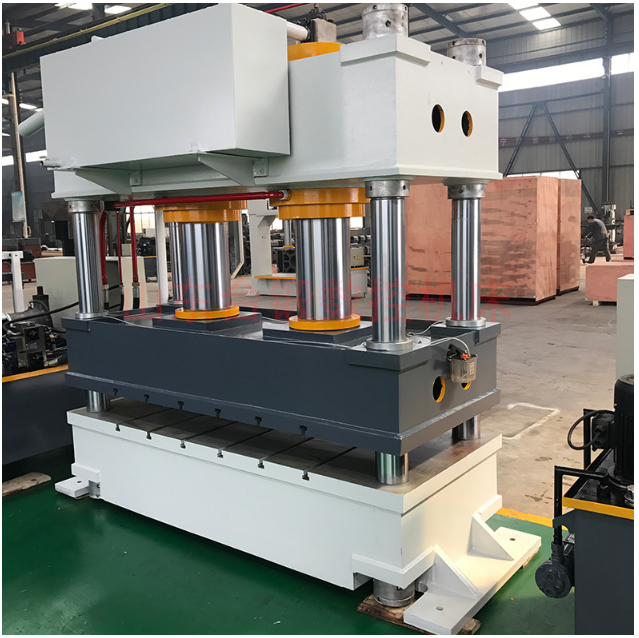

Hydraulic Press four column hydraulic press machine Features
1.Hydraulic machine that used the hydrostatic pressure to process metal, plastic, rubber, wood, powder and other products 2. It is commonly used in the pressing process and press forming process, such as: forging, stamping, cold extrusion,
straightening, bending, flanging, sheet metal deep drawing, powder metallurgy, press-fit etc.
3.Significant technical and economic advantages in reducing weight, reducing the number of parts and the number of molds, improve the stiffness and strength, reduce production costs, etc.
|
Model
|
YJZ28-100/150
|
YJZ28-160/250
|
YJZ28-200/315
|
YJZ28-400/650
|
YJZ28-500/820
|
YJZ28-630/1030
|
||
|
Nominal power
|
kN
|
1500
|
2500
|
3150
|
6300
|
8200
|
10300
|
|
|
Stretching force
|
kN
|
1000
|
1600
|
2000
|
4000
|
5000
|
6300
|
|
|
Blank Holder Blank Holder Force
|
kN
|
125×4=500
|
225×4=900
|
288×4=1152
|
630×4=2520
|
800×4=3200
|
1000×4=4000
|
|
|
Ejector cylinder ejection force
|
kN
|
190
|
280
|
400
|
630
|
1000
|
1250
|
|
|
Stretching slider return force
|
kN
|
165
|
210
|
240
|
500
|
900
|
850
|
|
|
Return force of blank holder
|
kN
|
29×4=116
|
41×4=164
|
66×4=264
|
134×4=536
|
150×4=600
|
240×4=960
|
|
|
Large working pressure of liquid
|
Mpa
|
25
|
25
|
25
|
25
|
25
|
25
|
|
|
Center hole size of blank holder
|
mm
|
φ350
|
φ450
|
φ550
|
800×800
|
1400×800
|
1600×1000
|
|
|
Stretching slider large opening height
|
mm
|
900
|
1100
|
1250
|
1500
|
1600
|
1800
|
|
|
Large opening height of blank holder
|
mm
|
650
|
800
|
900
|
1050
|
1100
|
1250
|
|
|
Stretching slider large stroke
|
mm
|
500
|
560
|
710
|
800
|
800
|
900
|
|
|
Large stroke of blank holder
|
mm
|
500
|
560
|
710
|
800
|
800
|
900
|
|
|
Ejection cylinder stroke
|
mm
|
200
|
200
|
250
|
350
|
350
|
400
|
|
|
Effective size of stretching slider
|
about
|
mm
|
800
|
1120
|
1200
|
1600
|
2200
|
2500
|
|
Before and after
|
mm
|
800
|
1000
|
1200
|
1600
|
1600
|
1800
|
|
|
Effective size of blank holder
|
about
|
mm
|
800
|
1120
|
1200
|
1600
|
2200
|
2500
|
|
Before and after
|
mm
|
800
|
1000
|
1200
|
1600
|
1600
|
1800
|
|
|
Stretching slider speed
|
Air travel
|
mm/s
|
80
|
100
|
120
|
120
|
130
|
150
|
|
jobs
|
mm/s
|
8-20
|
8-20
|
8-20
|
5-12
|
7-15
|
7-15
|
|
|
Return
|
mm/s
|
120
|
140
|
150
|
85
|
80
|
105
|
|
|
Blanking slider speed
|
Air travel
|
mm/s
|
70
|
80
|
90
|
100
|
110
|
130
|
|
jobs
|
mm/s
|
16-40
|
15-35
|
15-35
|
8-20
|
9-23
|
9-23
|
|
|
Return
|
mm/s
|
170
|
170
|
135
|
90
|
120
|
95
|
|
|
Worktable effective size
|
about
|
mm
|
800
|
1120
|
1200
|
1600
|
2200
|
2500
|
|
Before and after
|
mm
|
800
|
1000
|
1200
|
1600
|
1600
|
1800
|
|
|
Machine dimensions
|
about
|
mm
|
2700
|
3200
|
3600
|
4100
|
4800
|
5300
|
|
Before and after
|
mm
|
1400
|
1500
|
1700
|
1800
|
2000
|
2200
|
|
|
Height above ground
|
mm
|
3300
|
3900
|
4300
|
4800
|
5200
|
5700
|
|
|
Motor Power
|
kW
|
5.5+5.5+3=14
|
7.5+7.5+3=18
|
15+7.5+4=26.5
|
15+15+4=34
|
22+22+7.5=51.5
|
30+30+7.5=67.5
|
|
|
Total weight of the machine
|
kg
|
7200
|
12500
|
17500
|
38000
|
62000
|
85000
|
|

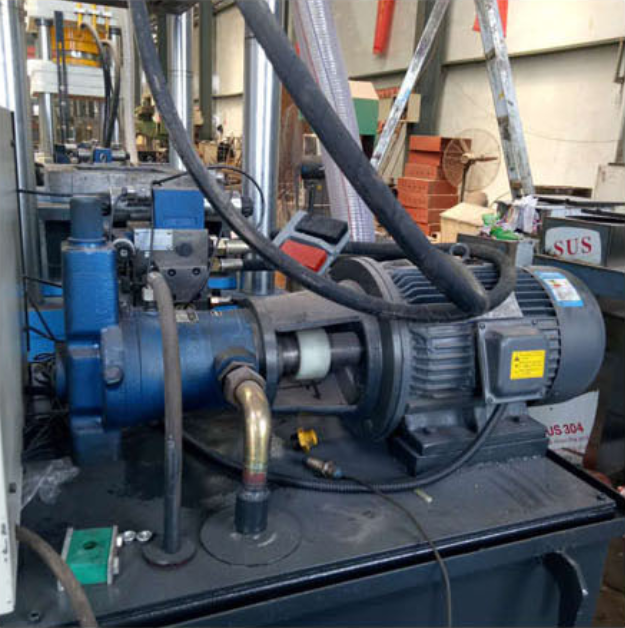

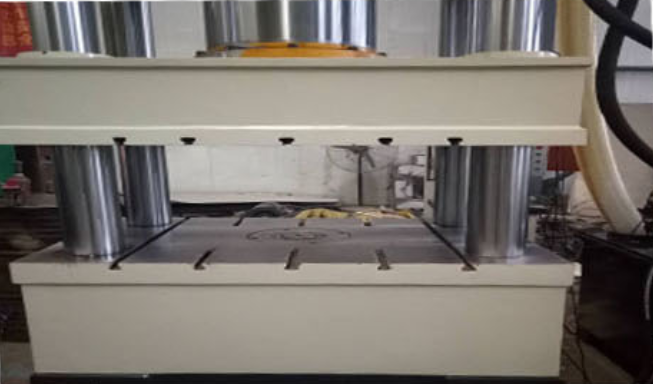

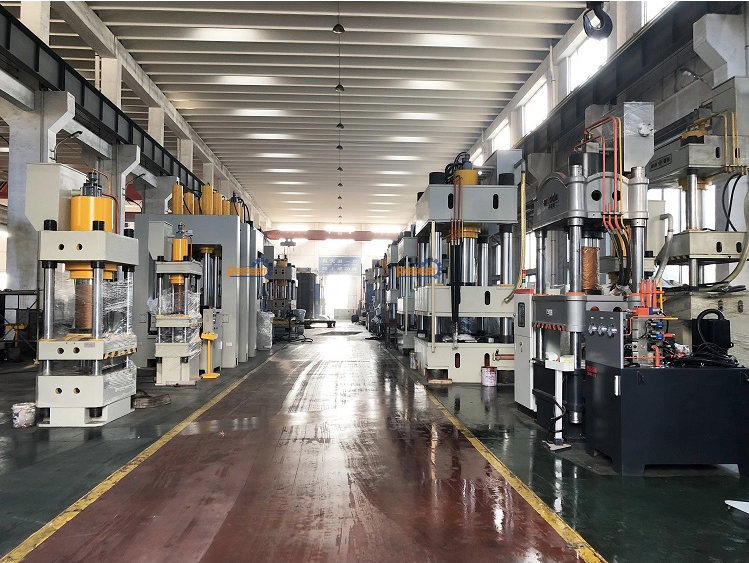

Details Images
Transportation is based on customers in different regions using steam, rail, road and air transportation.

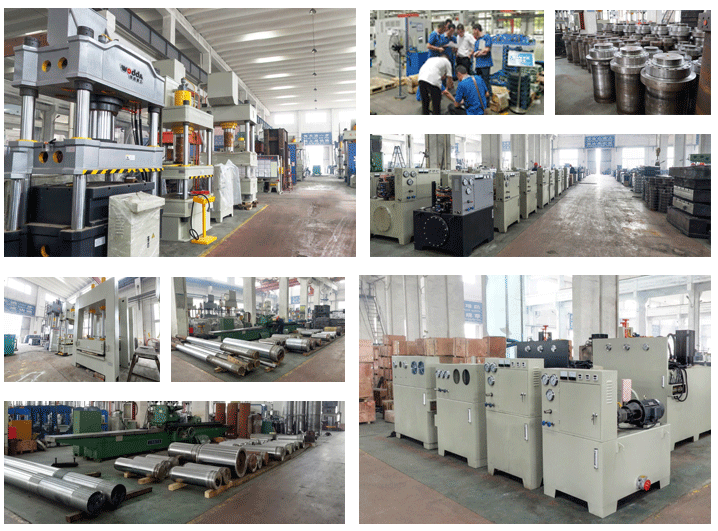

Rugao You Inport & Export Co. LTD was established in 2004, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.
The company also provides C hydraulic press machine,Factory processing equipment，Metal Processing Machinery, shears, bending machines, bending machines, etc.
FAQ
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost)
2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machineQ1. How to get an accurate quotation?.
Rugao Yaou Import & Export Co. LTD was established in 2004, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.
Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. Our company also operates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.
Tags:
Technical parameter

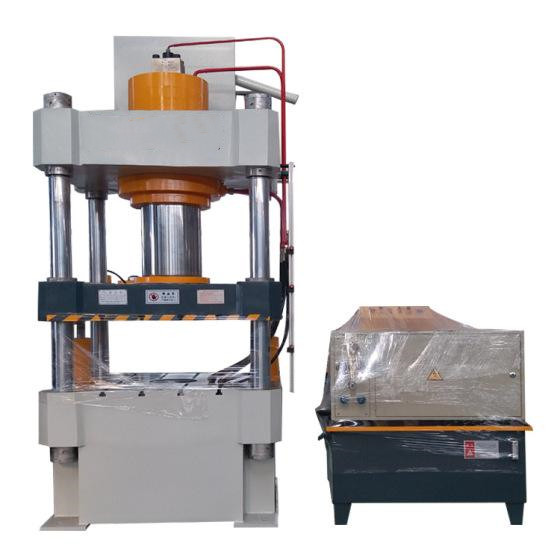

Four Column Sheet Stretching Hydraulic Press machine 1

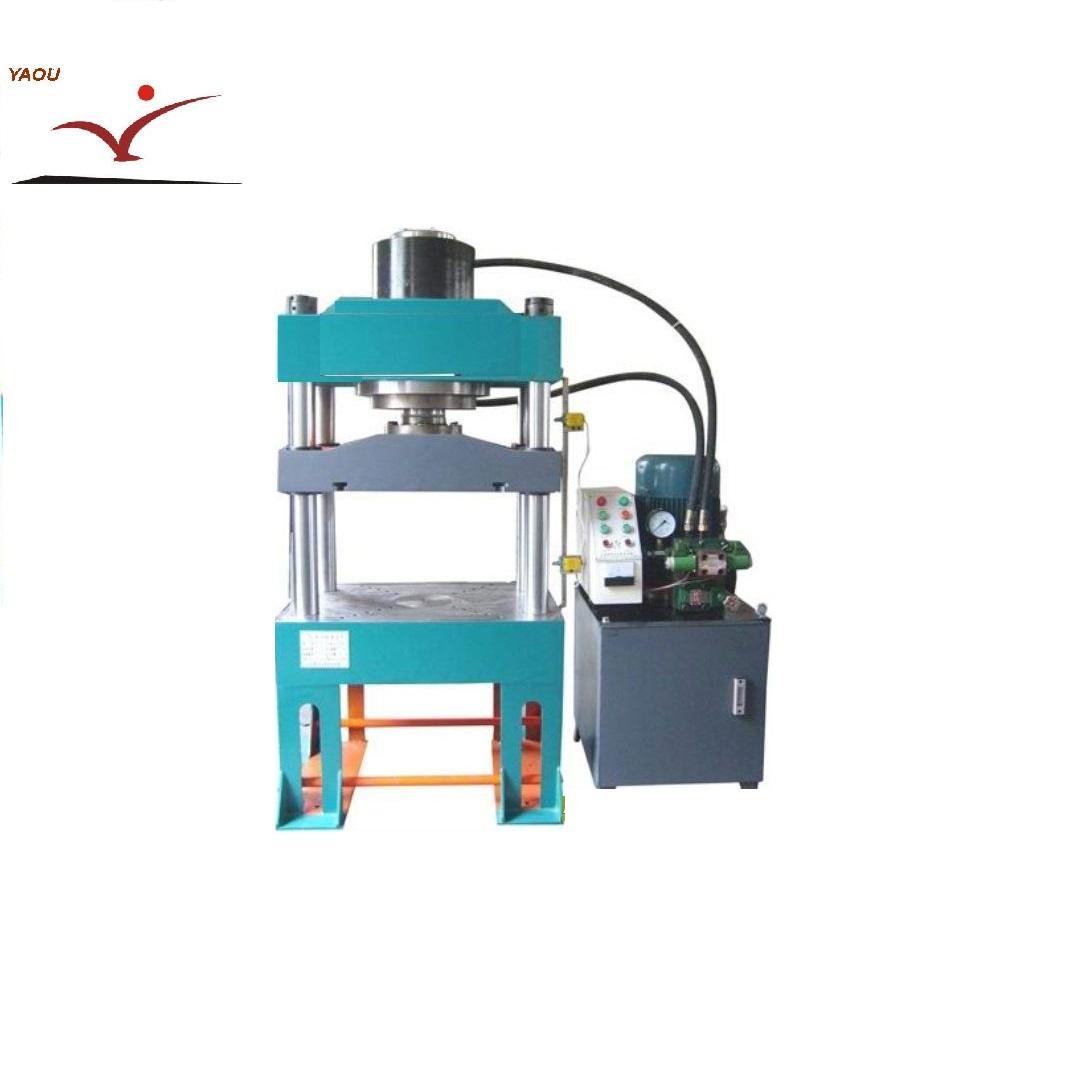

Four Column Sheet Stretching Hydraulic Press machine 2

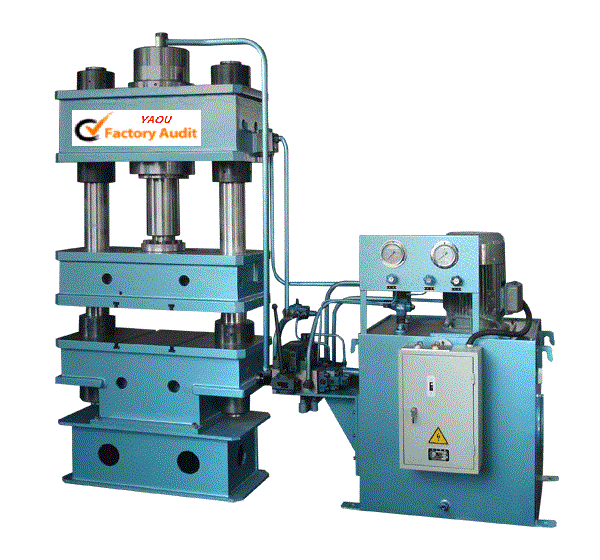

Four Column Sheet Stretching Hydraulic Press machine 3

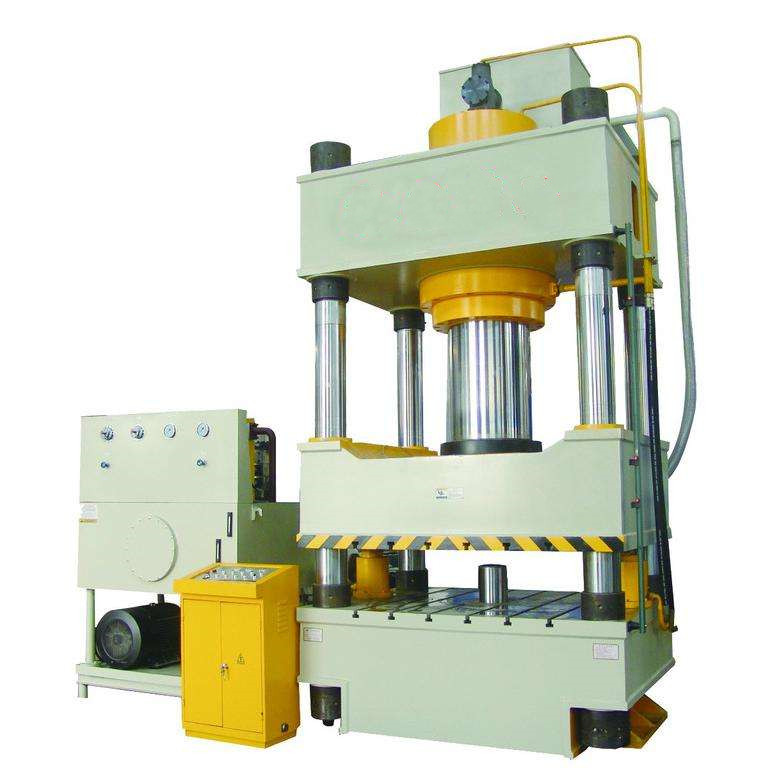

Four Column Sheet Stretching Hydraulic Press machine 4
