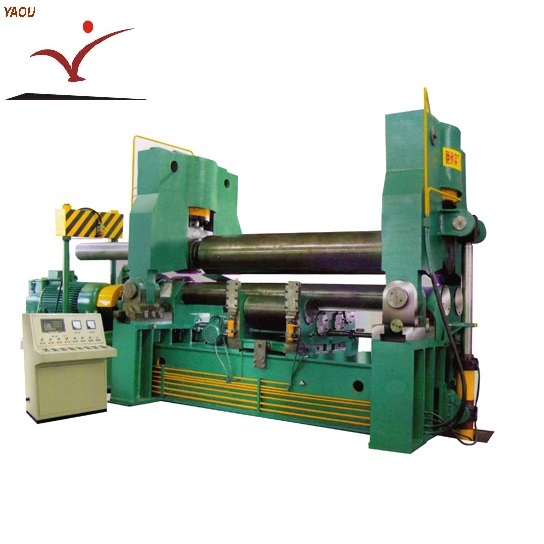

Upper roller omnipotent universal plate rolling machine

Description

Argument

Products Description

Overview

Product Attributes

Model No.: W11S

Brand: YAOU

Material / Metal Processed: Carbon Steel

Max. Working Length (mm): 3200 Mm

Max. Plate Thickness (mm): 6 Mm

Video Outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: New Product 2020

Warranty Of Core Components: 1 Year

Core Components: Motor

No. Of Roller: 3

Condition: New

Brand Name: Yaou

Automation: Automatic

Extra Services: Machining

Certification: Iso 9001:2000

Year: 2020

Machine Type: Roller-Bending Machine

Key Selling Points: Multifunctional

Warranty: 1 Year

After-sales Service Provided: Video Technical Support, Engineers Available To Service Machinery Overseas

After Warranty Service: Video Technical Support, Field Maintenance And Repair Service

Applicable Industries: Manufacturing Plant, Machinery Repair Shops

Local Service Location: Malaysia, Morocco, Uae, Kazakhstan, Ukraine, Uzbekistan, Indonesia, Pakistan, India, Mexico

Showroom Location: Uae, Kyrgyzstan

Raw Material: Sheet / Plate Rolling

Power: Cnc

Machinable Material: Stainless Steel

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Core Component Warranty Period: 1 Year

Number Of Rollers: 2

Old And New: New

Place Of Origin: China

Degree Of Automation: Automatic

Additional Features: Machining

Core Selling Point: Sustainable

Warranty Period: 2 Years

Out-of-warranty Service: Video Technical Support

Applicable Industry: Manufacturing Plant, Machinery Repair Shops

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Uae, Ukraine, Kazakhstan, Egypt, Uzbekistan

Showroom Location (in Which Countries Are There Sample Rooms Overseas): Uae, United Kingdom, Malaysia

Rolling Speed (m/min): 6.46 – 7.16

Place Of Origin: Jiangsu, China

Weight (KG): 7200 Kg

Motor Power (kw): 11 Kw

Supply Ability & Additional Information

Packaging: export standard packing for W11S Upper roller omnipotent universal plate rolling machine

Productivity: 10

Transportation: Ocean,Land,Air

Place of Origin: CHINA

Supply Ability: 10

Certificate: ISO

HS Code: 8455109000

Port: SHANGHAI

Payment Type: L/C,T/T

Incoterm: FOB

Packaging & Delivery

Selling Units:: Set/Sets

Package Type:: export standard packing for W11S Upper roller omnipotent universal plate rolling machine

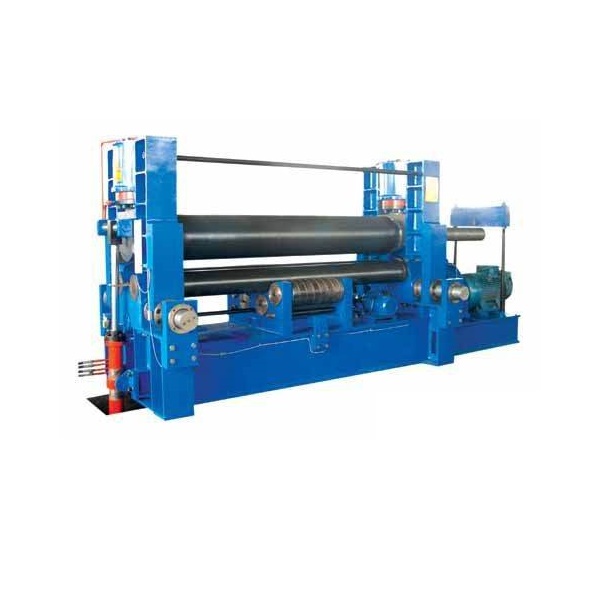

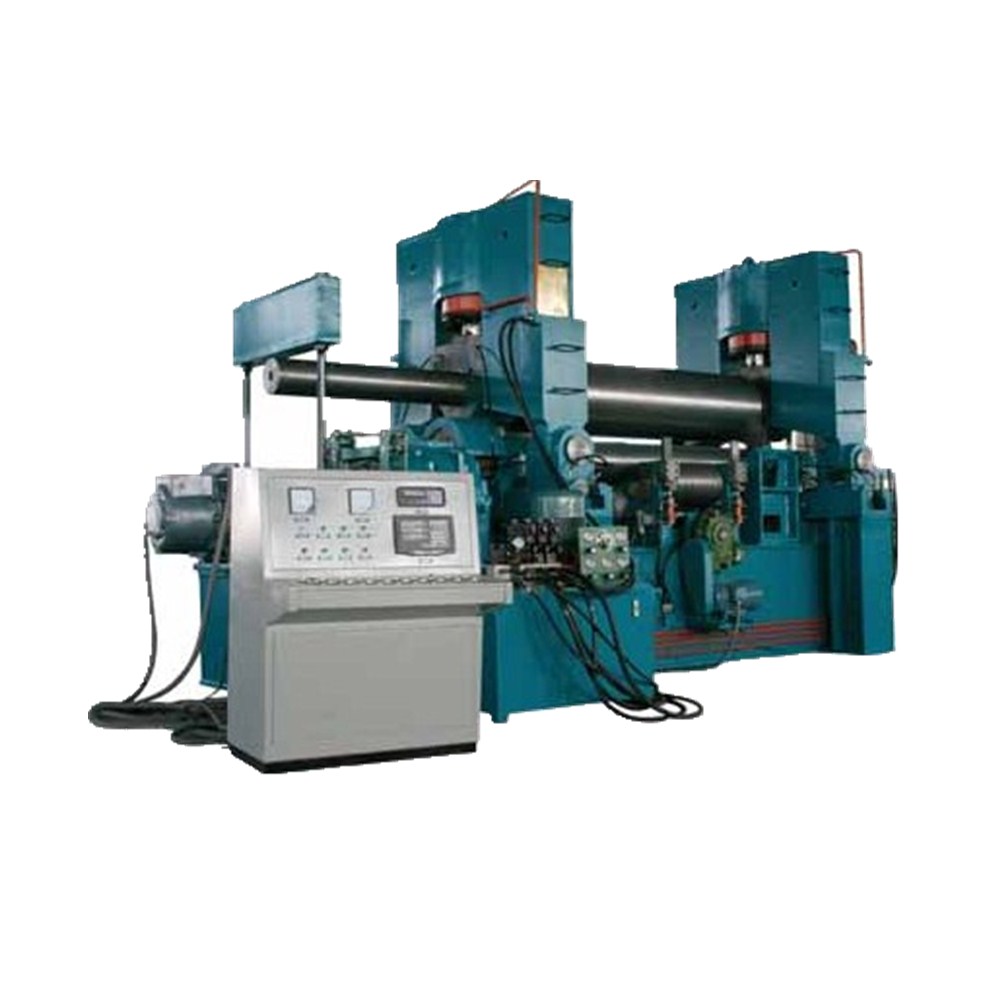

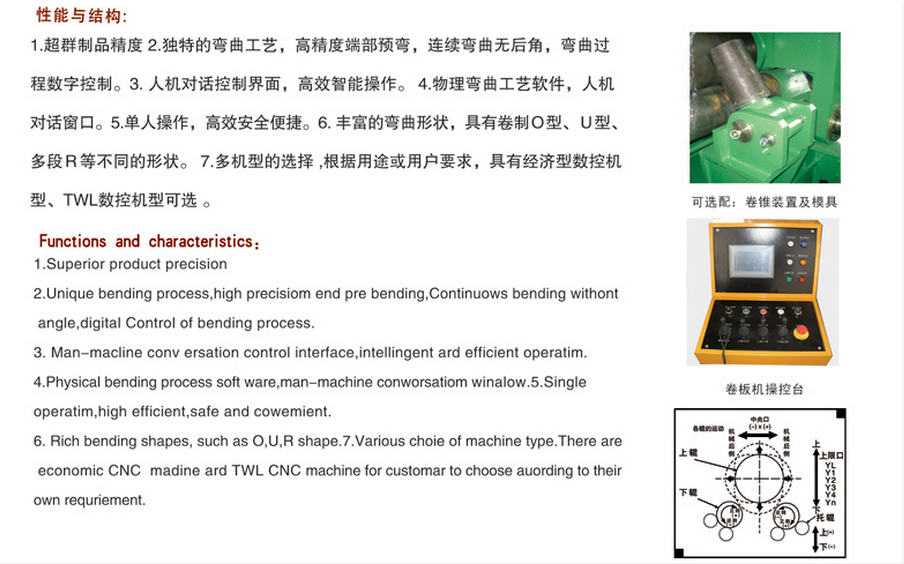

Product Description
Main of the machine is consist of Upper roller, Lower roller and level moving, Carrier roller, Main driving device, Overset device, Left and Right frames, Base pallet, Balance device.
W11S series upper roller universal Rolling Machine can pre-bending and rolling to proceed the plate, with high rolling precision, no need to use any subsidiary equipment, less investment.
This machine is hydraulic three rollers machine, it used to roll the low carbon steel (such as Q235-B,20g,20R), and Low alloy steel to cycle shape in normal temperature.
The upper roller can be moved horizontal and level.
When cycle, to bring two lower rollers running through motor and reducer.
Because the standard height of lower roller is unchanged, it is convenience to feeding and operating.
Using environment of the machine:temperature-5~40°C;wet≤80%;
Note: When this equipment is rolling the Cone tube, it is 1/3 of the symmetric capable( if need cone device, should add extra cost)
3-1 ,Upper roller
Upper roller is made up with Main oil cylinder, Bearing set of up roller, Upper roller, Double lines shafts and so on.
Two oil cylinders offer the pressure for rolling the plate. And main working pressure is 19.5 MPa .
The material of upper roller is 42CrMo, adopts HB260~300 (roughing processing), intermediate frequency quench.
3-2,Bottom roller and horizontal move device
Bottom roller includes bottom roller, bearing set of bottom roller, bottom input gear, bottom slide bearing and so on.
The material of lower roller is 45#steel, adopts HB260~300.
The horizontal move motor offers the power for the horizontal move device. And the upper roller is driven to roll by worm gear worm bearing box, worm gear worm bearing, and screw nut system, with lower roller, to roll the steel plate with asymmetric rolling.
Bottom roller’s main transmission offers power by output and input gears and open type transmission torque to bottom rollers.
3-3 ,Carrier roller
Carrier roller includes carrier roller, bearing seat and so on.
Its material is 45#steel, with remembering treatment and heat treatment of HB190-220. Surface hardness of it is lower than the button roller.
There are four rollers, one unit. We can adjust them up and down according to the plate’s burden. If you find the gap between the two edges of the rolling plate is too big, then the carrier roller needs to be adjusted up.
3-4 ,Main driving device
It includes main motor, triangle belt, column gear reduction box, electric-hydraulic driver and so on.
Main motor can normal and obverse run. And it provides power for rolling plate. Hydraulic braking device is dependably and with high precision.
3-5 ,Overset device
It includes overset cylinder and so on. Oversets device is easy for taking out the working pieces along the side of the roller axis.
3-6 ,Fix, frame of overset side and basic plate
Frame of fixed and overset side, basic plate are all of welded steel plate. After welding, it can get rid of stress.
The frame of fixed and overset sides is used for installing the main oil cylinder.

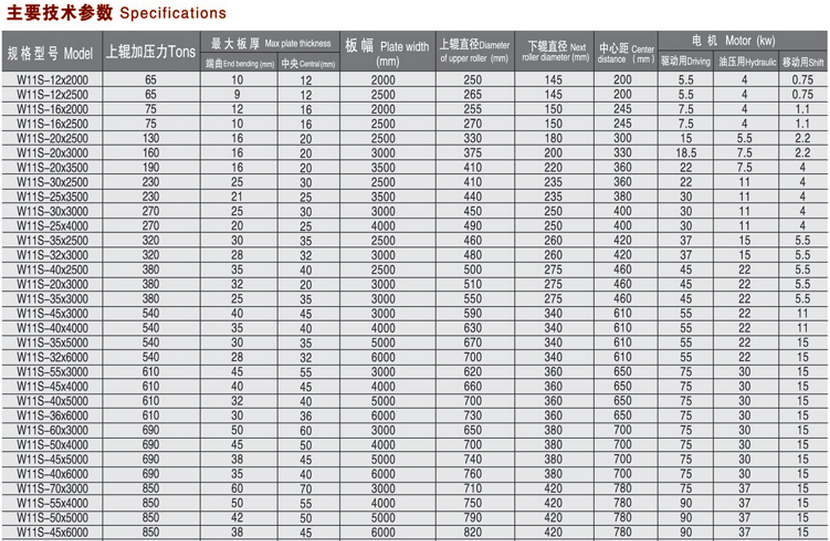

Specification And type	Roll-plate Max Thickness	Roll-plate Max Wldth	Plate Yielding Limit	Roll plate Speed	Full load roll-made steelplate mindiameter	Up-axle Diameter	Low-axle Diameter	Two-low-axle Diameter	Motor power	Over Size (LBH)
Specification And type	(mm)	(mm)	(Mpa)	(mmin)	(mm)	(mm)	(mm)	(mm)	(KW)	(mm)
W11-6*1500	6	1500	245	7.16	380	180	160	210	5.5	331012101330
W11-6*2000	6	2000	245	7.16	380	180	160	210	5.5	381012101330
W11-6*2500	6	2500	245	7.16	500	190	170	260	7.5	431081210*1330
W11-6*3200	6	3200	245	6.46	500	240	200	310	11	520014001200
W11-8*2000	8	2000	245	7.16	450	190	170	260	7.5	381012101330
W11-8*2500	8	2500	245	6.46	500	240	200	310	11	450014201610
W11-12*2000	12	2000	245	6.46	500	240	200	310	11	405014201610
W11-12*2500	12	2500	245	5	750	260	220	330	11	500015001300
W11-12*3000	12	3000	245	5	750	280	240	360	15	550015001300
W11-16*2000	16	2000	245	5	750	260	220	330	11	450015001300
W11-16*2500	16	2500	245	5	750	280	240	360	15	500015001300
