Products Description
Model No.: YXM-13
Warranty Period: 3 Years
Certification: Gs, Api
Power: 710w
Support Customization: Oem
Place Of Origin: China
Power Source: Hydraulic
Application: Auto
Voltage: 12v
Warranty: 1 Year
Condition: New
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Place Of Origin: Jiangsu, China
Applicable Industries: Energy & Mining
Material: Carbon Steel
Processing Type: Casting
Machine Type: Drilling Equipment
Showroom Location: Egypt, Uae, Uzbekistan
Brand Name: Rsyaou
Use: Oil Drilling Rig
Type: Hydraulic Support
Local Service Location: Egypt, United States, France, Mexico, Russia, Morocco, Uae, Kazakhstan, Kyrgyzstan, Uzbekistan, Tajikistan
Packaging: Standard export packing
Productivity: 10
Transportation: Ocean,Land,Air,Express
Place of Origin: CHINA
Supply Ability: 50
HS Code: 8425399000
Port: SHANGHAI
Payment Type: L/C,T/T,D/P,D/A
Incoterm: FOB,CFR,CIF,EXW
- Selling Units:
- Set/Sets
- Package Type:
- Standard export packing
The rotary cathead is widely used to tighten or loosen joint in drilling and service operation. It also is applicable for hauling
and lifting weight. The cathead is hydraulically driven and braked. It feathers high start torque, stable running, low noise, safe and reliable. The cathead is designed and manufactured according to API Spec 7K “Specification for Drilling Equipment”…
|
Model
|
|
YXM-2
|
YXM-5
|
YXM-13
|
YXM-10/3
|
|
|
|
|
|
|
|
|
|
Secondary drum
|
|
|
|
|
Flow rating
|
L/min
|
40
|
120
|
120
|
120
|
|
120
|
|
|
|
gpm
|
10.6
|
31.7
|
31.7
|
31.7
|
|
31.7
|
|
|
Pressure rating
|
MPa
|
16.6
|
16.6
|
16.6
|
16.6
|
|
20
|
|
|
|
psi
|
2400
|
2400
|
2400
|
2400
|
|
2900
|
|
|
Pull rating
|
kN
|
20
|
50
|
130
|
30
|
100
|
30
|
180
|
|
|
US ton
|
2.2
|
5.5
|
14.3
|
3.3
|
11
|
3.3
|
19.8
|
|
Average rope speed
|
m/min
|
30
|
42
|
14
|
65
|
15
|
54
|
10.8
|
|
|
ft/min
|
98
|
137
|
46
|
212
|
49
|
176
|
35
|
|
Wire rope diameter
|
mm
|
10
|
18
|
24
|
25.4coir rope
|
24
|
25
|
25
|
|
|
in
|
3/8
|
23/32
|
15/16
|
1
|
15/16
|
1
|
1
|
|
Rope storage
|
m
|
15
|
50
|
40
|
50
|
40
|
12
|
20single
|
|
|
ft
|
49
|
164
|
131
|
164
|
131
|
39
|
65.5
|
|
Size
|
mm
|
580*400*430
|
878*560*600
|
1120*730*750
|
1072*580*618
|
|
1780*1280*1220
|
|
|
|
in
|
23*16*17
|
34.5*22*23.5
|
44*29*29.5
|
42*23*24
|
|
70*50*48
|
|
|
Weight
|
kg
|
160
|
280
|
400
|
800
|
|
2484
|
|
|
|
lb
|
353
|
617
|
882
|
1764
|
|
5477
|
|
Transportation is based on customers in different regions using steam, rail, road and air transportation.
Our company mainly deals in Hardware Tools, combined tools, electric tools, Special Tools For Petroleum, Metal Processing Machinery and petroleum drilling equipment. Diagonal Cutting Plier，Oil Drill Pipes，Drilling Tools，Diesel Engine Etc.Our companyoperates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost)
2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machineQ1. How to get an accurate quotation?.
Rugao Yaou Import & Export Co. LTD was established in 2004, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.
Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. Our company also operates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.
Tags:
Technical parameter

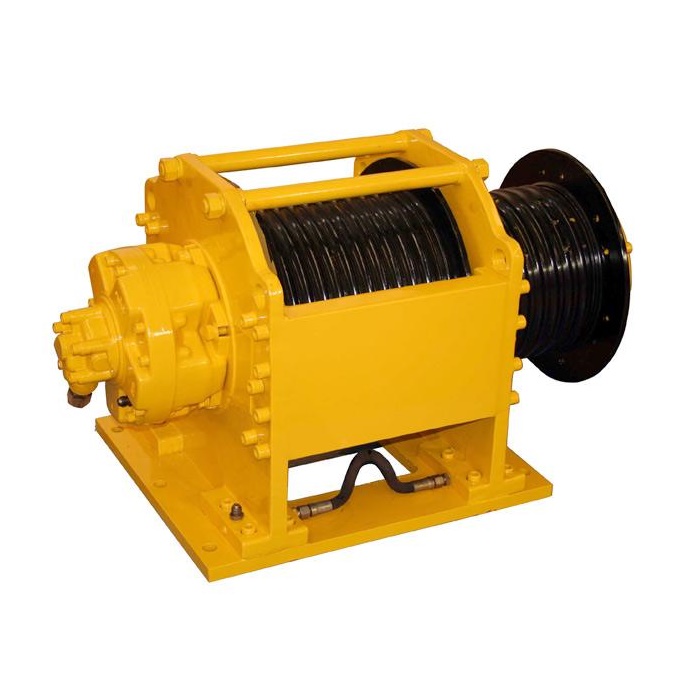

Rotating hydraulic cat head Used in mines ships 1

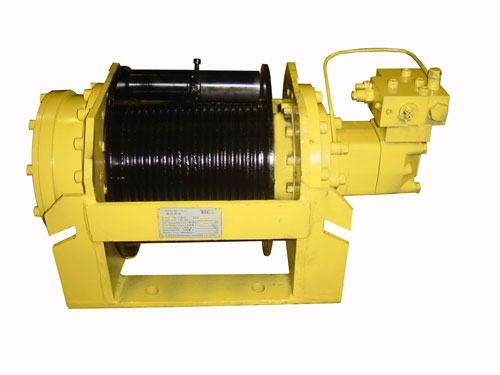

Rotating hydraulic cat head Used in mines ships 2

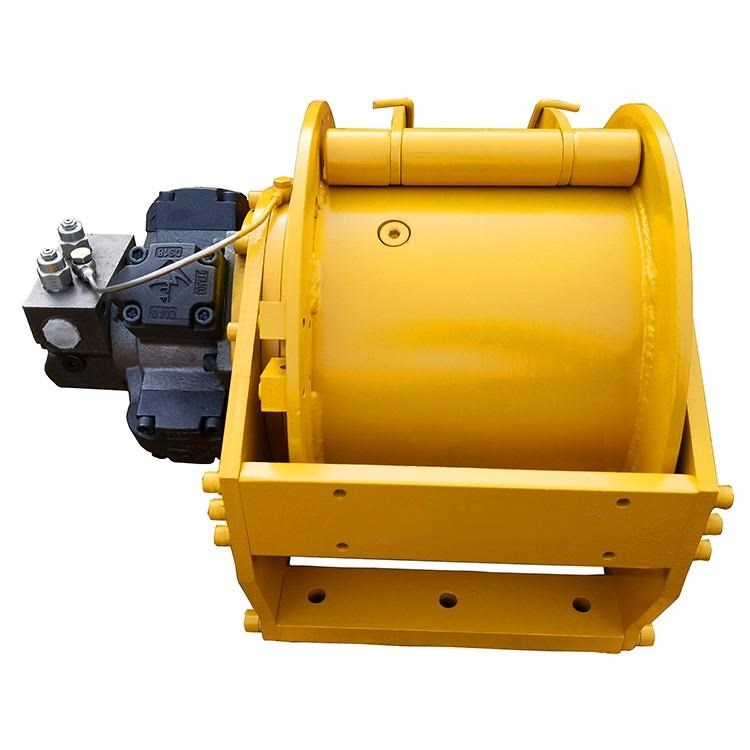

Rotating hydraulic cat head Used in mines ships 3

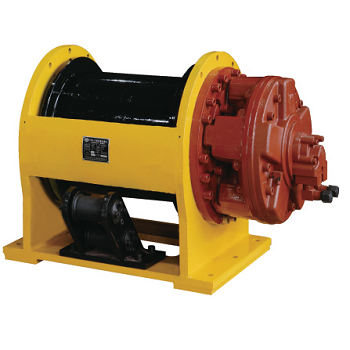

Rotating hydraulic cat head Used in mines ships 4

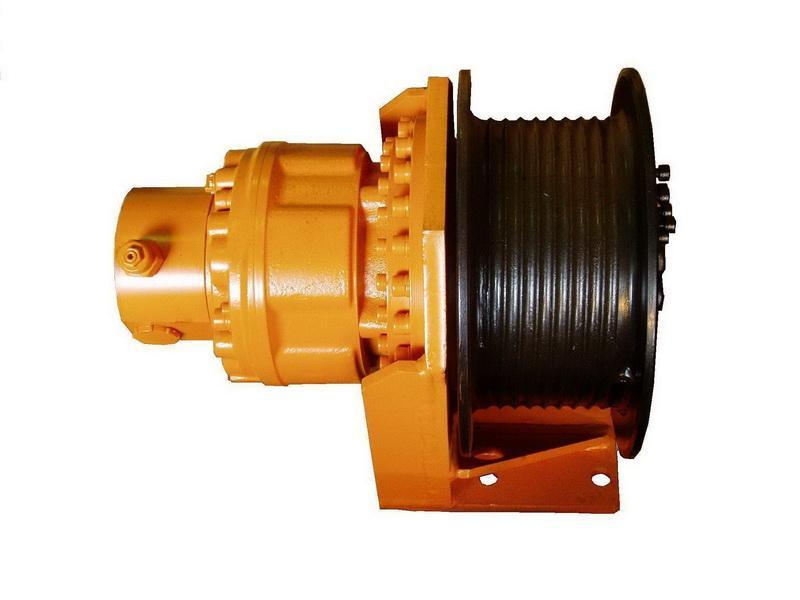

Rotating hydraulic cat head Used in mines ships 5
