Oilfield equipment API Different models of AIR WINCHES

Description

Argument

Products Description

Overview

Product Attributes

Model No.: QJ5B

Warranty Period: 3 Years

Certification: Gs, Api

Power: 710w

Support Customization: Oem

Place Of Origin: China

Power Source: Pneumatic

Application: Auto

Voltage: 24v

Place Of Origin: Jiangsu, China

Applicable Industries: Energy & Mining

Material: Carbon Steel

Machine Type: Drilling Equipment

Use: Well Drilling

Processing Type: Forging

Brand Name: Yaou

Type: Air Winches

Packaging & Delivery

Selling Units:: Set/Sets

Single package size:: 172cm*160cm*115cm

Single gross weight:: 890kg

Package Type:: export standard package

Lead Time :

Quantity（Set/Sets）	1	>1
Est. Time（days)	15	To be negotiated

If you finish the payment today, your order will ship out within the delivery date.

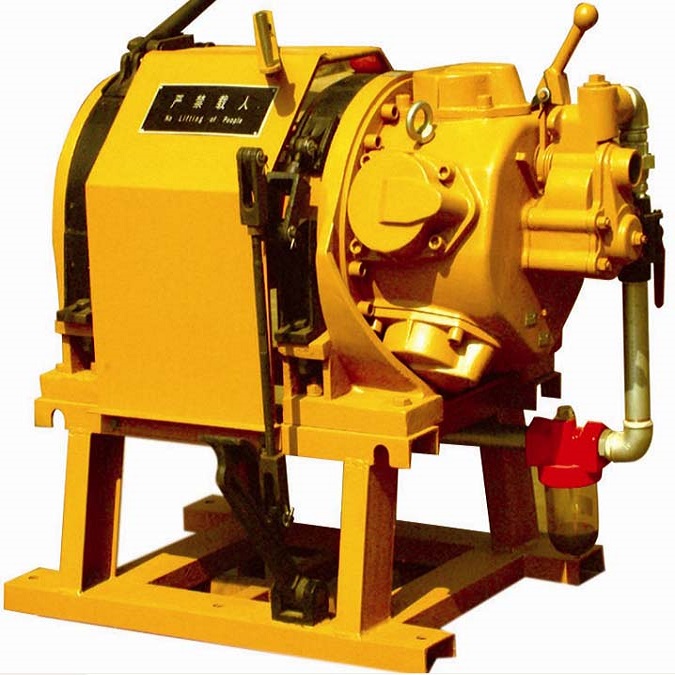

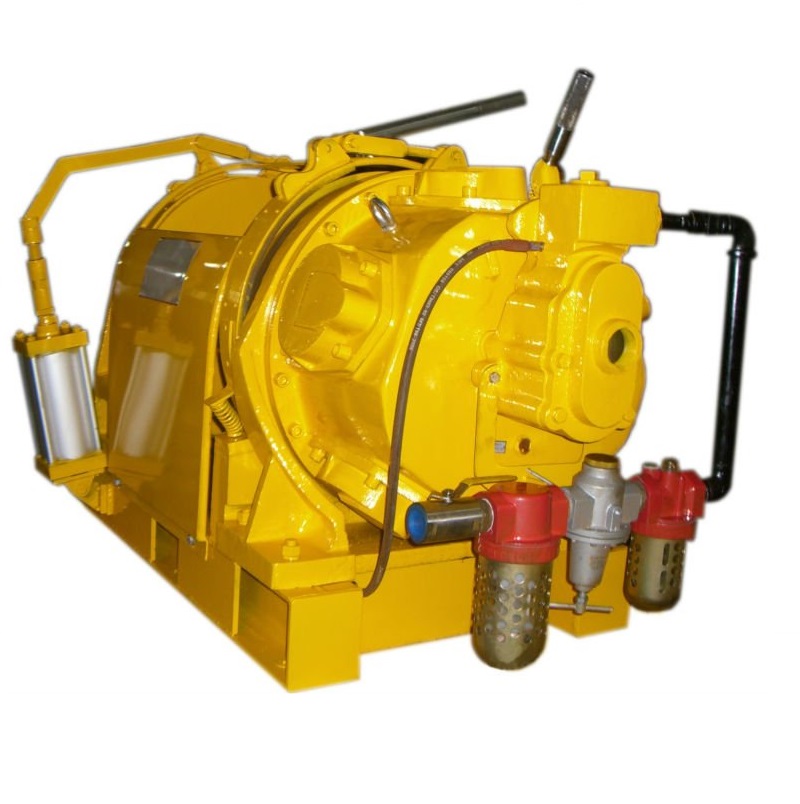

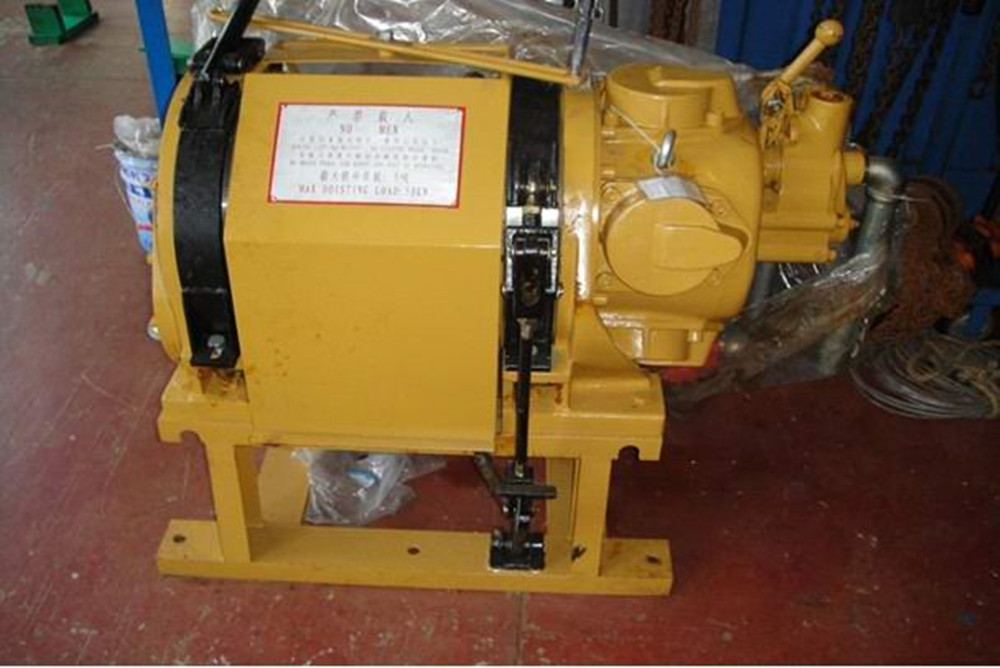

QJ5B AIR WINCHES

QJ series of air winches are powered by piston-type air motor. They have the advantages of compact structure, light weight, safe and easy to operate and they are used for general lifting, hauling and other works in mines, oil fields, on shipboards and etc. They are designed and manufactured according to API Spec 7K “Specification for Drilling Equipment”.

Model		QJL0.5/40(A)	QJ0.5/120(A)	QJ1/120(A)	QJ3/200(B)	QJ5/120(B)
Air Pressure	MPa	0.5-0.9
Air Pressure	psi	72-130
Max. Pull	kN	5	5	10	30	50
Max. Pull	US ton	0.55	0.55	1.1	3.3	5.5
Max. Line Speed	m/min	12	12	24	20	35
Max. Line Speed	ft/min	39.3	39.3	78.7	65.6	114.8
Rope Storage	m	40	120	120	200	120
Rope Storage	ft	131	393	328	656	230
Wire Rope Diameter	mm	8	8	11	15.875	15.875
Wire Rope Diameter	in	5/16	5/16	7/16	5/8	5/8
Size	mm	495365380	675343460	825343450	1340940985	1300940985
Size	in	19.514.315	2713.518	32.513.518	533739	513739
Weight	Kg	45	117	162	600	580
Weight	lb	100	258	358	1320	1280

The company provides a variety of hoisting winches, traction winches, Electric Winches, Hydraulic Winches, Pneumatic Winches, etc., which are widely used in mines, oil fields, ships, construction and other places.
The winch can be customized according to customer needs. Winch (0385) Our company mainly deals in Hardware Tools , combined tools, electric tools, Special Tools For Petroleum, Metal Processing Machinery and petroleum drilling equipment. Diagonal Cutting Plier，Oil Drill Pipes，Drilling Tools， Diesel Engine Etc.Our companyoperates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers
